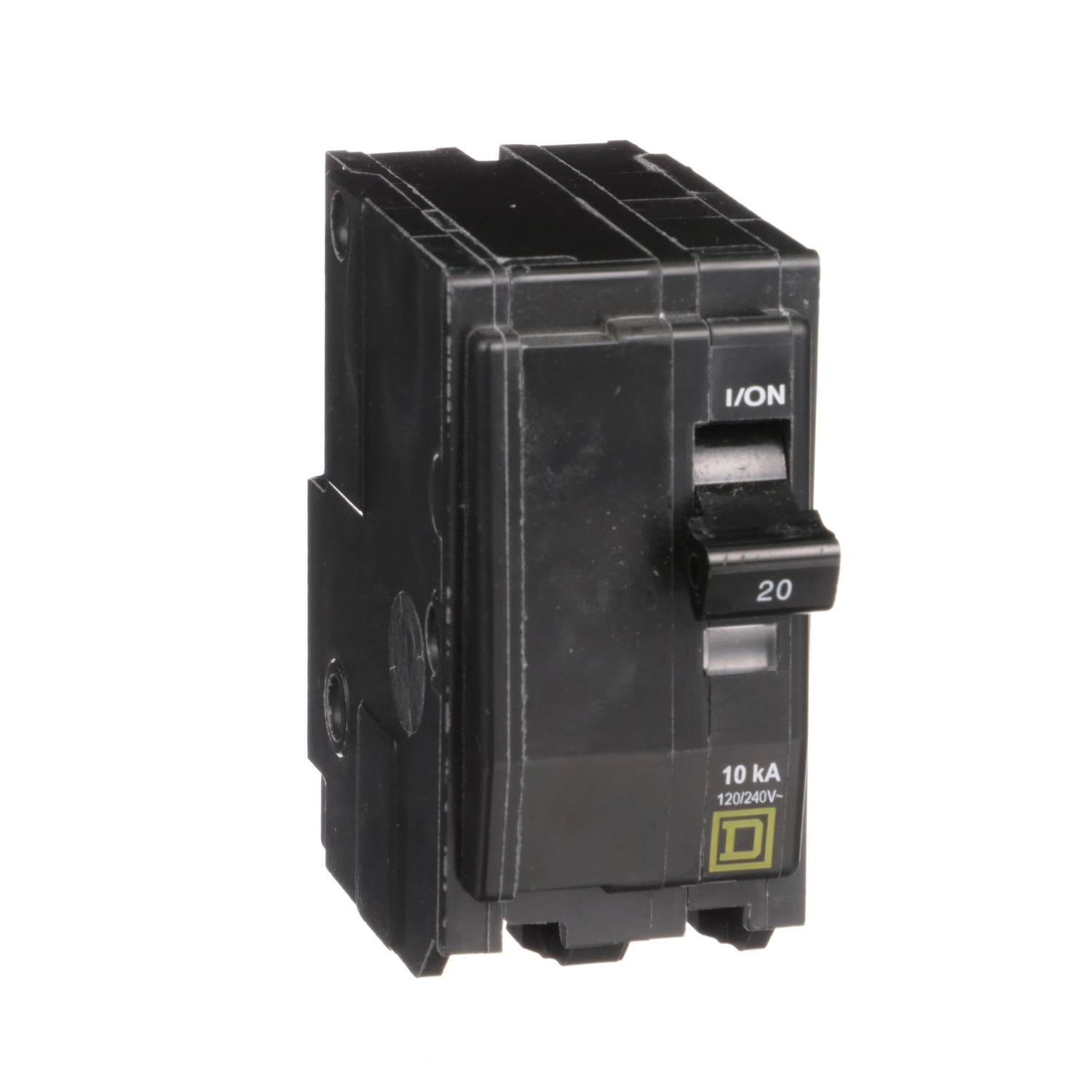

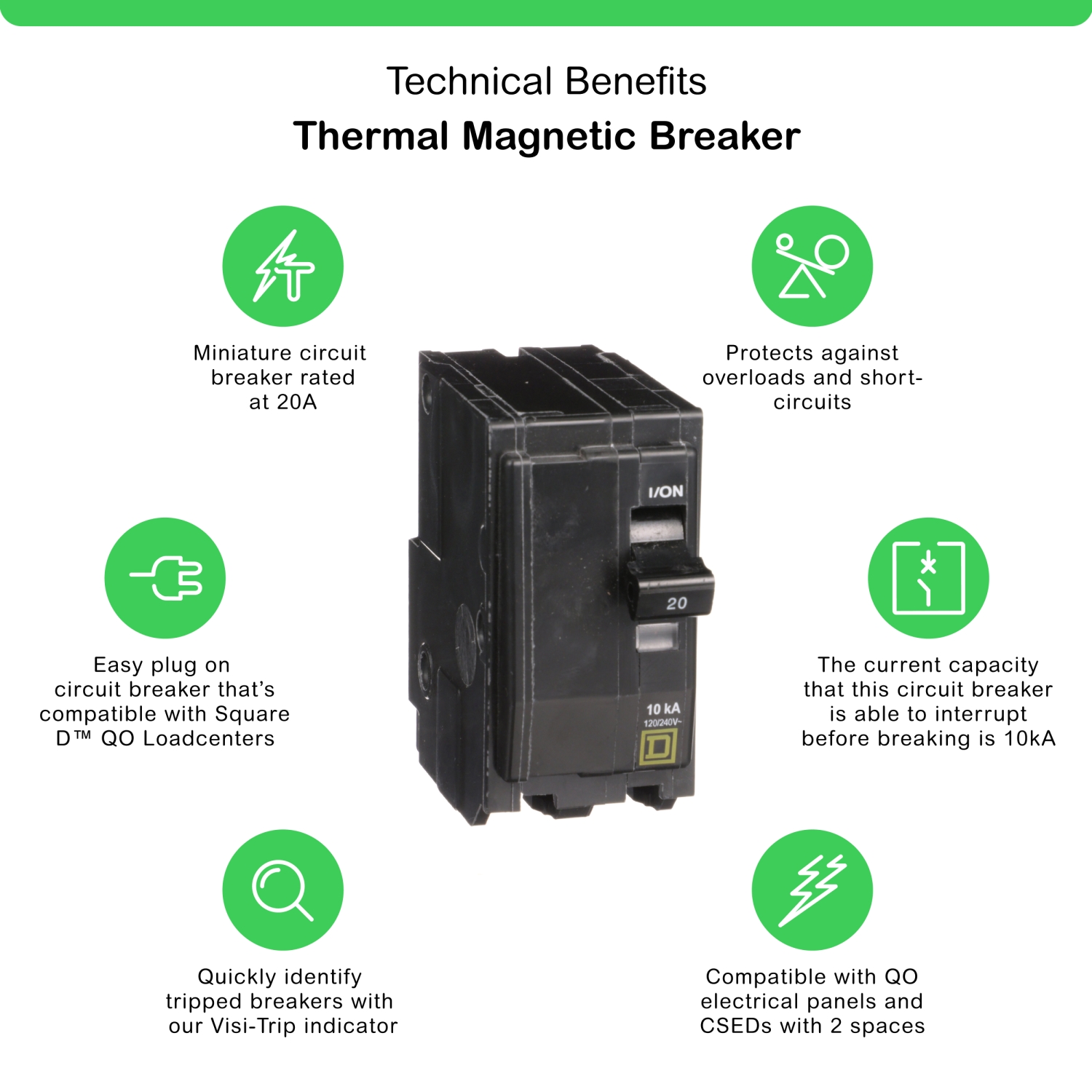

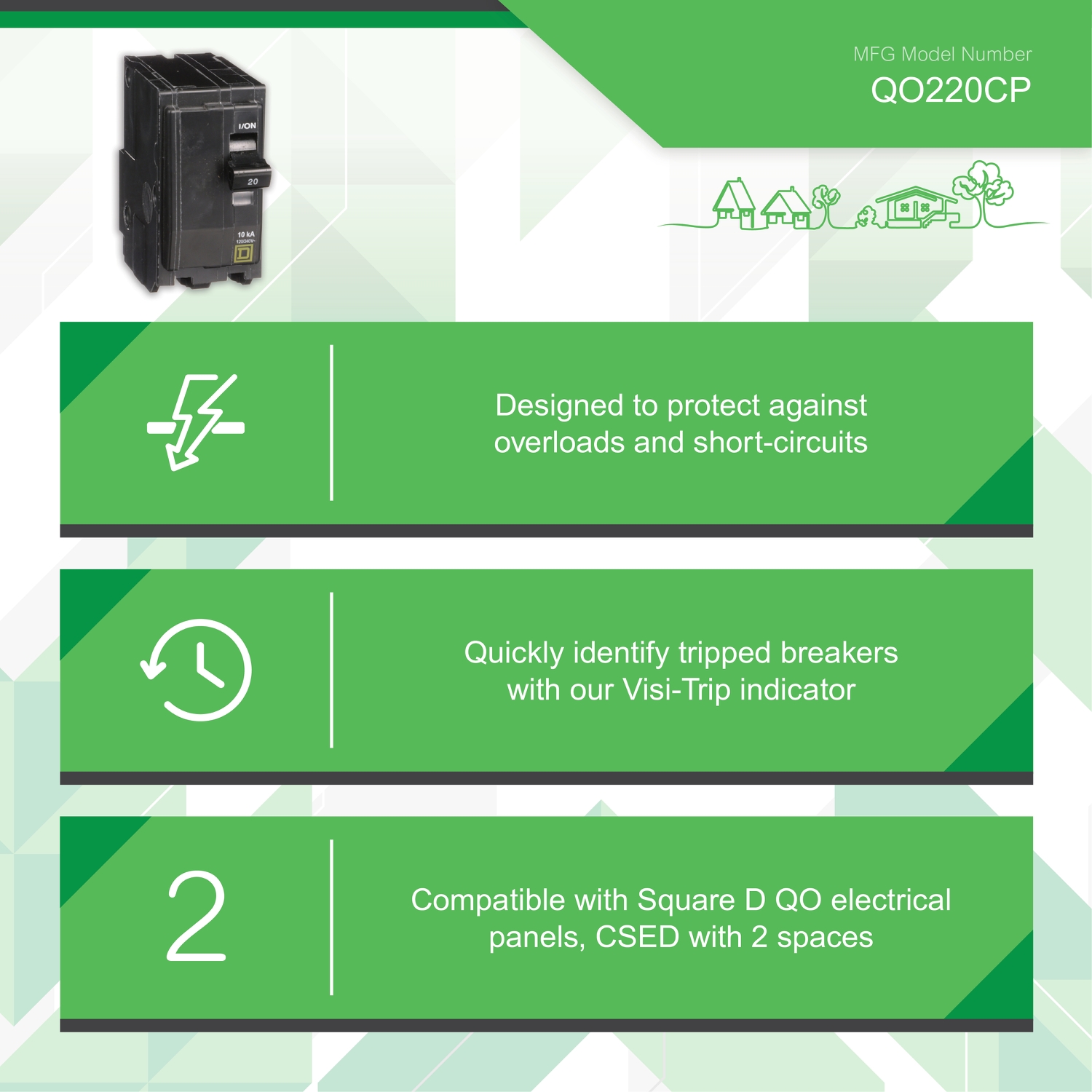

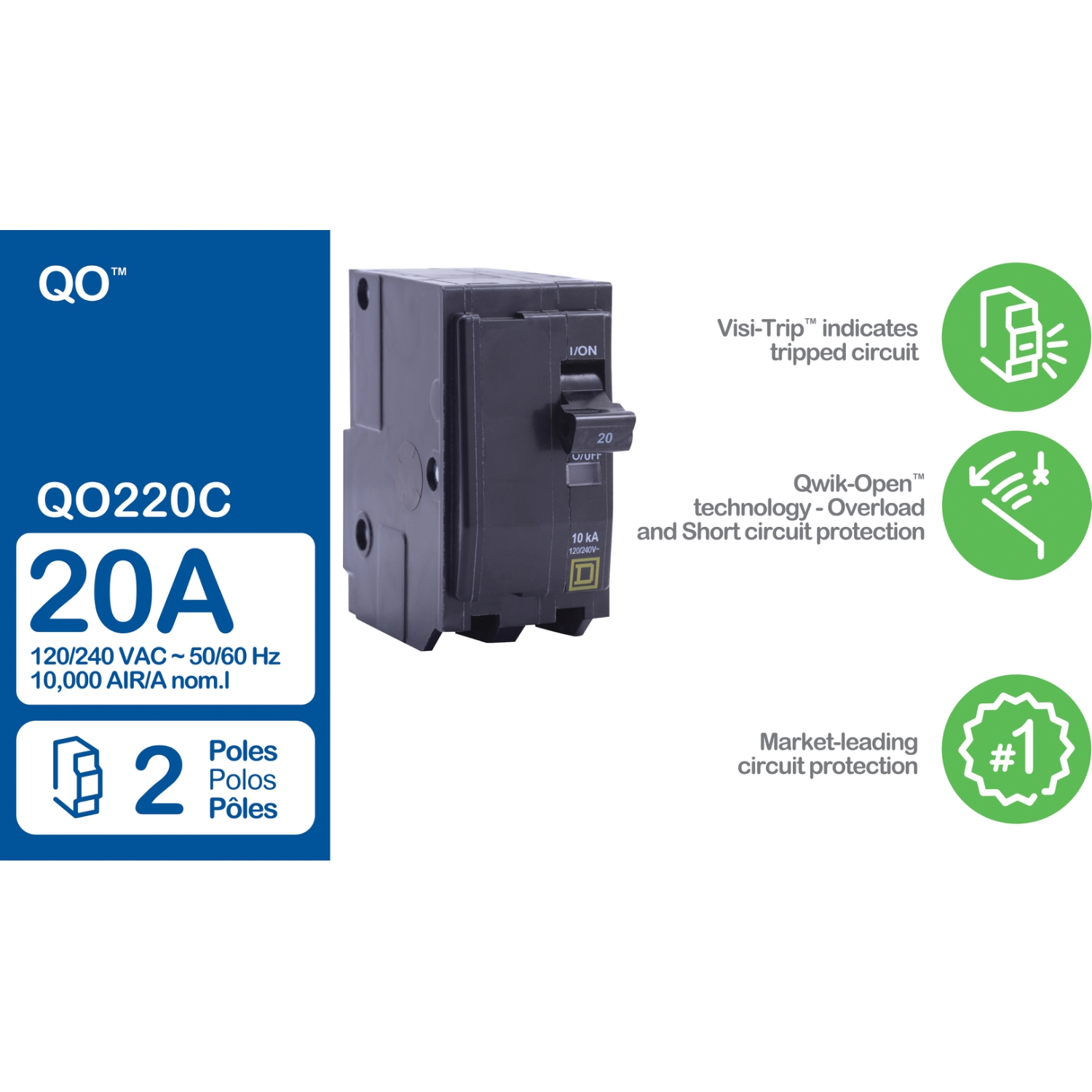

Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120/240 V AC
120 V AC

Mounting Type

Plug-in

Number of Poles

2P

Circuit Breaker Type

Standard

Ratings

HACR rated

Electrical Connection

Pressure plate

Interrupt Rating

10 kA 120/240 V AC
10 kA 120 V AC

Number of Panel Spaces

2

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening Torque

35.4 lbf.in (4 N.m)

Height

3.0 in (76 mm)

Width

1.5 in (38 mm)

Depth

2.9 in (74 mm)

Product Weight

0.500 lb(US) (0.227 kg)

Certifications

UL Listed
CSA

Ambient Rating

104 °F (40 °C)

Category

US1DE2A00004

Discount Schedule

DE2A

GTIN

785901400363

Returnability

Yes

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.50 in (3.81 cm)

Package 1 Width

3.300 in (8.382 cm)

Package 1 Length

3.0000000000 in (7.62 cm)

Package 1 Weight

8.007 oz (227 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

3.50 in (8.89 cm)

Package 2 Width

2.700 in (6.858 cm)

Package 2 Length

8.0000000000 in (20.32 cm)

Package 2 Weight

2.749 lb(US) (1.247 kg)

Unit Type of Package 3

CAR

Number of Units in Package 3

50

Package 3 Height

8.400 in (21.336 cm)

Package 3 Width

7.300 in (18.542 cm)

Package 3 Length

17.300 in (43.942 cm)

Package 3 Weight

28.0009 lb(US) (12.701 kg)

Compliance

TAA

Warranty

18 months
