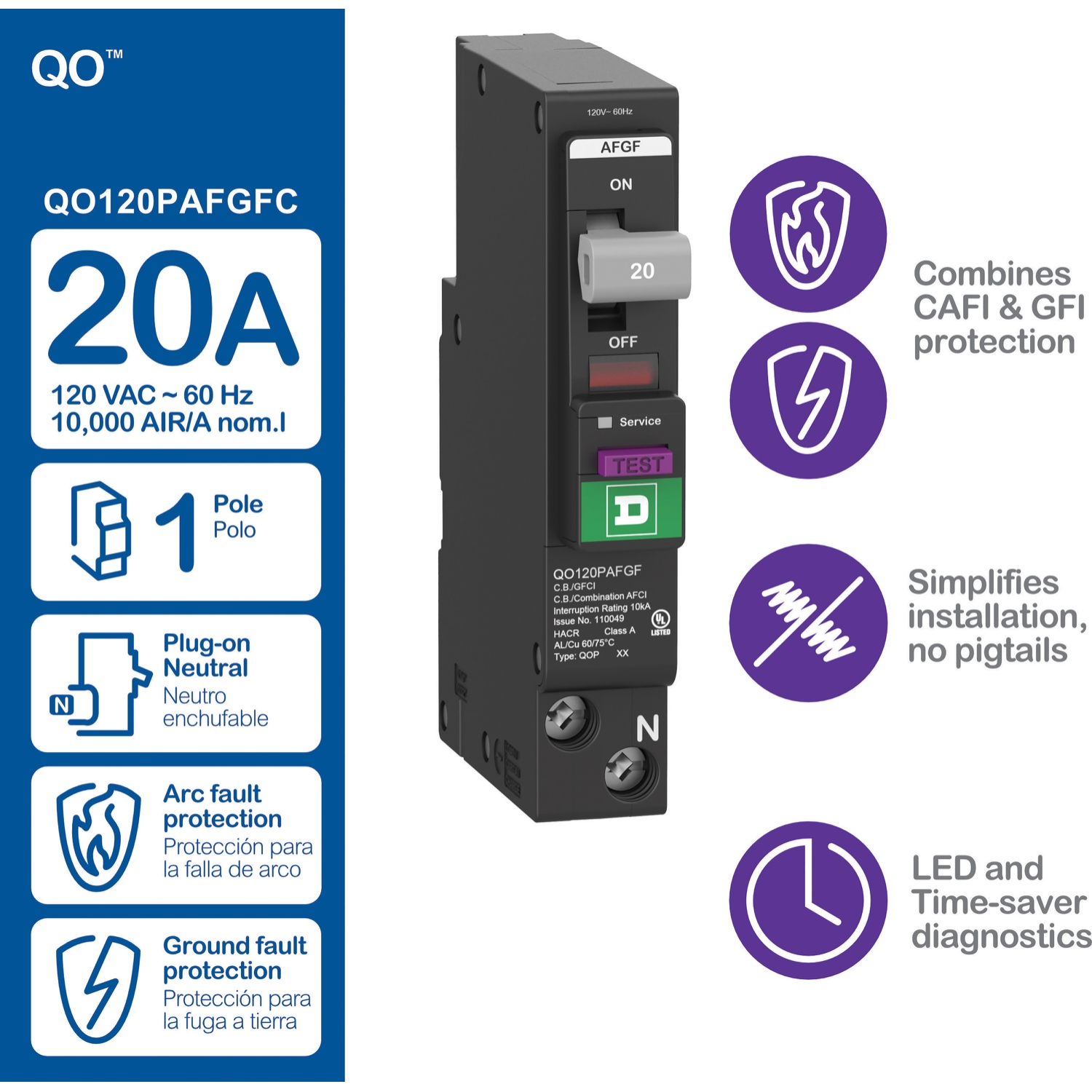

Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral [TAA]

Product

Miniature circuit-breaker

Range

QO

Current Rating

20 A

Voltage Rating

120 V AC

Mounting Type

Plug-in

Number of Poles

1P

Circuit Breaker Type

Combination ARC-fault
Ground fault protecting class A 6 mA

Ratings

HACR rated

Electrical Connection

Pressure plate

Connections Terminals

Plug-on neutral

Interrupt Rating

10 kA 120 V AC

Number of Panel Spaces

1

Wire Size

AWG 14...AWG 8 copper or aluminium

Tightening Torque

35.4 lbf.in (4 N.m)

Height

2.72 in (69.08 mm)

Width

0.75 in (19.05 mm)

Depth

4.10 in (104.14 mm)

Product Weight

0.351 lb(US) (0.159 kg)

Certifications

UL Listed

Ambient Rating

104 °F (40 °C)

Category

US1DE2A06303

Discount Schedule

DE2A

GTIN

785901779278

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.81 in (9.68 cm)

Package 1 Width

1.0000000000 in (2.54 cm)

Package 1 Length

4.19 in (10.63 cm)

Package 1 Weight

6.46 oz (183.25 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

57

Package 2 Height

20.69 in (52.55 cm)

Package 2 Width

3.8 in (9.7 cm)

Package 2 Length

13.62 in (34.6 cm)

Package 2 Weight

23.44 lb(US) (10.63 kg)
