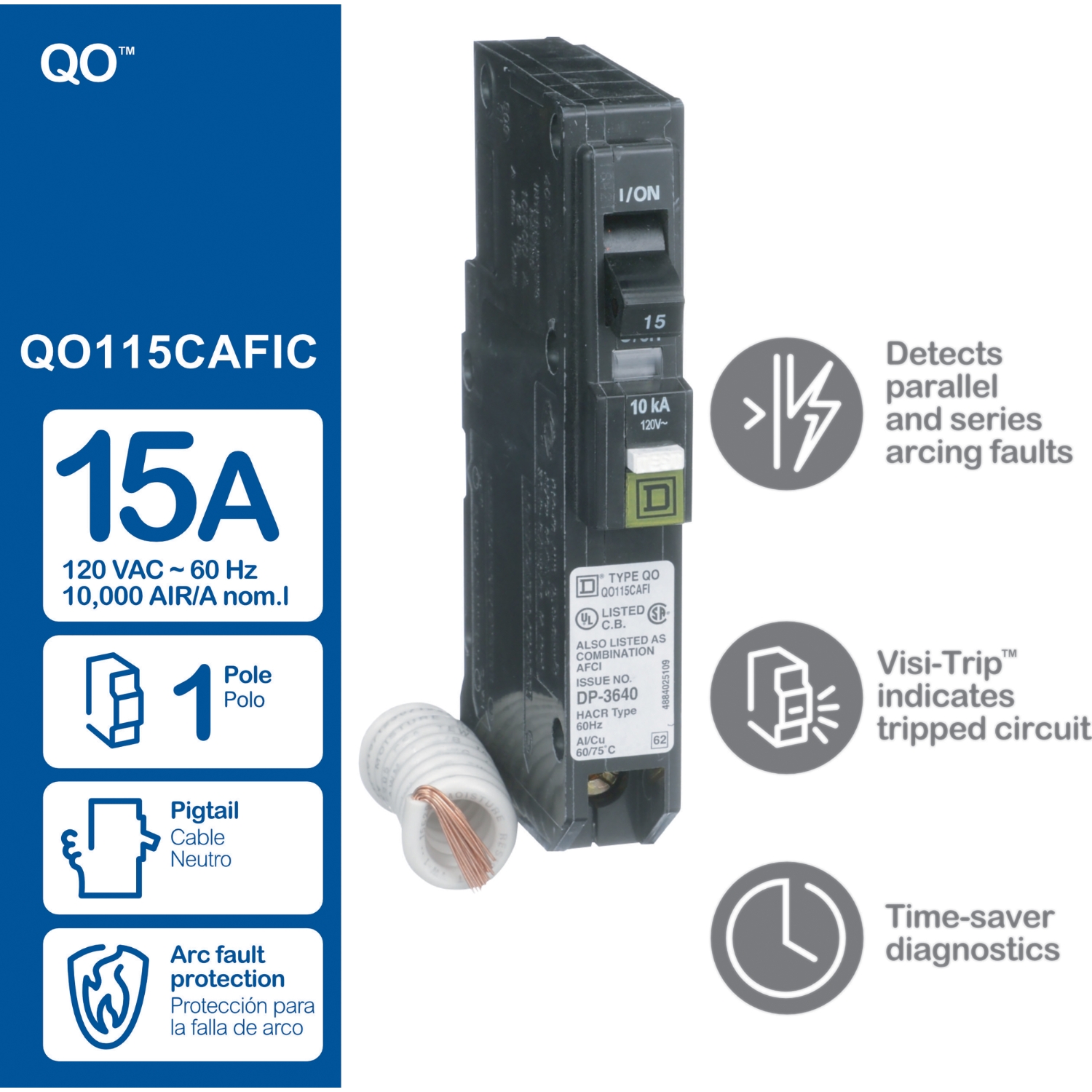

Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, pigtail
SKU: QO115CAFI
Main
Product
Miniature circuit-breaker
Range
QO
Current Rating
15 A
Voltage Rating
120 V AC
Mounting Type
Plug-in
Number of Poles
1P
Circuit Breaker Type
Combination ARC-fault
Ratings
HACR rated
Electrical Connection
Pressure plate
Connections Terminals
Pigtail neutral
Complementary
Interrupt Rating
10 kA 120 V AC
Number of Panel Spaces
1
Wire Size
AWG 14...AWG 8 copper
AWG 12...AWG 8 aluminium
Tightening Torque
35.4 lbf.in (4 N.m)
Height
4.8 in (121 mm)
Width
0.7 in (19 mm)
Depth
2.9 in (74 mm)
Net Weight
0.600 lb(US) (0.272 kg)
Environment
Certifications
UL Listed
CSA
Ambient Rating
104 °F (40 °C)
Ordering and shipping details
Category
US1DE2A06303
Discount Schedule
DE2A
GTIN
785901438236
Returnability
Yes
Country of origin
MX
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.40 in (3.56 cm)
Package 1 Width
3.7 in (9.4 cm)
Package 1 Length
5.40 in (13.72 cm)
Package 1 Weight
8.80 oz (249.48 g)
Unit Type of Package 2
CAR
Number of Units in Package 2
38
Package 2 Height
3.800 in (9.652 cm)
Package 2 Width
13.600 in (34.544 cm)
Package 2 Length
20.800 in (52.832 cm)
Package 2 Weight
22.787 lb(US) (10.336 kg)
Unit Type of Package 3
PAL
Number of Units in Package 3
1824
Package 3 Height
40.0 in (101.6 cm)
Package 3 Width
40.0 in (101.6 cm)
Package 3 Length
48.00 in (121.92 cm)
Package 3 Weight
1093.776 lb(US) (496.128 kg)
Contractual warranty
Warranty
18 months
Enter your zip code to see prices
Delivery of products may differ based on your Zip code

Provides superior circuit protection
Reliable and durable
Plug-on neutral design and shorter footprint for faster installs
