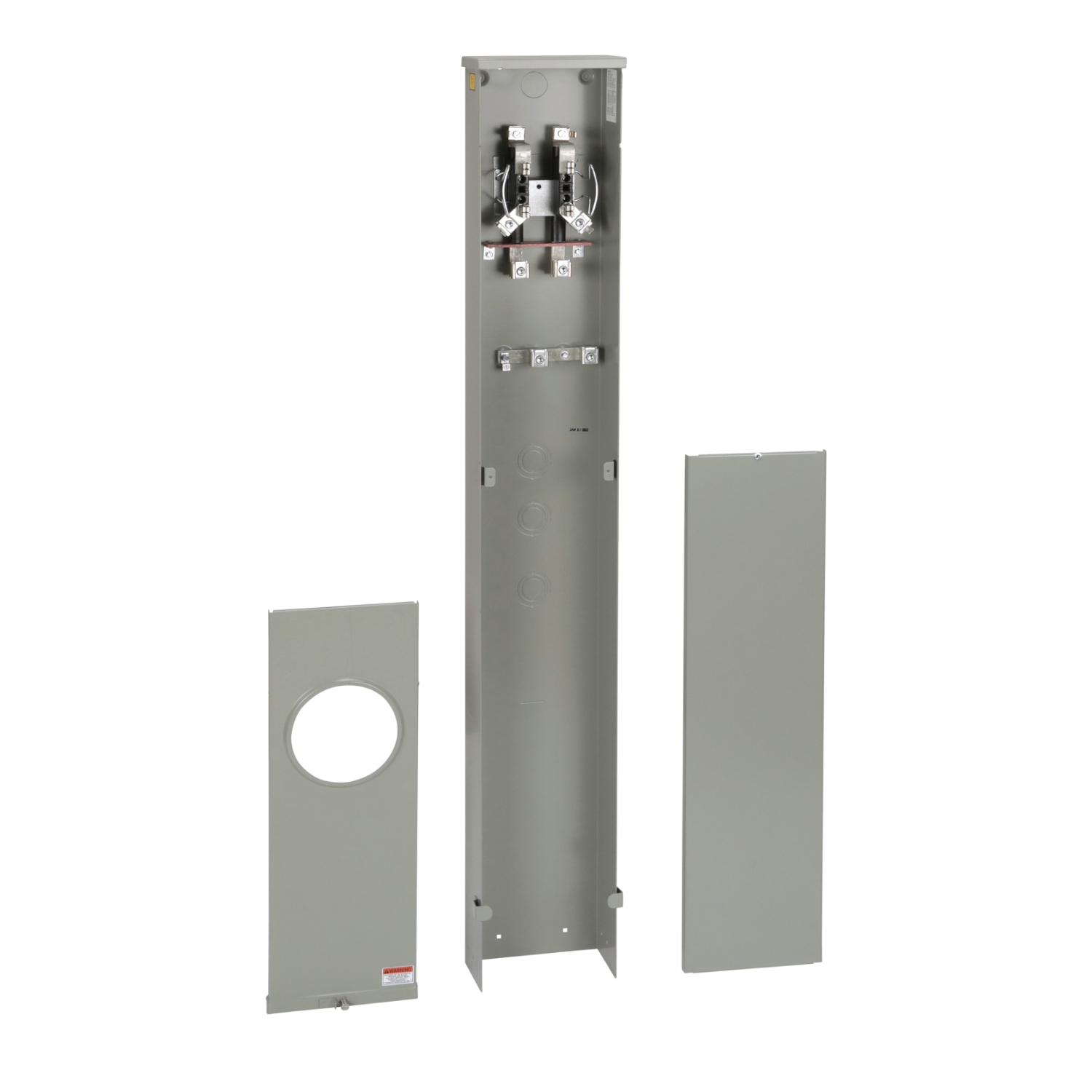

Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A, horn bypass, no jaw release

Product or Component Type

Meter Socket

Meter socket type

Ringless

Hub type

A ACP closing plate

Meter socket rated current

200 A

Number of jaws

4 without jaw release

Bypass type

Horn bypass

Phase

1 phase

[Ue] rated operational voltage

<= 600 V AC

Enclosure Material

Steel

Electrical connection

Lugs 0.5" hex

Service feed location

UG

Wiring configuration

3-wire

device mounting

Surface

AWG gauge

AWG 8...350 kcmil

Product Certifications

ANSI
UL Listed

Enclosure Rating

NEMA 3R

Category

US10DE400039

Discount Schedule

0DE4

GTIN

785901213086

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.4 in (16.3 cm)

Package 1 Width

9.5 in (24.1 cm)

Package 1 Length

63.7 in (161.8 cm)

Package 1 Weight

45.999 lb(US) (20.865 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

28

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

36.00 in (91.44 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

1287.999 lb(US) (584.226 kg)

Warranty

18 months
