Meter mains, QO, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass

Product or Component Type

Meter Mains

Range of Product

QO

Line Rated Current

200 A

Short-circuit current

22 kA

Network number of phases

1

Meter socket type

Ringless

Mounting

Surface

Number of spaces

8

Number of circuits

16

Number of Tandem Breakers

8

hub type

A

Electrical connection

Feed-thru lugs, line side
Feed-thru lugs, service ground

Wire Size

AWG 6...350 kcmil aluminium/copper)line side
AWG 12...AWG 2/0 aluminium/copper)service ground

Tightening torque

Main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper
Service ground 50 lb.in, AWG 14...AWG 2/0, copper
Service ground 50 lb.in, AWG 12...AWG 2/0, aluminium
Branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper
Branch lugs 25 lb.in, AWG 8, aluminium/copper
Branch lugs 20 lb.in, AWG 14...AWG 10, copper
Branch lugs 20 lb.in, AWG 12...AWG 10, aluminium
Cover 10 lb.in

Disconnect

Service disconnect (factory installed)

Main Breaker Rating

200 A

Branch Breaker Rating

200 A

Service feed location

OH
UG

Bypass type

No bypass

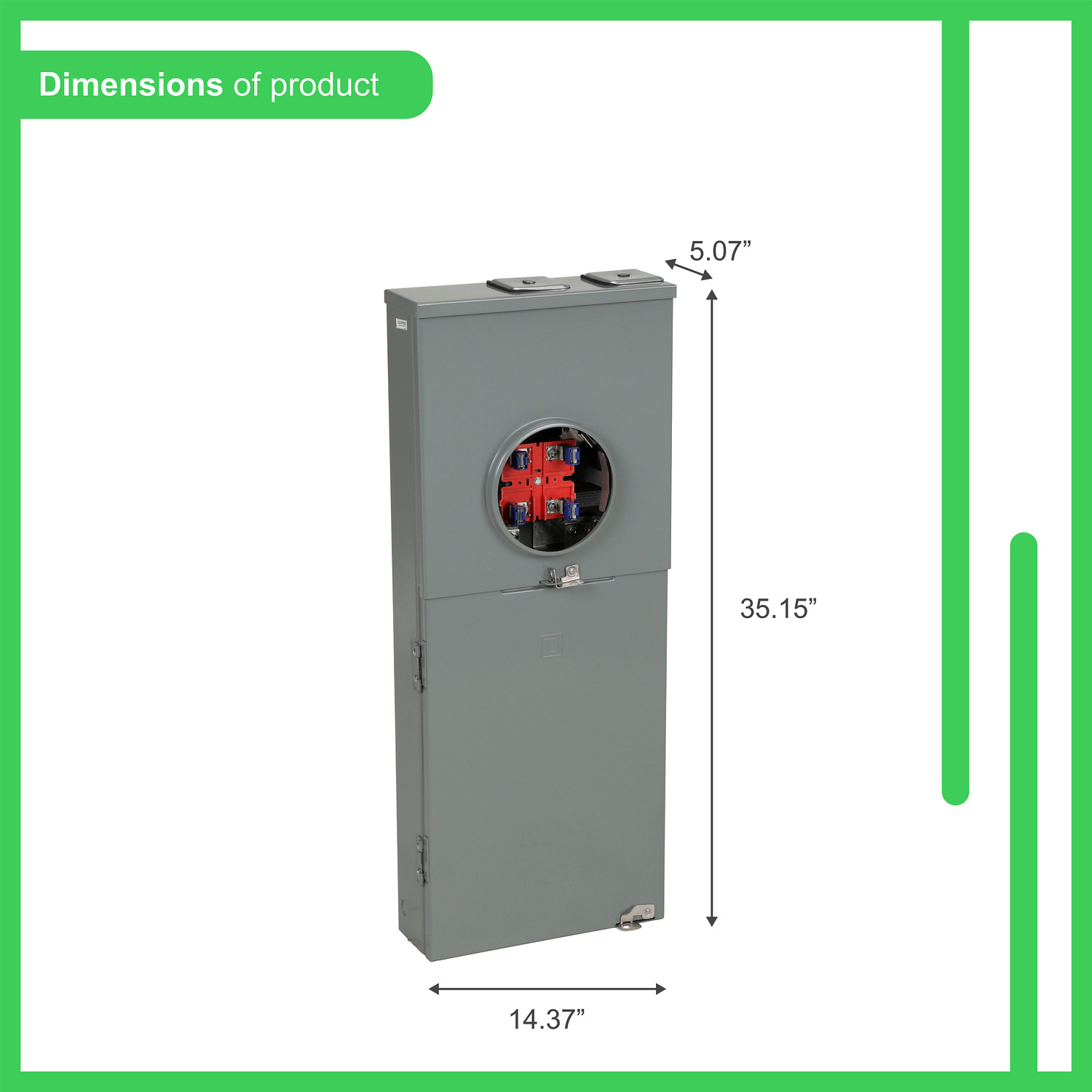

Height

35.15 in (892.81 mm)

Width

14.37 in (365.00 mm)

Depth

5.07 in (128.78 mm)

Bus Rating

200.0 A

Product certifications

UL E-6294

Category

US1DE3A00022

Discount Schedule

DE3A

GTIN

785901001065

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.800 in (14.732 cm)

Package 1 Width

15.0 in (38.1 cm)

Package 1 Length

36.600 in (92.964 cm)

Package 1 Weight

41.200 lb(US) (18.688 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

21

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

903.0009 lb(US) (409.594 kg)

Warranty

18 months
