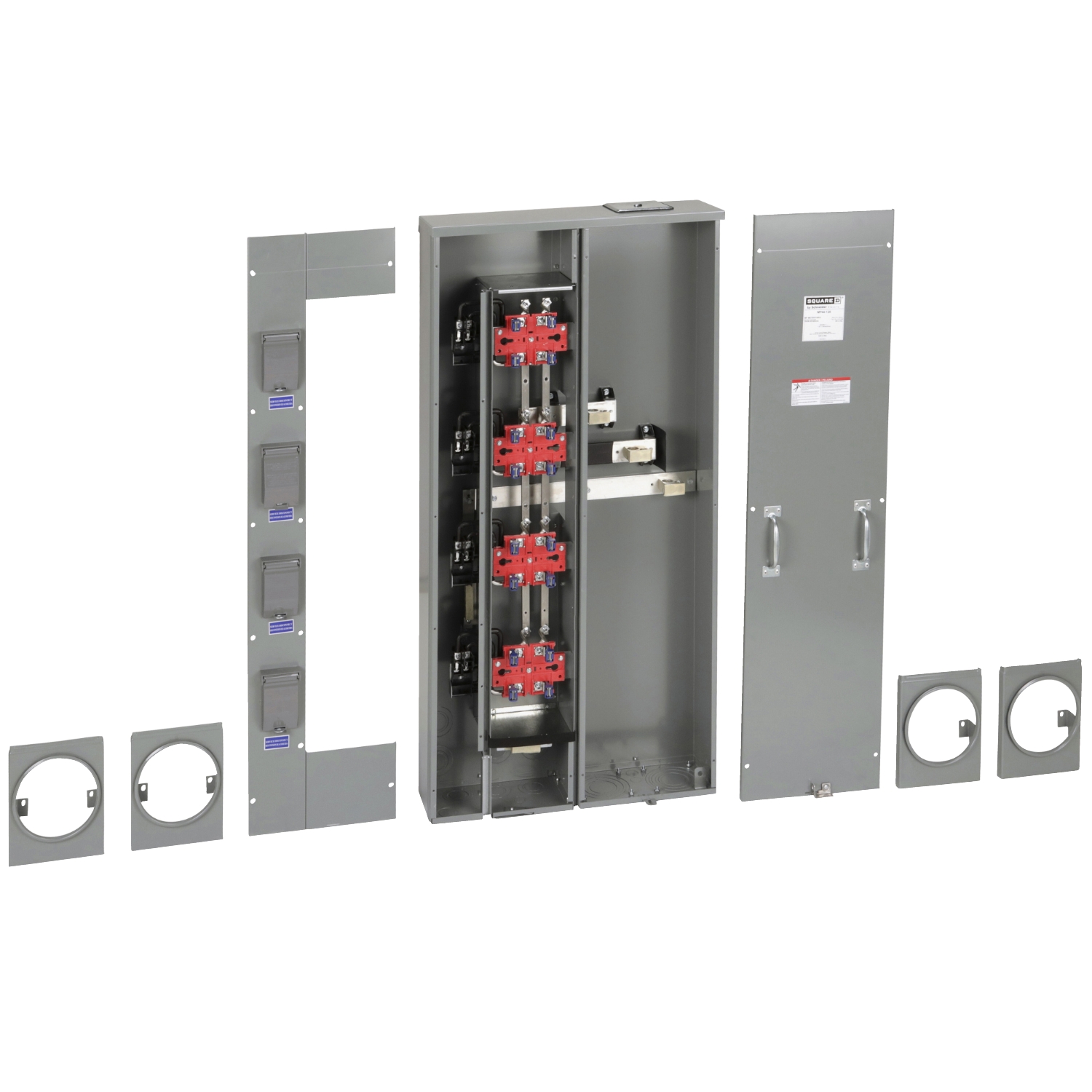

Meter center, MP Meter-Pak, 4 sockets, no bypass, 4 jaws, 400A bus, 125A max breaker rating, ringed

Product

Meter Center

Socket Rating

125 A

Main Type

Main Lugs

Number of Jaws

4

Number of Meter Sockets

4

Socket Type

Ringed

Main Rating

400 A

Bus Rating

400 A

Certifications

UL Listed

Type

Meter-Pak

Busbar Material

Aluminium: busbar

Bypass Type

No bypass

Enclosure Material

Steel

Enclosure Rating

NEMA 3R

Maximum Voltage Rating

120/240 V AC

Mounting

Surface

Phase

1 phase

Service Feed Location

UG
OH

Wire Size

AWG 1/0...600 kcmil 1 aluminium
AWG 1/0...600 kcmil 1 copper

Wire Configuration

3-wire

Height

48.12 in (1222.25 mm)

Width

24.34 in (618.24 mm)

Depth

7.28 in (184.91 mm)

Category

US10DE400021

Discount Schedule

0DE4

GTIN

785901001805

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.5 in (21.6 cm)

Package 1 Width

24.7 in (62.7 cm)

Package 1 Length

49.3 in (125.2 cm)

Package 1 Weight

89.86 lb(US) (40.76 kg)

Warranty

18 months
