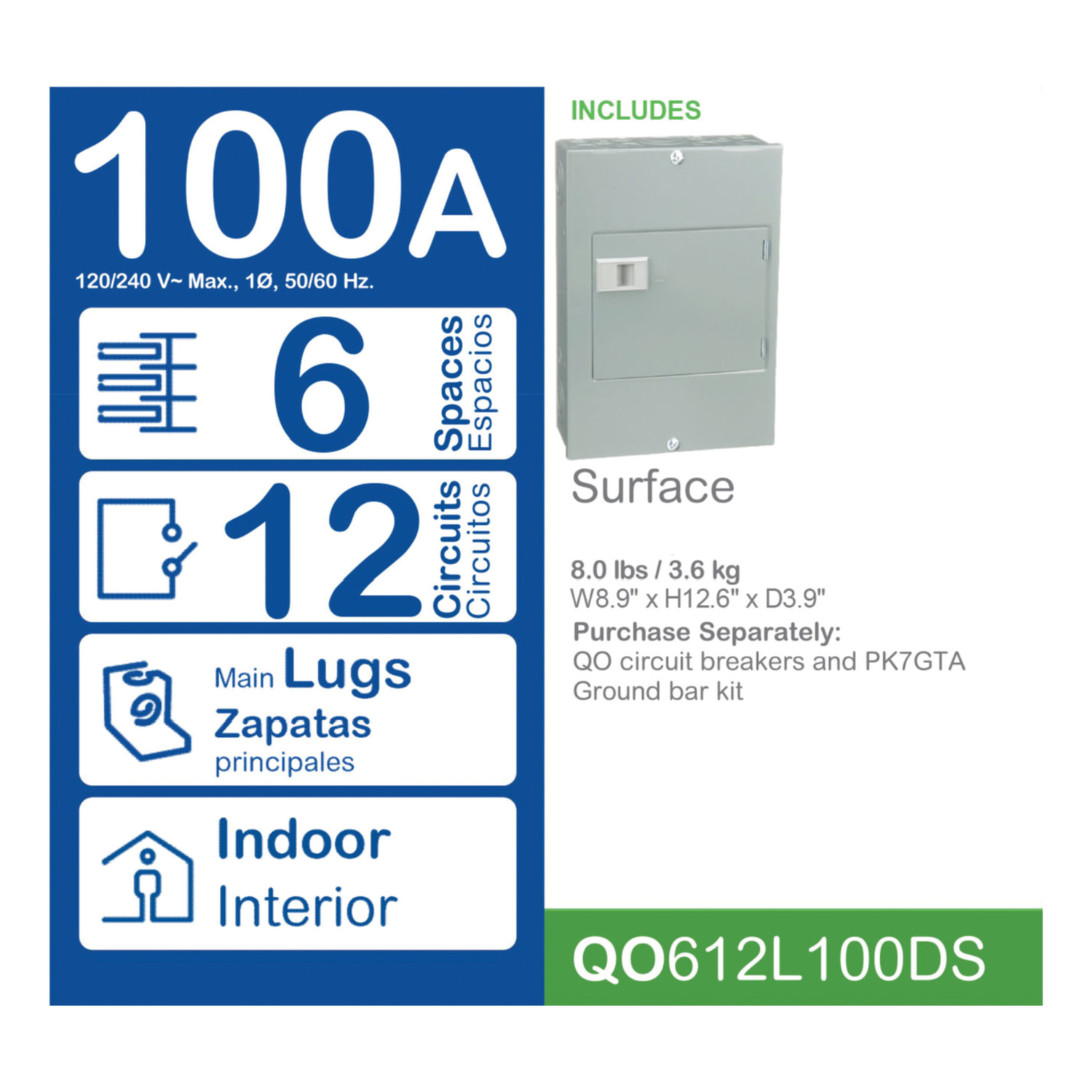

Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door surface cover, UL

Marketing Trade Name

QO

Product Type

Load Center

Cover Type

Surface cover with door

Tightening Torque

Main lugs 50 lb.in, AWG 8, aluminium/copper
Main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper

PoN Convertible Mains (lugs)

Fixed Mains (lugs)

Rated Current

100 A

Number of Spaces

6

Max Short Circuit Current Rating

10 kA

Maximum Number of Single Pole Circuits

12

Maximum Number of Tandem Breakers

6

Number of Phases

1 phase 3-wire

Voltage Rating

120/240 V AC

Wire Size

AWG 8...AWG 1 aluminium/copper

Ground Bar

Grounding bar (ordered separately)

Electrical Connection

Lugs

Busbar Material

Tin plated aluminium: busbar

Enclosure Material

Welded sheet steel

Surface Finish

Baked enamel Gray

Box Number

4

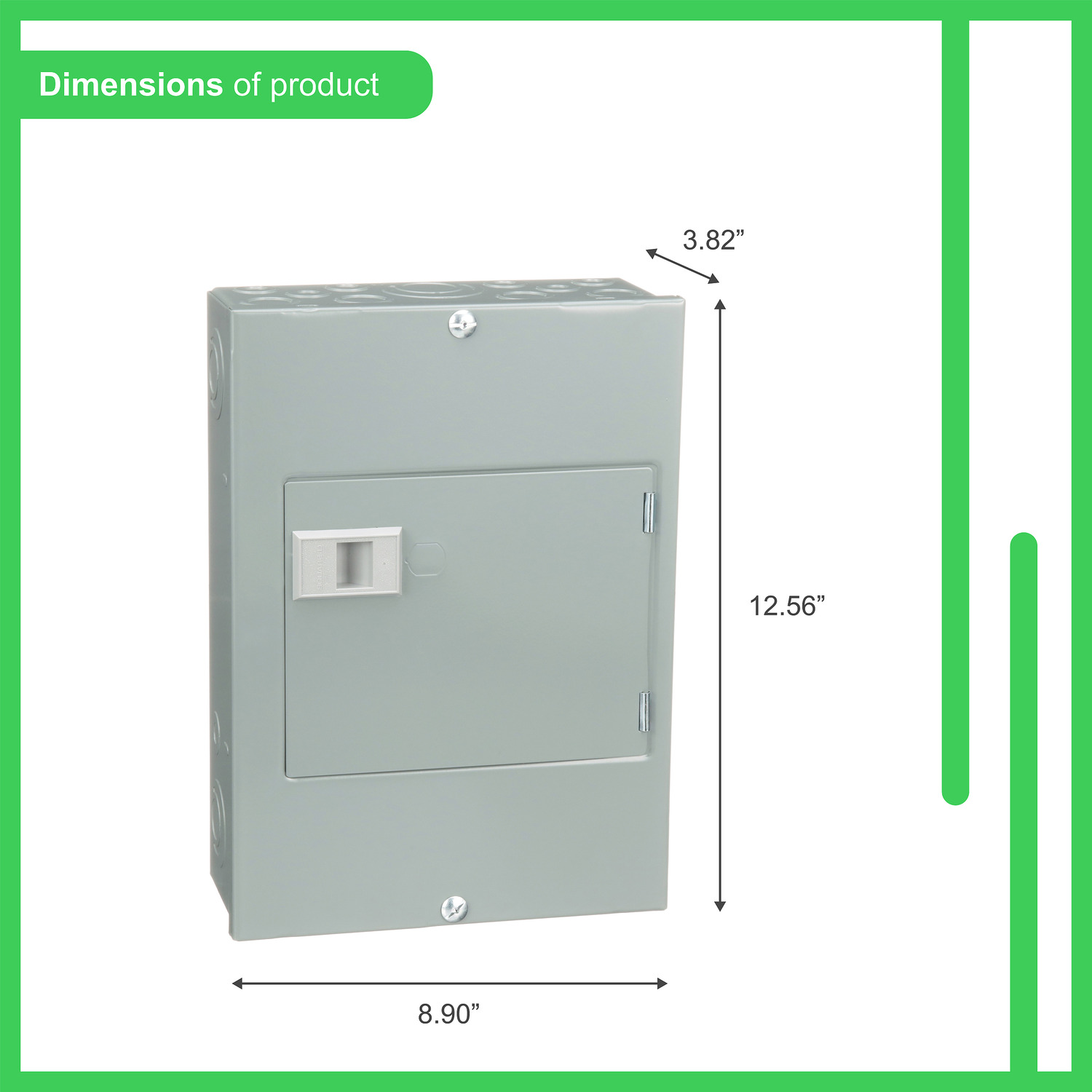

Height

12.6 in (319 mm)

Width

8.9 in (226 mm)

Depth

3.7 in (95 mm)

Enclosure Rating

NEMA 1 indoor enclosure

Ambient Air Temperature for Operation

23 °F (-5 °C)
104 °F (40 °C)

Product Certifications

UL Listed

Category

US1DE3A00101

Discount Schedule

DE3A

GTIN

785901785620

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

14.400 in (36.576 cm)

Package 1 Width

4.400 in (11.176 cm)

Package 1 Length

10.700 in (27.178 cm)

Package 1 Weight

8.29 lb(US) (3.76 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

78

Package 2 Height

34.00 in (86.36 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

671.00 lb(US) (304.36 kg)

Warranty

18 months
