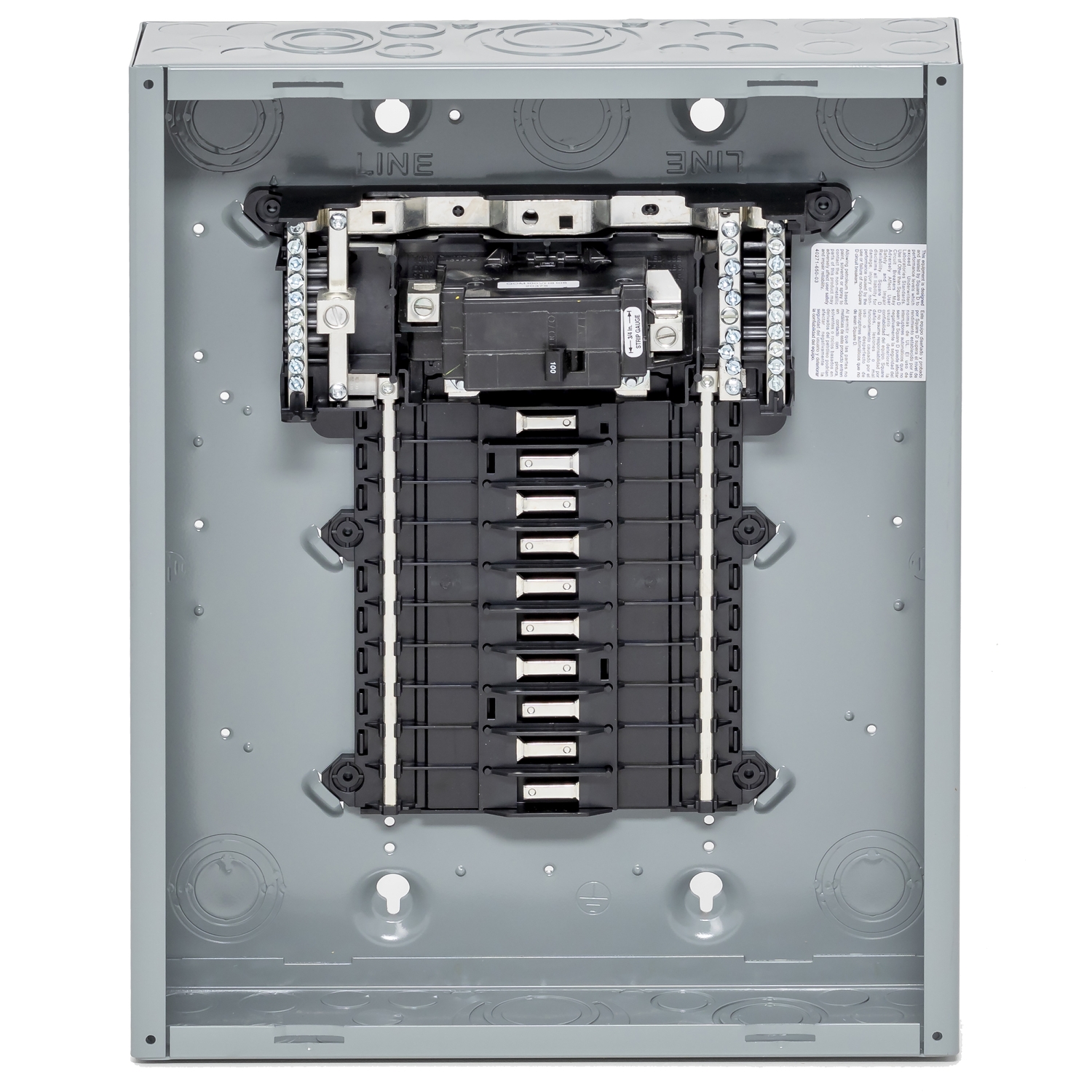

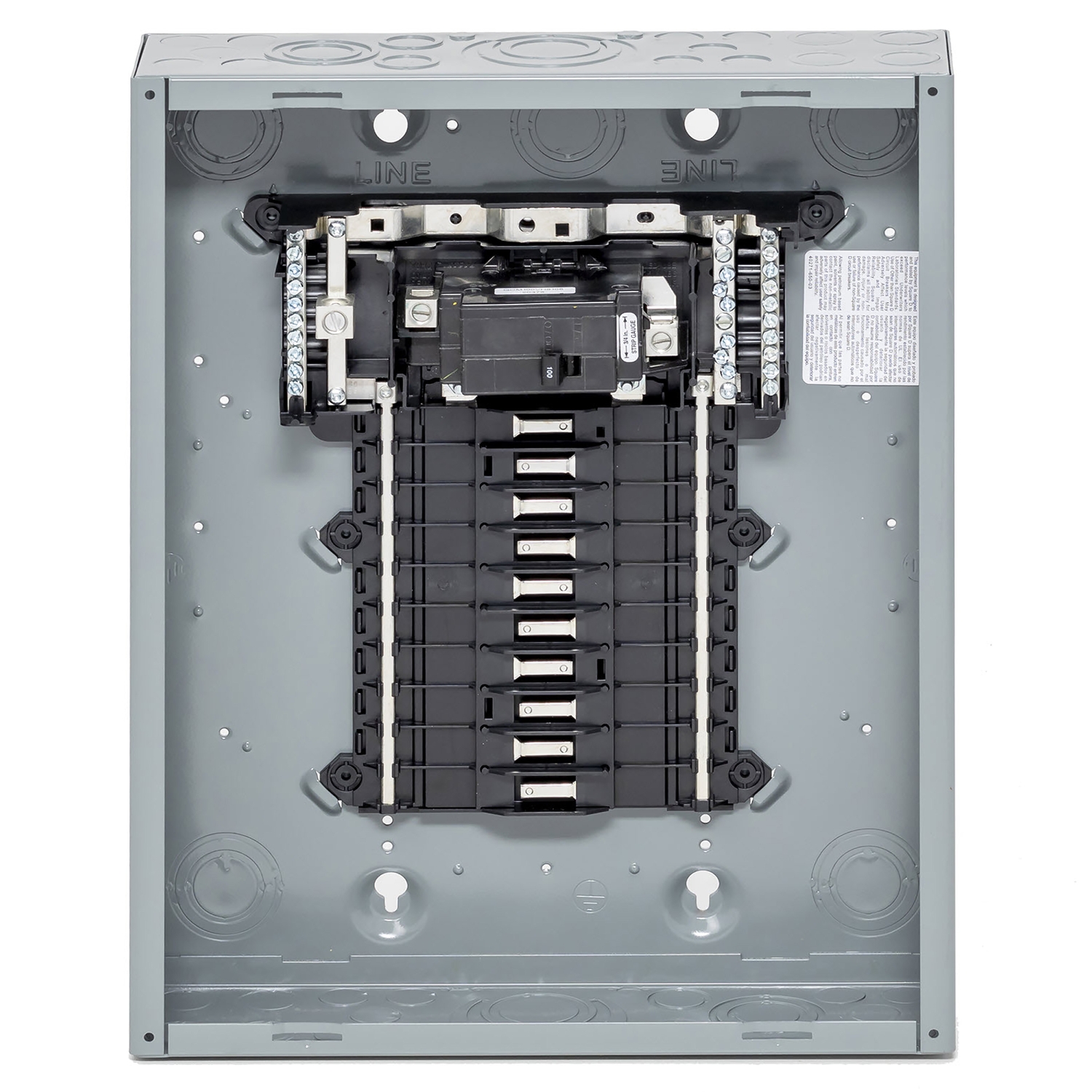

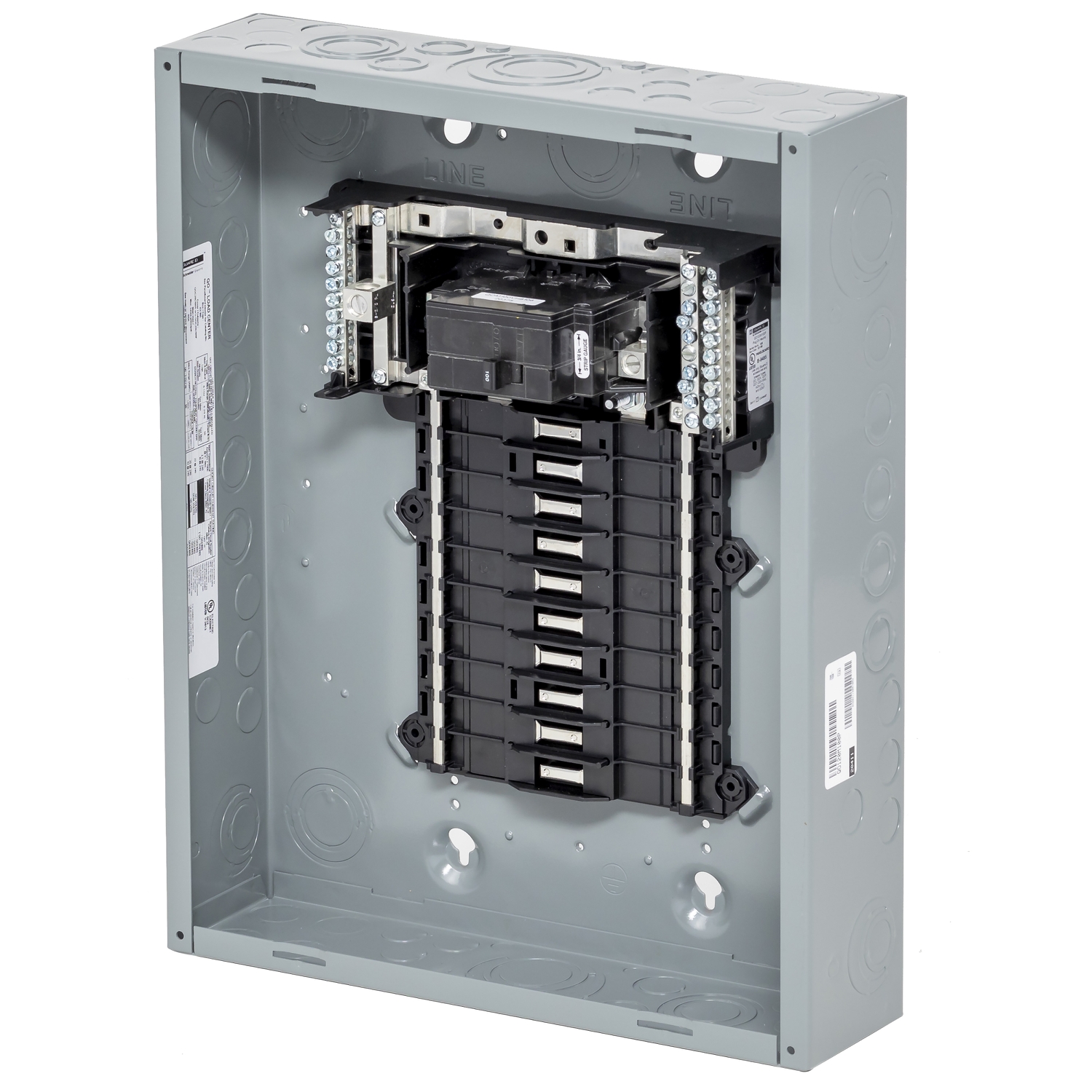

Load center, QO, 1 phase, 20 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA1, UL

Marketing Trade Name

QO

Product Type

Load Center

Tightening Torque

Cover 20 lb.in

PoN Convertible Mains (lugs)

PoN Convertible Mains (breaker)

Rated Current

100 A

Number of Spaces

20

Max Short Circuit Current Rating

22 kA

Maximum Number of Single Pole Circuits

24

Maximum Number of Tandem Breakers

4

Number of Phases

1 phase

Ground Bar

Grounding bar (ordered separately)

Box Number

6

Height

17.9 in (455 mm)

Width

14.3 in (362 mm)

Depth

3.7 in (95 mm)

Net Weight

11.795 lb(US) (5.350 kg)

Enclosure Rating

NEMA 1 indoor enclosure

Ambient Air Temperature for Operation

23 °F (-5 °C)
104 °F (40 °C)

Product Certifications

UL Listed

Category

US1DE3A10001

Discount Schedule

DE3A

GTIN

785901609476

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.10 in (10.41 cm)

Package 1 Width

14.60 in (37.08 cm)

Package 1 Length

19.00 in (48.26 cm)

Package 1 Weight

12.99 lb(US) (5.89 kg)
