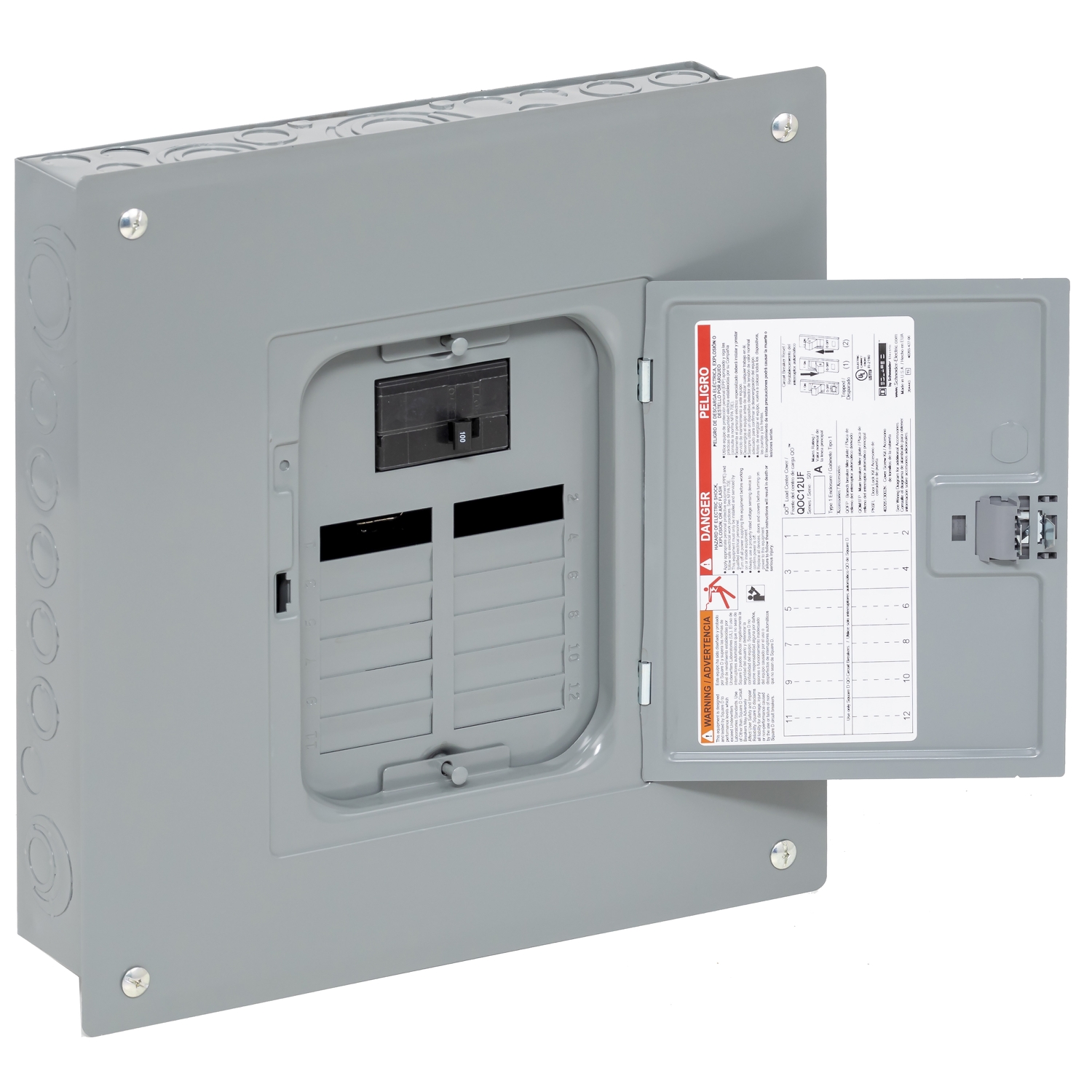

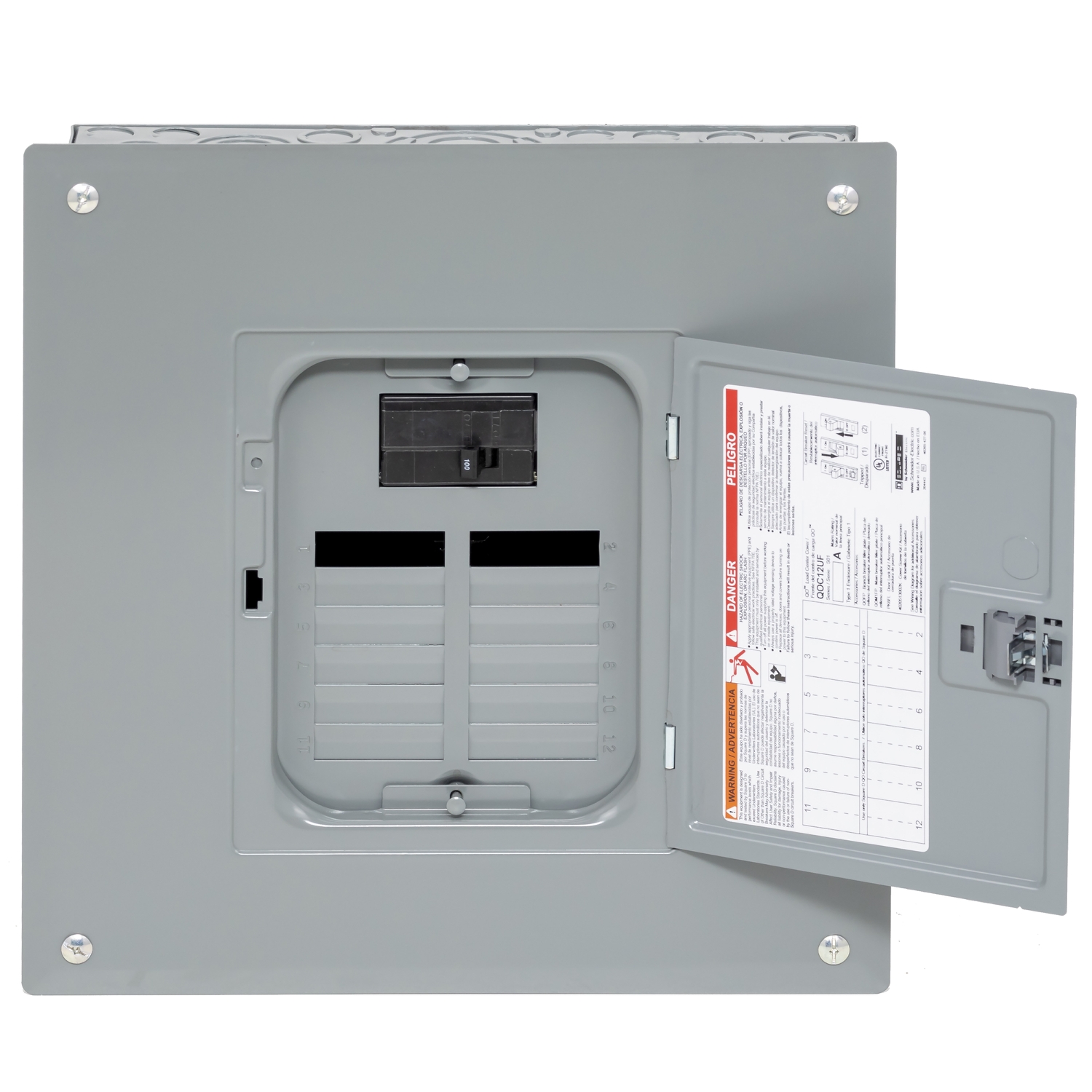

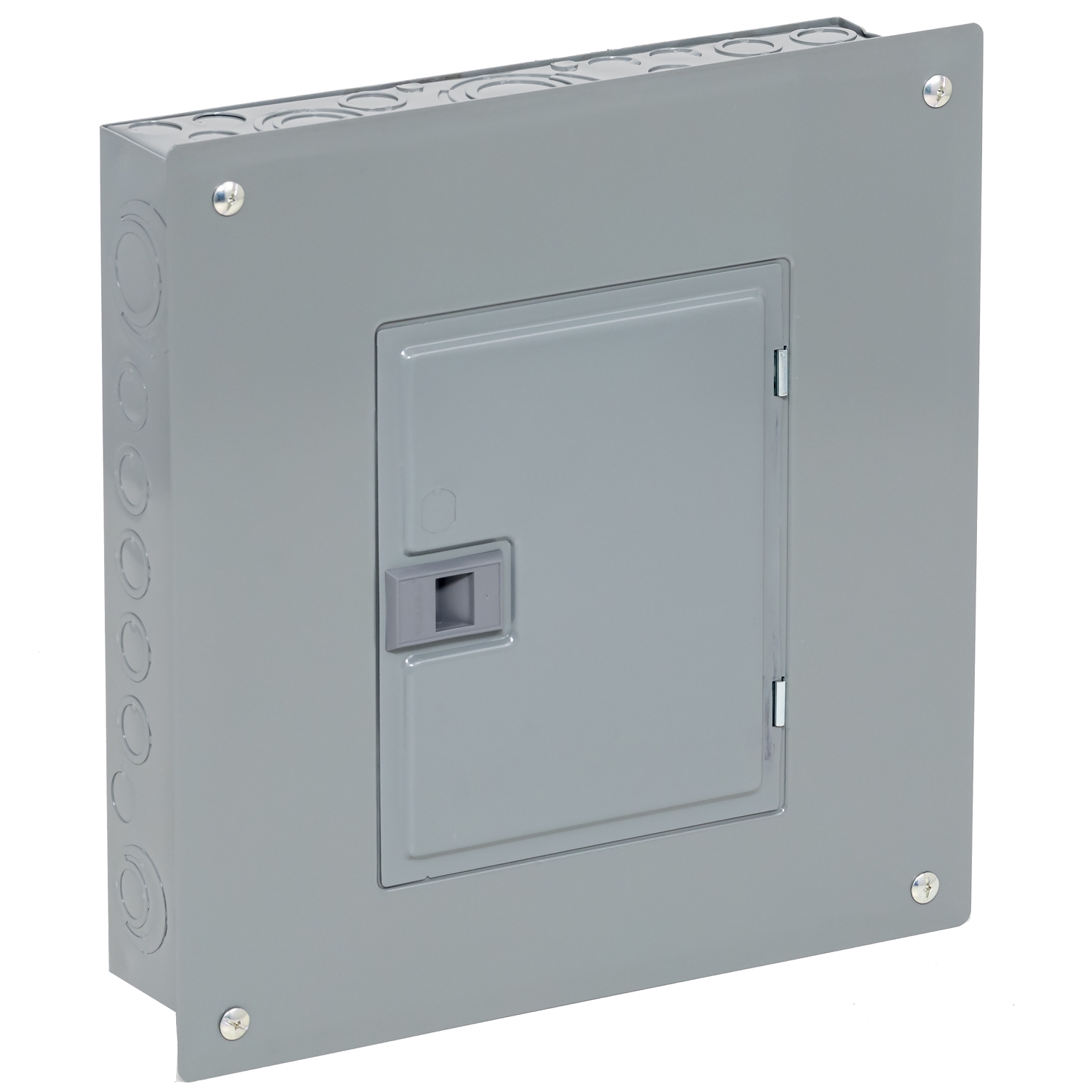

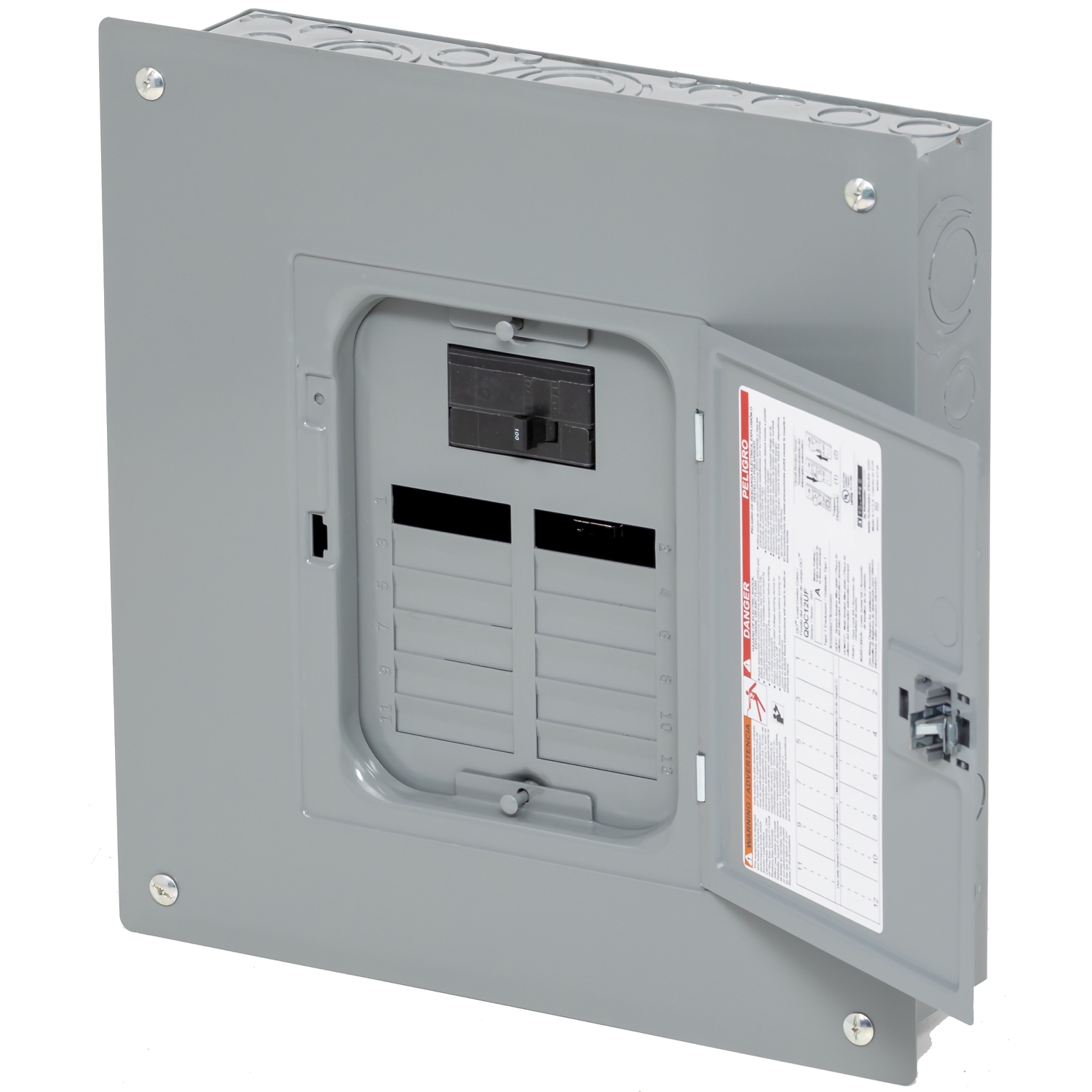

Load center, QO, 1 phase, 12 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover, UL

Marketing Trade Name

QO

Product Type

Load Center

Cover Type

Combination flush/surface cover

Provided Equipment

Cover

Tightening Torque

Cover 20 lb.in

PoN Convertible Mains (lugs)

PoN Convertible Mains (breaker)

Rated Current

100 A

Number of Spaces

12

Max Short Circuit Current Rating

22 kA

Maximum Number of Single Pole Circuits

24

Maximum Number of Tandem Breakers

12

Number of Phases

1 phase

Ground Bar

Grounding bar (ordered separately)

Box Number

5

Height

14.9 in (379 mm)

Width

14.3 in (362 mm)

Depth

3.7 in (95 mm)

Net Weight

16.138 lb(US) (7.320 kg)

Enclosure Rating

NEMA 1 indoor enclosure

Ambient Air Temperature for Operation

23 °F (-5 °C)
104 °F (40 °C)

Product Certifications

UL Listed

Category

US1DE3A10001

Discount Schedule

DE3A

GTIN

785901596318

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

17.700 in (44.958 cm)

Package 1 Width

16.00 in (40.64 cm)

Package 1 Length

5.700 in (14.478 cm)

Package 1 Weight

16.71 lb(US) (7.58 kg)
