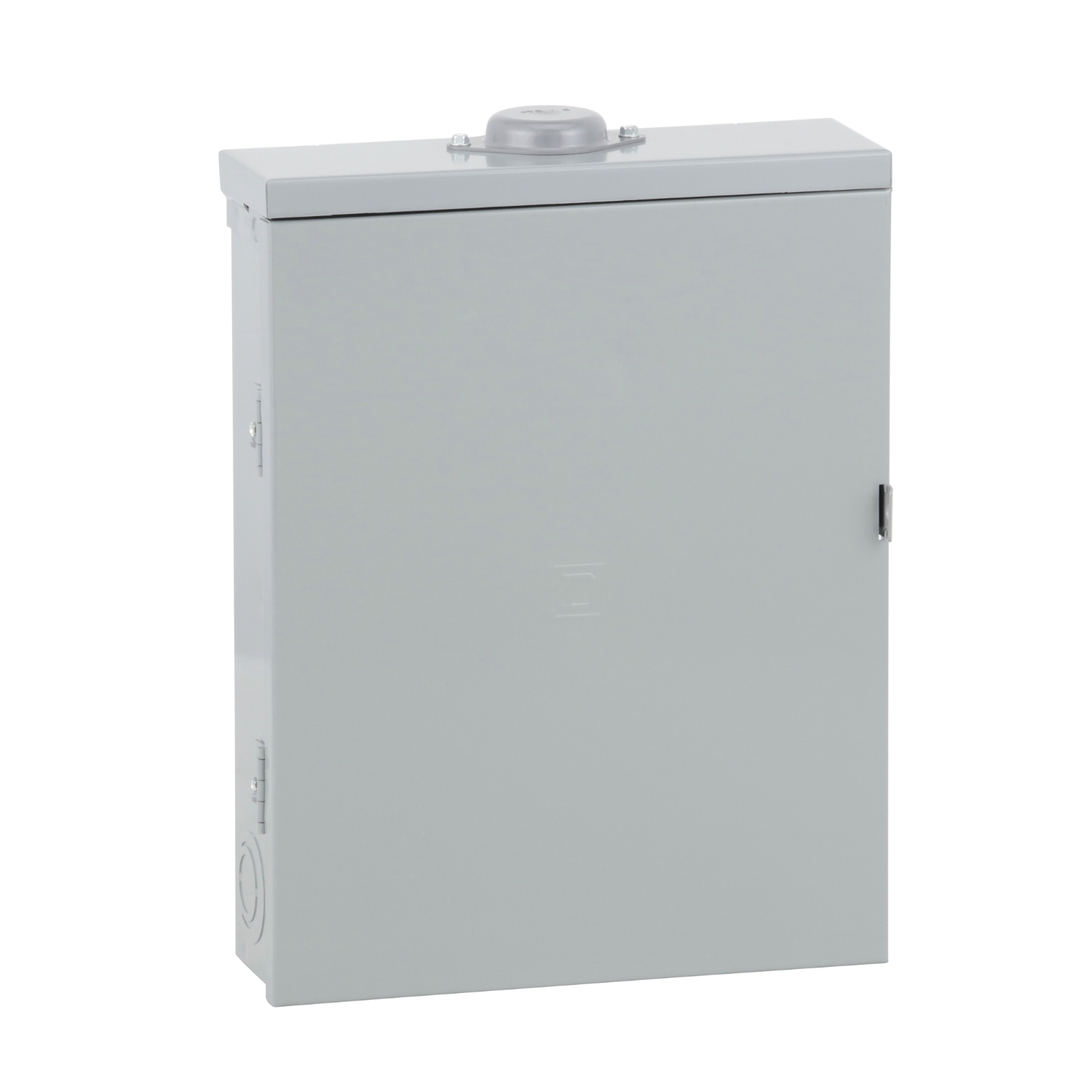

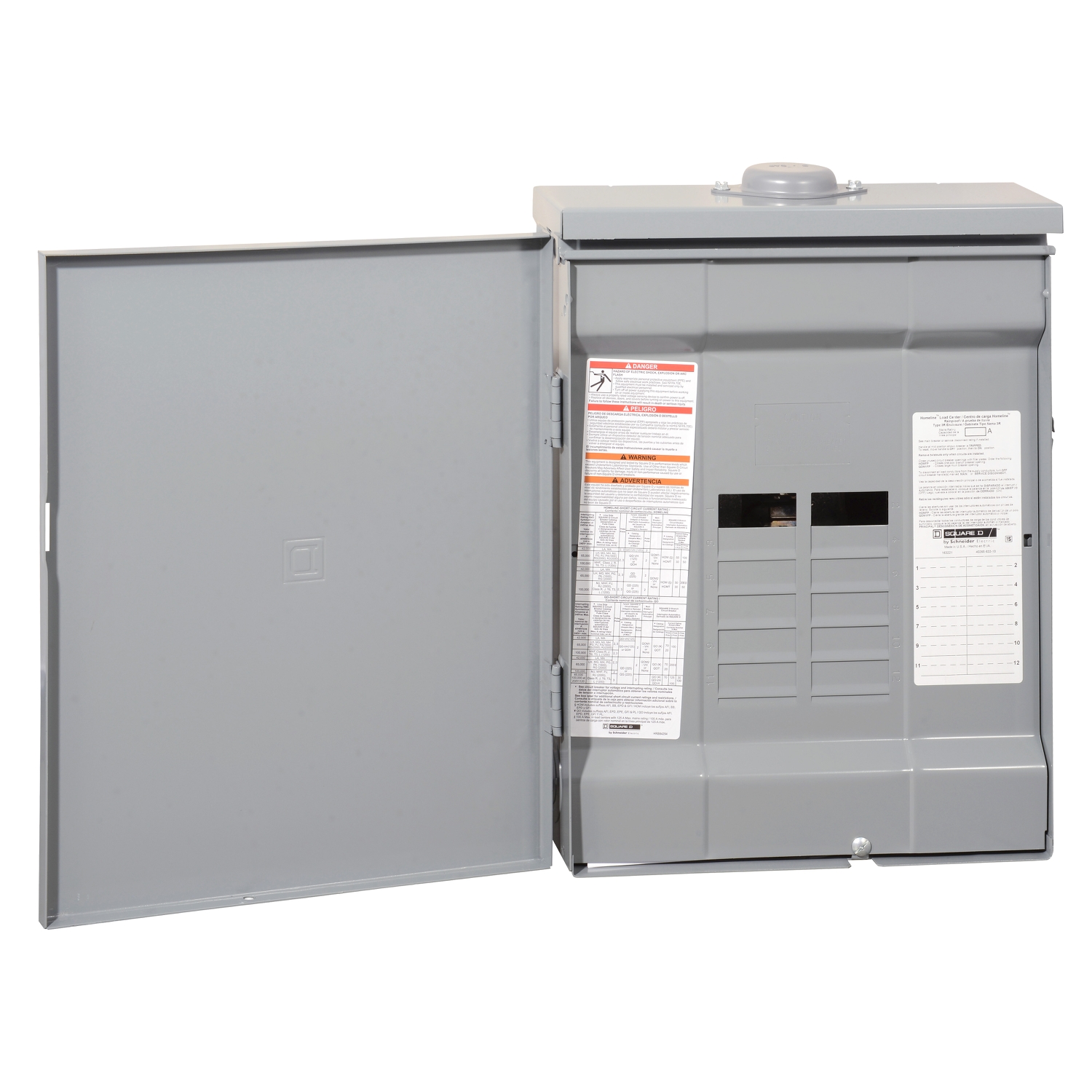

Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R

Product Type

Load Center

Marketing Trade Name

Homeline

Load Center Type

PoN Convertible Mains (lugs)

Rated Current

125 A

Number of Spaces

12

Maximum Number of Single Pole Circuits

24

Enclosure Rating

NEMA 3R outdoor

Cover Type

Surface cover

Electrical Connection

Lugs

Max Short Circuit Current Rating

10 kA

Maximum Number of Tandem Breakers

12

Number of Phases

1 phase

Voltage Rating

120/240 V AC

Wire Size

AWG 6...AWG 2/0 aluminium
AWG 6...AWG 1 copper

Wiring Configuration

3-wire

Busbar Material

Tin plated aluminium: busbar

Enclosure Material

Welded galvannealed steel

Surface Finish

Baked enamel Gray

Box Number

3R

Bus Rated Current

125.0 A

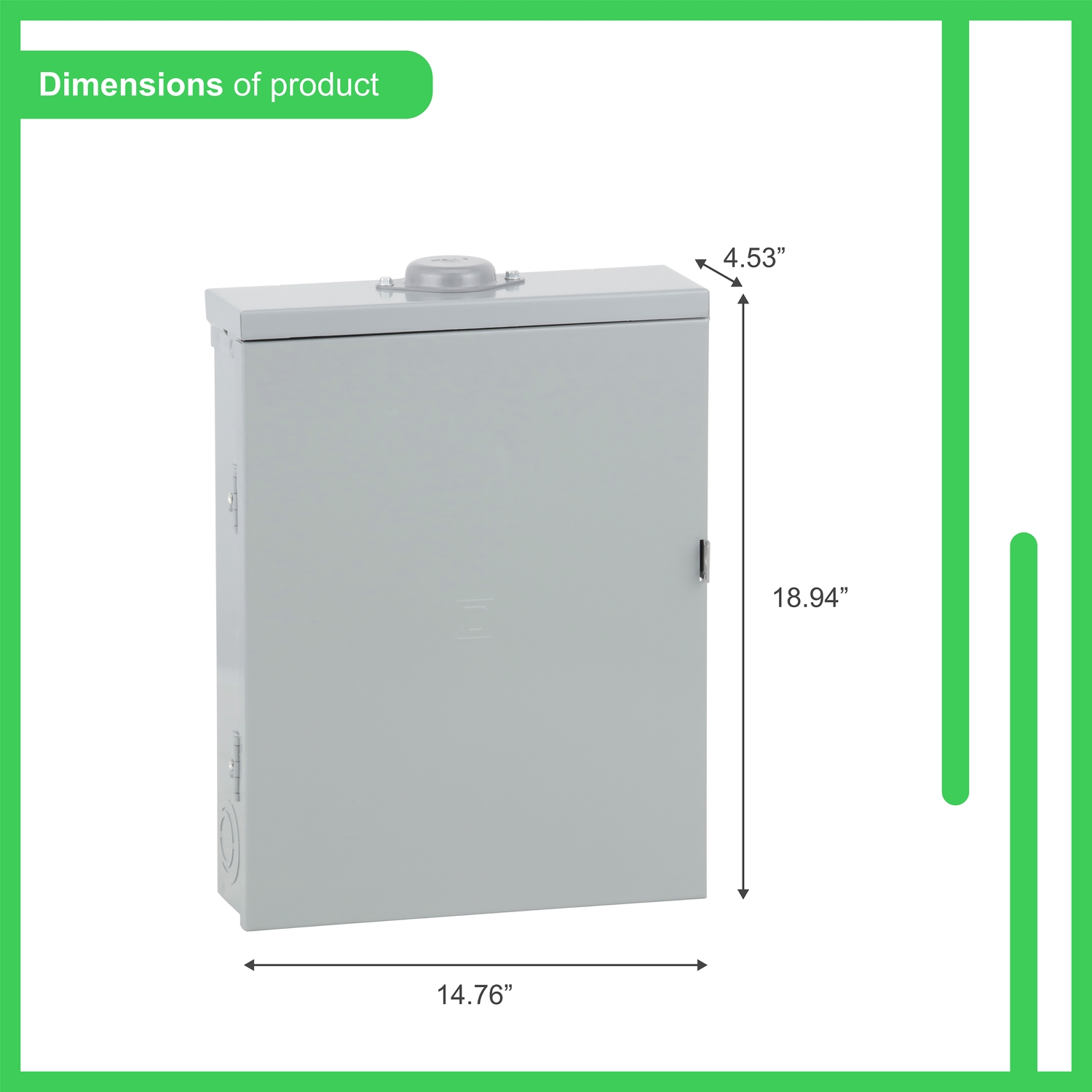

Height

18.9 in (481 mm)

Width

14.8 in (375 mm)

Depth

4.5 in (115 mm)

Ambient Air Temperature for Operation

23 °F (-5 °C)
104 °F (40 °C)

Product Certifications

UL listed file E-6294

Category

US1DE3C00145

Discount Schedule

DE3C

GTIN

785901863670

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.200 in (13.208 cm)

Package 1 Width

15.50 in (39.37 cm)

Package 1 Length

20.800 in (52.832 cm)

Package 1 Weight

20.750 lb(US) (9.412 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

45

Package 2 Height

43.50 in (110.49 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

951.00002 lb(US) (431.366 kg)
