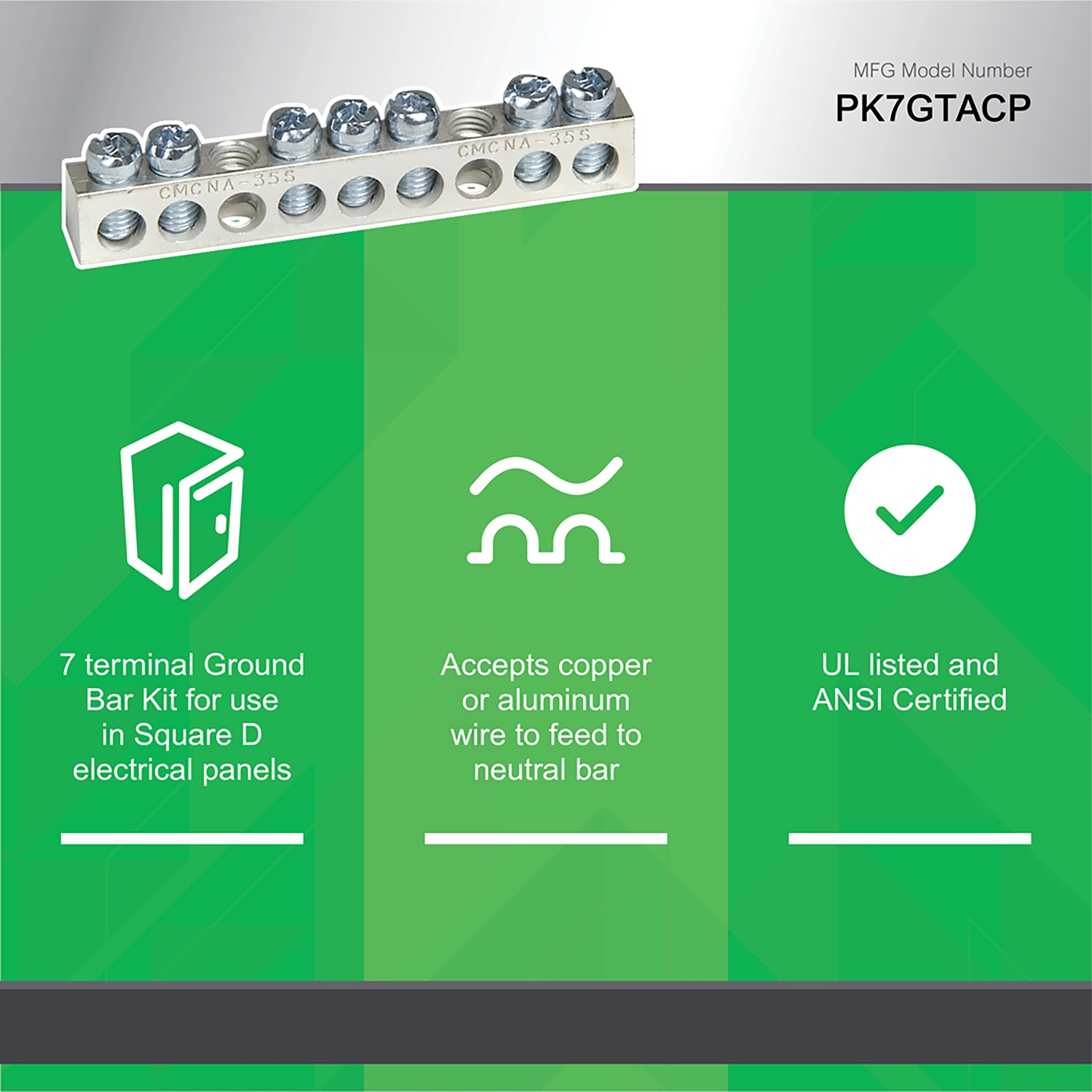

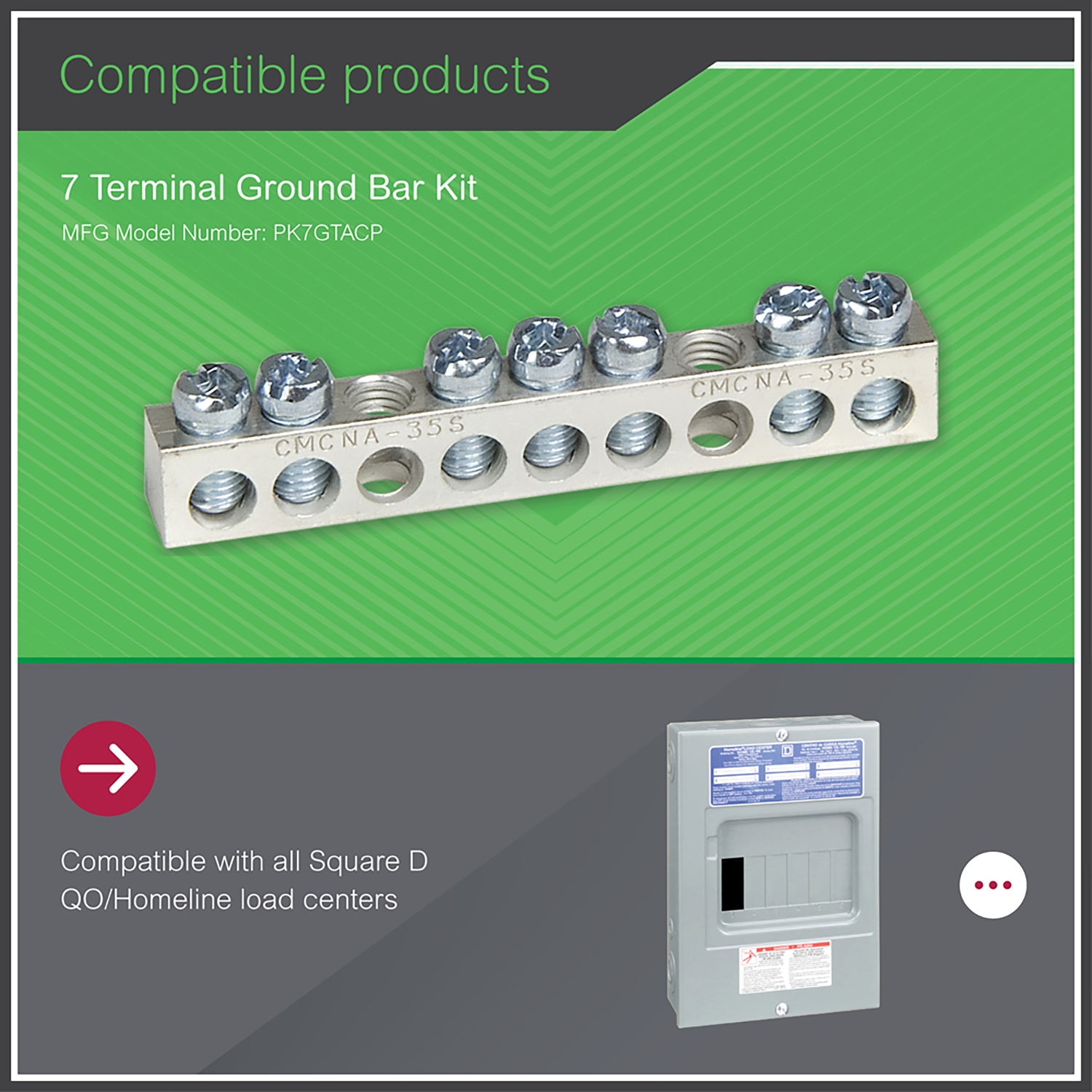

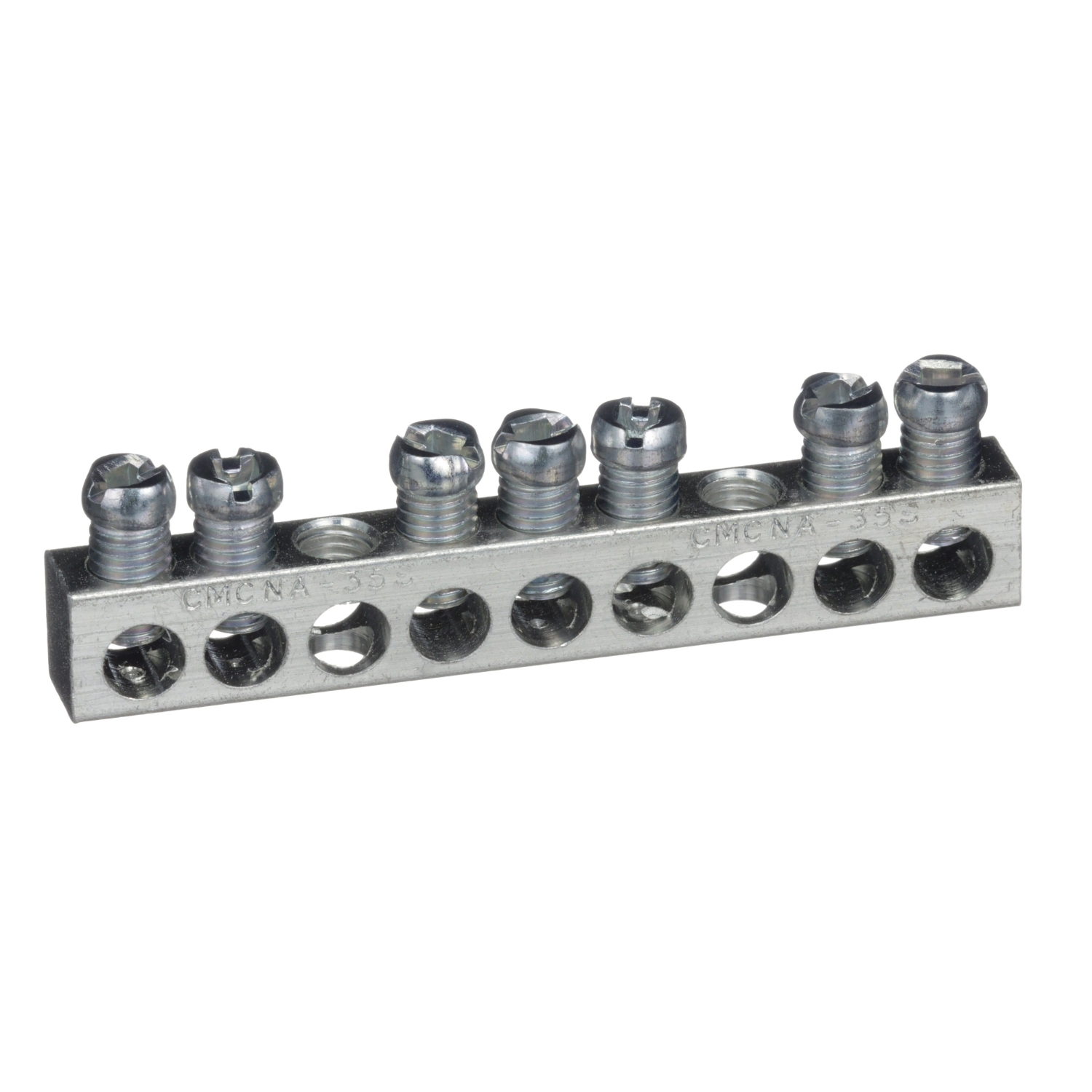

Load center accessory, QO/Homeline, ground bar kit, 7 terminals

product line

QO

product type

Bar

Number of connectors

7

wire size

AWG 14...AWG 4 copper
AWG 12...AWG 4 aluminium

Provided equipment

2 screw

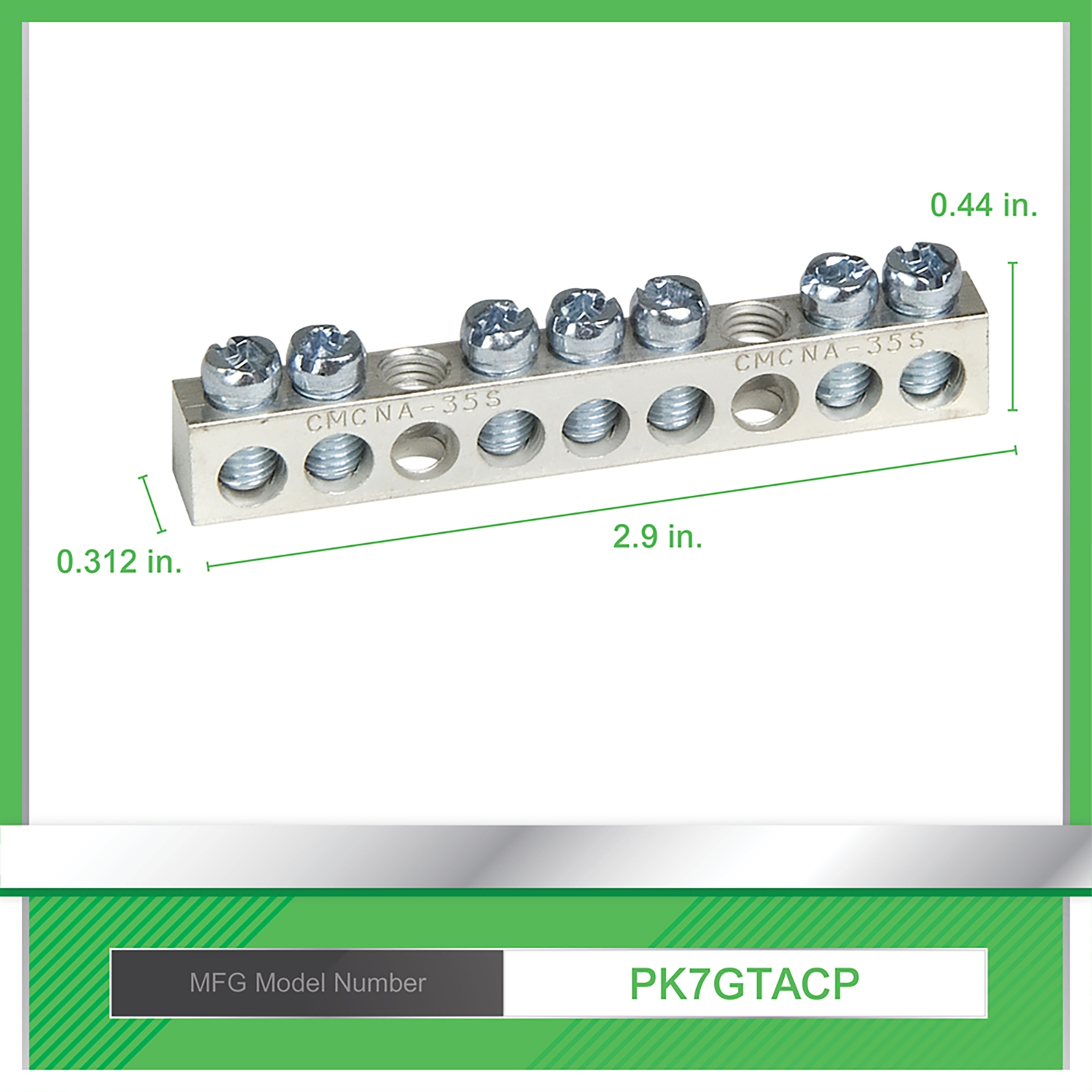

Bar length

2.9 in (73 mm)

Maximum length of segment

1.3 in (32 mm)

Device mounting

Direct mounting back of enclosure

Height

0.437 in (11.100 mm)

Depth

0.312 in (7.925 mm)

Tightening torque

30 lb.in
Mounting screw 30 lb.in
20 lb.in, AWG 14...AWG 10, copper
20 lb.in, AWG 12...AWG 10, aluminium
35 lb.in, AWG 6...AWG 4
25 lb.in, AWG 8
25 lb.in, AWG 14...AWG 12, copper
25 lb.in, AWG 12...AWG 10, aluminium

Category

US1DE3A00102

Discount Schedule

DE3A

GTIN

785901026372

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.400 in (1.016 cm)

Package 1 Width

1.200 in (3.048 cm)

Package 1 Length

5.0 in (12.7 cm)

Package 1 Weight

1.600 oz (45.359 g)

Unit Type of Package 2

PAL

Number of Units in Package 2

2160

Package 2 Height

26.50 in (67.31 cm)

Package 2 Width

40.0 in (101.6 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

260.0002 lb(US) (117.934 kg)

Warranty

18 months
