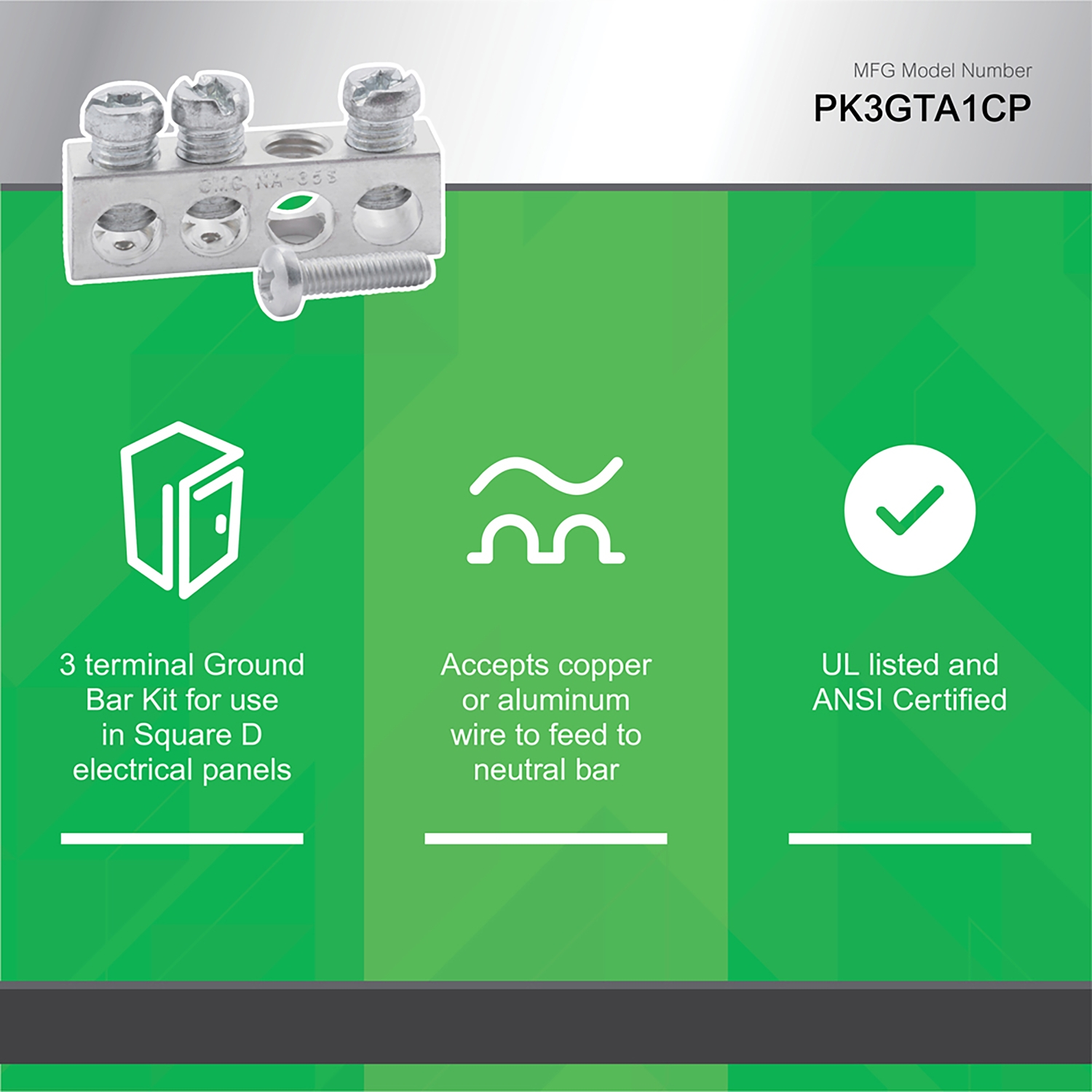

Load center accessory, QO/Homeline, ground bar kit, 3 terminals

product line

QO
Homeline

product type

Bar

Number of connectors

3

wire size

AWG 14...AWG 4 copper
AWG 12...AWG 4 aluminium

Provided equipment

2 screw

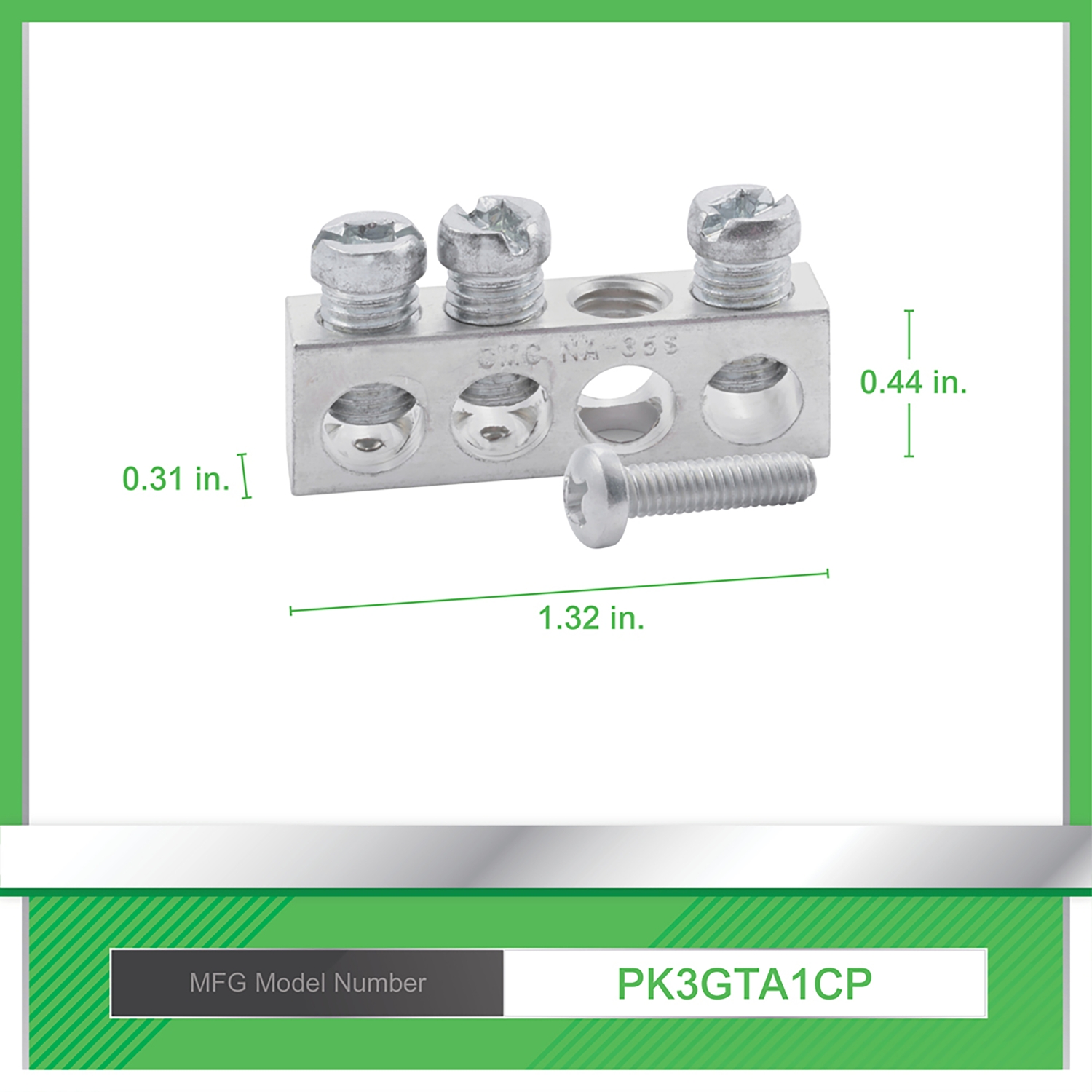

Bar length

1.4 in (35 mm)

Device mounting

Direct mounting back of enclosure

Height

0.437 in (11.100 mm)

Depth

0.312 in (7.925 mm)

Category

US1DE3A00102

Discount Schedule

DE3A

GTIN

785901156932

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.400 in (1.016 cm)

Package 1 Width

0.780 in (1.982 cm)

Package 1 Length

1.350 in (3.429 cm)

Package 1 Weight

0.640 oz (18.144 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

3.600 in (9.144 cm)

Package 2 Width

4.400 in (11.176 cm)

Package 2 Length

5.400 in (13.716 cm)

Package 2 Weight

8.64 oz (244.94 g)

Unit Type of Package 3

PAL

Number of Units in Package 3

4680

Package 3 Height

27.0000000000 in (68.58 cm)

Package 3 Width

40.0 in (101.6 cm)

Package 3 Length

48.00 in (121.92 cm)

Package 3 Weight

287.999 lb(US) (130.634 kg)

Warranty

18 months
