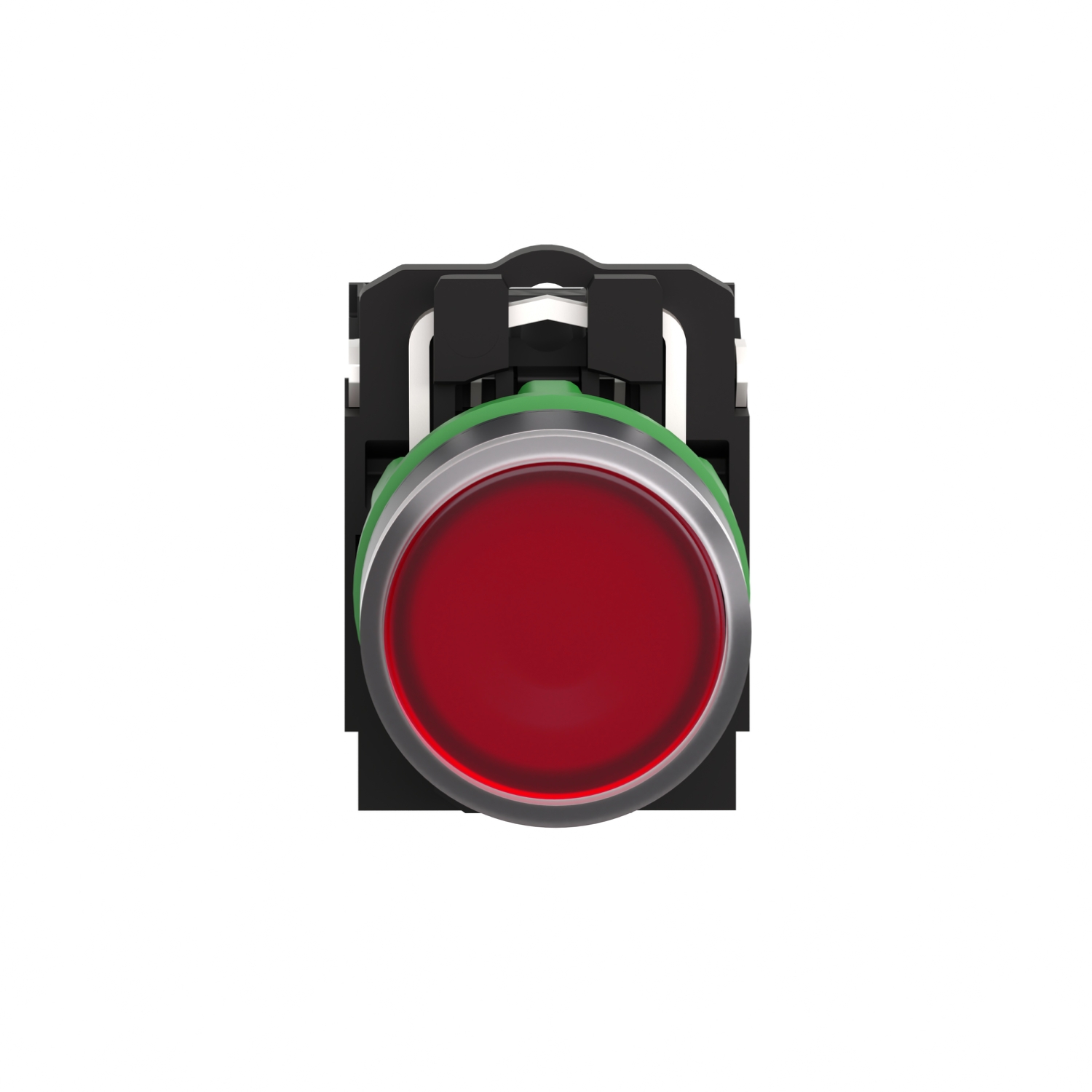

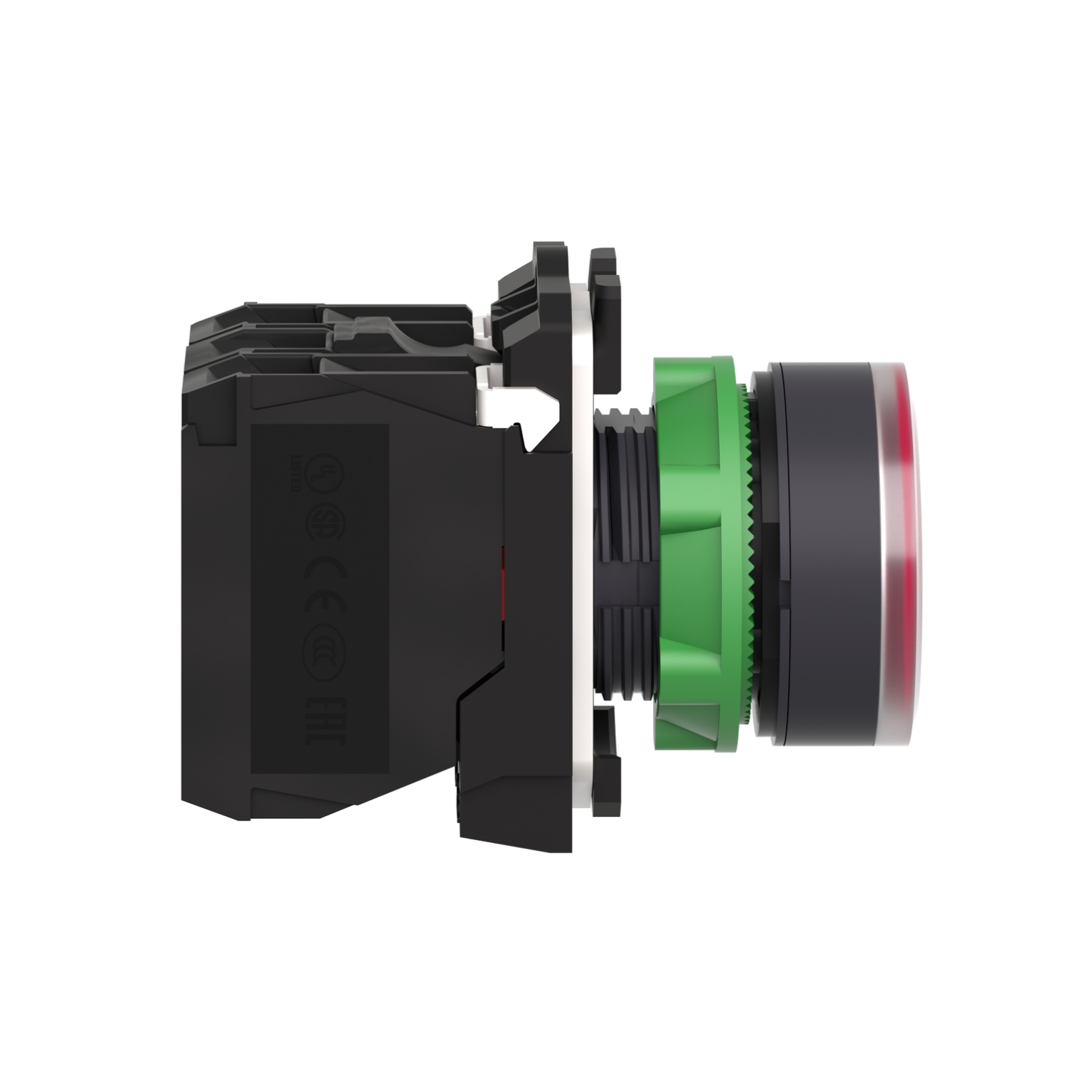

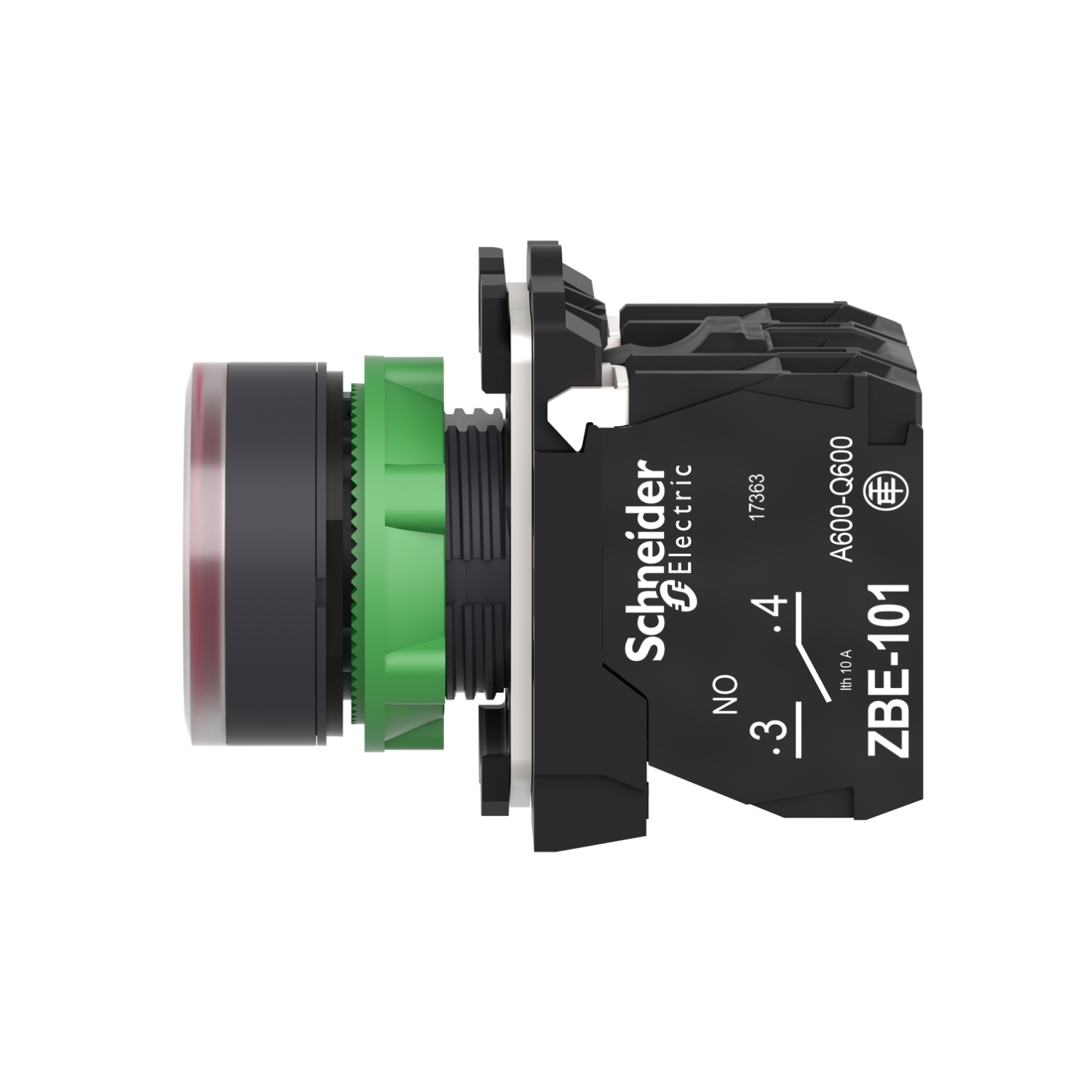

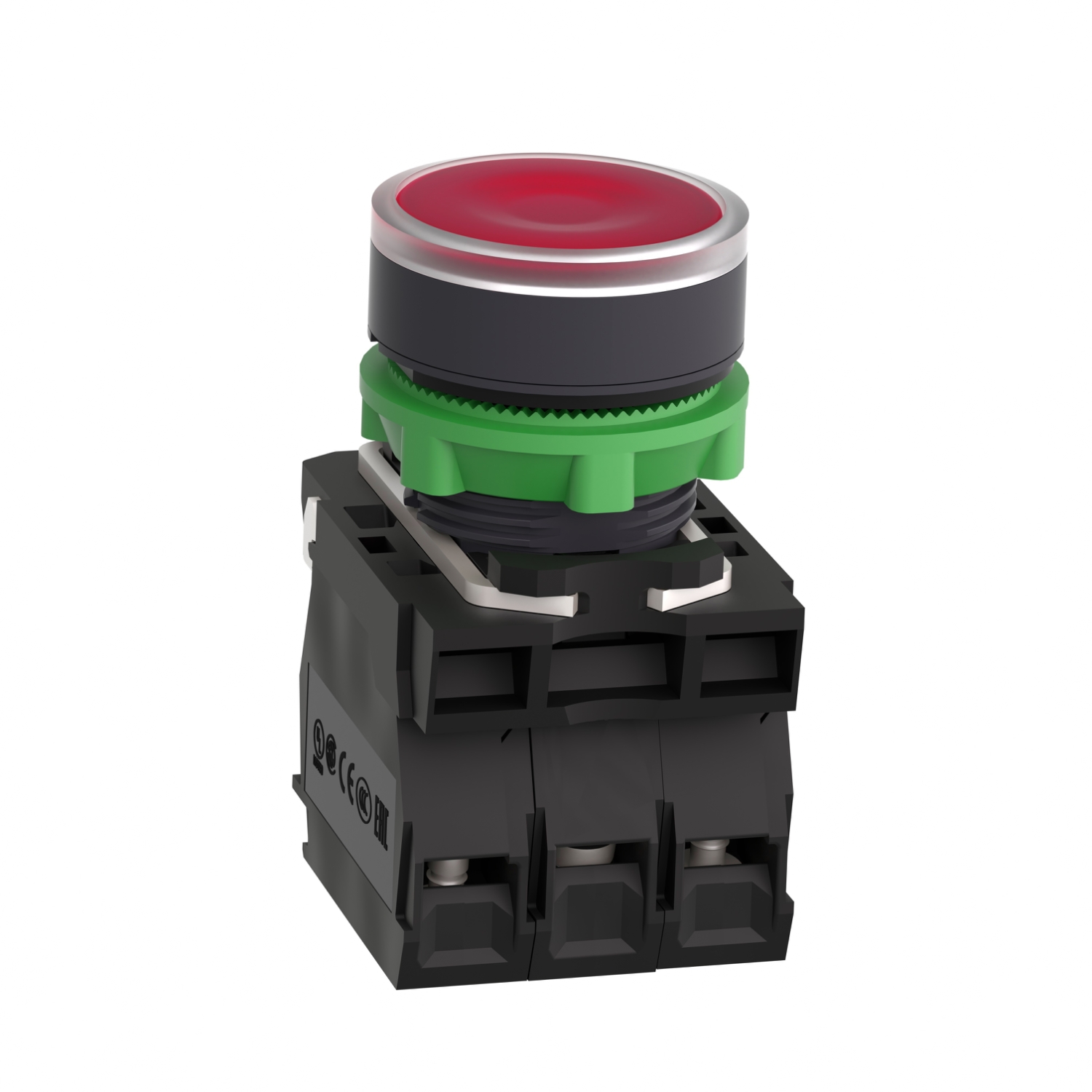

Illuminated push button, Harmony XB5, plastic, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

Range of Product

Harmony XB5

Product or Component Type

Illuminated push-button

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diamete

0.9 in (22.5 mm)

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red flush, unmarked

Operator additional information

With plain lens

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Light source

Universal LED

Bulb base

Integral LED

[Us] rated supply voltage

24 V AC/DC 50/60 Hz

Cap/operator or lens colour

Red

Height

1.7 in (42 mm)

Width

1.2 in (30 mm)

Depth

2.2 in (57 mm)

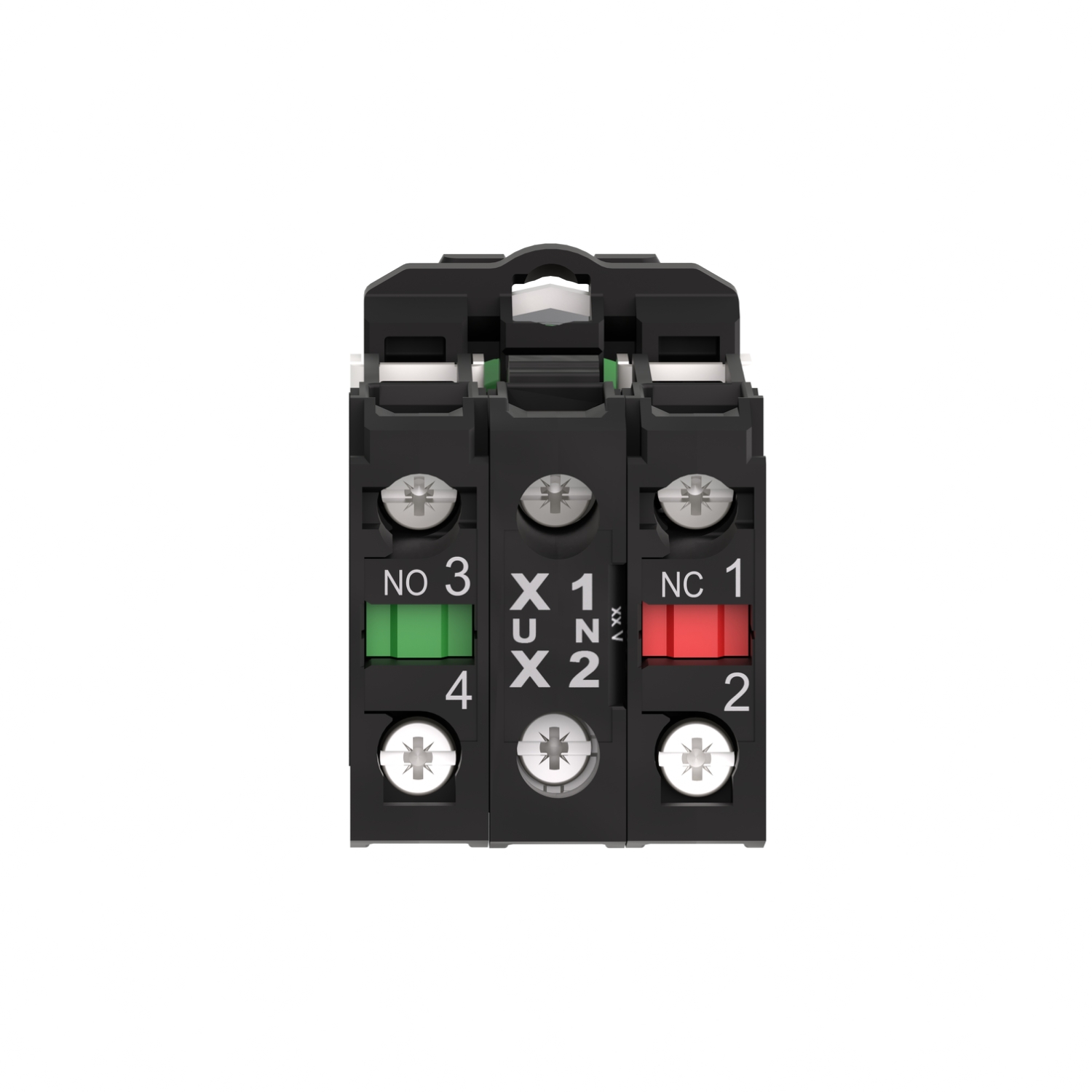

Terminals description ISO n°1

(21-22)NC
(13-14)NO

Net Weight

0.123 lb(US) (0.056 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Contacts usage

Standard contacts

Positive opening

With IEC 60947-5-1 appendix K

Operating travel

0.06 in (1.5 mm) NC changing electrical state)
0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)

Operating force

3.5 N NC changing electrical state
3.8 N

Mechanical durability

10000000 cycles

Tightening torque

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Shape of screw head

Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse gG IEC 60947-5-1

[Ith] conventional free air thermal current

10 A IEC 60947-5-1

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

[Ie] rated operational current

3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Signalling type

Steady

Supply voltage limits

19.2…30 V DC
21.6…26.4 V AC

Current Consumption

18 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV IEC 61000-4-5

device presentation

Complete product

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Overvoltage category

Class II IEC 60536

IP degree of protection

IP66 IEC 60529
IP69
IP69K
IP67

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK05 conforming to IEC 50102

Standards

UL 508
IEC 60947-5-1
IEC 60947-5-4
IEC 60947-1
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1

Product Certifications

LROS (Lloyds register of shipping)
UL Listed
CSA
BV
GL
DNV

Vibration resistance

5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance to fast transients

2 kV IEC 61000-4-4

Resistance to electromagnetic fields

9.1 V/m (10 V/m) IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2

Electromagnetic emission

Class B IEC 55011

Category

US10CS222467

Discount Schedule

0CS2

GTIN

3389110904123

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.378 in (3.500 cm)

Package 1 Width

1.969 in (5.000 cm)

Package 1 Length

3.543 in (9.000 cm)

Package 1 Weight

1.951 oz (55.300 g)

Unit Type of Package 2

S03

Number of Units in Package 2

100

Package 2 Height

11.811 in (30.000 cm)

Package 2 Width

11.811 in (30.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

13.067 lb(US) (5.927 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

800

Package 3 Height

29.528 in (75.000 cm)

Package 3 Width

31.496 in (80.000 cm)

Package 3 Length

23.622 in (60.000 cm)

Package 3 Weight

122.176 lb(US) (55.418 kg)

Warranty

18 months
