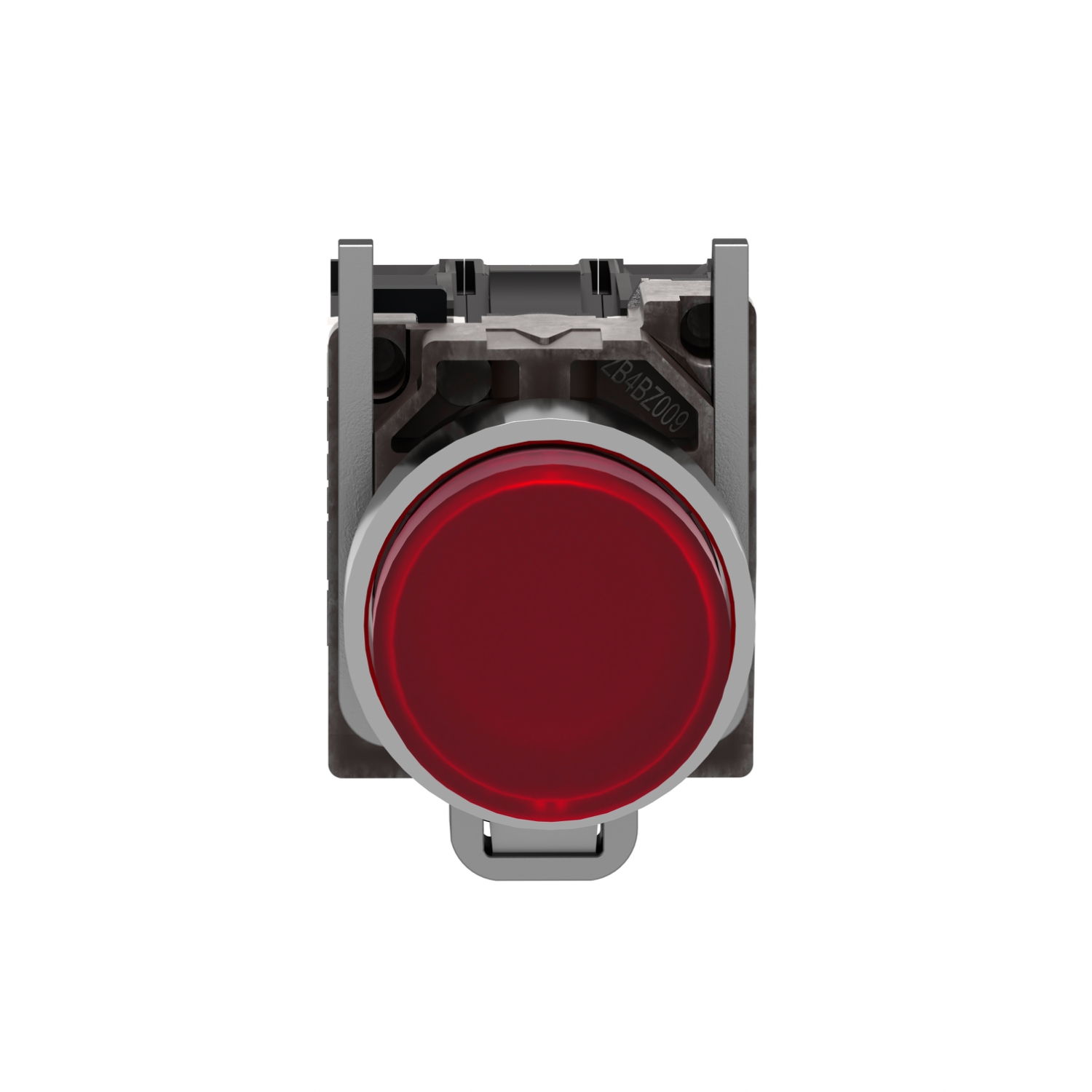

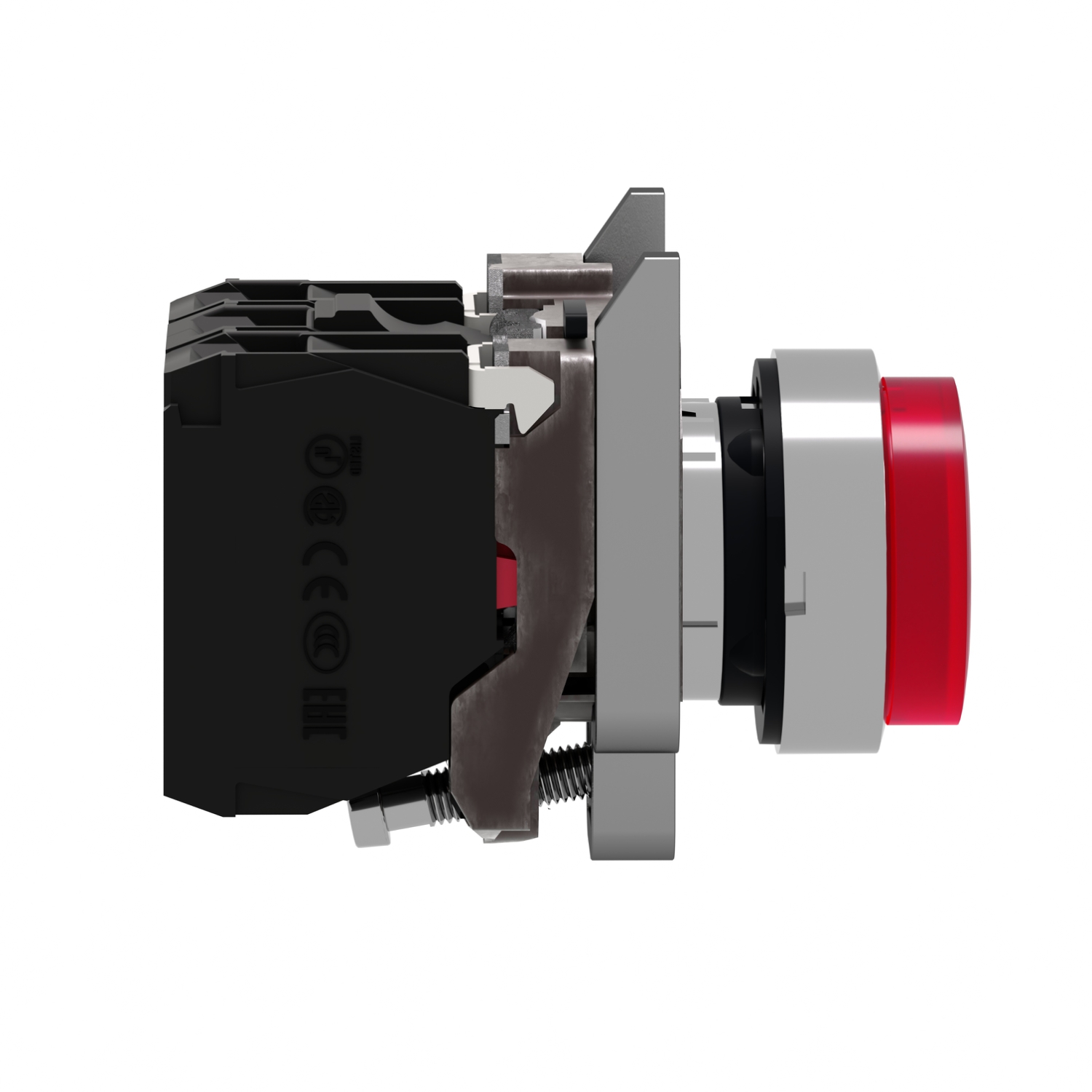

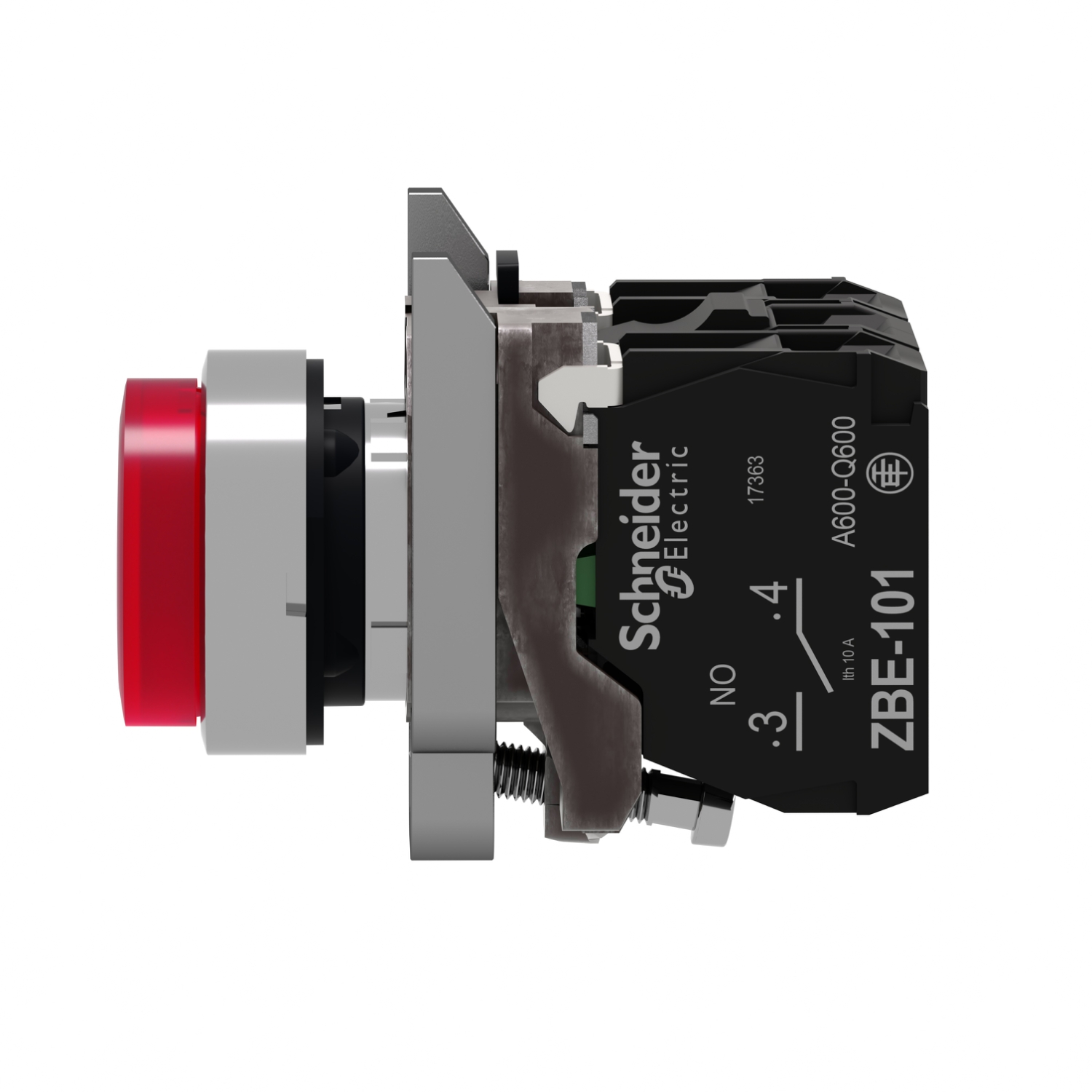

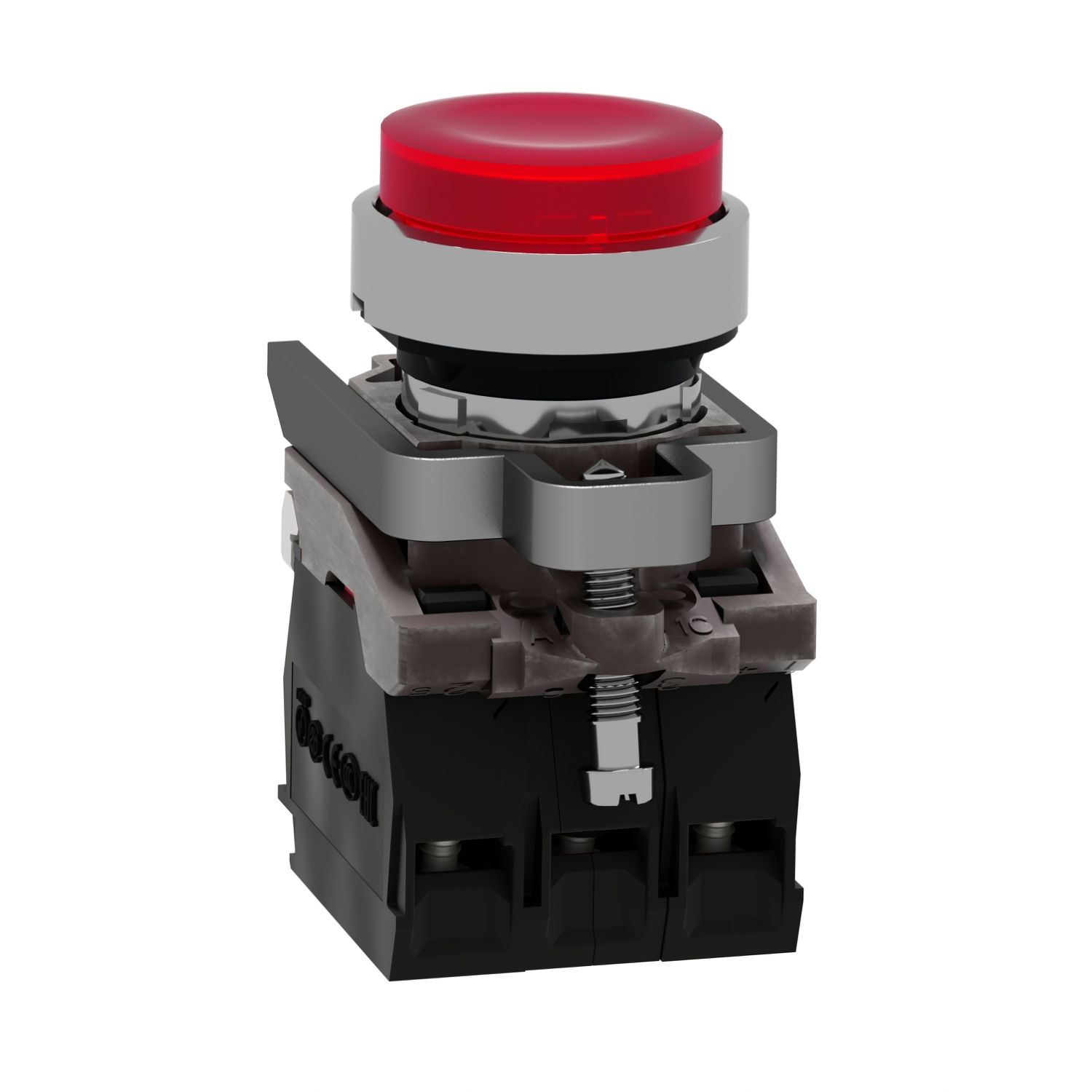

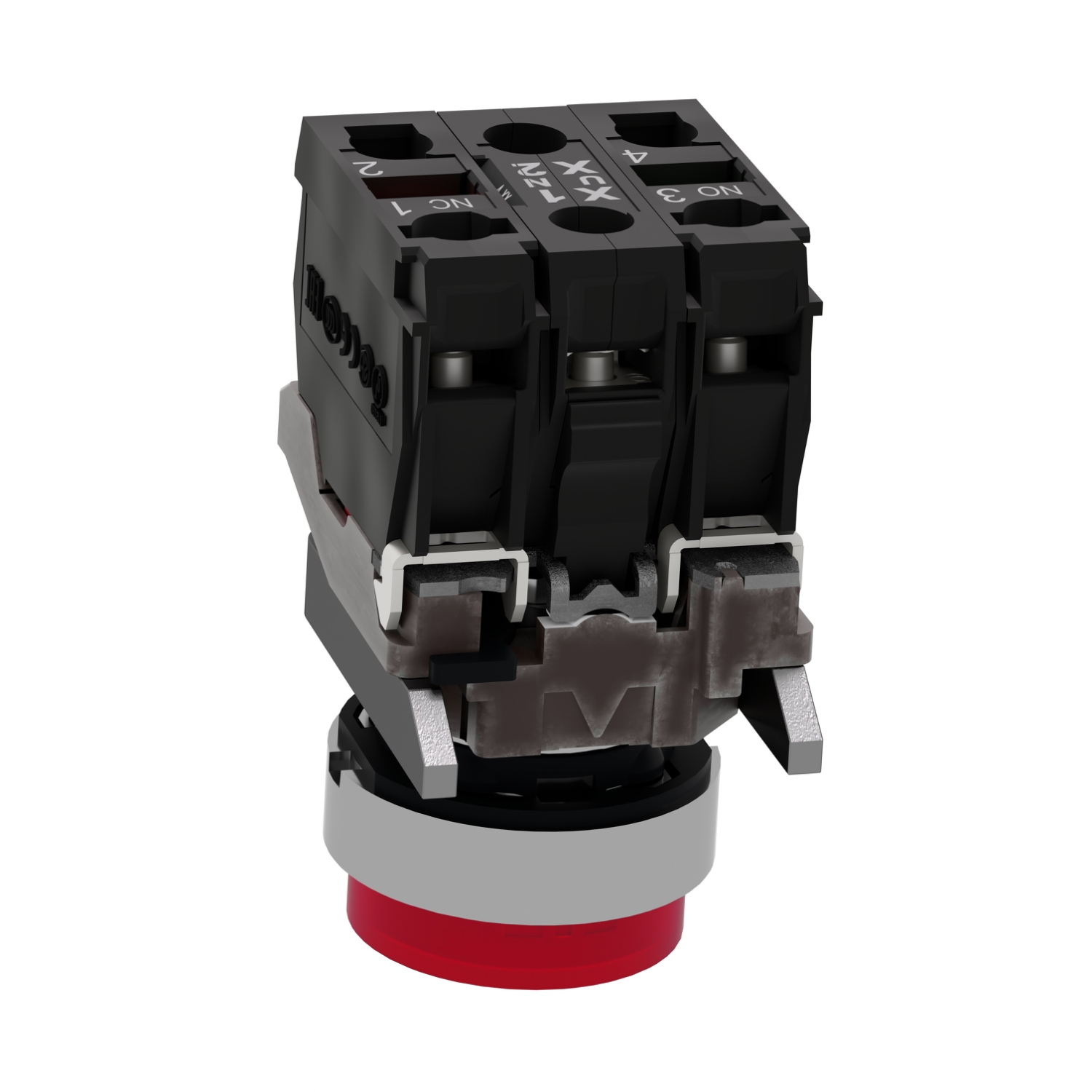

Illuminated push button, Harmony XB4, red flush, universal LED, 22mm, spring return, plain lens, screw clamp terminals, 1NO + 1NC, 24V AC DC

Range of Product

Harmony XB4

Product or Component Type

Illuminated push-button

Device short name

XB4

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diamete

0.9 in (22 mm)

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red flush

Operator additional information

With plain lens

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Light source

Universal LED

Bulb base

BA 9s

Light block supply

Via integral transformer 1.2 VA 6 V

[Us] rated supply voltage

24 V AC/DC

Height

1.9 in (47 mm)

Width

1.2 in (30 mm)

Depth

4.0 in (101 mm)

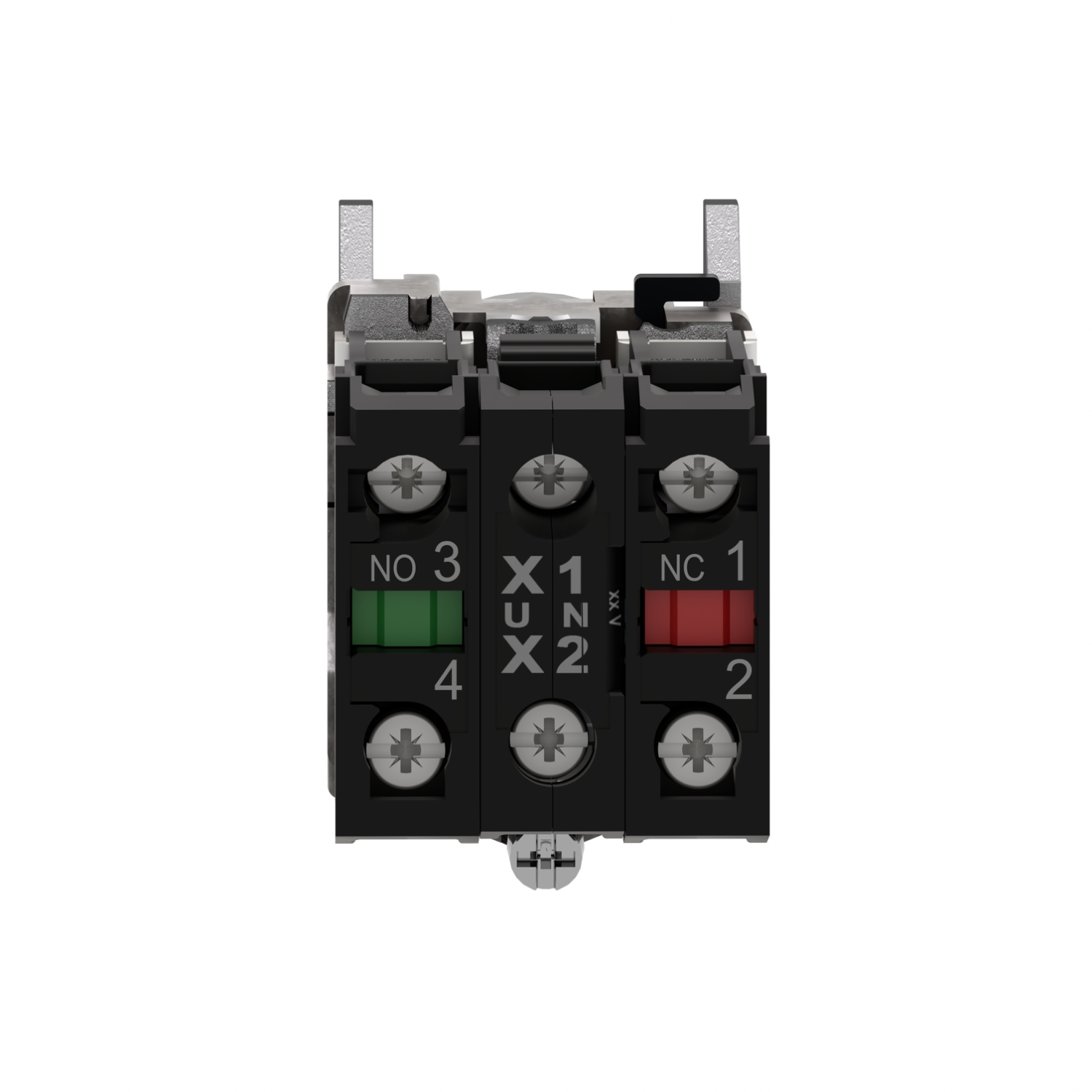

Terminals description ISO n°1

(21-22)NC
(13-14)NO

Net Weight

0.373 lb(US) (0.169 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Contacts usage

Standard contacts

Positive opening

With IEC 60947-5-1 appendix K

Operating travel

0.06 in (1.5 mm) NC changing electrical state)
0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)

Operating force

3.5 N NC changing electrical state
3.8 N

Mechanical durability

10000000 cycles

Tightening torque

7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1

Shape of screw head

Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse gG IEC 60947-5-1

[Ith] conventional free air thermal current

10 A IEC 60947-5-1

[Ui] rated insulation voltage

600 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-1

[Ie] rated operational current

3 A 240 V, AC-15, A600 IEC 60947-5-1
6 A 120 V, AC-15, A600 IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 IEC 60947-5-1
1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Signalling type

Steady

device presentation

Complete product

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Electrical shock protection class

Class I IEC 60536

IP degree of protection

IP66 IEC 60529
IP69 IEC 60529
IP69K IEC 60529

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-5-4
CSA C22.2 No 14
IEC 60947-1
JIS C8201-5-1
IEC 60947-5-1
UL 508
IEC 60947-5-5
JIS C8201-1

Product Certifications

RINA
GL
LROS (Lloyds register of shipping)
UL Listed
BV
CSA
DNV

Vibration resistance

5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Category

US10CS222468

Discount Schedule

0CS2

GTIN

3606485266671

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.4 in (8.6 cm)

Package 1 Width

1.3 in (3.3 cm)

Package 1 Length

2.05 in (5.2 cm)

Package 1 Weight

3.7 oz (105.0 g)

Warranty

18 months
