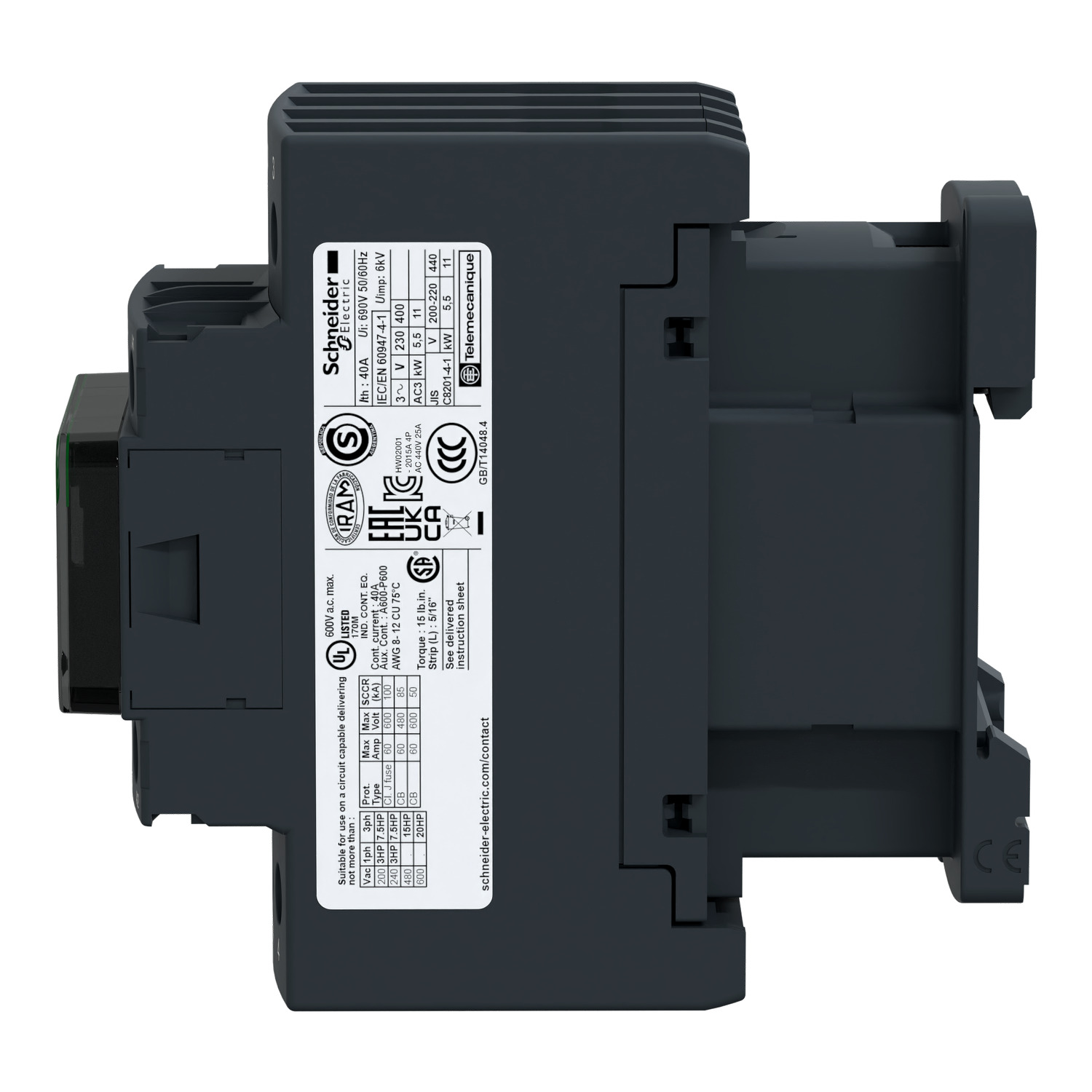

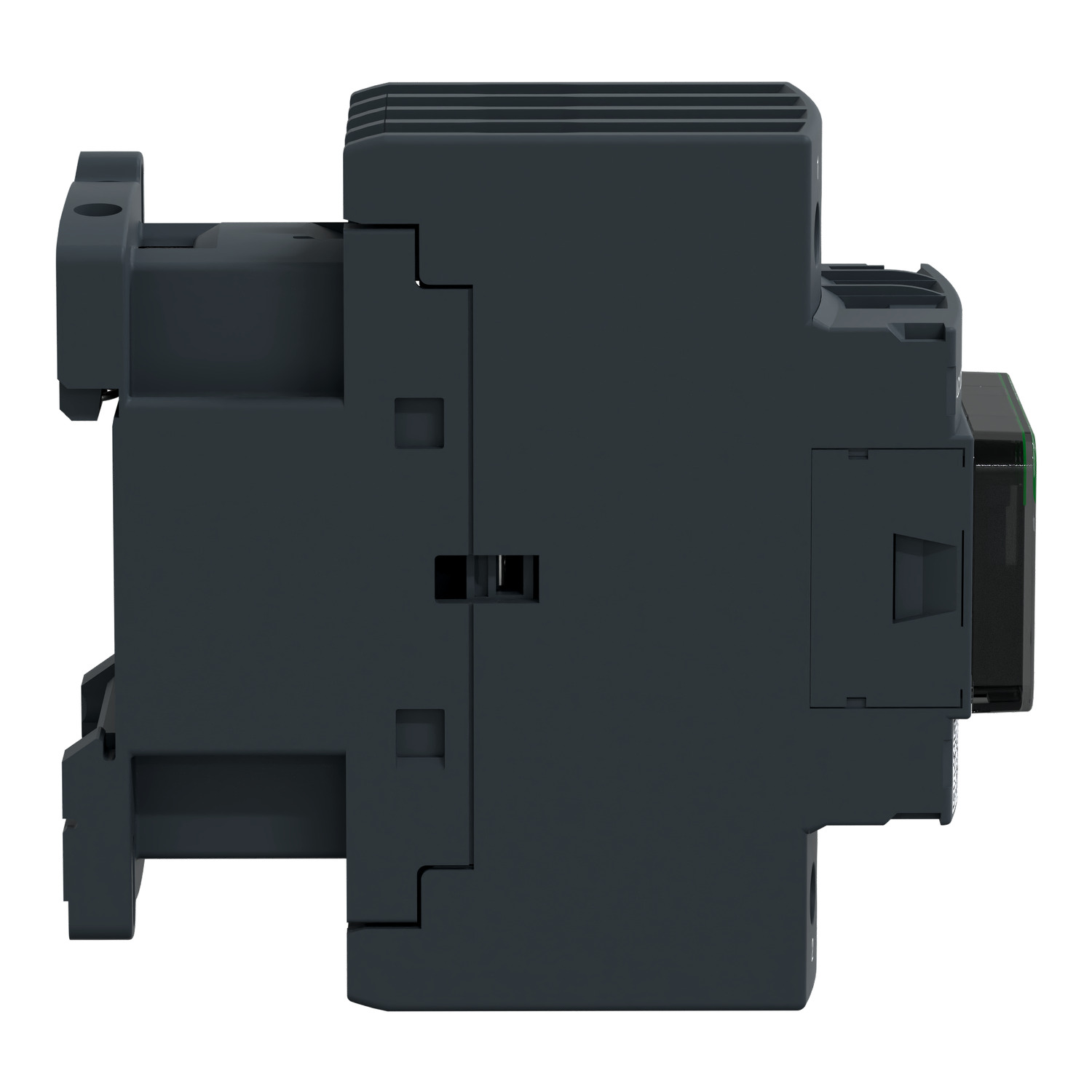

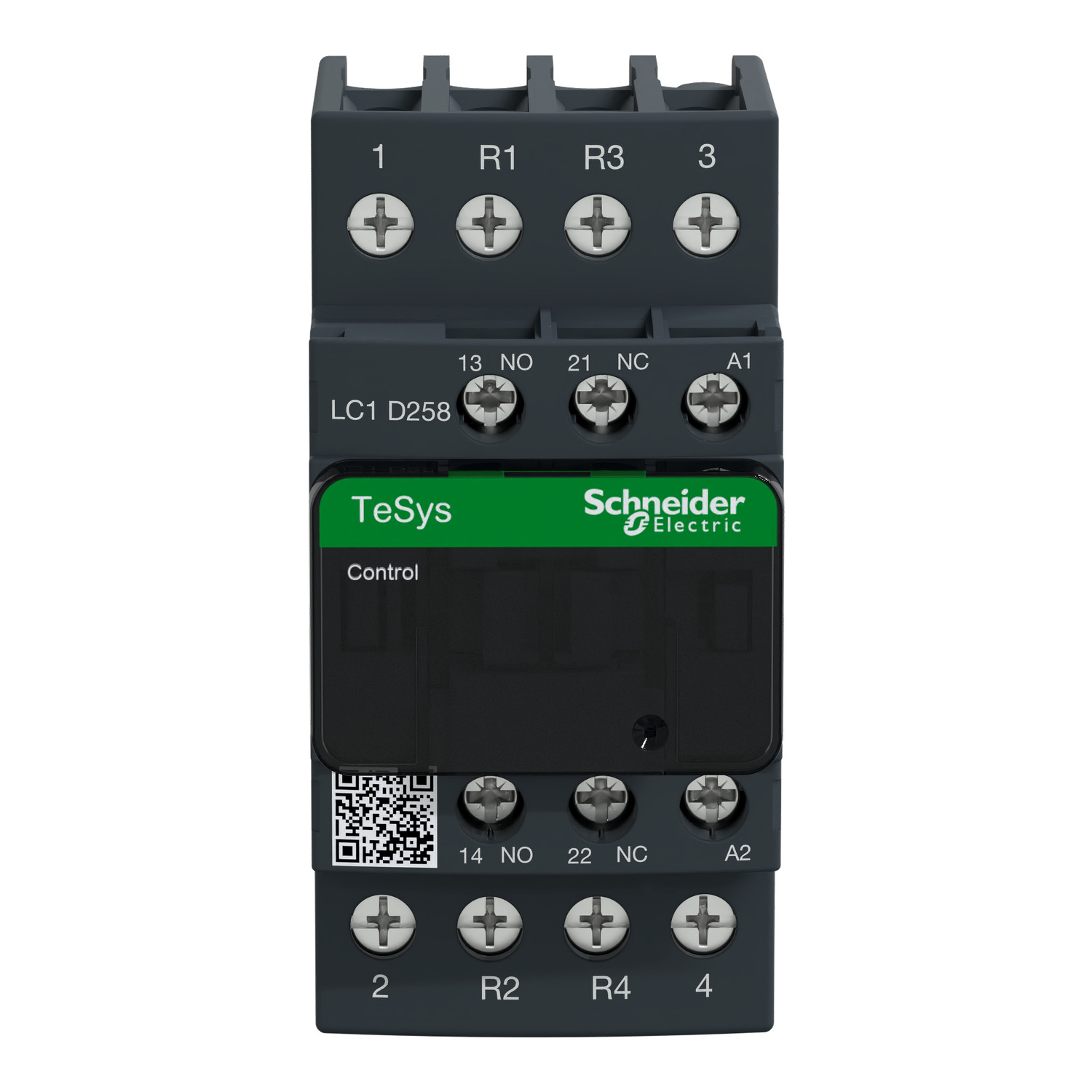

IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 2 NO and 2 NC, 120VAC 50/60Hz coil, open style

Range of Product

TeSys Deca

Product or Component Type

Contactor

Device short name

LC1D

Contactor application

Resistive load

Utilisation category

AC-1
AC-3
AC-3e
AC-4

poles description

4P

[Ue] rated operational voltage

Power circuit <= 690 V AC 25...400 Hz

[Ie] rated operational current

40 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit

[Uc] control circuit voltage

120 V AC 50/60 Hz

Compatibility code

LC1D

Pole contact composition

2 NO + 2 NC

Protective cover

With

[Ith] conventional free air thermal current

10 A (at 140 °F (60 °C)) for signalling circuit
40 A (at 140 °F (60 °C)) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
450 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

450 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current

240 A 104 °F (40 °C) - 10 s for power circuit
380 A 104 °F (40 °C) - 1 s for power circuit
50 A 104 °F (40 °C) - 10 min for power circuit
120 A 104 °F (40 °C) - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit

Associated fuse rating

10 A gG for signalling circuit conforming to IEC 60947-5-1
63 A gG at <= 690 V coordination type 1 for power circuit
40 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

2 mOhm - Ith 40 A 50 Hz for power circuit

Power dissipation per pole

3.2 W AC-1

[Ui] rated insulation voltage

Power circuit 690 V IEC 60947-4-1
Power circuit 600 V CSA
Power circuit 600 V UL
Signalling circuit 690 V IEC 60947-1
Signalling circuit 600 V CSA
Signalling circuit 600 V UL

Overvoltage category

III

Pollution degree

3

[Uimp] rated impulse withstand voltage

6 kV IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Mechanical durability

15 Mcycles

Electrical durability

1.4 Mcycles 40 A AC-1 <= 440 V

Control circuit type

AC 50/60 Hz

Coil technology

Without built-in suppressor module

Control circuit voltage limits

0.3...0.6 Uc -40…140 °F (-40…60 °C) drop-out AC 50/60 Hz
0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz
0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz

Inrush power in VA

70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C))
70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))

Hold-in power consumption in VA

7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))
7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))

Heat dissipation

2…3 W at 50/60 Hz

Operating time

12...22 ms closing
4...19 ms opening

Maximum operating rate

3600 cyc/h 140 °F (60 °C)

Connections - terminals

Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: solid without cable end

Tightening torque

Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Power circuit 15.9 lbf.in (1.8 N.m) screw clamps terminals flat Ø 6 mm
Power circuit 15.9 lbf.in (1.8 N.m) screw clamps terminals Philips No 2
Power circuit 15.9 lbf.in (1.8 N.m) screw clamp terminals pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1
Mirror contact 1 NC IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Insulation resistance

> 10 MOhm for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact

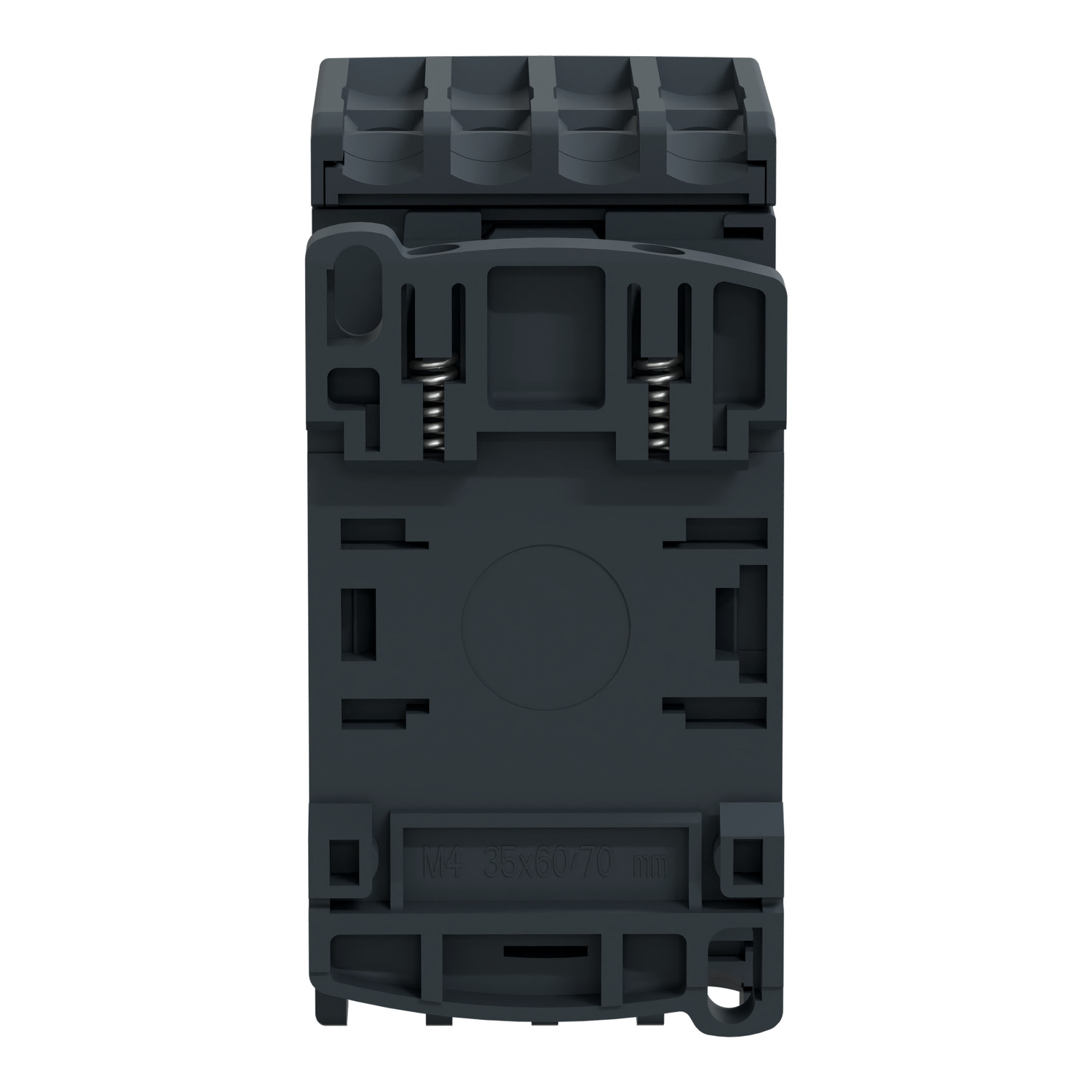

Mounting Support

Rail
Plate

Standards

EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4

Product Certifications

UL
CSA
CCC
EAC
UKCA
CB
EU-RO-MR by DNV-GL

IP degree of protection

IP20 front face IEC 60529

Protective treatment

THIEC 60068-2-30

Climatic withstand

IACS E10 exposure to damp heat
IEC 60947-1 Annex Q category D exposure to damp heat

Permissible ambient air temperature around the device

-40…140 °F (-40…60 °C)
140…158 °F (60…70 °C) with derating

Operating altitude

0...9842.52 ft (0...3000 m)

Fire resistance

1562 °F (850 °C) IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

Vibrations contactor open 2 Gn, 5...300 Hz)
Vibrations contactor closed 4 Gn, 5...300 Hz)
Shocks contactor closed 15 Gn for 11 ms)
Shocks contactor open 8 Gn for 11 ms)

Height

3.6 in (91 mm)

Width

1.8 in (45 mm)

Depth

3.9 in (99 mm)

Net Weight

0.937 lb(US) (0.425 kg)

Category

US10I1222354

Discount Schedule

0I12

GTIN

3389110294330

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.2 in (5.5 cm)

Package 1 Width

3.7 in (9.5 cm)

Package 1 Length

4.7 in (12.0 cm)

Package 1 Weight

16.6 oz (470.0 g)

Warranty

18 months
