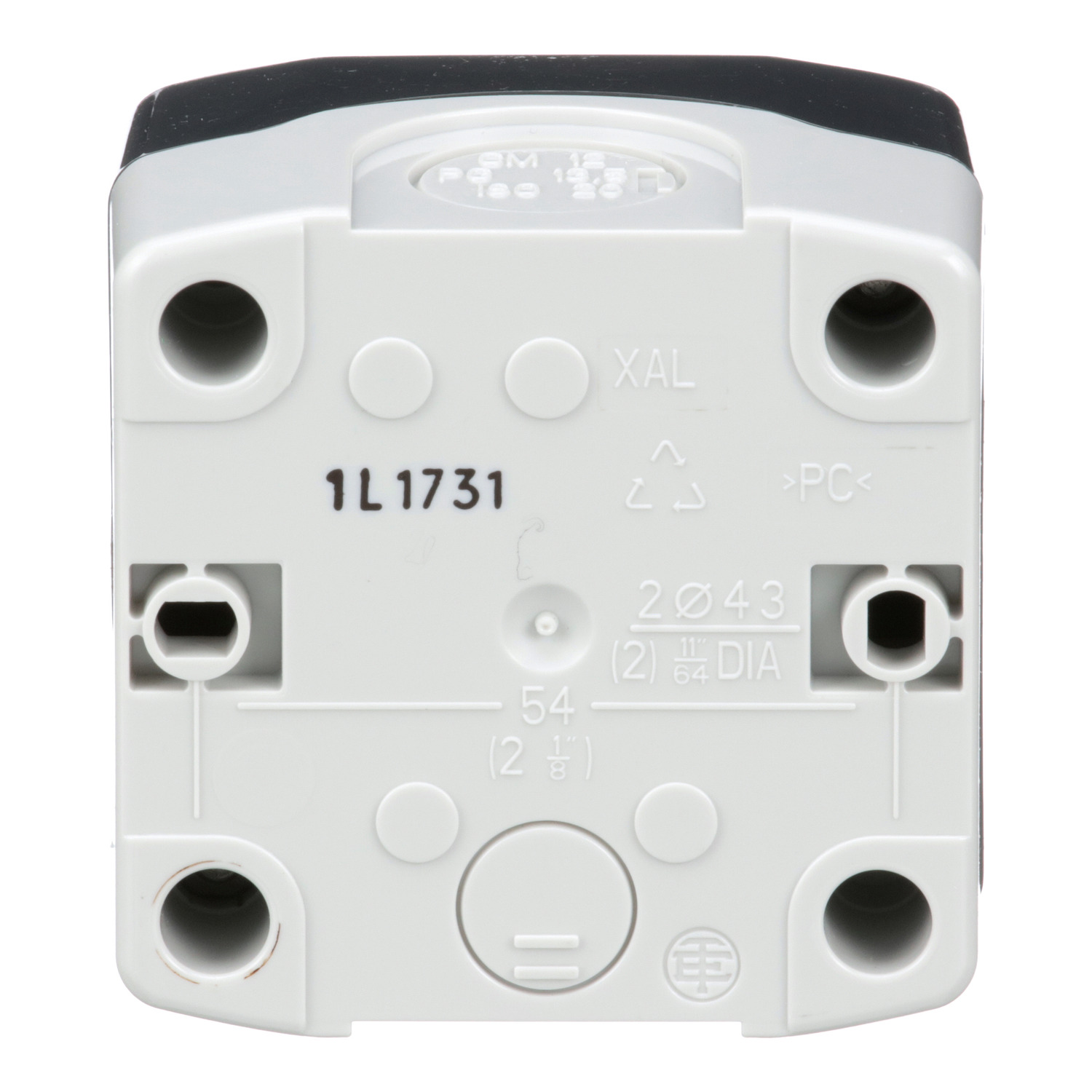

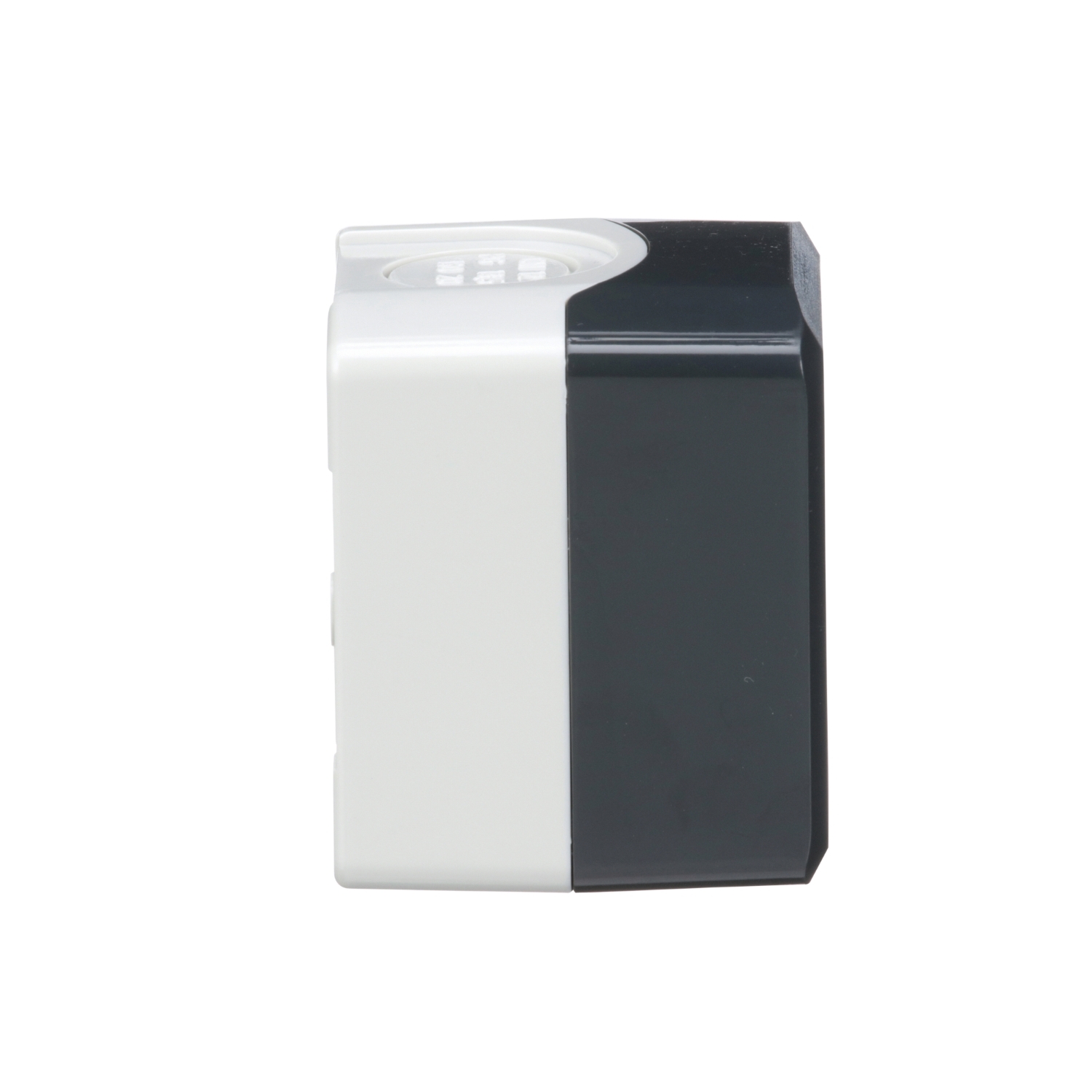

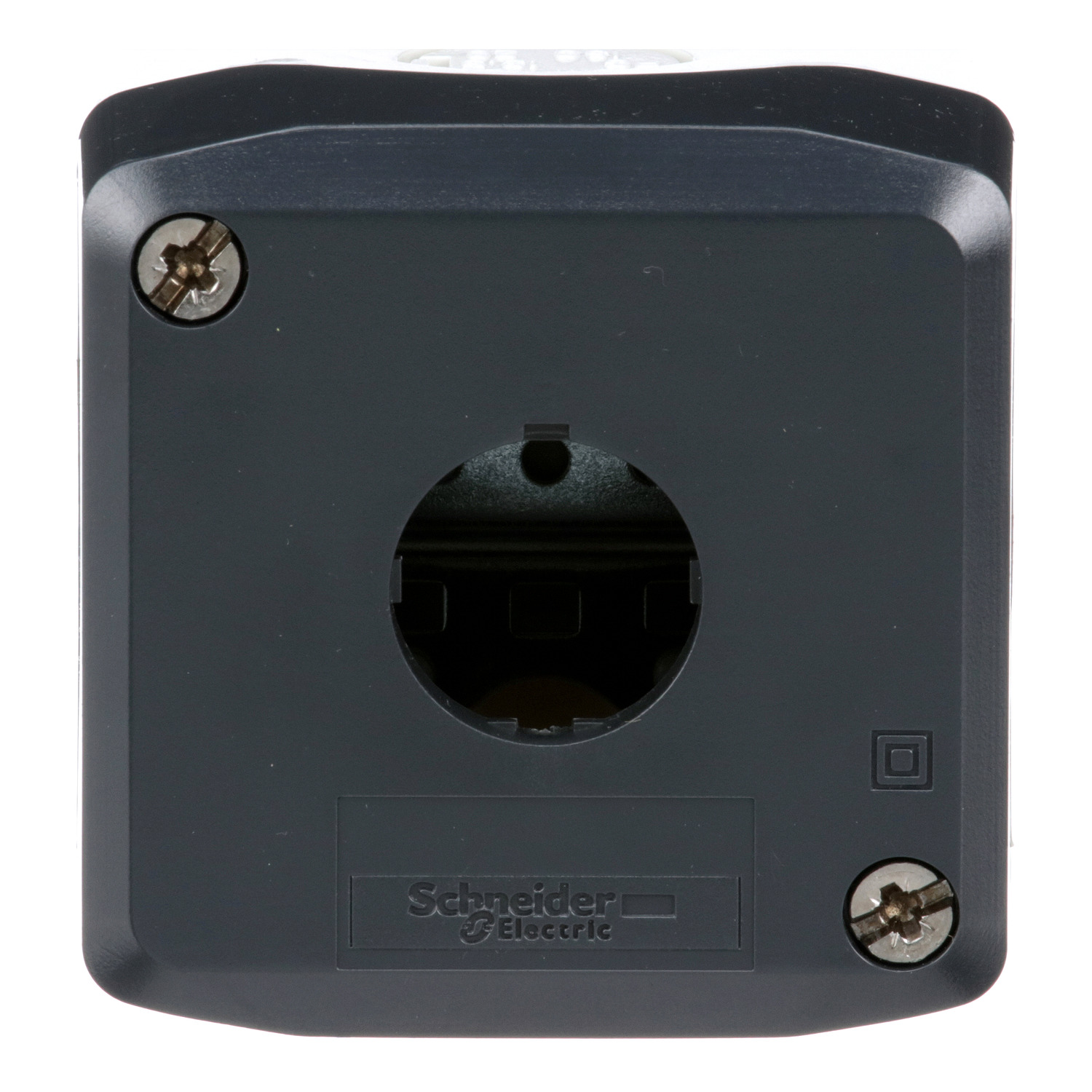

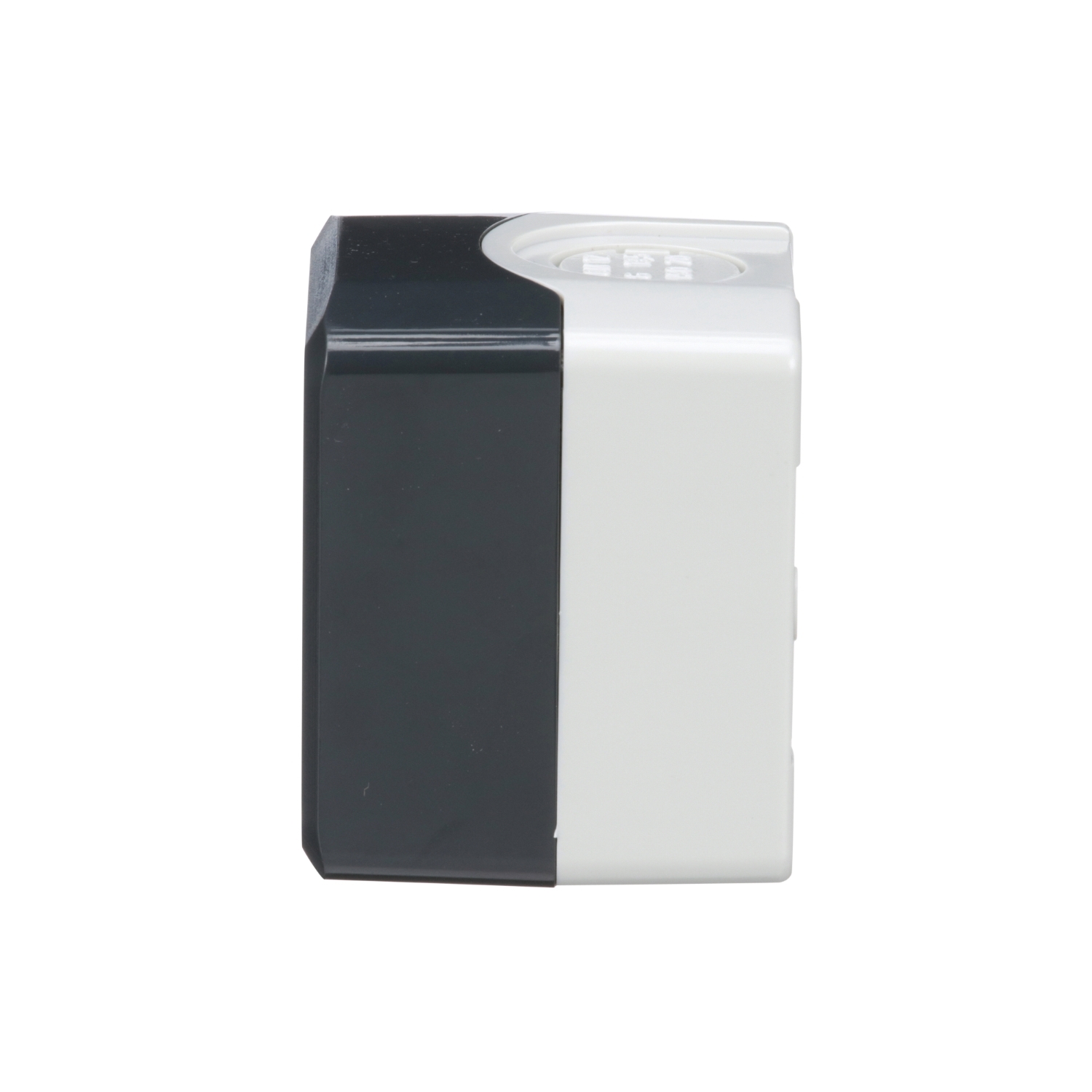

Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified

Range of Product

Harmony XALD

Product or Component Type

Empty control station

Device short name

XALD

product destination

For XB5 Ø 22 mm control and signalling units

Number of cut-out

1 cut-out

Colour of base of enclosure

Light grey RAL 7035)

Colour of cover

Dark grey RAL 7016)

Material

Polycarbonate

Cable entry

1 knock-out for cable entry 0.6 in (14 mm)
2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm)

IP degree of protection

IP66 IEC 60529
IP67
IP69
IP69K

Assembly style

For customer assembly

Number of horizontal rows

1

Number of vertical rows

1

Net Weight

0.300 lb(US) (0.136 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Mounting of block

Rear mounting
Front mounting

Electrical composition code

MF2
MF1
MR1
PR1
SF1
SR2
SR1
PF1
PF2
SF2

Main group

1 cut-out

Group of product

UL-CSA grey

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Overvoltage category

Class II IEC 60536

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK03 conforming to EN 50102

Standards

EN/IEC 60947-5-5
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
UL 508
JIS C8201-1

Product Certifications

UL
CSA

Category

US10CS222475

Discount Schedule

0CS2

GTIN

3389110114911

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.756 in (7.000 cm)

Package 1 Width

2.756 in (7.000 cm)

Package 1 Length

3.031 in (7.700 cm)

Package 1 Weight

4.233 oz (120.000 g)

Unit Type of Package 2

S03

Number of Units in Package 2

40

Package 2 Height

11.811 in (30.000 cm)

Package 2 Width

11.811 in (30.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

11.665 lb(US) (5.291 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

320

Package 3 Height

29.528 in (75.000 cm)

Package 3 Width

23.622 in (60.000 cm)

Package 3 Length

31.496 in (80.000 cm)

Package 3 Weight

117.383 lb(US) (53.244 kg)

Warranty

18 months
