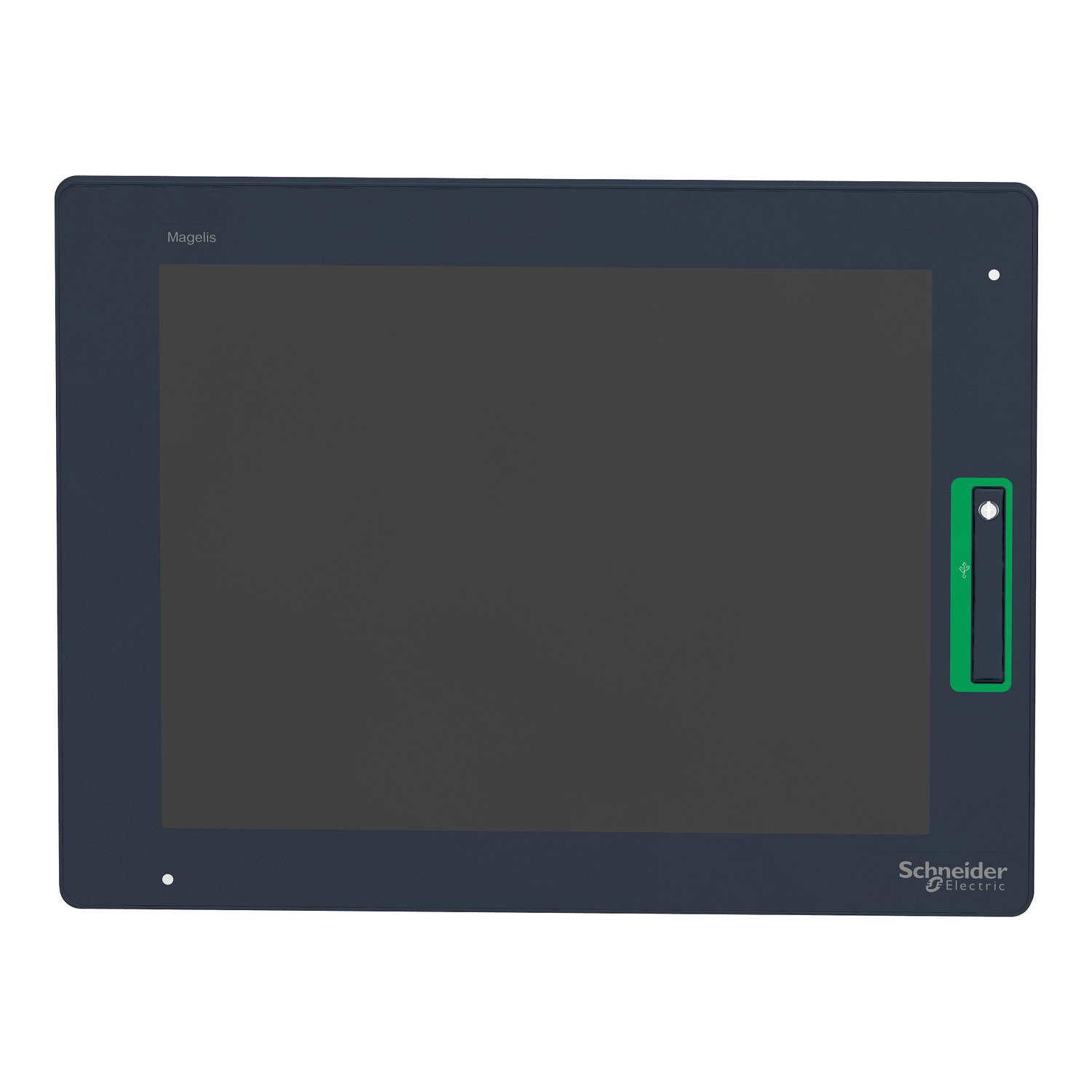

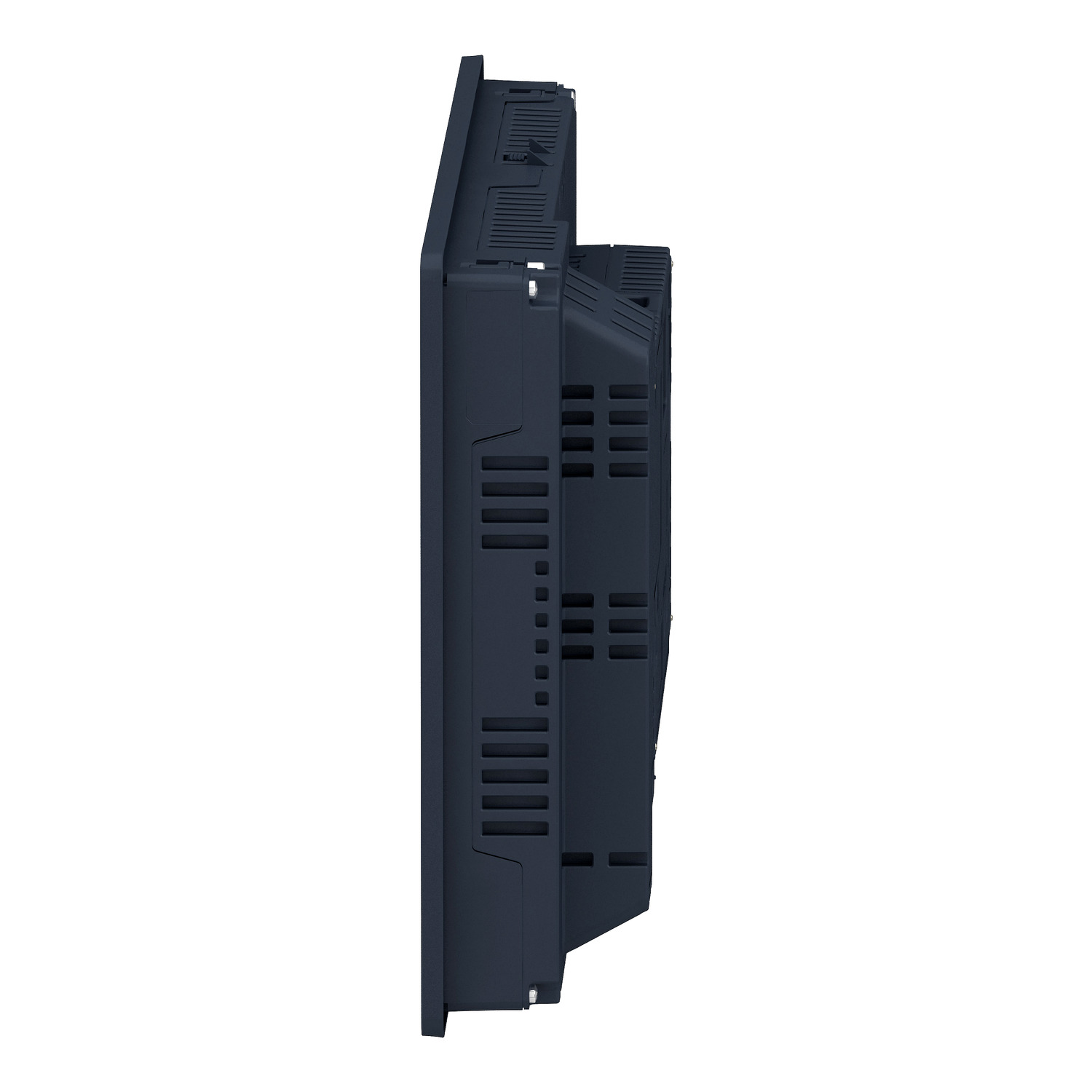

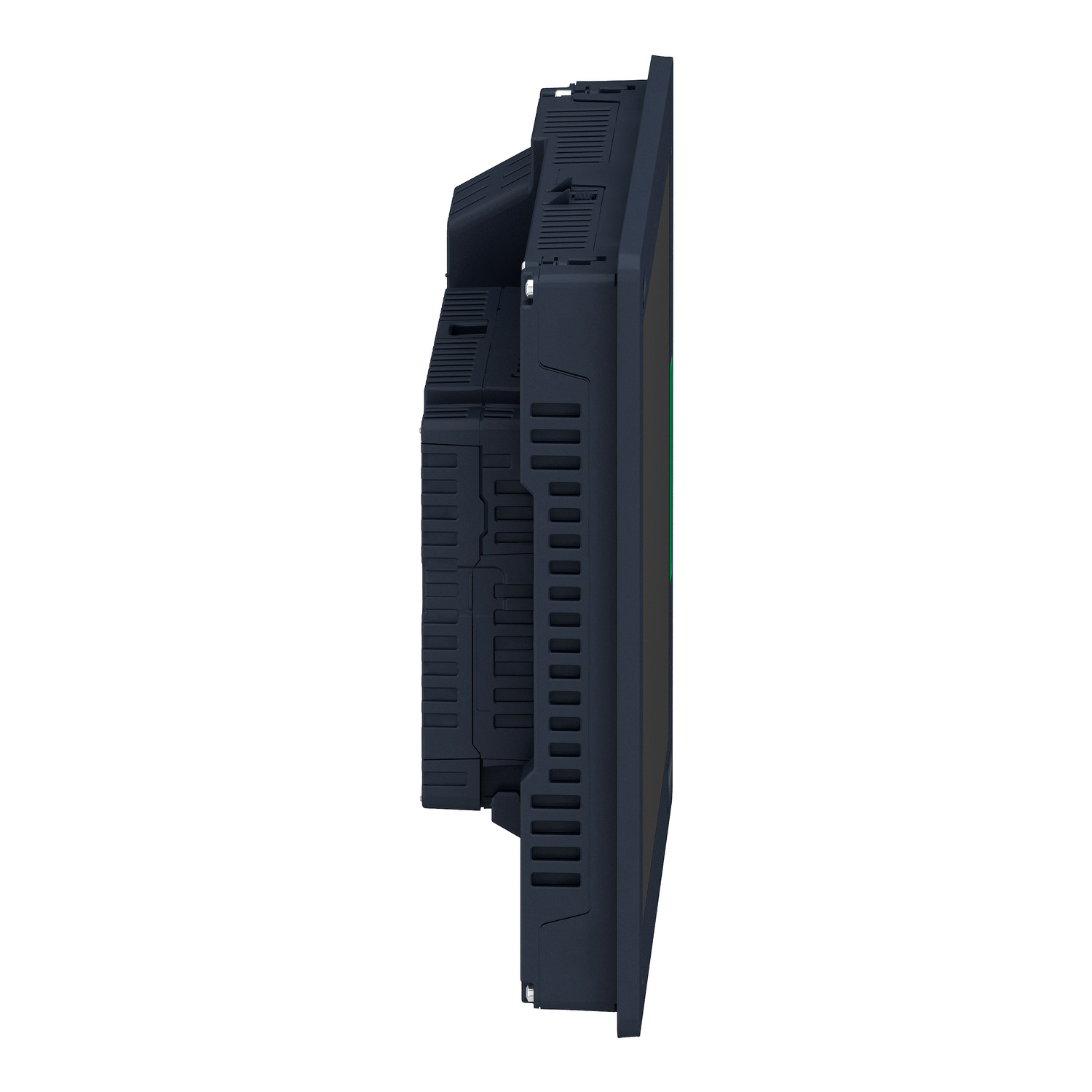

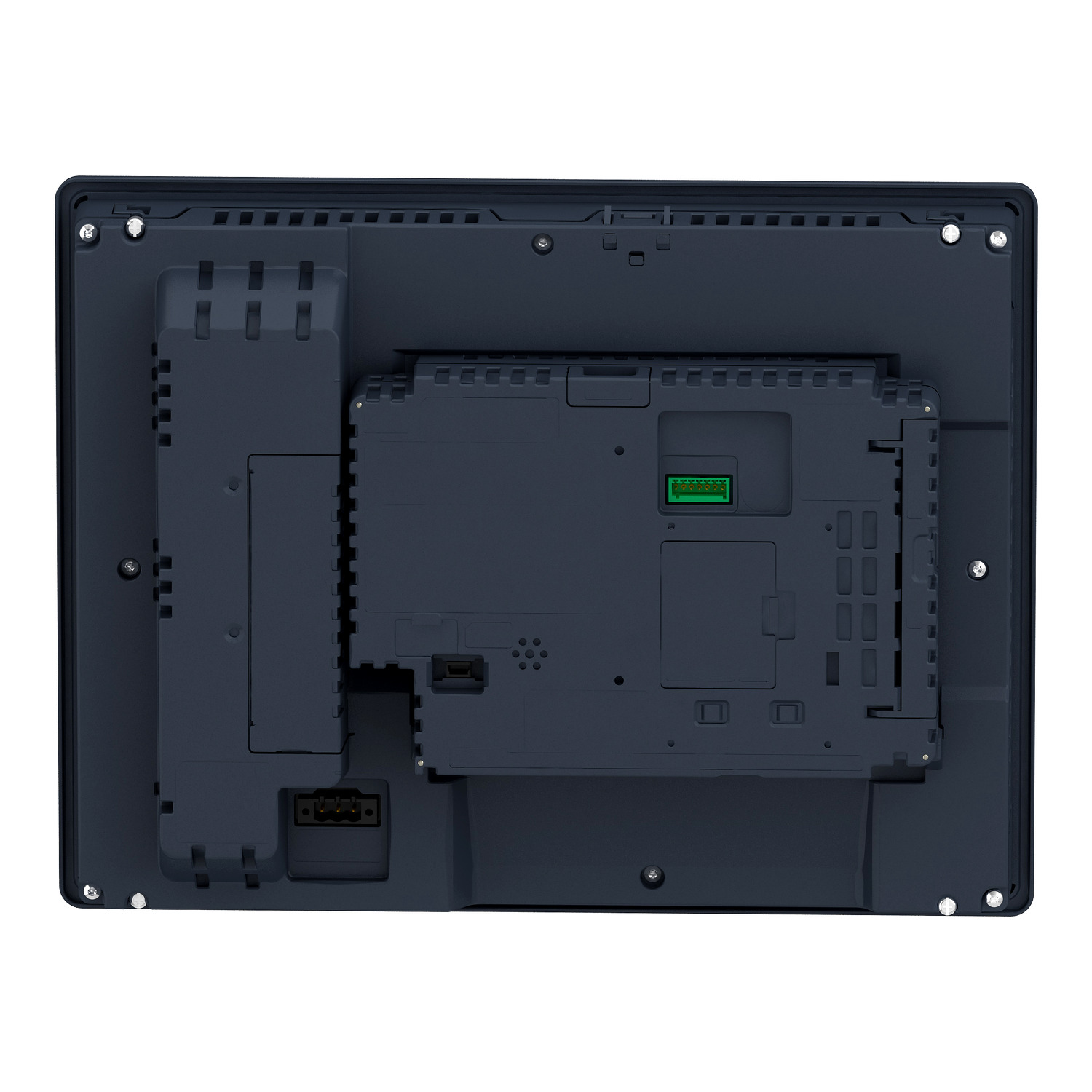

flat screen, Harmony GTU, 12.1inch wide display

Range of Product

Harmony GTU

Product or Component Type

Flat screen

Terminal type

Touchscreen display

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.8…28.8 V

Power Consumption in W

21 W

Inrush current

30 A

Integrated connection type

USB 2.0 type A
USB 2.0 type mini B

Touchscreen resolution

1024 x 1024

Pixel resolution

1024 x 600

Display size

12.1 inch

aspect ratio

4:3

Display type

Colour TFT LCD

display resolution

1024 x 768 pixels XGA

Display colour

16 million colours

Backlight lifespan

50000 hours

Touch panel

Multi touch analogue resistive

Function Available

Brightness sensor

Type of cooling

Natural convection

Type of Installation

Indoor installation

Cut-out dimensions

301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm

Width

12.4 in (315 mm)

Height

9.5 in (241 mm)

Depth

2.6 in (67 mm)

Net Weight

6.6 lb(US) (3 kg)

IP degree of protection

Front panel IP66
Front panel IP67

NEMA degree of protection

NEMA 4X front panel

Standards

UL 508
ANSI/ISA 12-12-01
Class I division 2 CSA C22.2 No 213
CSA C22.2 No 142
IEC 61132-2

Product certifications

CE
UKCA
UKEX

Ambient air temperature for operation

32…140 °F (0…60 °C) IEC 61131-2

Ambient air temperature for storage

-4…140 °F (-20…60 °C)

Relative Humidity

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)

Vibration resistance

3.5 mm constant amplitude 5…9 Hz) IEC 61131-2
9.8 m/s² 9…150 Hz) IEC 61131-2

Shock resistance

147 m/s²IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Category

US10MC222567

Discount Schedule

0MC2

GTIN

3606480687242

Returnability

Yes

Country of origin

IN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.3 in (18.6 cm)

Package 1 Width

13.0 in (33 cm)

Package 1 Length

16.9 in (43 cm)

Package 1 Weight

10.6 lb(US) (4.8 kg)

Unit Type of Package 2

CAR

Number of Units in Package 2

2

Package 2 Height

15.7 in (40 cm)

Package 2 Width

13.4 in (34 cm)

Package 2 Length

17.3 in (44 cm)

Package 2 Weight

22.05 lb(US) (10 kg)

Unit Type of Package 3

P12

Number of Units in Package 3

10

Package 3 Height

21.9 in (55.5 cm)

Package 3 Width

31.5 in (80 cm)

Package 3 Length

47.2 in (120 cm)

Package 3 Weight

106.53 lb(US) (48.32 kg)

Warranty

18 months
