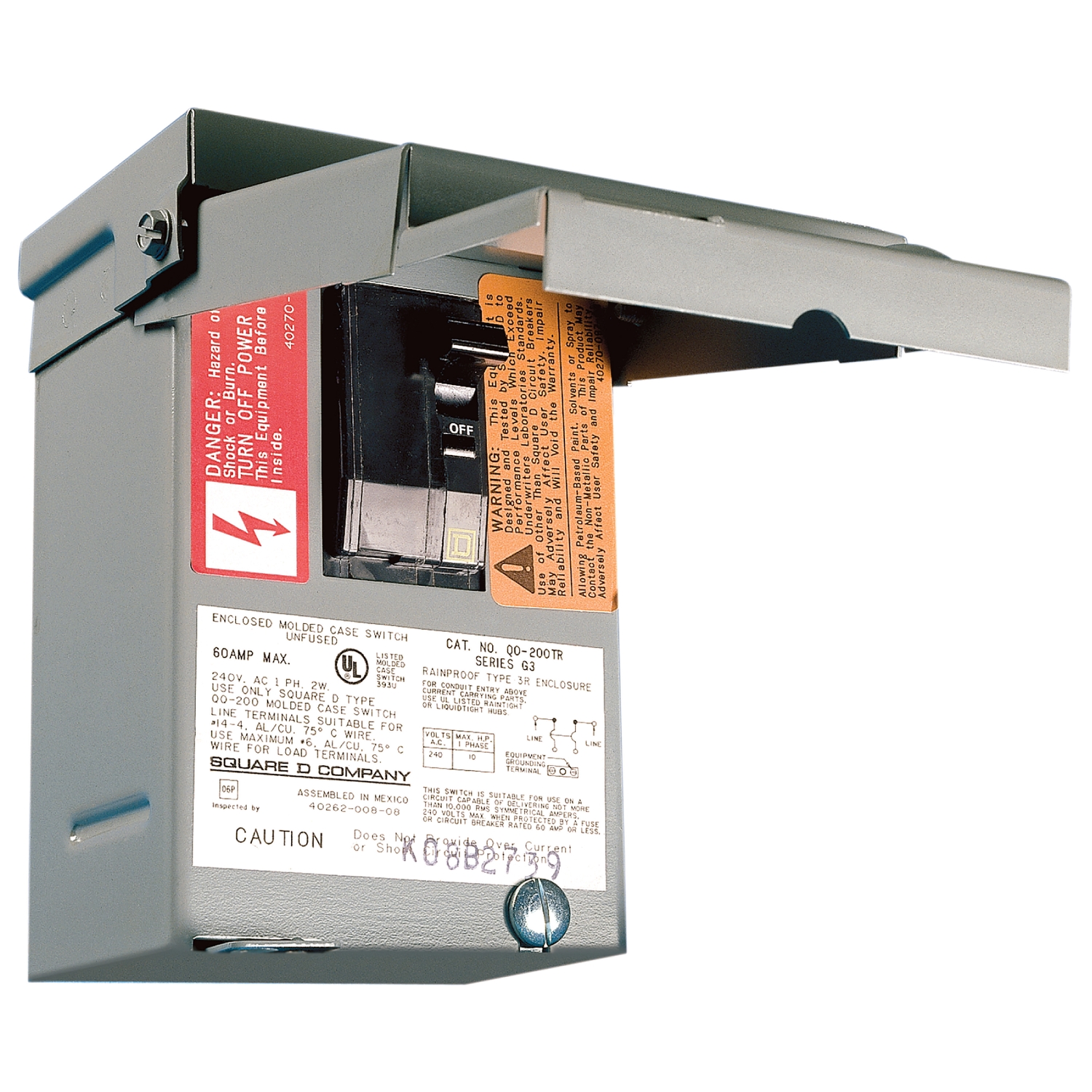

Enclosed molded case switch, QO, 60A, 2 pole, 240VAC, 22kA, air conditioning, NEMA 3R

Product Type

Enclosed molded case switch
Weatherproof enclosure

Range of Product

QO

Current Rating

60 A

Interrupt Rating

22 kA 240 V AC

Number of Phases

1 phase

Enclosure Rating

NEMA 3R outdoor

Breaker Compatibility

Circuit breaker QO 2P

For Use With

air conditioner

Product Certifications

UL Listed

Indoor/Outdoor Use

Enclosed outdoor

Surface Finish

Baked enamel Gray

Voltage Rating

240 V AC

Ambient Air Temperature for Operation

104 °F (40 °C)

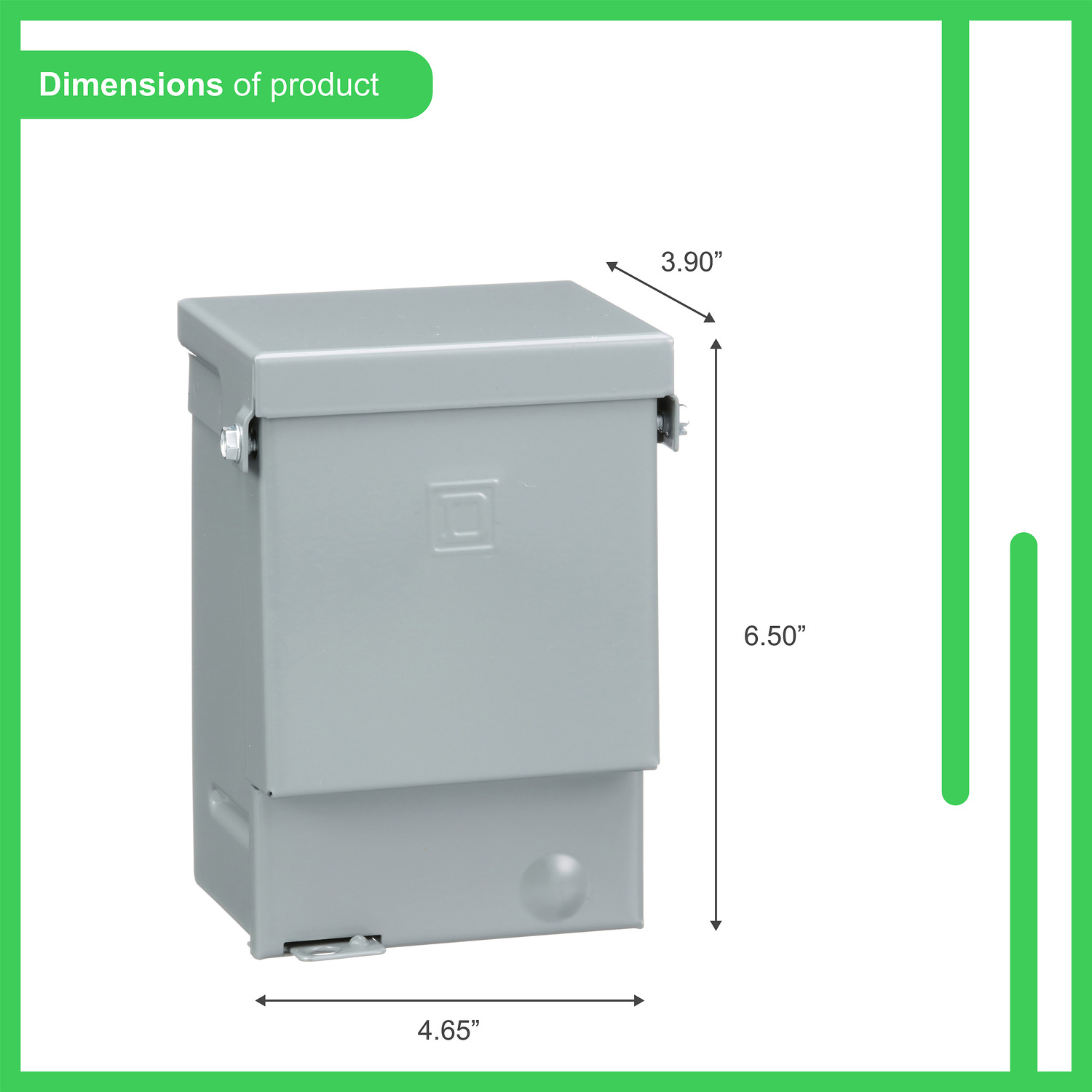

Height

6.5 in (165 mm)

Width

4.6 in (118 mm)

Depth

3.9 in (99 mm)

Product Weight

3.0005 lb(US) (1.361 kg)

Category

US1DE2A00044

Discount Schedule

DE2A

GTIN

785901535966

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.50 in (8.89 cm)

Package 1 Width

4.200 in (10.668 cm)

Package 1 Length

6.50 in (16.51 cm)

Package 1 Weight

3.0005 lb(US) (1.361 kg)

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Height

7.100 in (18.034 cm)

Package 2 Width

9.800 in (24.892 cm)

Package 2 Length

19.800 in (50.292 cm)

Package 2 Weight

30.351 lb(US) (13.767 kg)

Unit Type of Package 3

PAL

Number of Units in Package 3

400

Package 3 Height

42.0000000000 in (106.68 cm)

Package 3 Width

40.0 in (101.6 cm)

Package 3 Length

48.00 in (121.92 cm)

Package 3 Weight

1270.0004 lb(US) (576.062 kg)

Warranty

18 months
