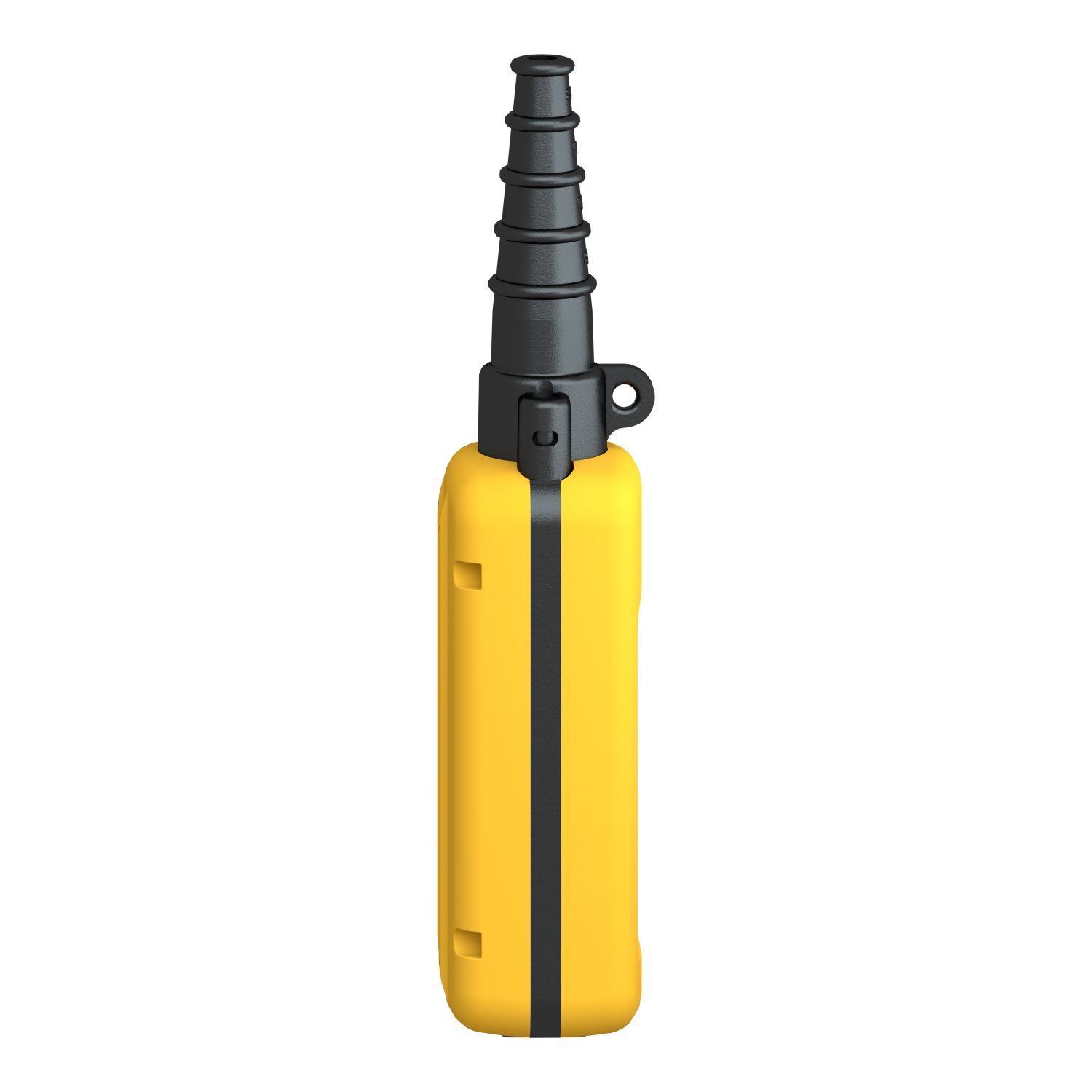

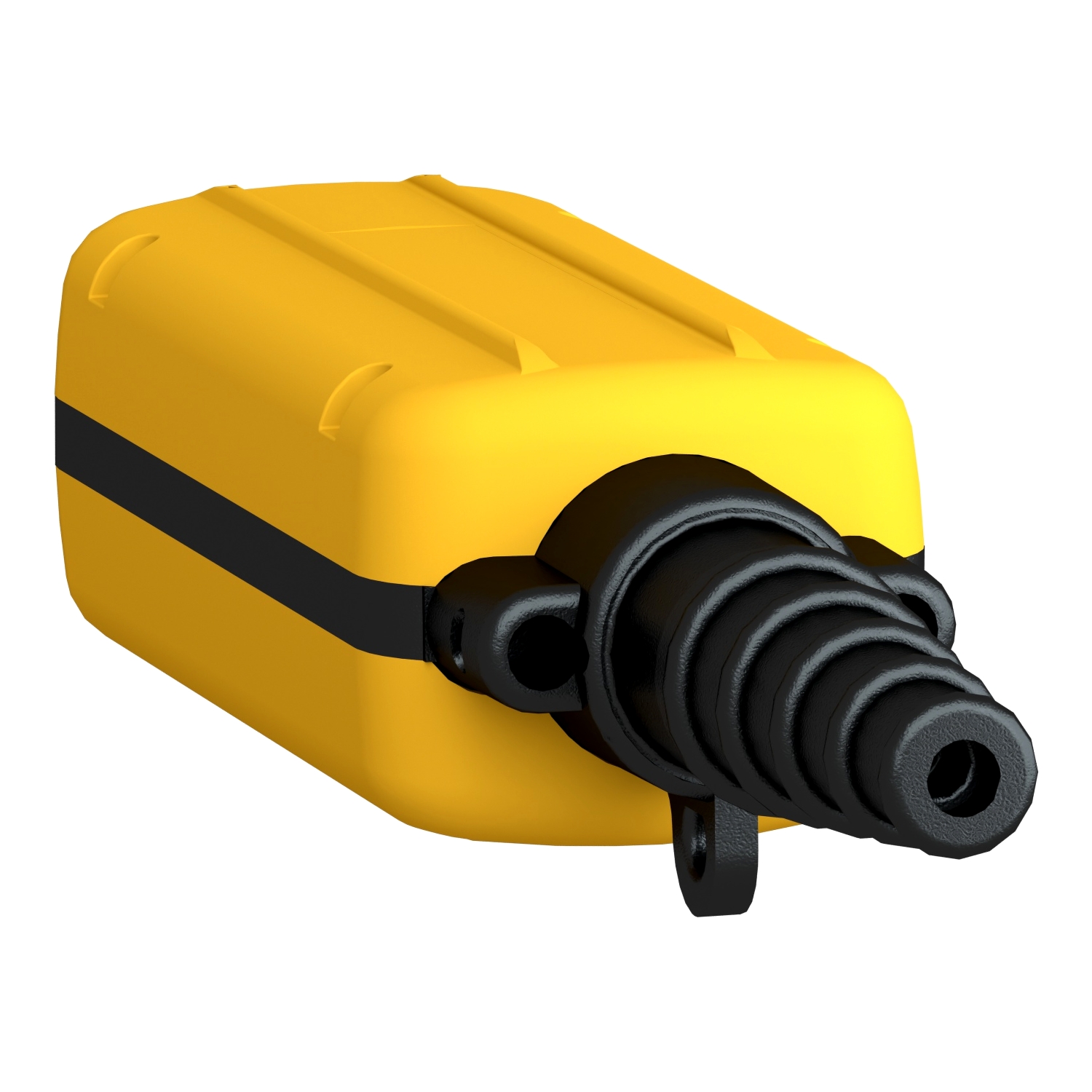

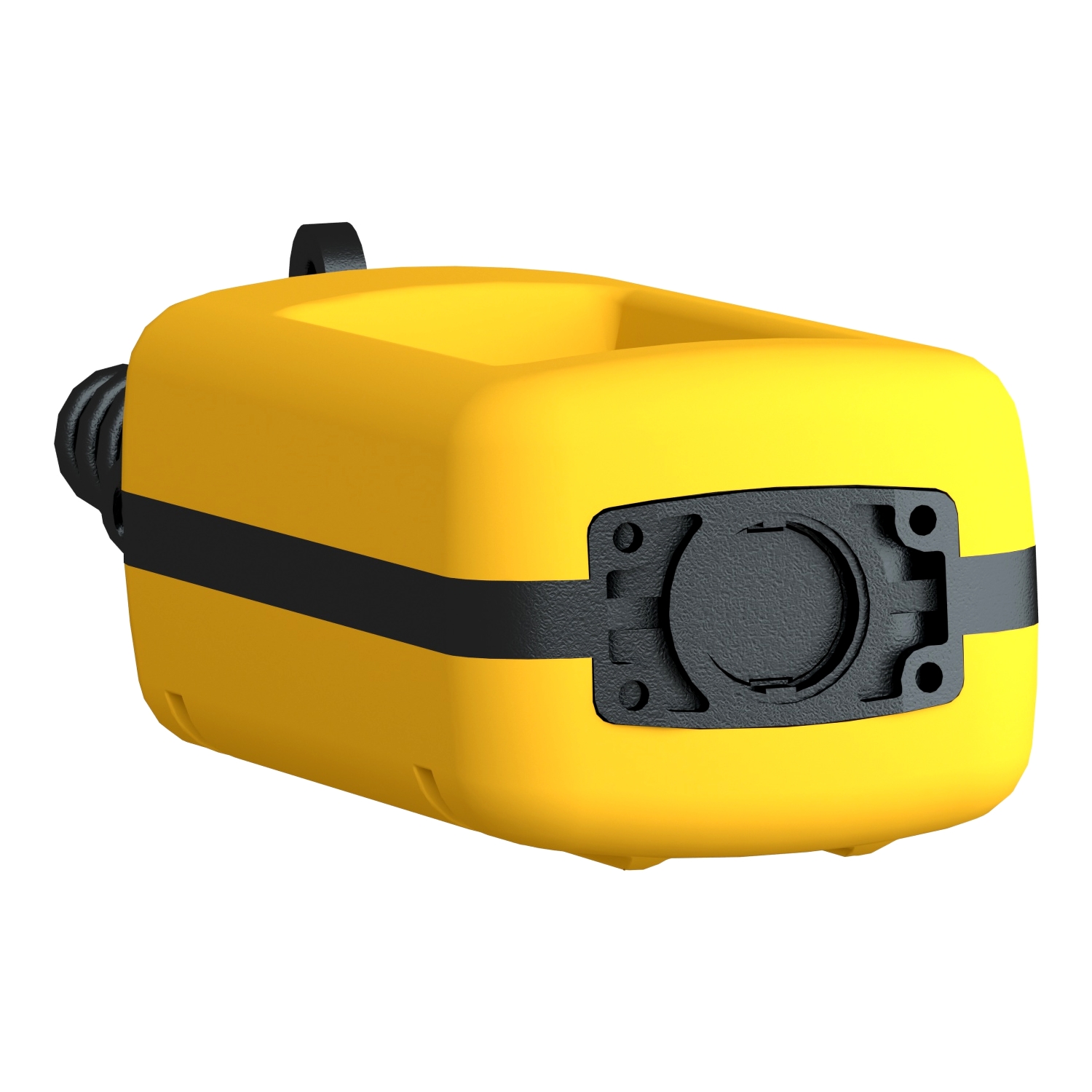

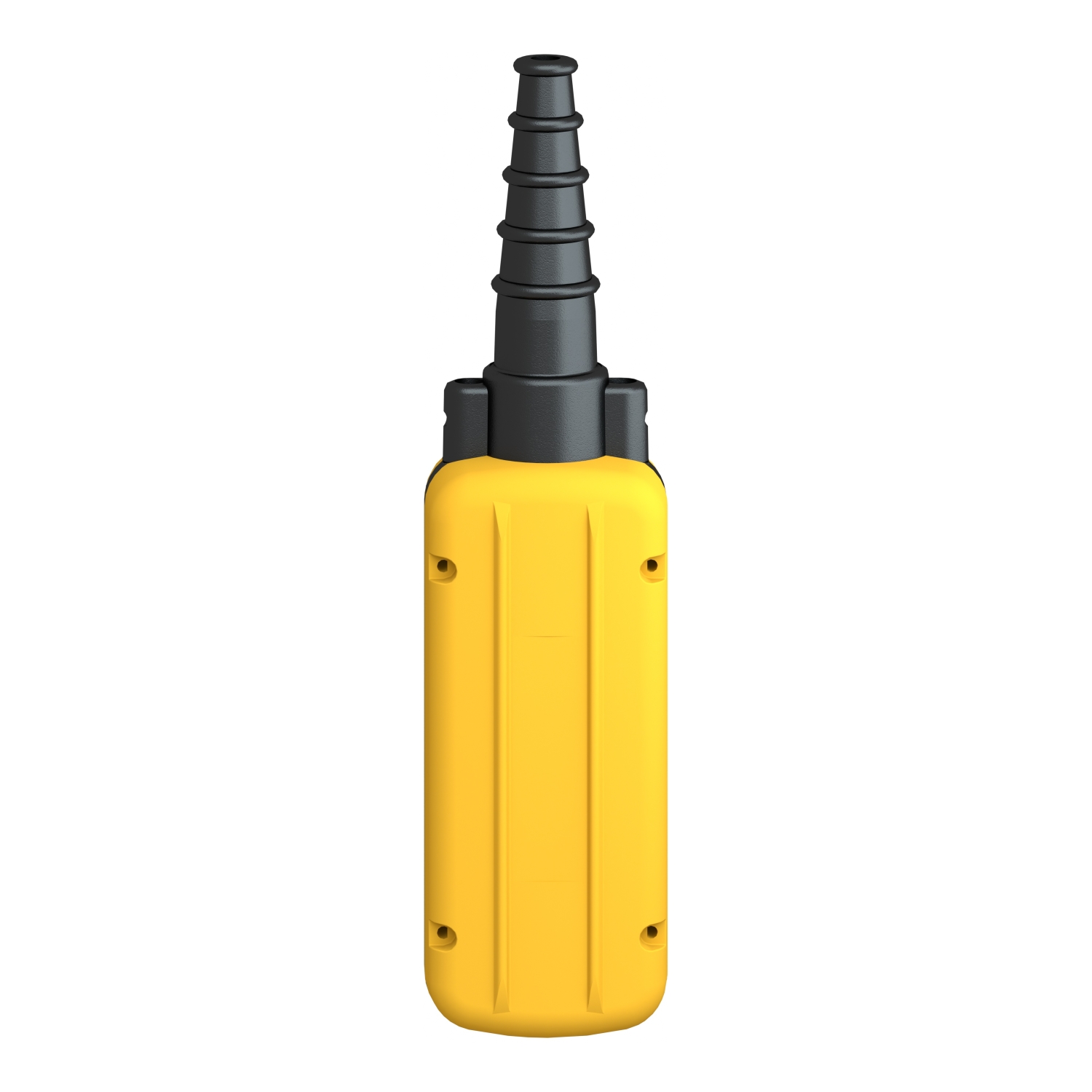

Empty pendant control station, Harmony XAC, plastic, yellow, 3 cut outs, UL CSA certified

Range of Product

Harmony XAC

Product or Component Type

Pendant control station

Device short name

XACA

Control station type

Double insulated

Enclosure Material

Polypropylene

Electrical circuit type

Control circuit

Enclosure Type

Empty enclosure

Number of cut-out

3 cut-outs

Control station colour

Yellow

Cable entry

Rubber sleeve with stepped entry 0.3…1.02 in (8…26 mm)

Guard rail

Without

Vertical operator cut-out centre

1.2 in (30 mm)

Standards

UL 508
EN/IEC 60204-32
CSA C22.2 No 14
EN/IEC 60947-5-1

Product Certifications

CSA
GOST
UL
CCC

protective treatment

TH

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Vibration resistance

15 gn 10…500 Hz)IEC 60068-2-6

Shock resistance

100 gn IEC 60068-2-27

Overvoltage category

Class II IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 50102

Mechanical durability

1000000 cycles

Net Weight

0.97 lb(US) (0.44 kg)

Category

US10CS222473

Discount Schedule

0CS2

GTIN

3389118117686

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.3 in (8.5 cm)

Package 1 Width

3.5 in (9.0 cm)

Package 1 Length

17.5 in (44.5 cm)

Package 1 Weight

17.6 oz (500.0 g)

Warranty

18 months
