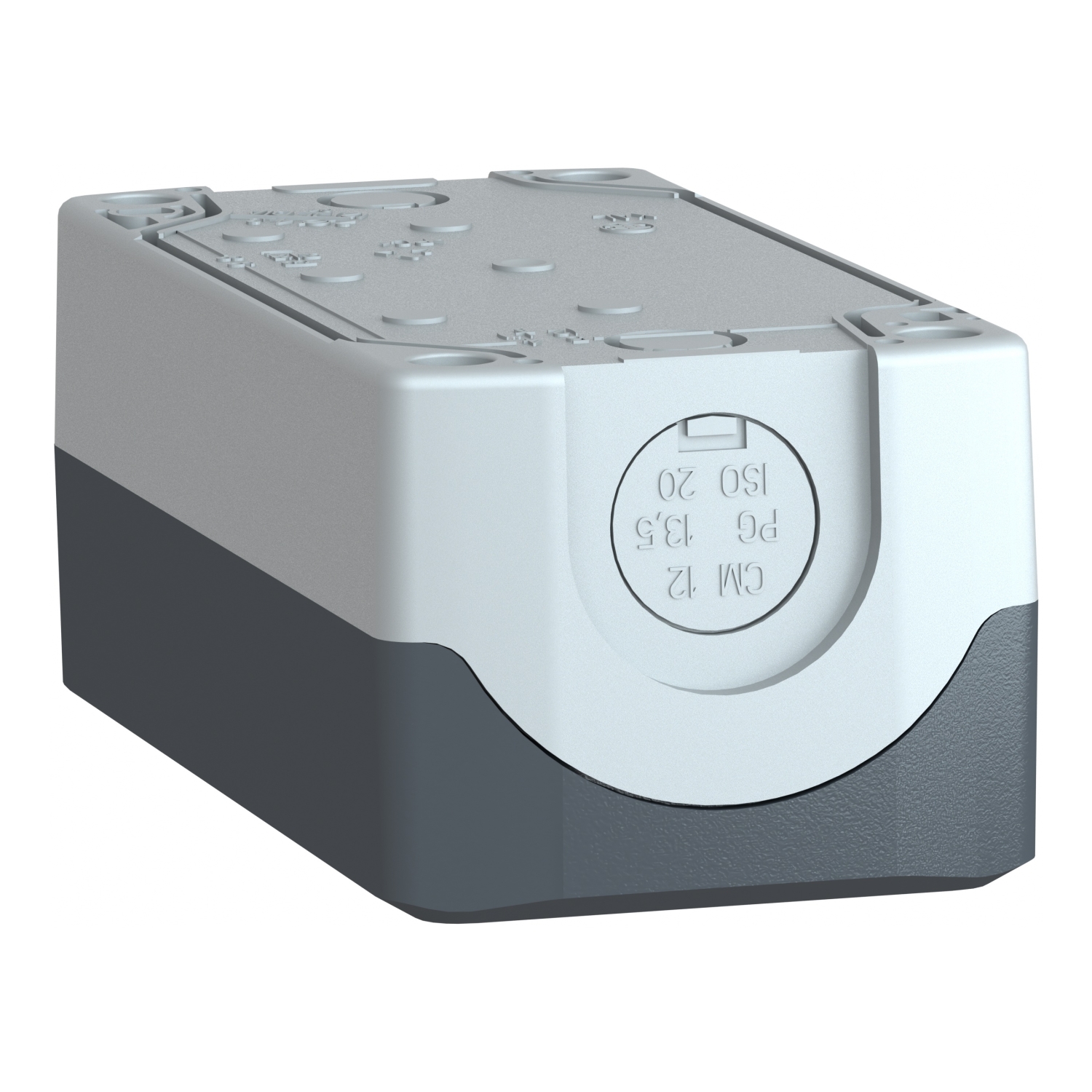

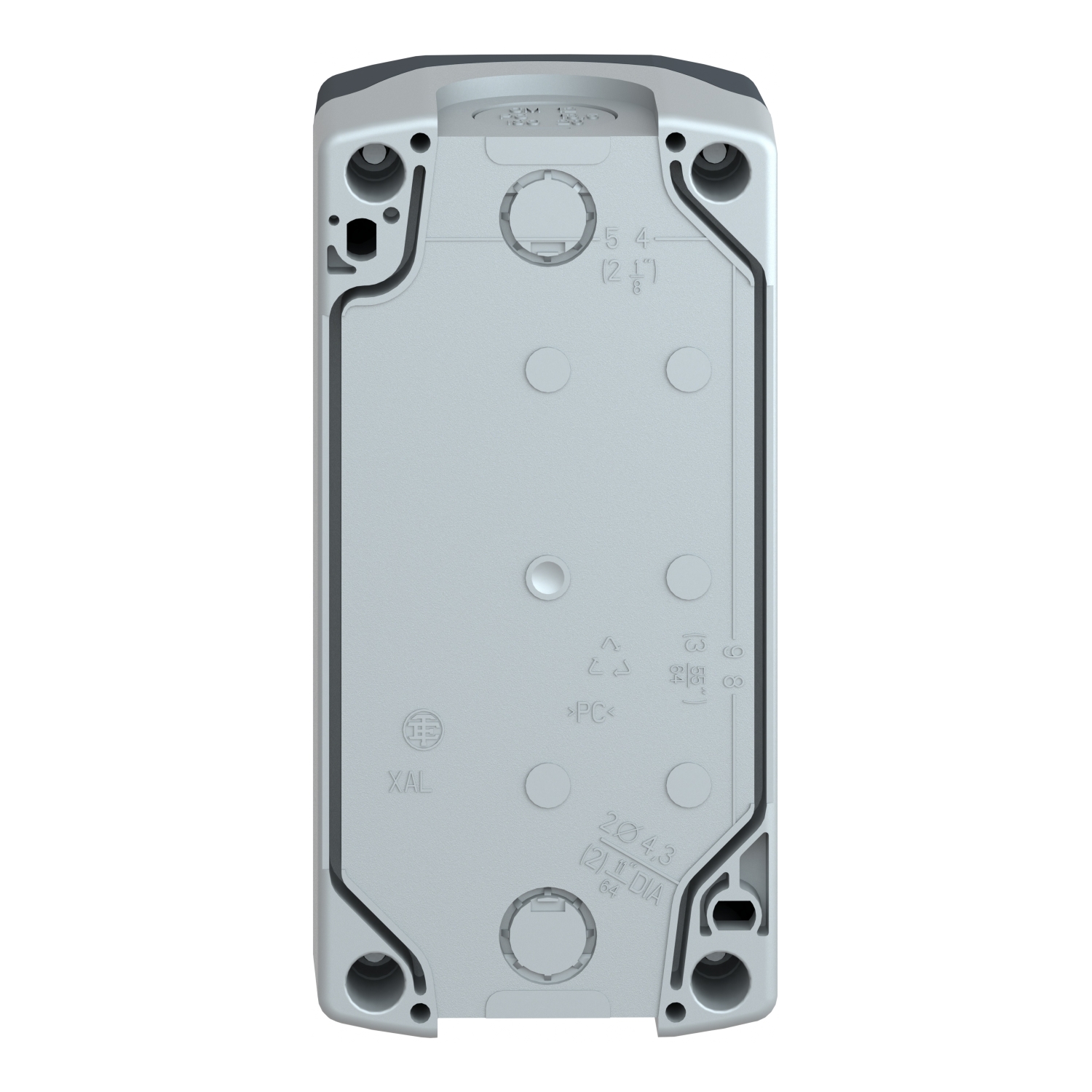

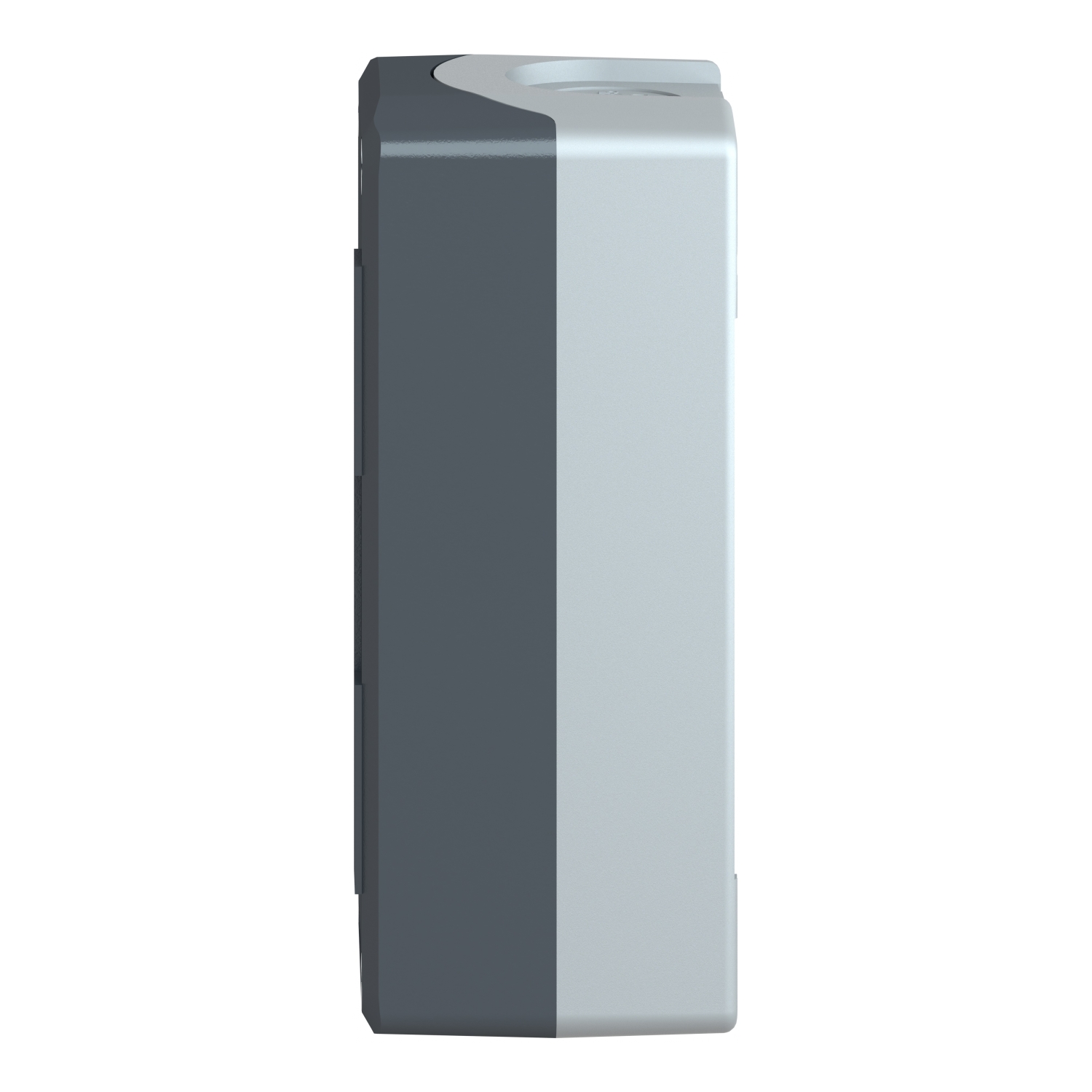

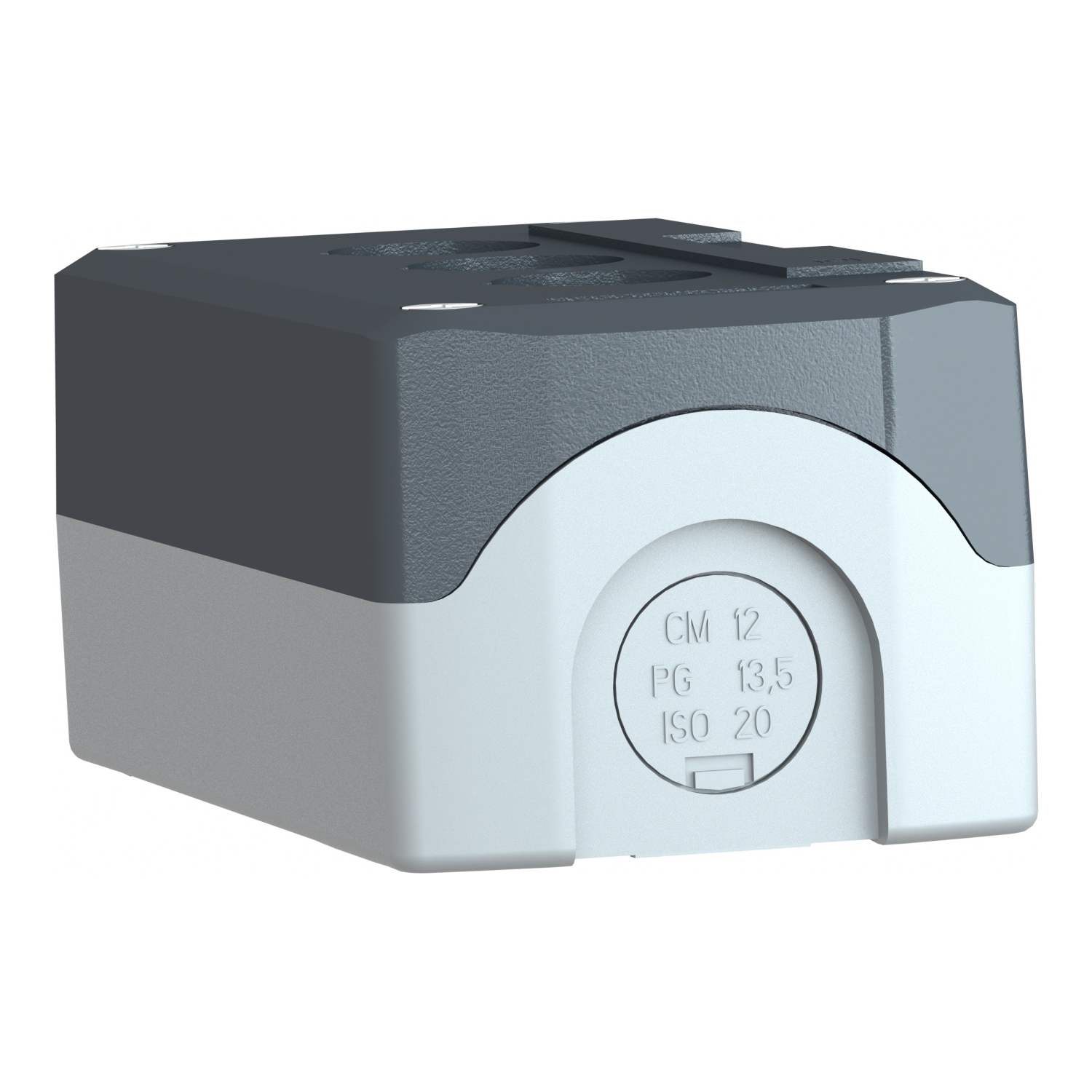

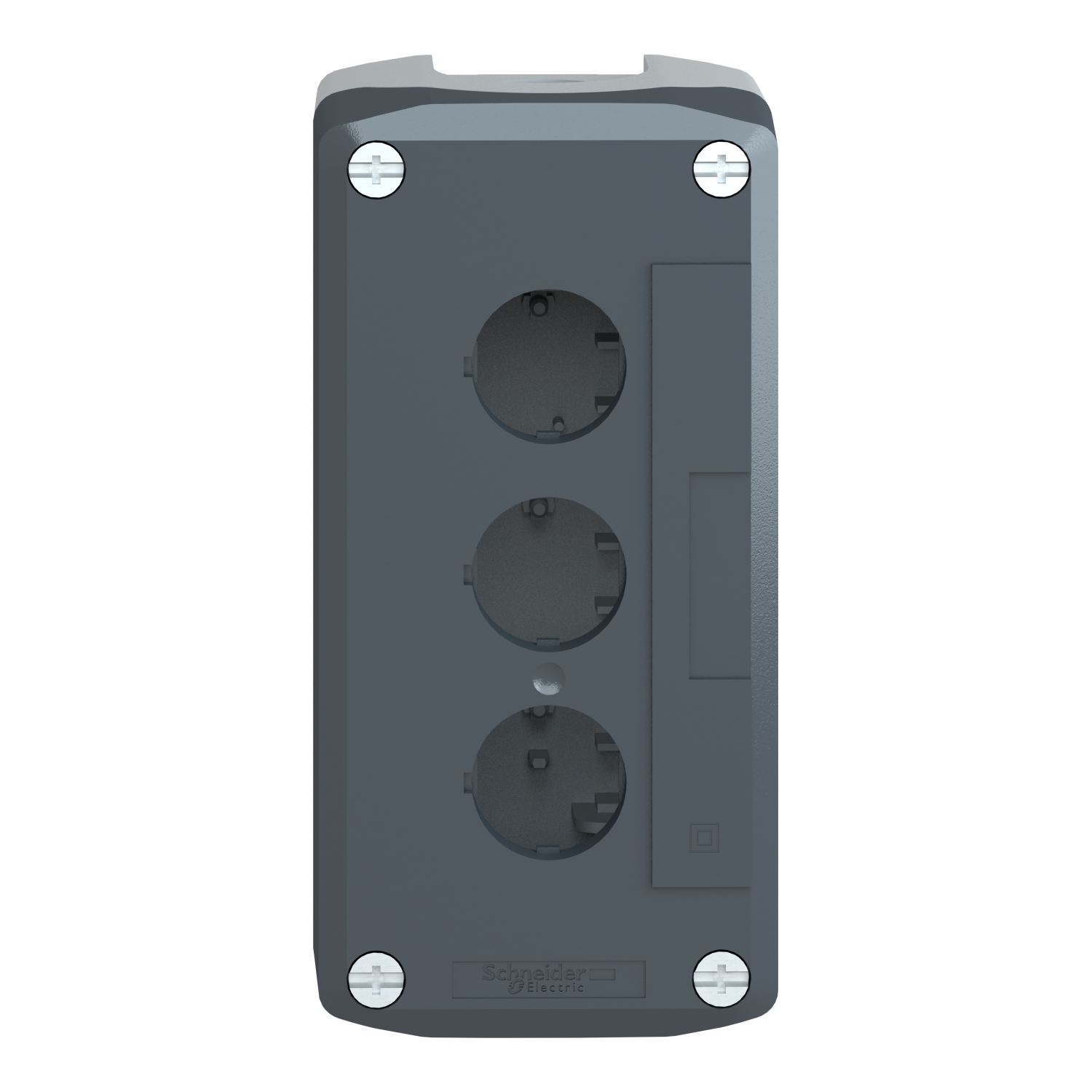

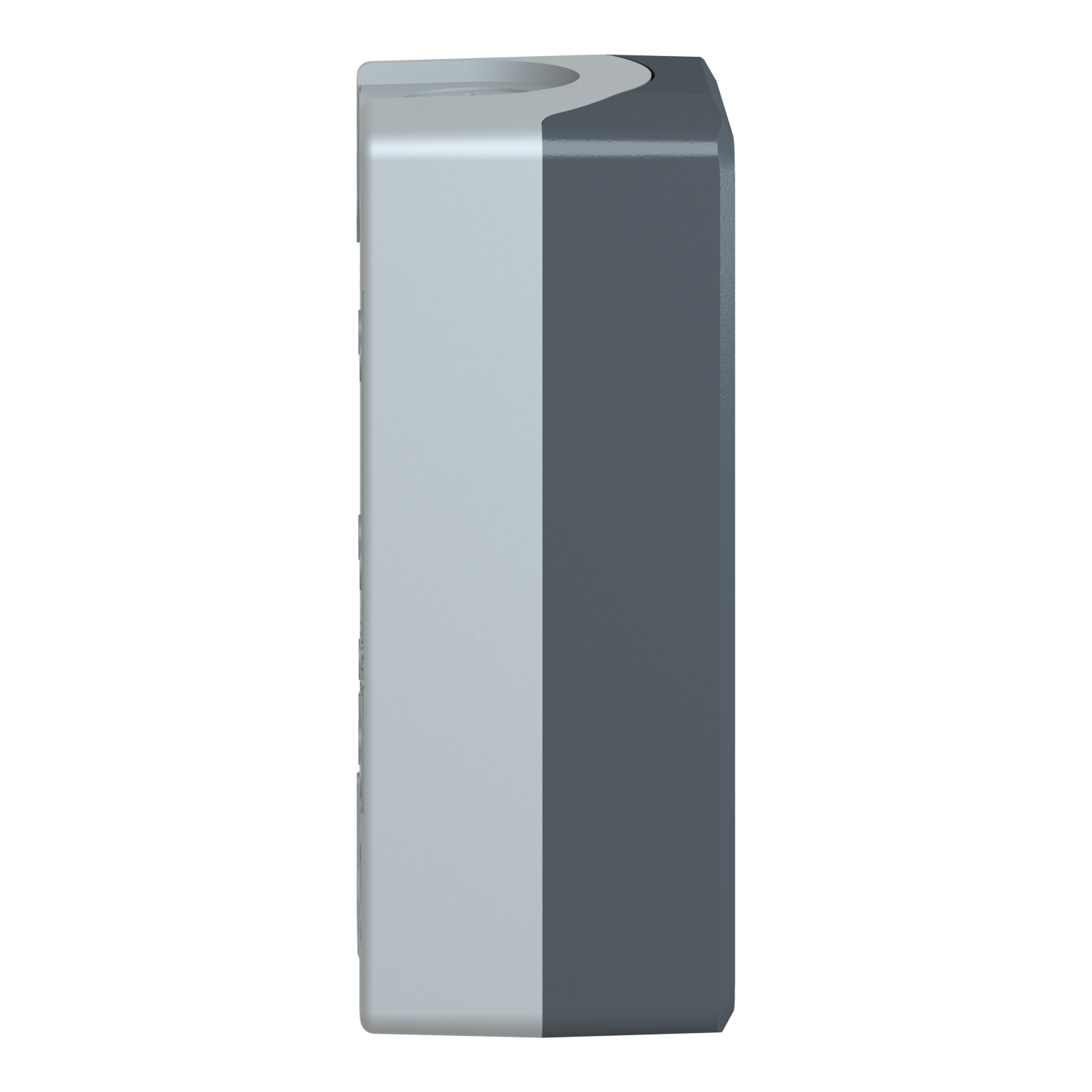

Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 3 cut out, UL CSA certified

Range of Product

Harmony XALD

Product or Component Type

Empty control station

Device short name

XALD

product destination

For XB5 Ø 22 mm control and signalling units

Number of cut-out

3 cut-outs

Colour of base of enclosure

Light grey RAL 7035)

Colour of cover

Dark grey RAL 7016)

Material

Polycarbonate

Cable entry

2 knock-outs for cable entry 0.6 in (14 mm)
2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm)

IP degree of protection

IP66 IEC 60529
IP67
IP69
IP69K

Assembly style

For customer assembly

Number of horizontal rows

1

Number of vertical rows

3

Net Weight

0.525 lb(US) (0.238 kg)

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Mounting of block

Rear mounting
Front mounting

Electrical composition code

PF2
MR1
SF1
MF2
SF2
SR2
SR1
PR1
PF1
MF1

Main group

3 cut-outs

Group of product

UL-CSA grey

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Overvoltage category

Class II IEC 60536

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-4
CSA C22.2 No 14
IEC 60947-5-1
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-5
UL 508
JIS C8201-1

Product Certifications

UL
CSA

Category

US10CS222475

Discount Schedule

0CS2

GTIN

3389110114942

Returnability

Yes

Country of origin

CZ

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.756 in (7.000 cm)

Package 1 Width

3.071 in (7.800 cm)

Package 1 Length

5.512 in (14.000 cm)

Package 1 Weight

8.254 oz (234.000 g)

Unit Type of Package 2

S03

Number of Units in Package 2

30

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

16.409 lb(US) (7.443 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

240

Package 3 Height

30.315 in (77.000 cm)

Package 3 Width

23.622 in (60.000 cm)

Package 3 Length

31.496 in (80.000 cm)

Package 3 Weight

148.691 lb(US) (67.445 kg)

Warranty

18 months
