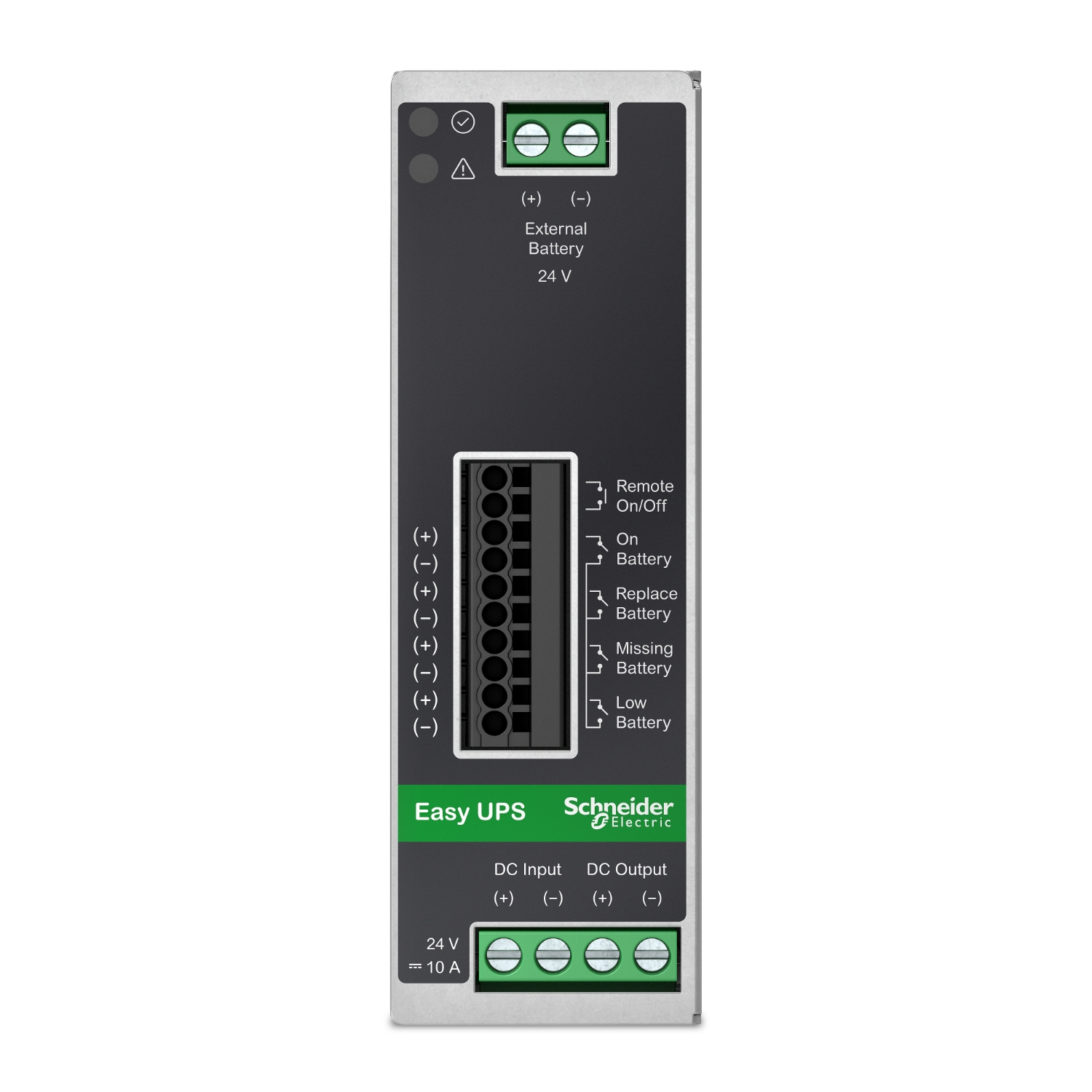

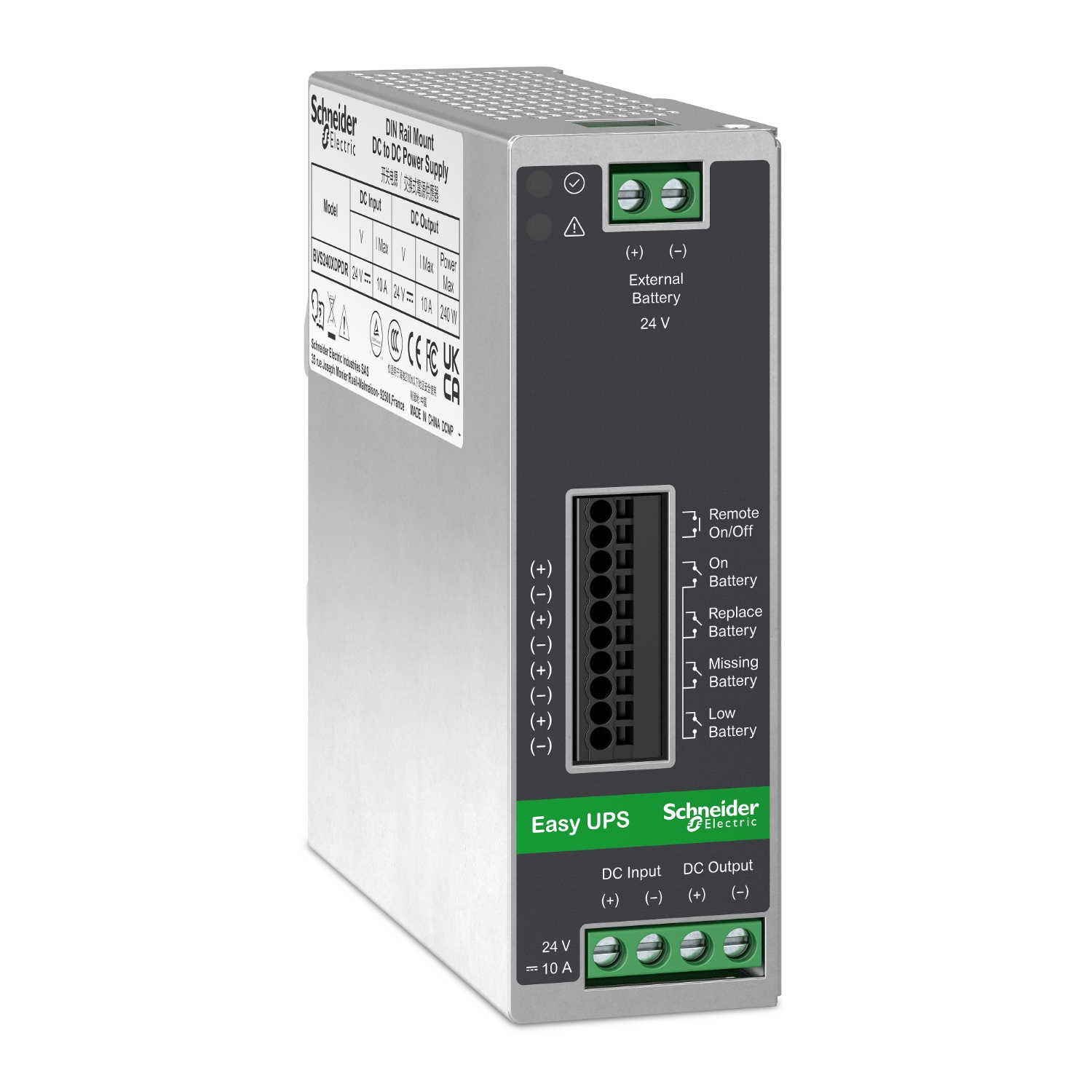

Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A

Lead time

Usually in Stock

Main Input Voltage

24 V DC

Product or Component Type

Uninterruptible power supply (UPS)

Main Output Voltage

24 V DC

Kw Rating

480 W

Connections - terminals

1 2 pins

Battery Type

External battery system

Battery Voltage

24 V

Number of power module

1

Provided equipment

User Manual

color

Metal grey

Height

5.08 in (129 mm)

Width

1.6 in (40 mm)

Depth

4.7 in (119 mm)

Net Weight

1.1 lb(US) (0.5 kg)

Mounting Mode

DIN Rail Mount

Mounting position

Horizontal

Number of input connectors

1 terminal block 2-wire

Efficiency at full load

21.6...28.8 V 24 V DC

Maximum Input Current per Phase

20 A

Input protection type

Integrated fuse (not interchangeable)
Against reverse polarity
Protected against short-circuit

Wave type

DC

Overload Operation

60 seconds @ 130% and 30 seconds @ 145%

Efficiency at full load

95 %

Maximum output current

20 A

Product Certifications

CE
TÜV

Standards

UL 60950-1
IEC 62368-1
CSA-C22.2 No 62368-1-14
IEC 61010-1

Ambient Air Temperature for Operation

5…122 °F (-15…50 °C)

Relative Humidity

0…95 % non-condensing

Operating altitude

0...9842.52 ft (0...3000 m)

Ambient Air Temperature for Storage

5…158 °F (-15…70 °C)

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…9842.5 ft (0…3000 m)

Acoustic level

40 dB

IP degree of protection

IP20

GTIN

731304436959

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.5 in (190 mm)

Package 1 Width

2.2 in (57 mm)

Package 1 Length

7.4 in (188 mm)

Package 1 Weight

1.5 lb(US) (0.7 kg)

Warranty

2 Years repair or replace
