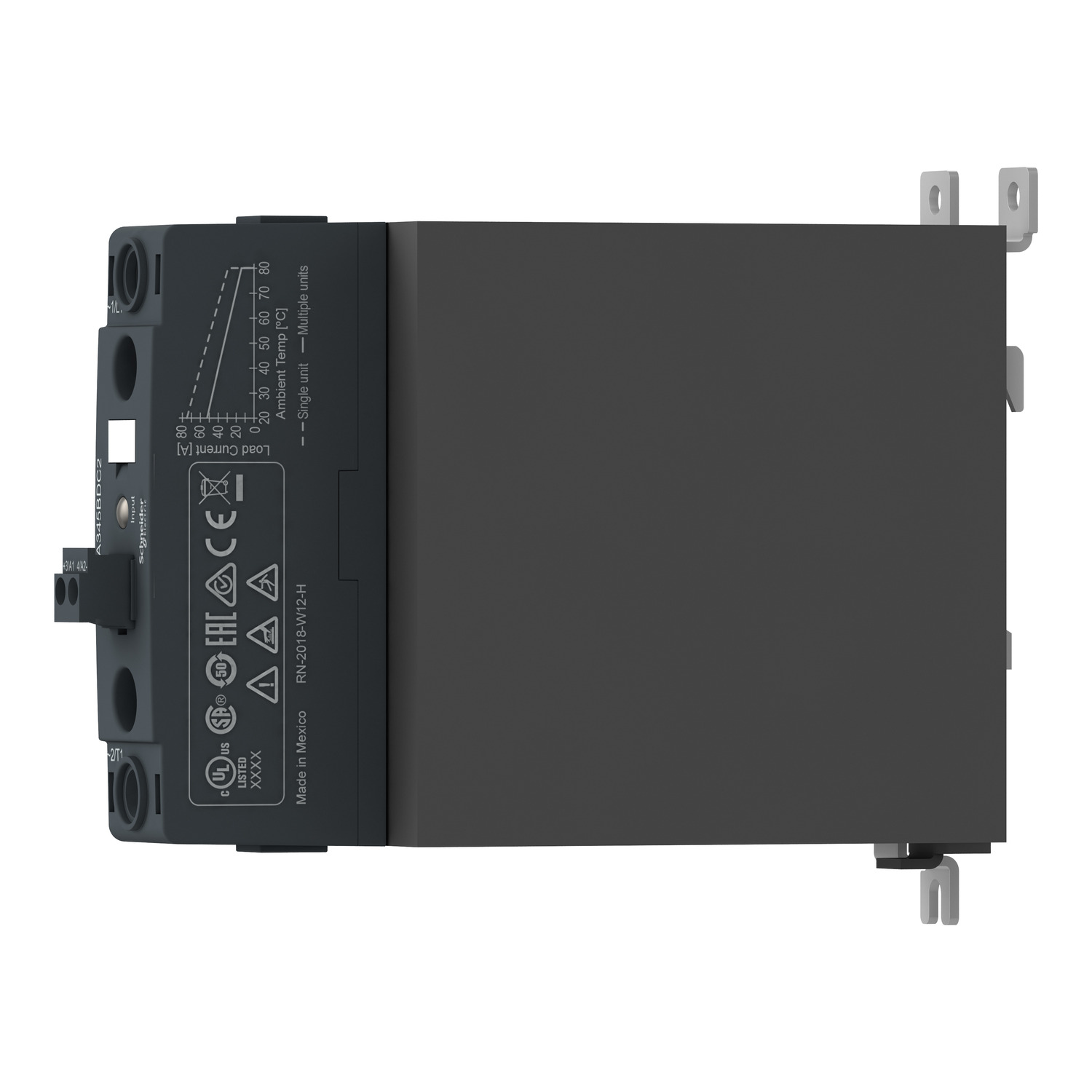

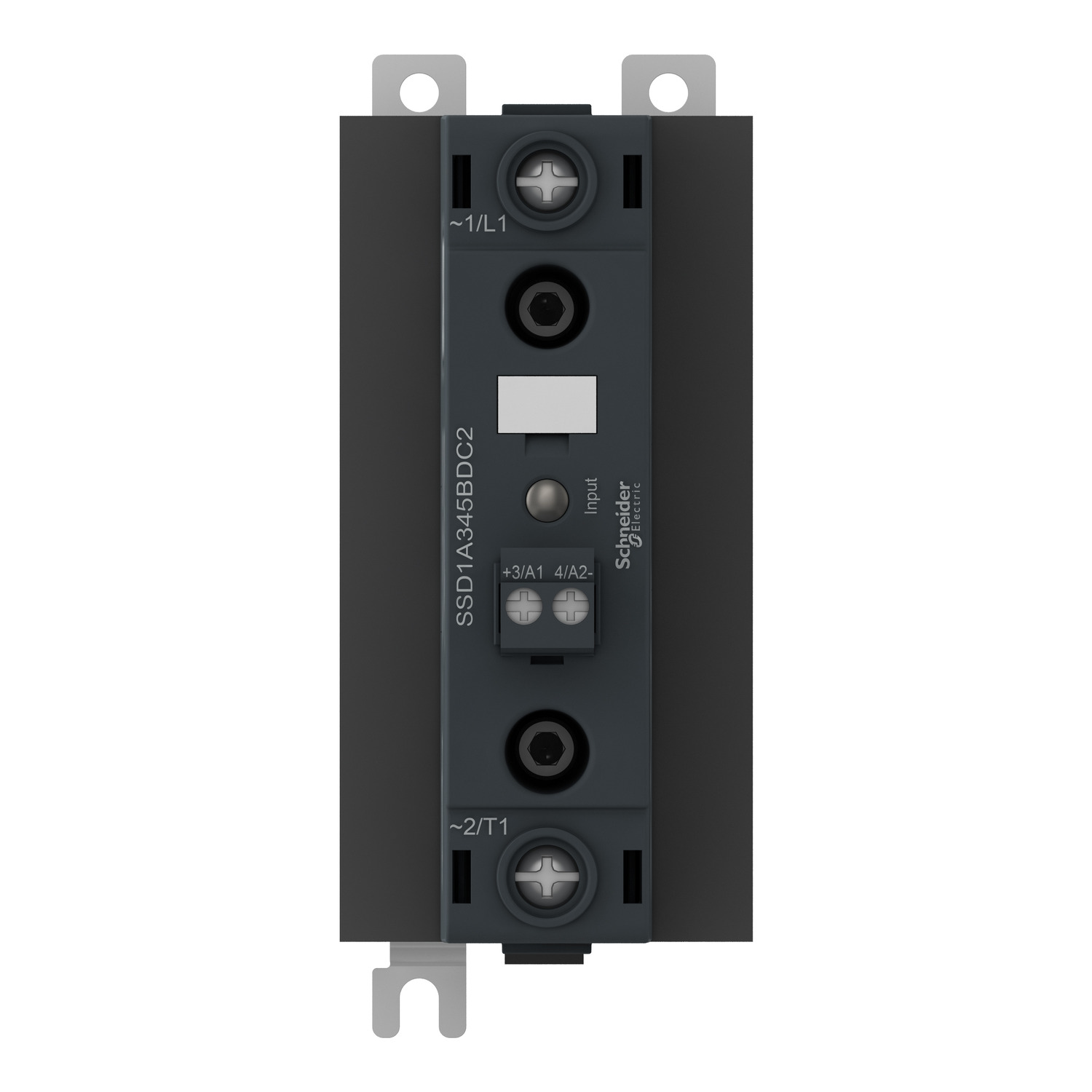

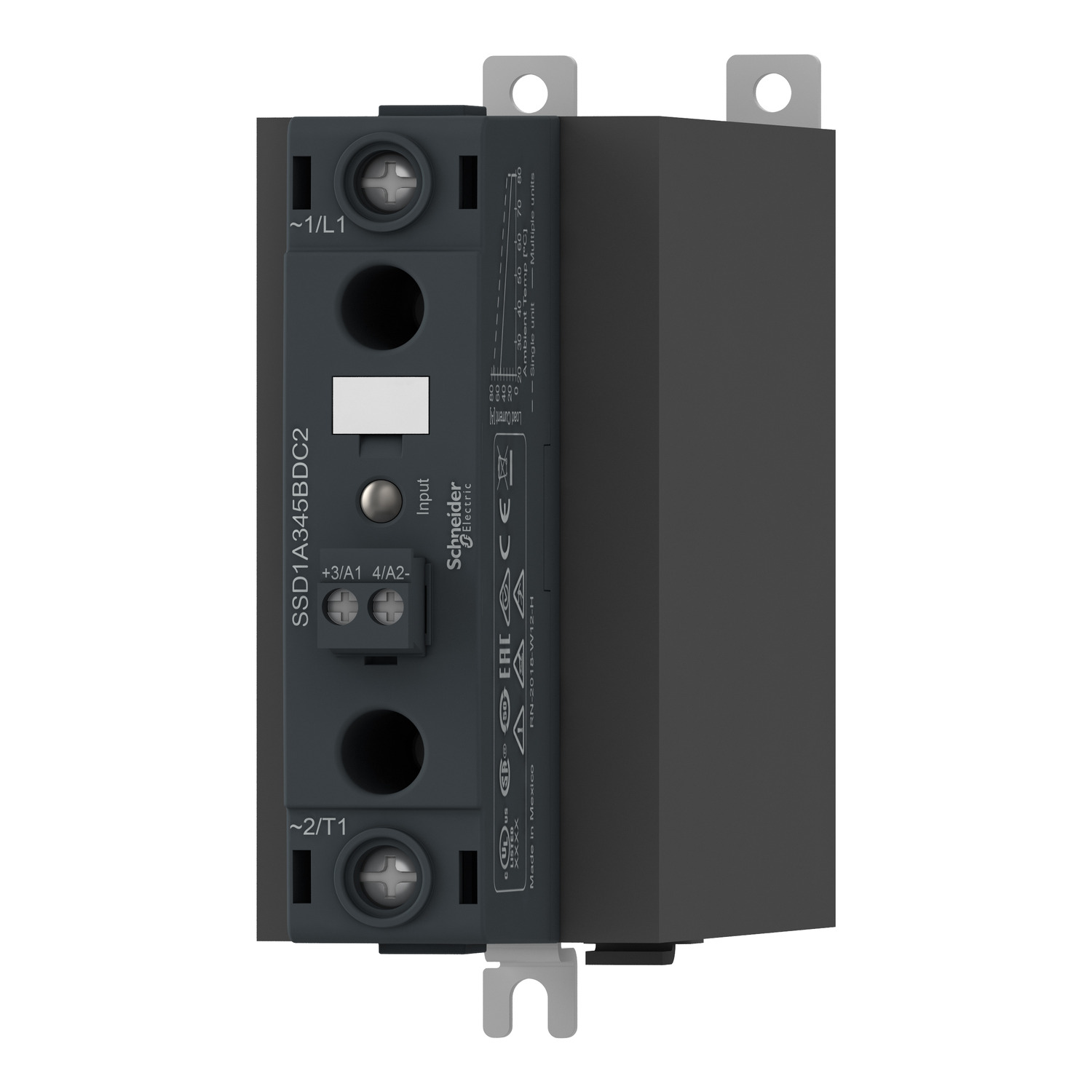

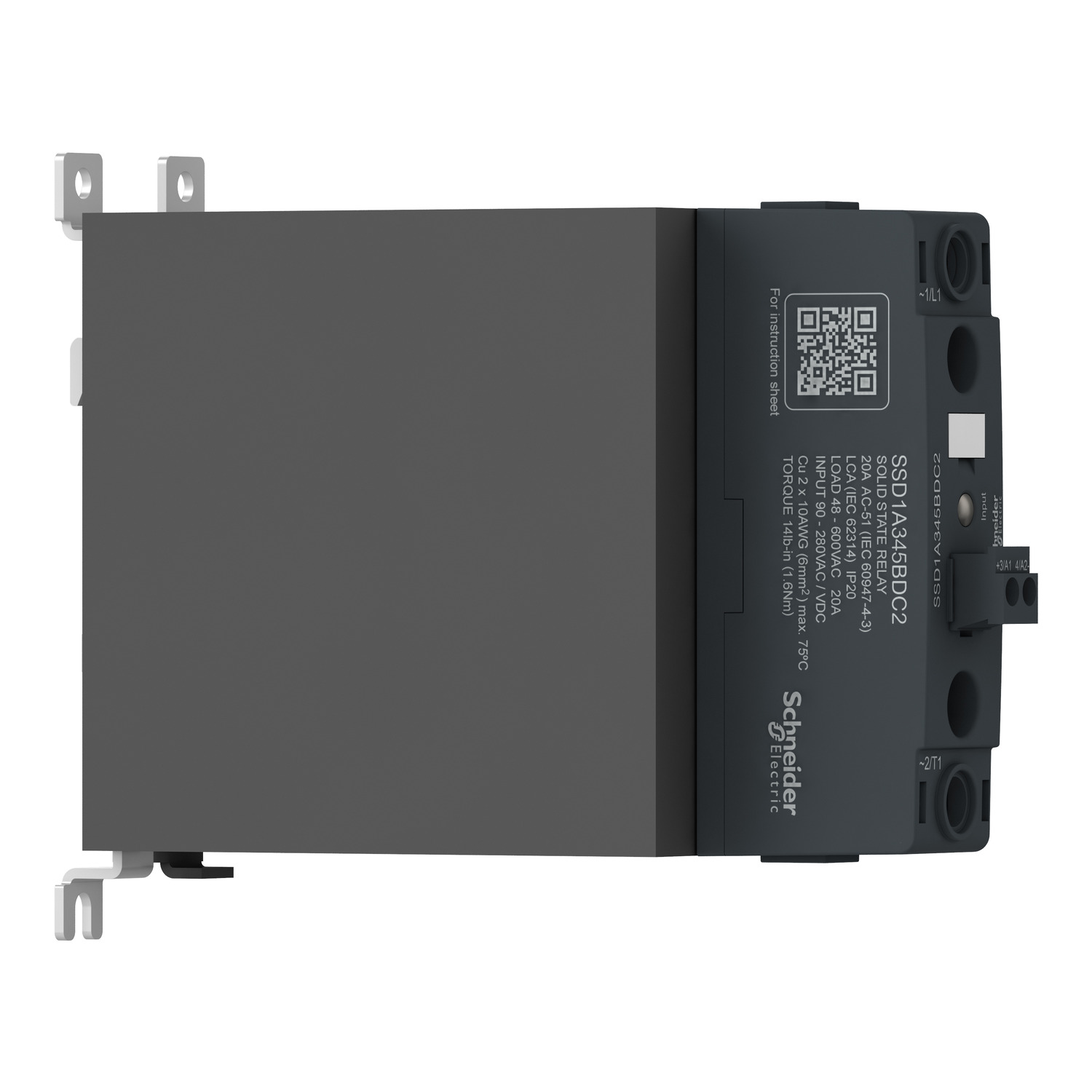

DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC

Range of Product

Harmony Solid State Relays

Product or Component Type

Solid state relay up to 75 A

Device short name

SSD1

Number of channels

1

Number of phases

1 phase

Product configuration type

Contactor configuration with pluggable screw input

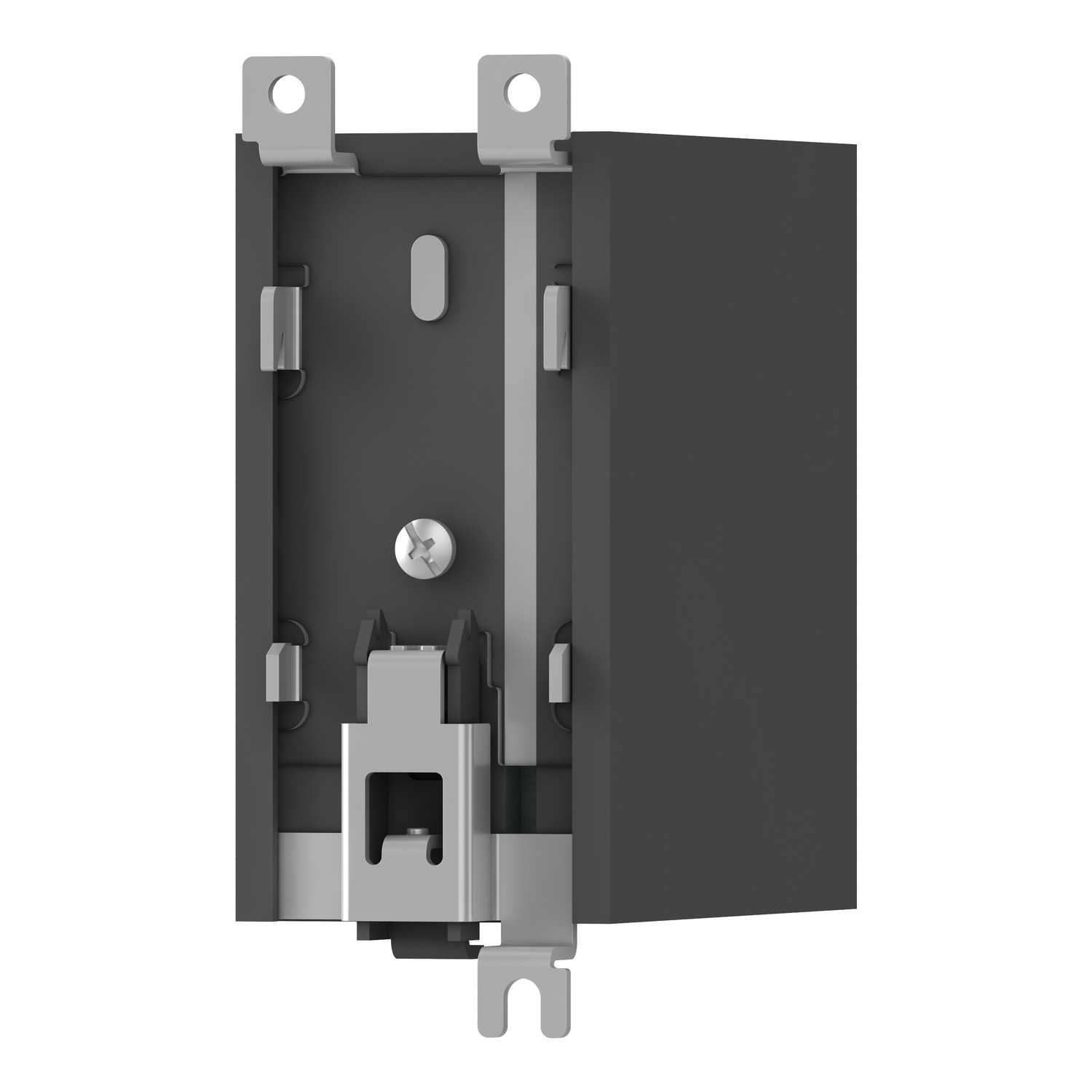

Mounting support

35 mm symmetrical DIN rail conforming to IEC 60715

rated current

60 A

Output switching mode

Zero voltage switching

operating frequency

47...440 Hz

Rated duty

Uninterrupted

Output voltage

48...600 V AC

control circuit voltage

4...32 V DC

Tightening torque

0.5 N.m for control input
5 lb.in for control input
2...2.2 N.m for load output
18...20 lb.in for load output

Connections - terminals

Plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input
Clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output

Dielectric strength

4 kV AC for input/output circuit
4 kV AC for input or output to case

rated impulse withstand voltage

6 kV for input/output circuit
6 kV for input or output to case

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

for control voltage LED (green)

pick-up voltage

4 V DC turn-on

drop-out voltage

1 V DC turn-off

input current range

10…15 mA

solid state switching type

Zero voltage switching

Load current

0.15…60 A

transient overvoltage

1200 V

Inrush current

1350 A at 60 Hz

Maximum voltage drop

<1.2 V on-state

motor controller rating

1.5 kW/2 hp at 120 V AC
3.73 kW/5 hp at 240 V AC
7.46 kW/10 hp at 480 V AC

Electromagnetic compatibility

Electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2
Electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2
Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6
Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4
Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3
Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3
Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3
Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5
Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5
Radiated emission environment B for DC input supply conforming to IEC 60947-4-3
Conducted emission environment B for DC input supply conforming to IEC 60947-4-3
Immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11
Immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11

device form designation

Form 5 semiconductor output DOL contactor

Maximum I²t for fusing

8320 A².s for 10 ms
7593 A².s for 8.33 ms

Maximum leakage current

1 mA off-state

DV/dt

500 V/µs off-state at maximum rated voltage

Response time

0.5 cycle (turn-on)
0.5 cycle (turn-off)

Power factor

0.5 with maximum load

short circuit protection coordination

Type 1
Type 2

Overvoltage category

III

Width

1.8 in (45 mm)

Height

4.4 in (111.5 mm)

Depth

6.08 in (154.4 mm)

Net Weight

1.118 lb(US) (0.507 kg)

device presentation

Complete product

Flammability rating

V-0 conforming to UL 94

Vibration resistance

0.35 mm (f = 10…150 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27
30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Pollution degree

2

Standards

IEC 61373:class B: category 1
IEC 60947-4-3
IEC 62314
IEC 60950-1
CSA C22.2 No 14-13
UL 508

IP degree of protection

IP20

Ambient Air Temperature for Operation

-40…176 °F (-40…80 °C)

Ambient Air Temperature for Storage

-40…212 °F (-40…100 °C)
