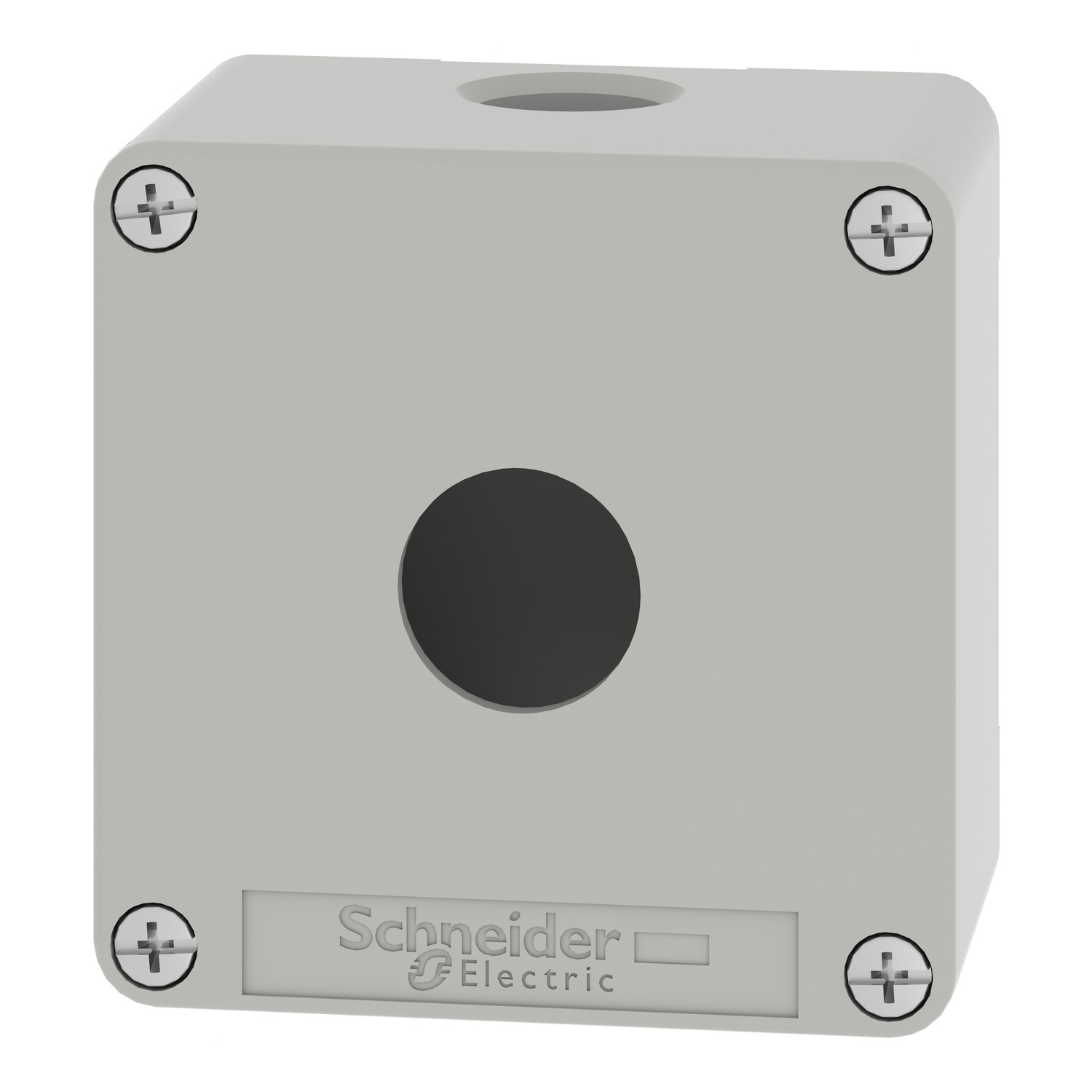

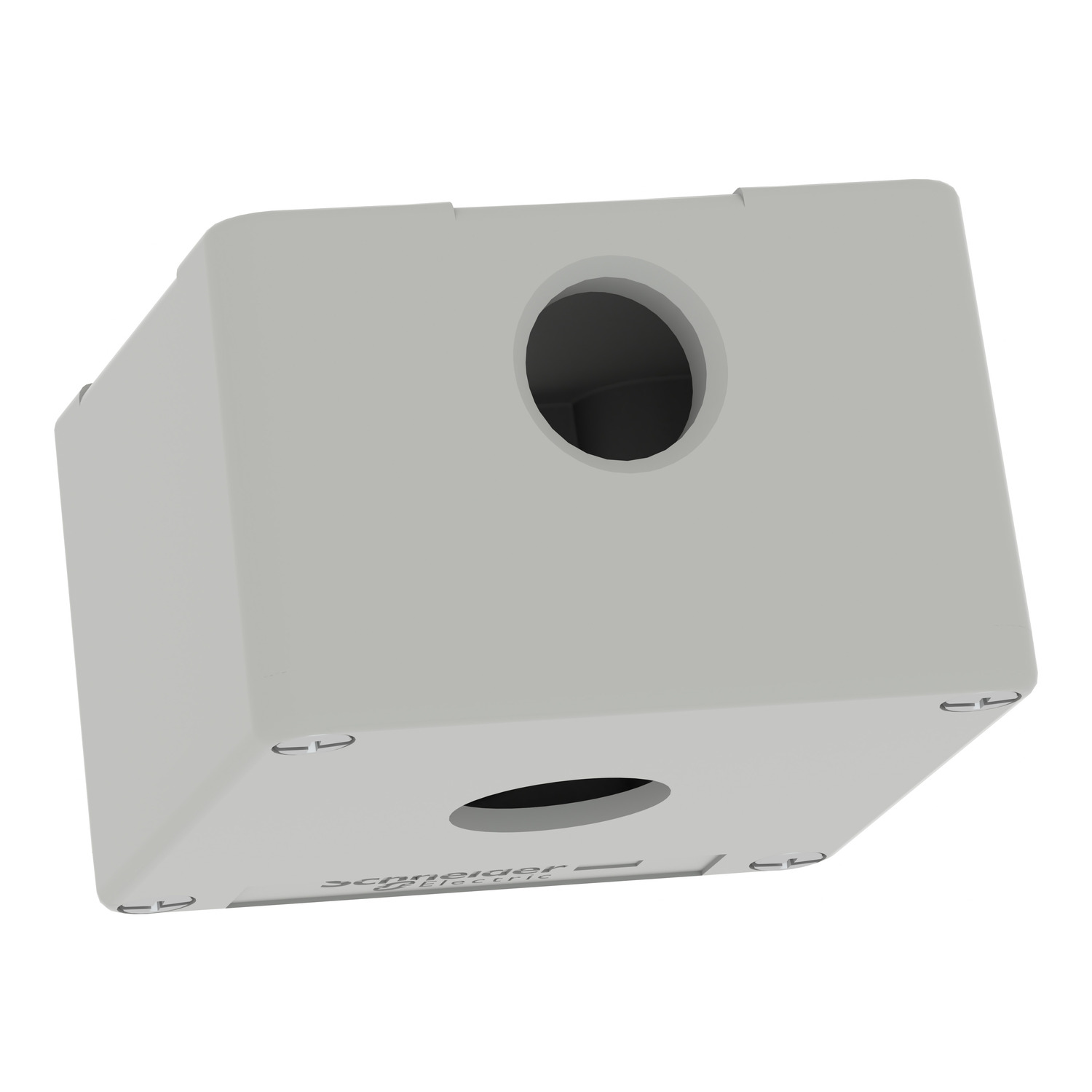

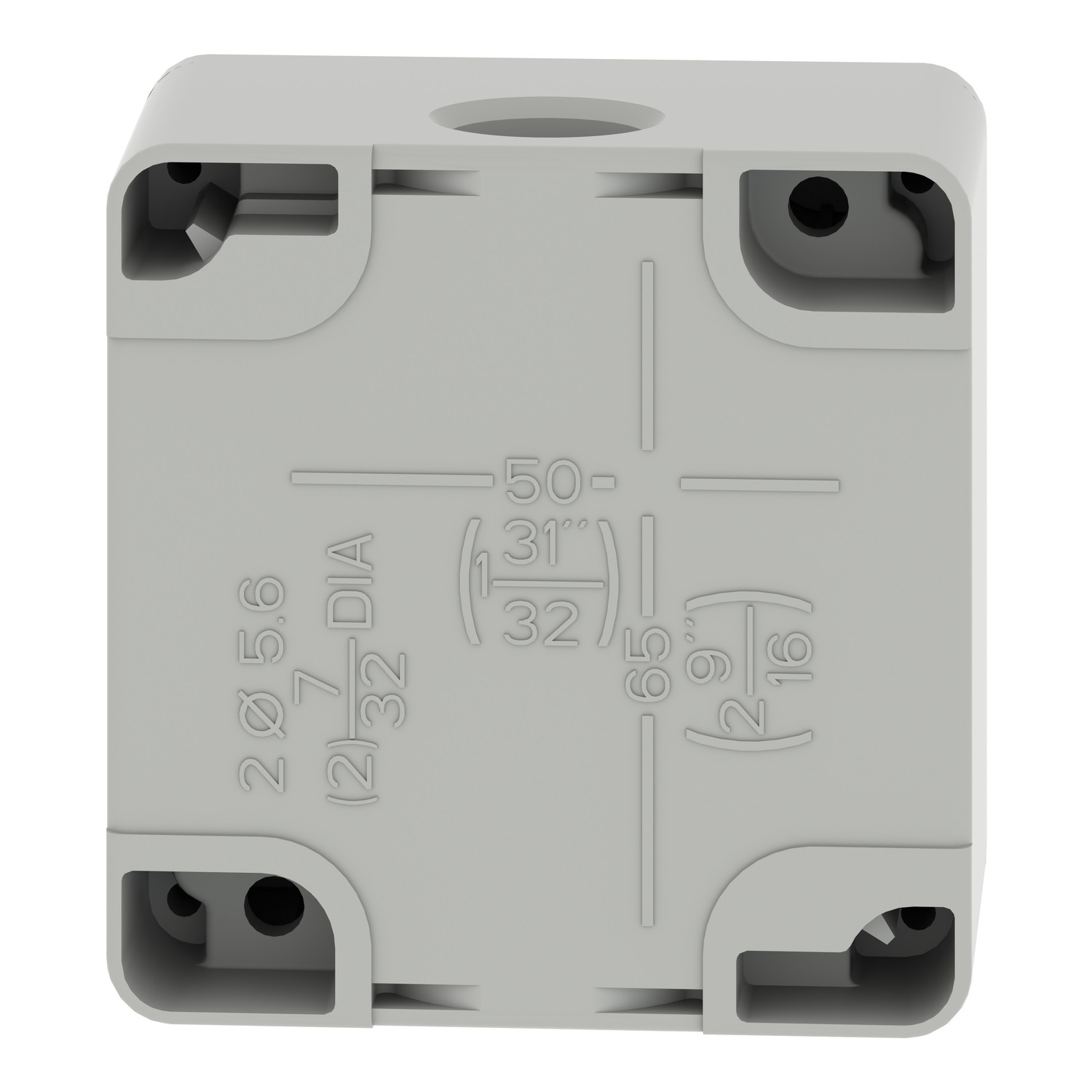

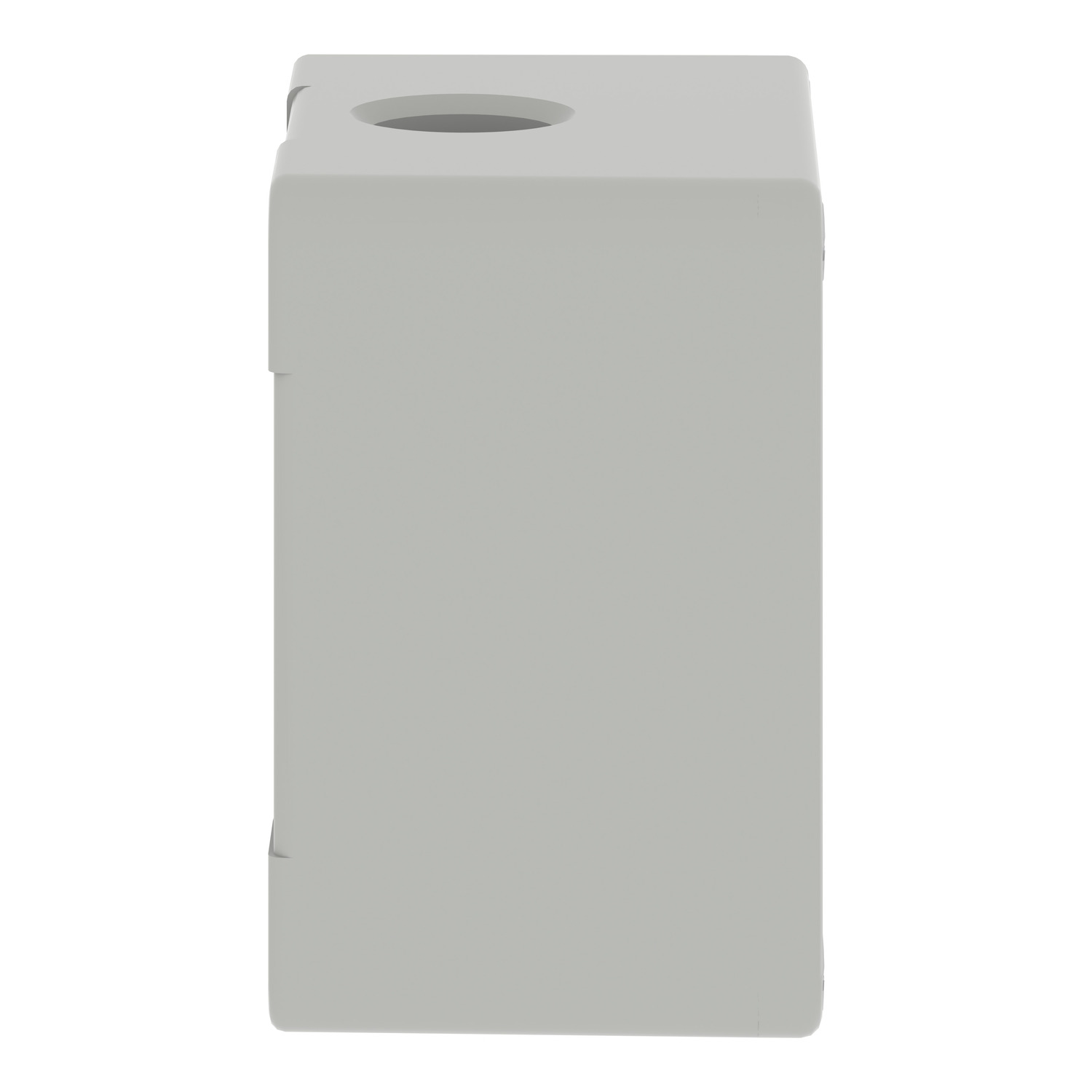

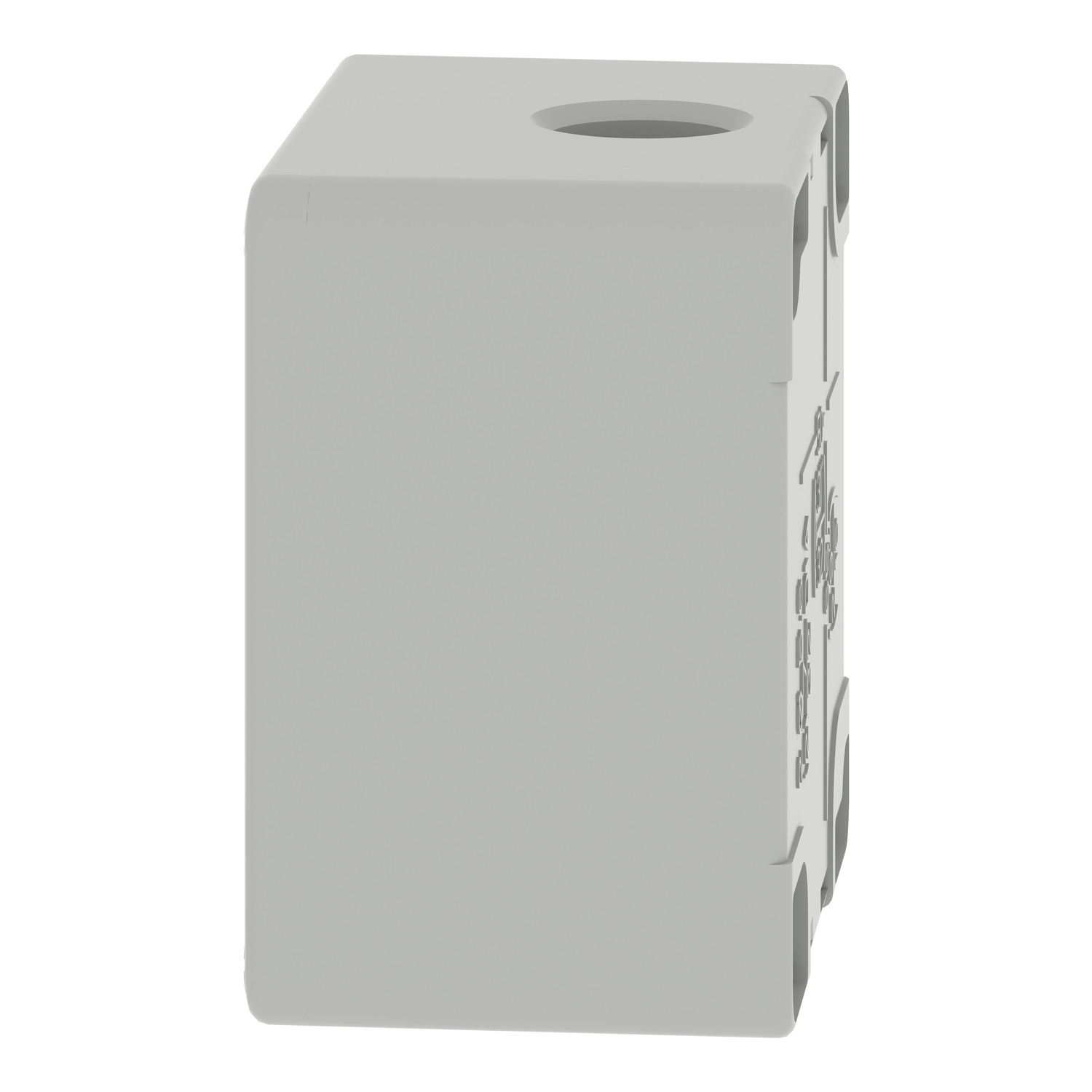

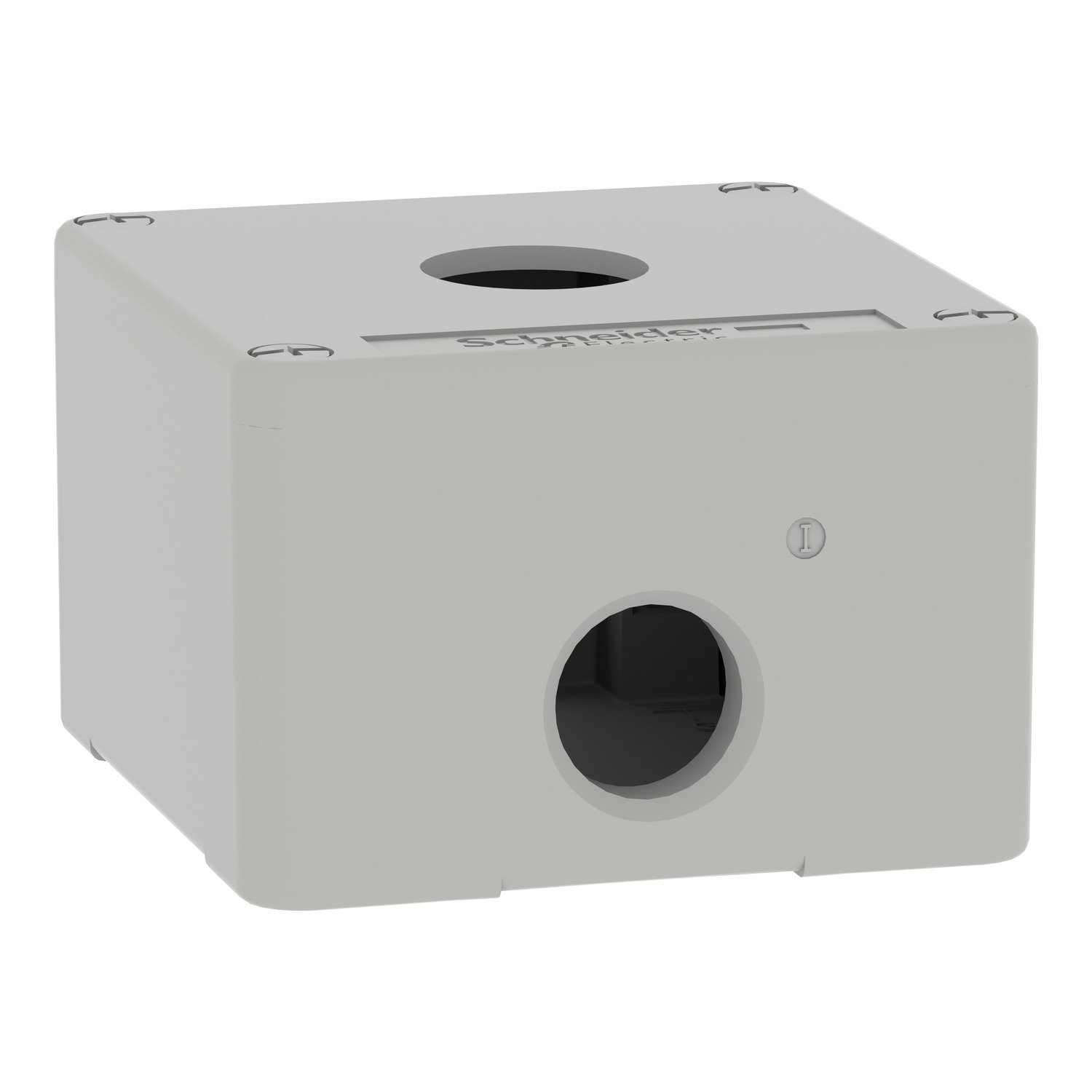

Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, 1 cut out, 22mm, 80x80x51.5mm

Range of Product

Harmony XAP

Product or Component Type

Die-cast empty control station

Device short name

XAPG

product destination

For Ø 22 mm control and signalling units

Number of cut-out

1 cut-out

Colour of base of enclosure

Grey RAL 7032)

Colour of cover

Grey RAL 7032)

Control station type

Metal

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 IEC 60529
IP657 IEC 60529

Resistance to chemical agents

Special treatment can be obtained on request

Number of vertical rows

1

Number of horizontal rows

1

Cut-out dimensions

Ø 22 mm

Cable entry

cable gland
1 x cable gland

Thread type

3/4 NPT

CAD overall width

3.1 in (80 mm)

CAD overall height

3.1 in (80 mm)

CAD overall depth

2.03 in (51.5 mm)

Net Weight

1.155 lb(US) (0.524 kg)

Compatibility code

XAPG

protective treatment

TH

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Electrical shock protection class

Class I IEC 60536
Class I NF C 20-030

IK degree of protection

IK07 IEC 62262

Category

US10CS222475

Discount Schedule

0CS2

GTIN

3389118381926

Returnability

Yes

Country of origin

MA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.386 in (8.600 cm)

Package 1 Width

3.543 in (9.000 cm)

Package 1 Length

3.543 in (9.000 cm)

Package 1 Weight

18.695 oz (530.000 g)

Unit Type of Package 2

S02

Number of Units in Package 2

12

Package 2 Height

5.906 in (15.000 cm)

Package 2 Width

11.811 in (30.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

14.991 lb(US) (6.800 kg)

Warranty

18 months
