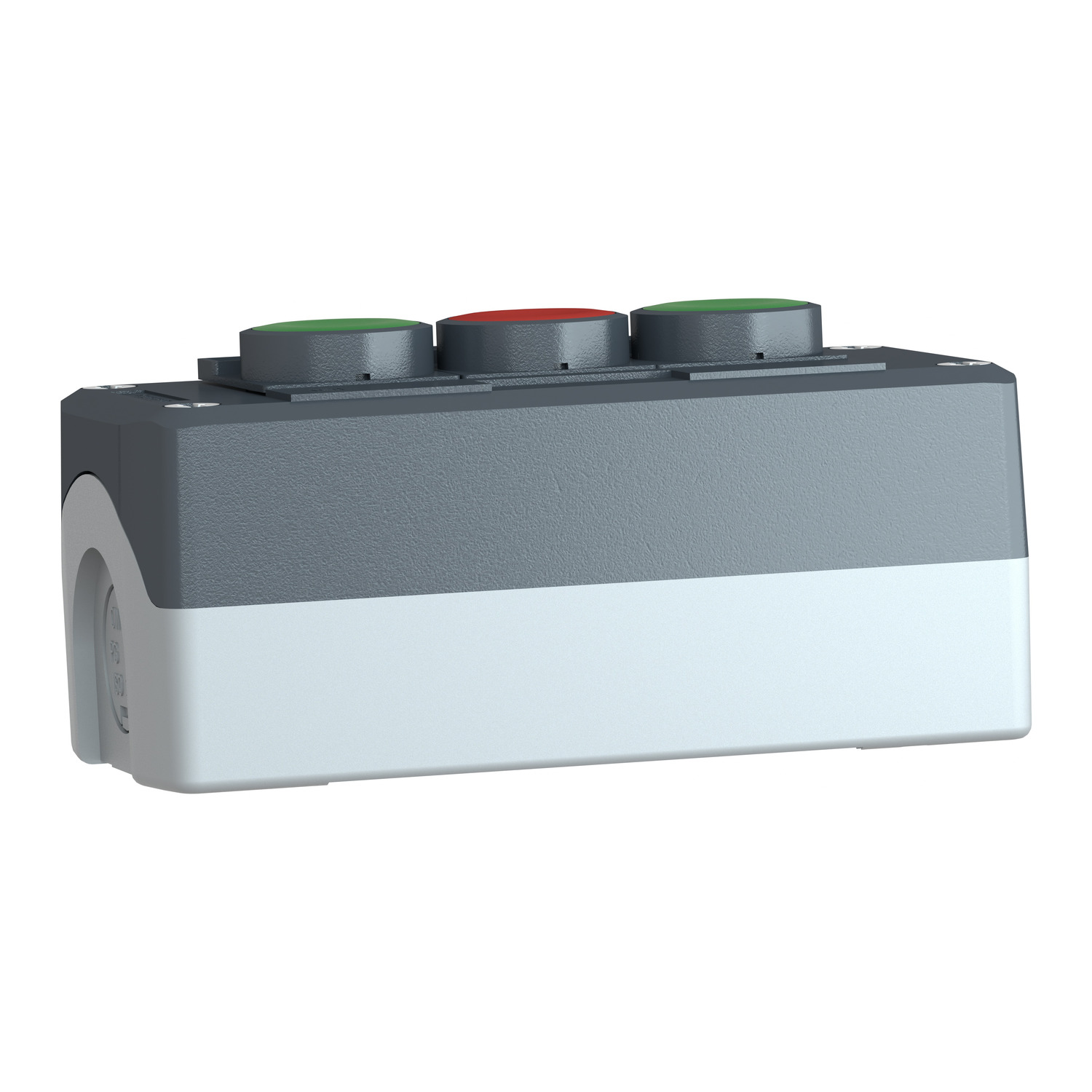

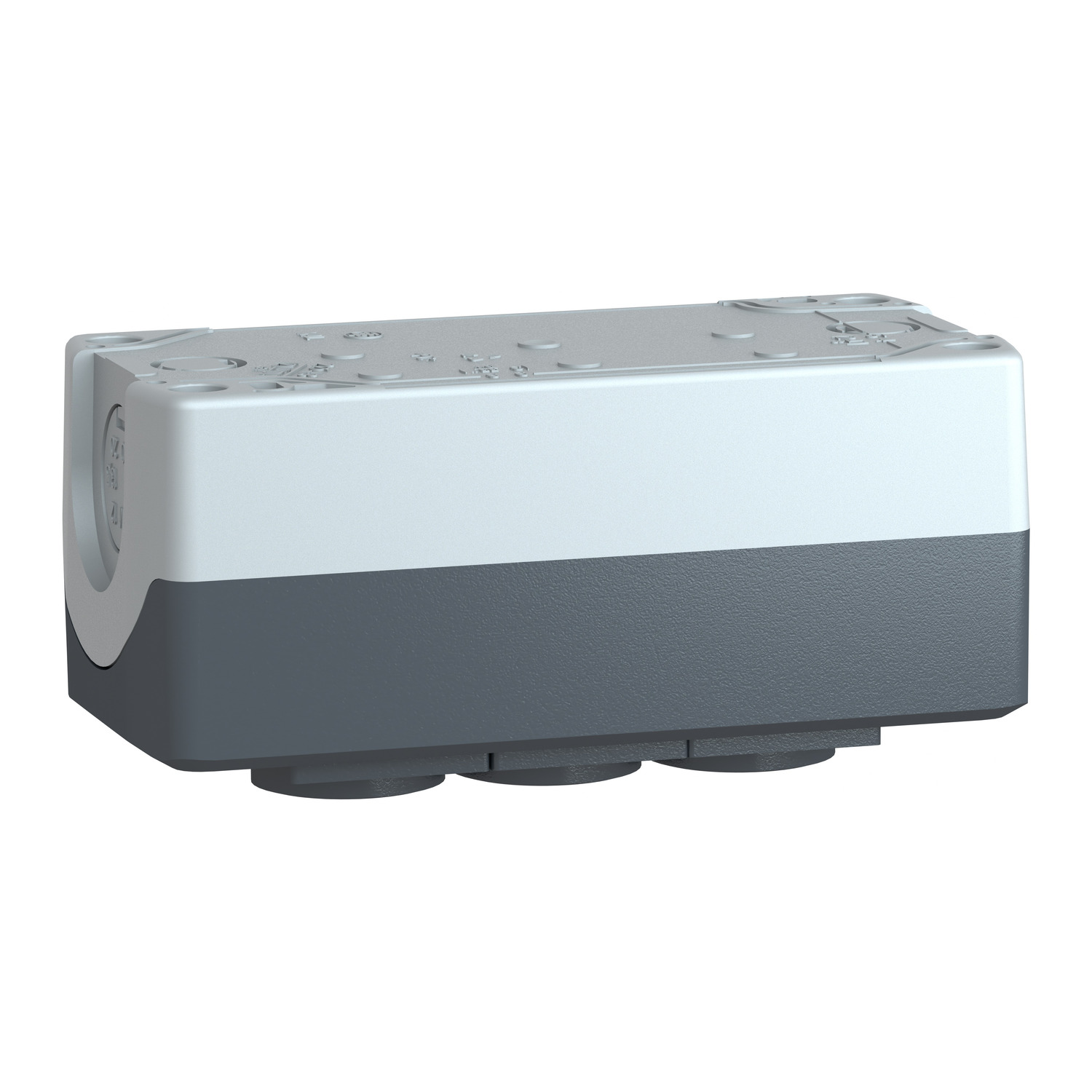

Control station, Harmony, plastic, dark grey, 3 flush push buttons, green NO, red NC, green NO, 22mm, spring return, legend holder, UL CSA certified

Range of Product

Harmony XALD

Device short name

XALD

Product or Component Type

Complete control station

product destination

For XB5 Ø 22 mm control and signalling units

Colour of base of enclosure

Light grey RAL 7035)

Colour of cover

Dark grey RAL 7016)

Material

Polycarbonate

Operator profile

3 flush push-buttons

Operators description

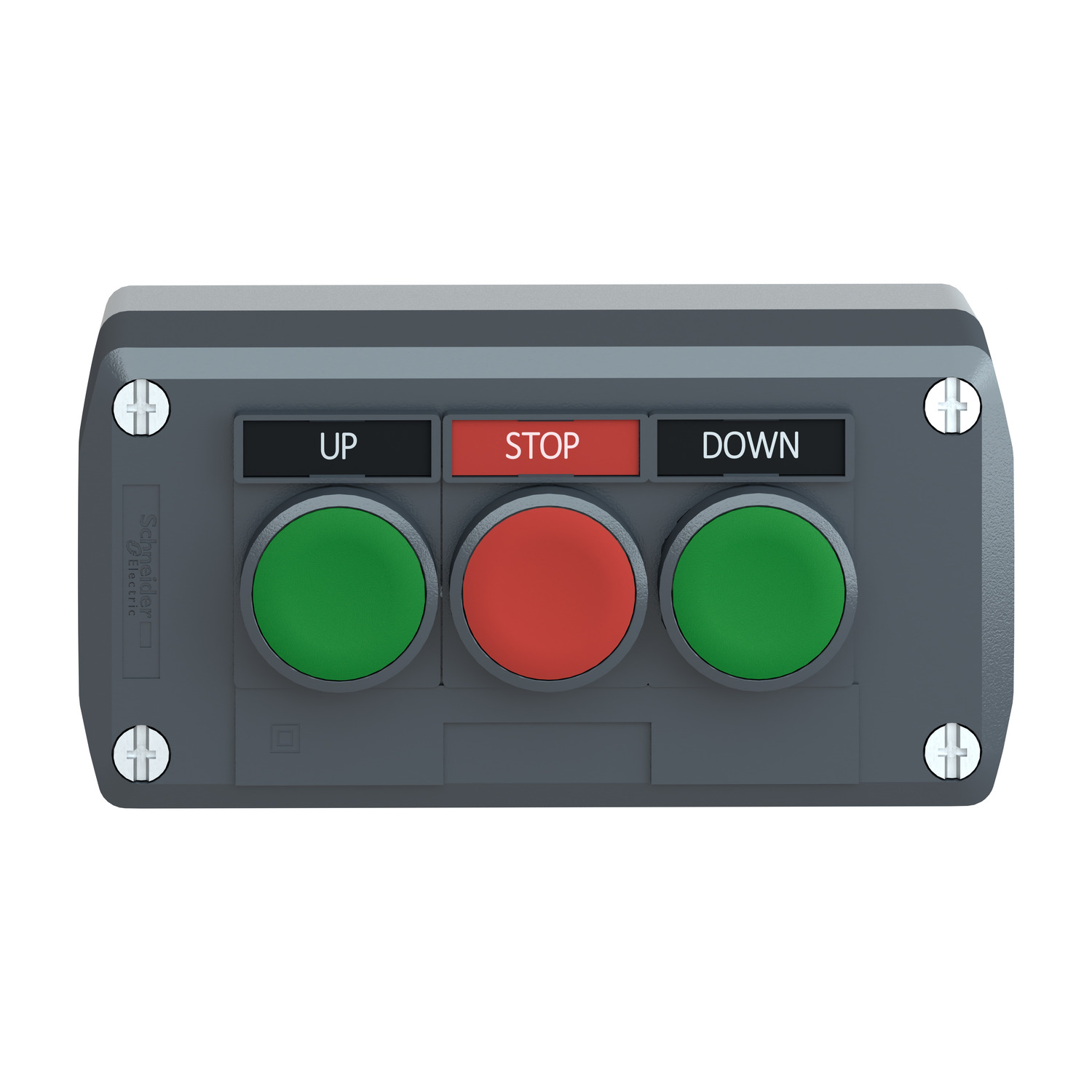

Green ''UP'' 1 NO - red ''O'' 1 NC - green ''DOWN'' 1 NO

Control station composition

1 flush push-button, red 1 NC O
1 flush push-button, green 1 NO down
1 flush push-button, green 1 NO UP

Control station application

Three functions

marking location

Marking on legend holder

Contact operation

Slow-break

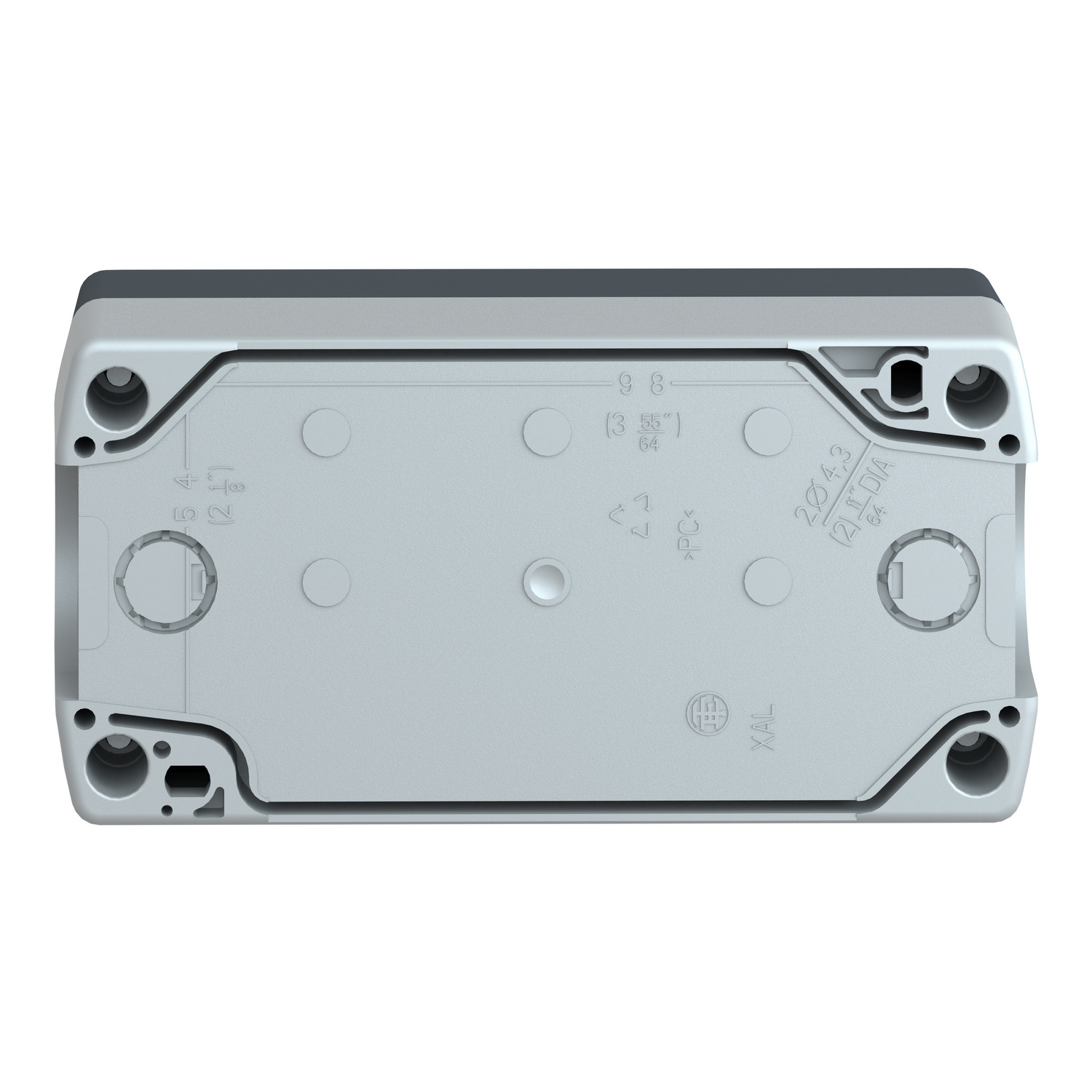

Cable entry

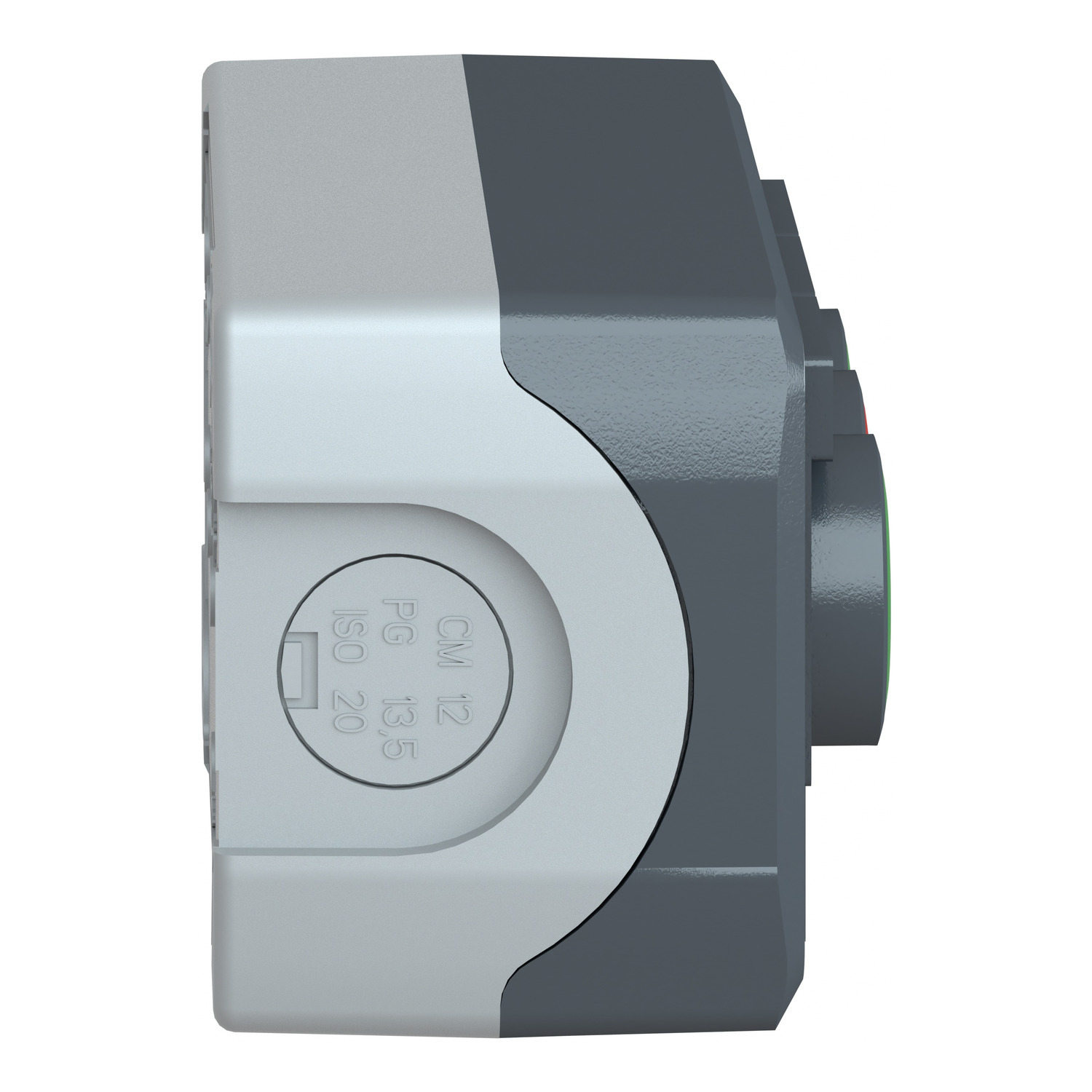

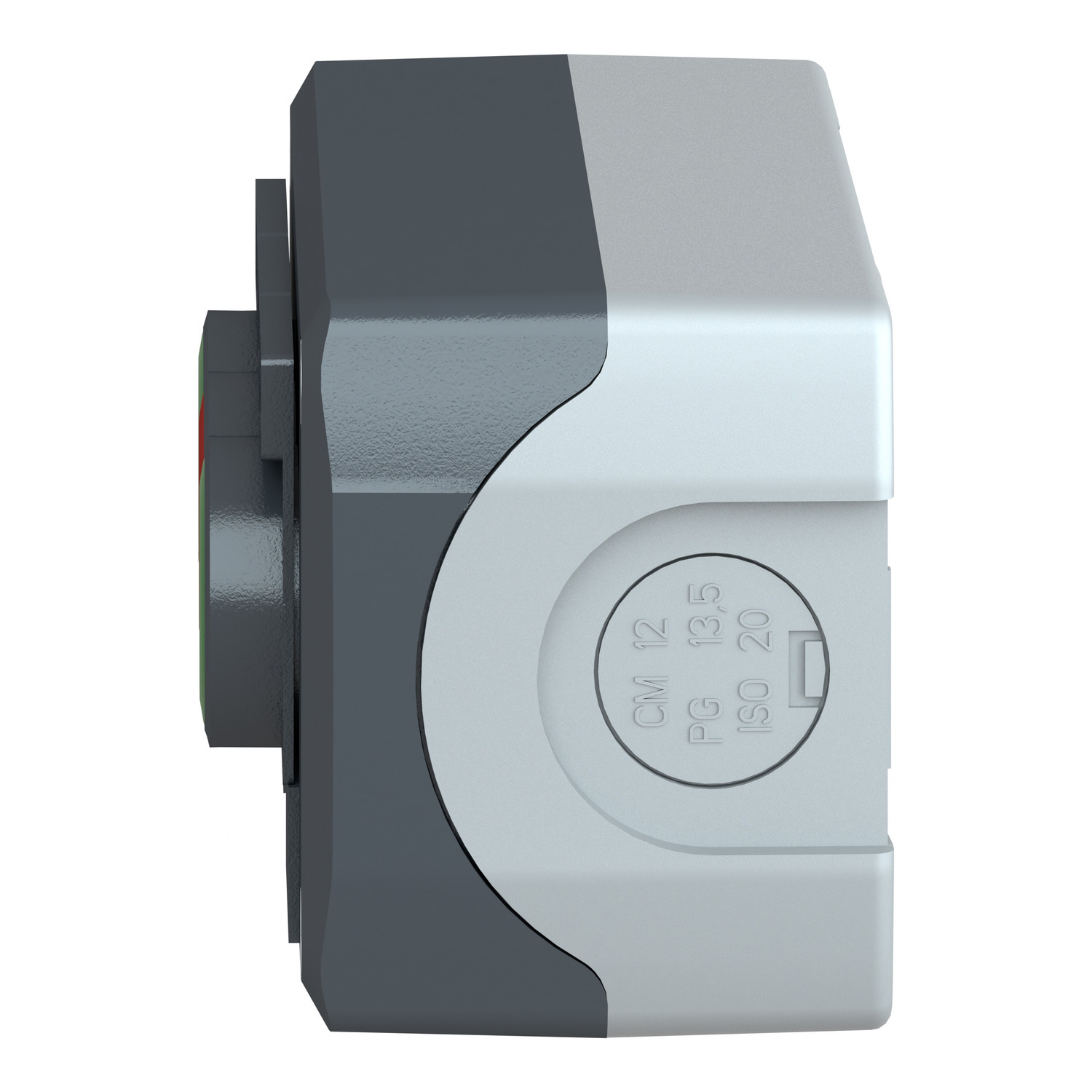

2 knock-outs for cable entry 0.6 in (14 mm)
2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm)

Net Weight

0.659 lb(US) (0.299 kg)

Positive opening

With EN/IEC 60947-5-1 appendix K

Operating travel

0.06 in (1.5 mm) NC changing electrical state)
0.1 in (2.6 mm) NO changing electrical state)
0.2 in (4.3 mm) total travel)

Operating force

3.5 N NC changing electrical state
3.8 N NO changing electrical state

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

Tightening torque

7.08…10.6 lbf.in (0.8…1.2 N.m) EN/IEC 60947-1

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse gG EN/IEC 60947-5-1

[Ith] conventional free air thermal current

10 A EN/IEC 60947-5-1

[Ui] rated insulation voltage

600 V 3)EN/IEC 60947-1

[Ie] rated operational current

6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

Compatibility code

XALD

Resistance to high pressure washer

1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m

Mechanical durability

10000000 cycles

Shape of screw head

Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm

[Uimp] rated impulse withstand voltage

6 kV EN/IEC 60947-1

protective treatment

TH

Ambient Air Temperature for Operation

-40…158 °F (-40…70 °C)

Electrical shock protection class

Class II IEC 60536

IP degree of protection

IP66 IEC 60529
IP69
IP69K
IP67

NEMA degree of protection

NEMA 13
NEMA 4X

IK degree of protection

IK03 conforming to EN 50102

Standards

EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
JIS C8201-5-1
EN/IEC 60947-1
CSA C22.2 No 14
EN/IEC 60947-5-5
JIS C8201-1

Product Certifications

UL Listed
CSA

Vibration resistance

5 gn 12…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Category

US10CS222475

Discount Schedule

0CS2

GTIN

3389119414272

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.9 in (9.8 cm)

Package 1 Width

2.8 in (7.0 cm)

Package 1 Length

5.6 in (14.1 cm)

Package 1 Weight

10.9 oz (309.0 g)

Warranty

18 months
