Contactor, Definite Purpose, 30A, 2 pole, 5HP at 230VAC, 1 phase, 110/120VAC coil at 50/60Hz, open

Product or Component Type

Definite Purpose Contactor

Line Rated Current

30 A

Number of Poles

2P

Pole contact composition

2 NO

Range of Product

DPA

Maximum Horse Power Rating

2 hp 115 V AC, 1 phase
5 hp 230 V AC, 1 phase

Locked rotor rated current

150 A 460 V AC
120 A 575 V AC
180 A 277 V AC

[Ue] rated operational voltage

600 V AC

[Uc] control circuit voltage

120 V AC 60 Hz
110 V AC 50 Hz

Phase

1 phase

Electrical Connection

Binder head
Quick connect terminals

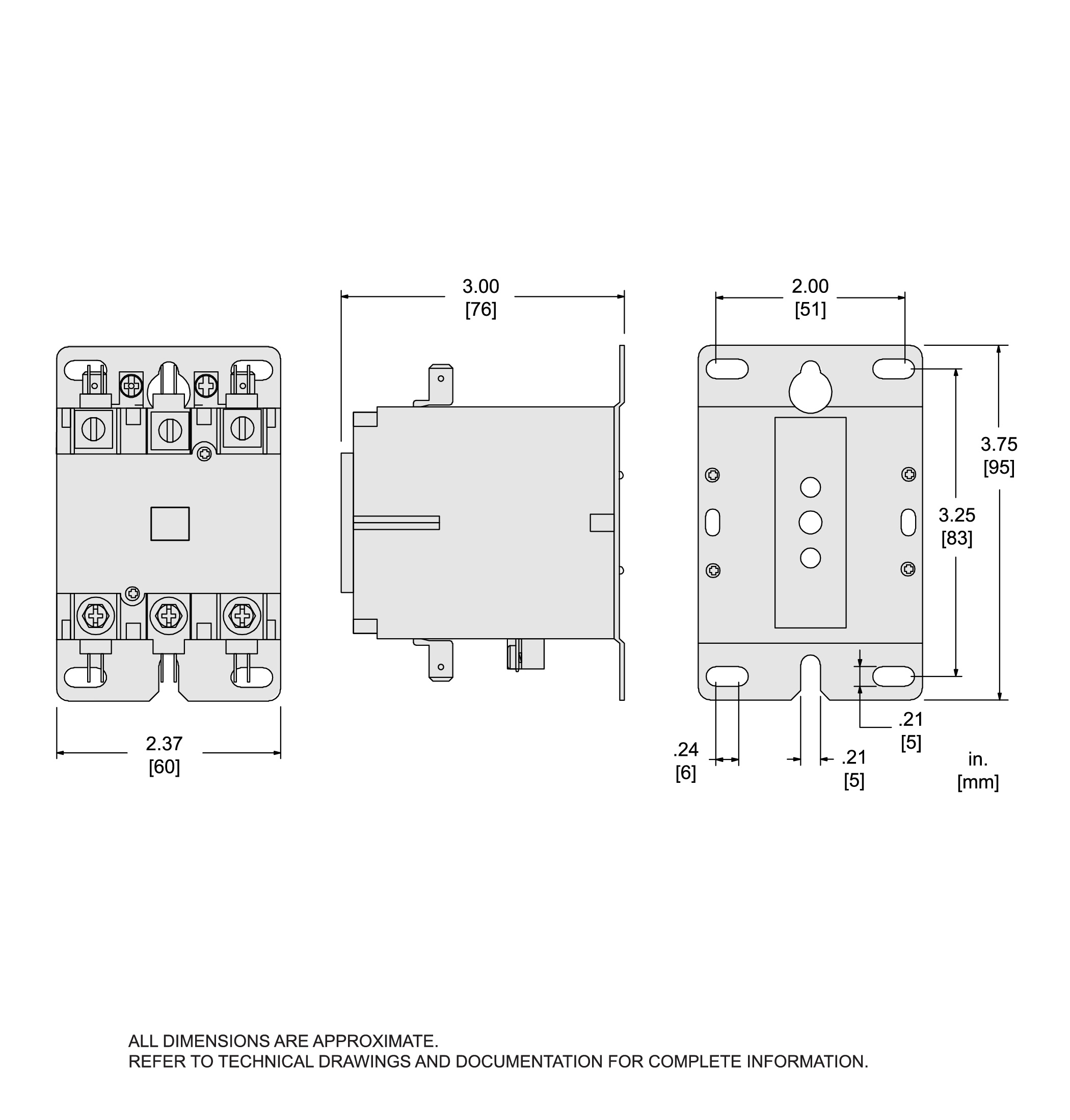

Height

2.31 in (58.67 mm)
2.31 in (58.70 mm)

Width

2.37 in (60.20 mm)
2.4 in (60.2 mm)

Depth

2.90 in (73.66 mm)
3.0 in (76 mm)

Net Weight

0.97 lb(US) (0.44 kg)
0.98 lb(US) (0.44 kg)

Product Certifications

UL Recognized
CSA

Category

US1CP1B21343

Discount Schedule

CP1B

GTIN

785901116967

Returnability

Yes

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.50 in (6.35 cm)

Package 1 Width

3.100 in (7.874 cm)

Package 1 Length

4.00 in (10.16 cm)

Package 1 Weight

15.680 oz (444.521 g)

Warranty

18 months
