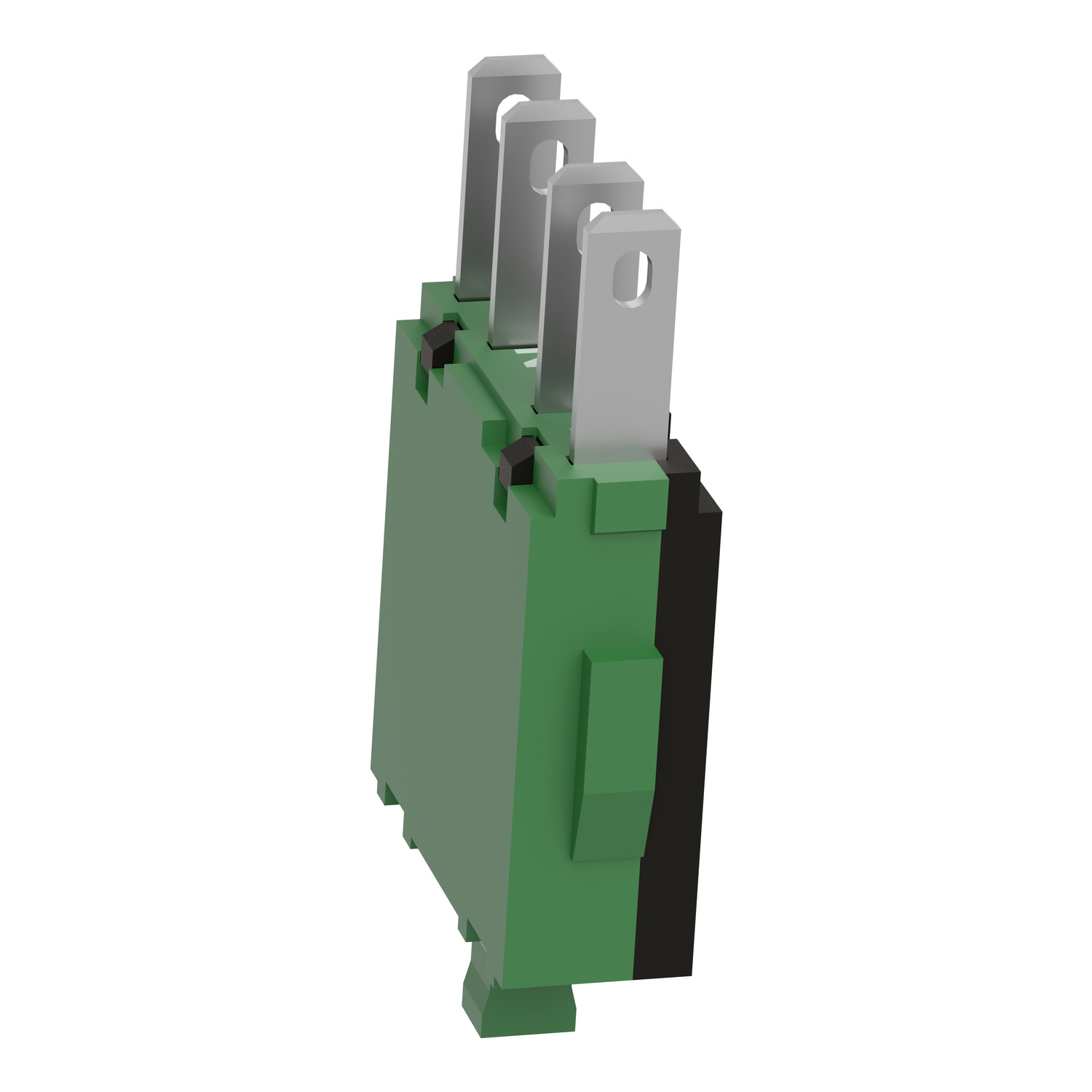

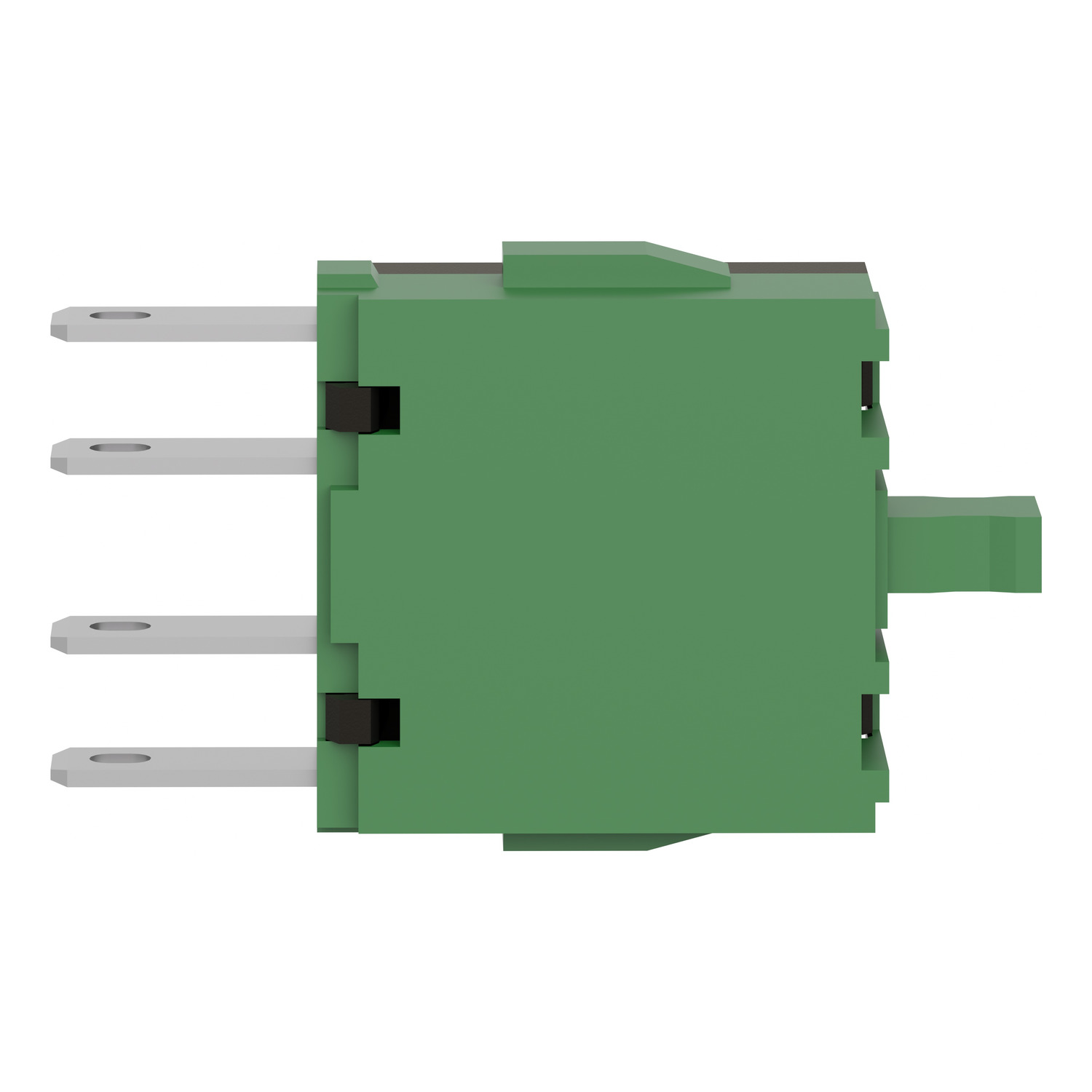

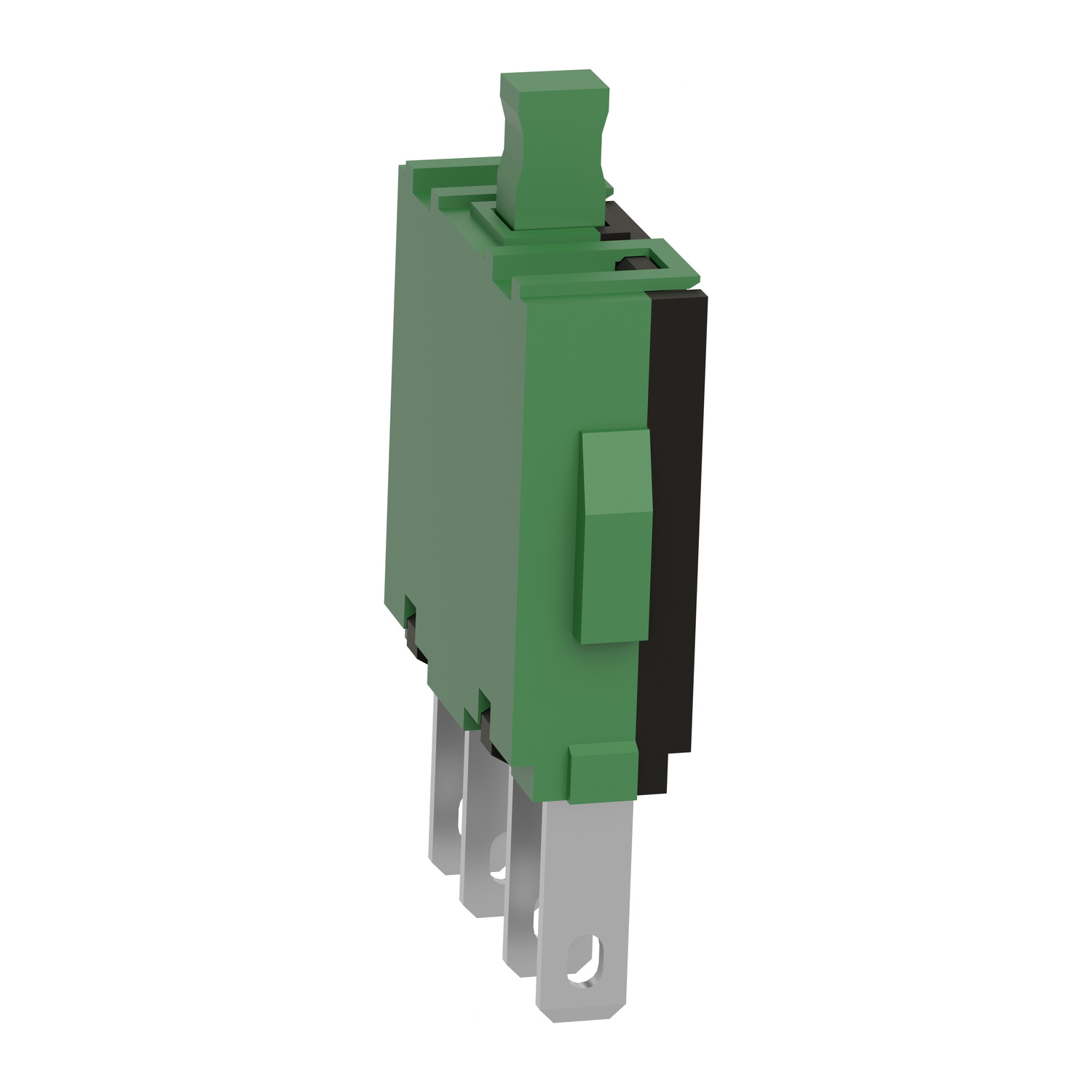

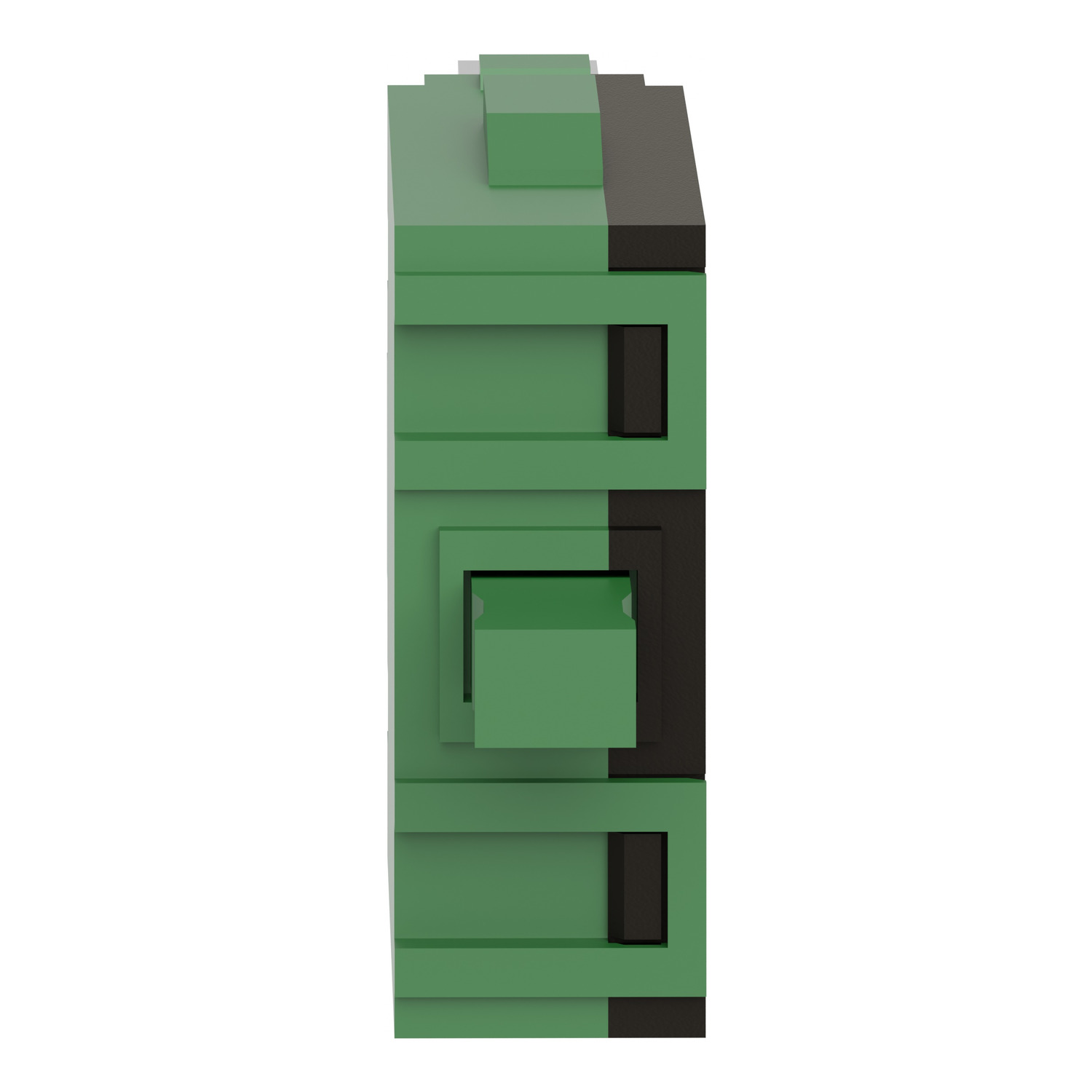

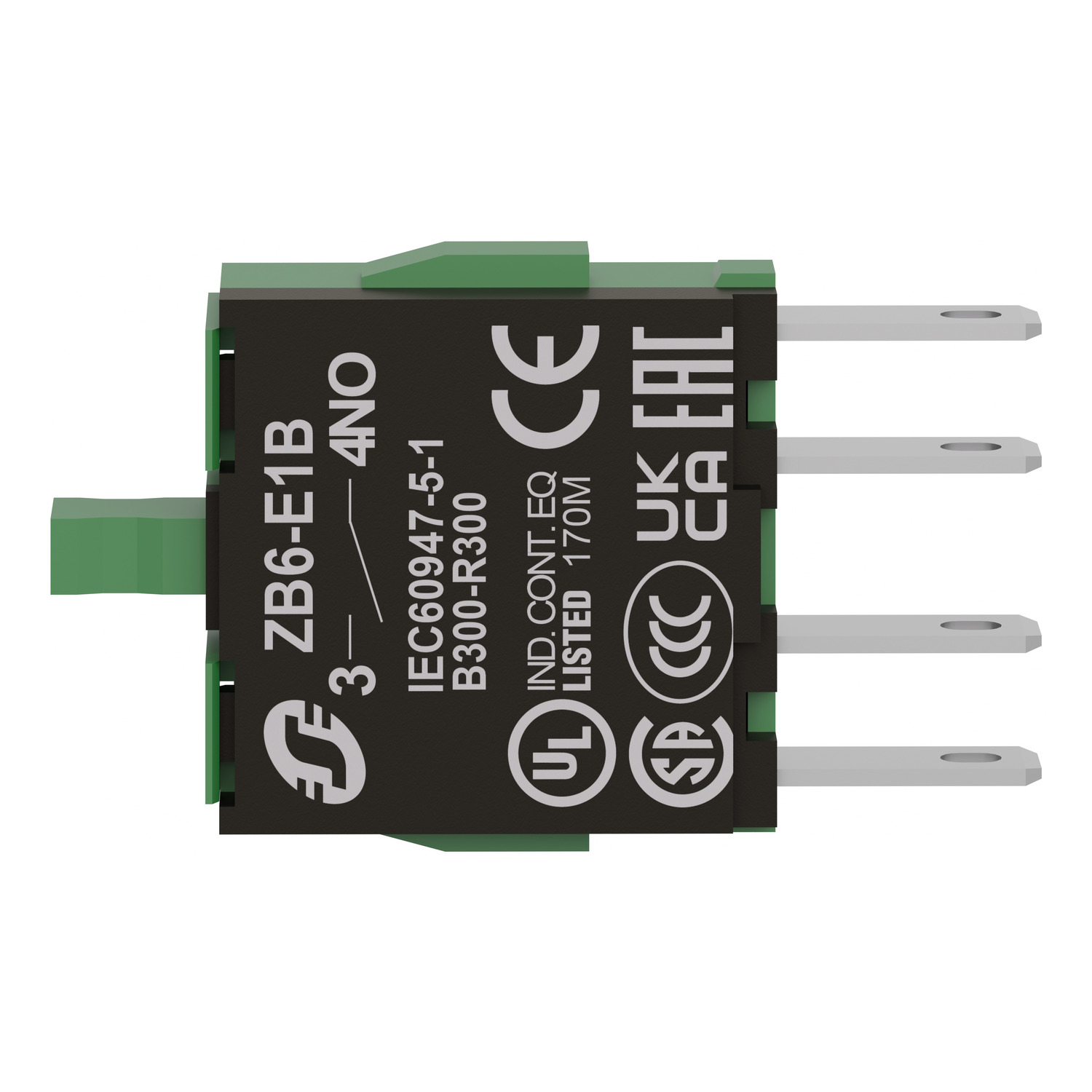

Contact block, Harmony XB6, single contact, for head 16mm, silver alloy, faston connector, 1NO

Range of Product

Harmony XB6

Product or Component Type

Contact block

Device short name

ZB6

Sale per indivisible quantity

10

Contacts type and composition

1 NO

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Faston connector

Contacts material

Silver alloy (Ag/Ni)

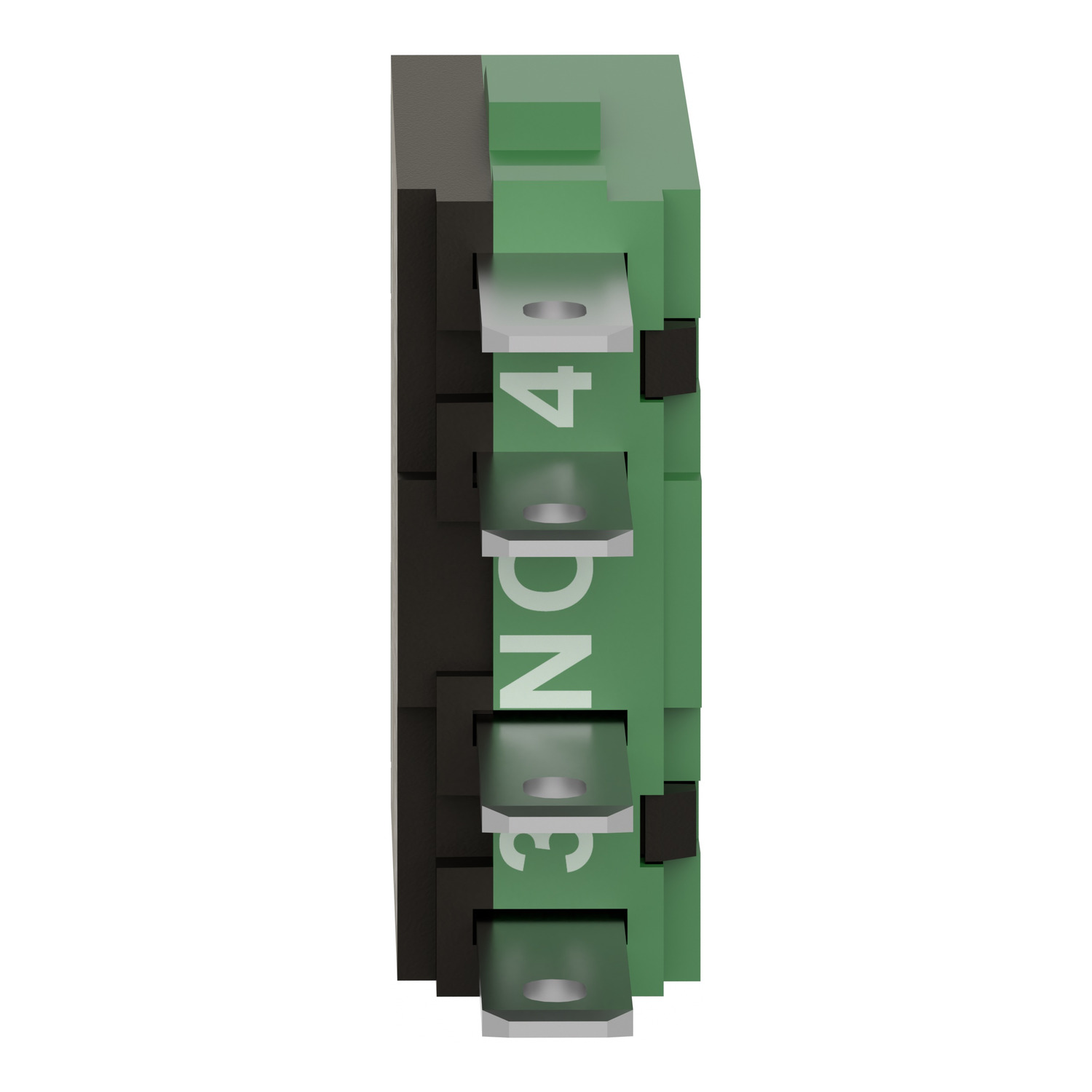

Terminals description ISO n°1

(3-4)NO

Net Weight

0.009 lb(US) (0.004 kg)

Positive opening

With EN/IEC 60947-5-1 appendix K

Operating travel

0.08 in (2 mm) NO changing electrical state)
0.1 in (3.5 mm) total travel)

Operating force

1.6 N NO changing electrical state

Mechanical durability

5000000 cycles

Short-circuit protection

6 A cartridge fuse gG

[Ui] rated insulation voltage

250 V 3)EN/IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV EN/IEC 60947-1

[Ie] rated operational current

3 A 120 V, AC-15, B300
1.5 A 240 V, AC-15, B300
0.1 A 250 V, DC-13, R300
0.22 A 125 V, DC-13, R300

Electrical durability

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4

protective treatment

TC

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

IP degree of protection

IP20 IEC 60529

Standards

JIS C 4520
EN/IEC 60947-5-1
CSA C22.2 No 14
JIS C 852
EN/IEC 60947-1
EN/IEC 60947-5-4
UL 508

Product Certifications

UL
CCC
CSA
GOST

Vibration resistance

+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Category

US10CS222459

Discount Schedule

0CS2

GTIN

3389110775266

Returnability

Yes

Country of origin

ES

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.9 in (2.2 cm)

Package 1 Width

2.6 in (6.7 cm)

Package 1 Length

1.3 in (3.2 cm)

Package 1 Weight

0.07 oz (2.0 g)

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

0.9 in (2.2 cm)

Package 2 Width

1.3 in (3.2 cm)

Package 2 Length

2.6 in (6.7 cm)

Package 2 Weight

1.0 oz (28.0 g)

Unit Type of Package 3

S01

Number of Units in Package 3

400

Package 3 Height

5.9 in (15.0 cm)

Package 3 Width

5.9 in (15.0 cm)

Package 3 Length

15.7 in (40.0 cm)

Package 3 Weight

2.857 lb(US) (1.296 kg)

Warranty

18 months
