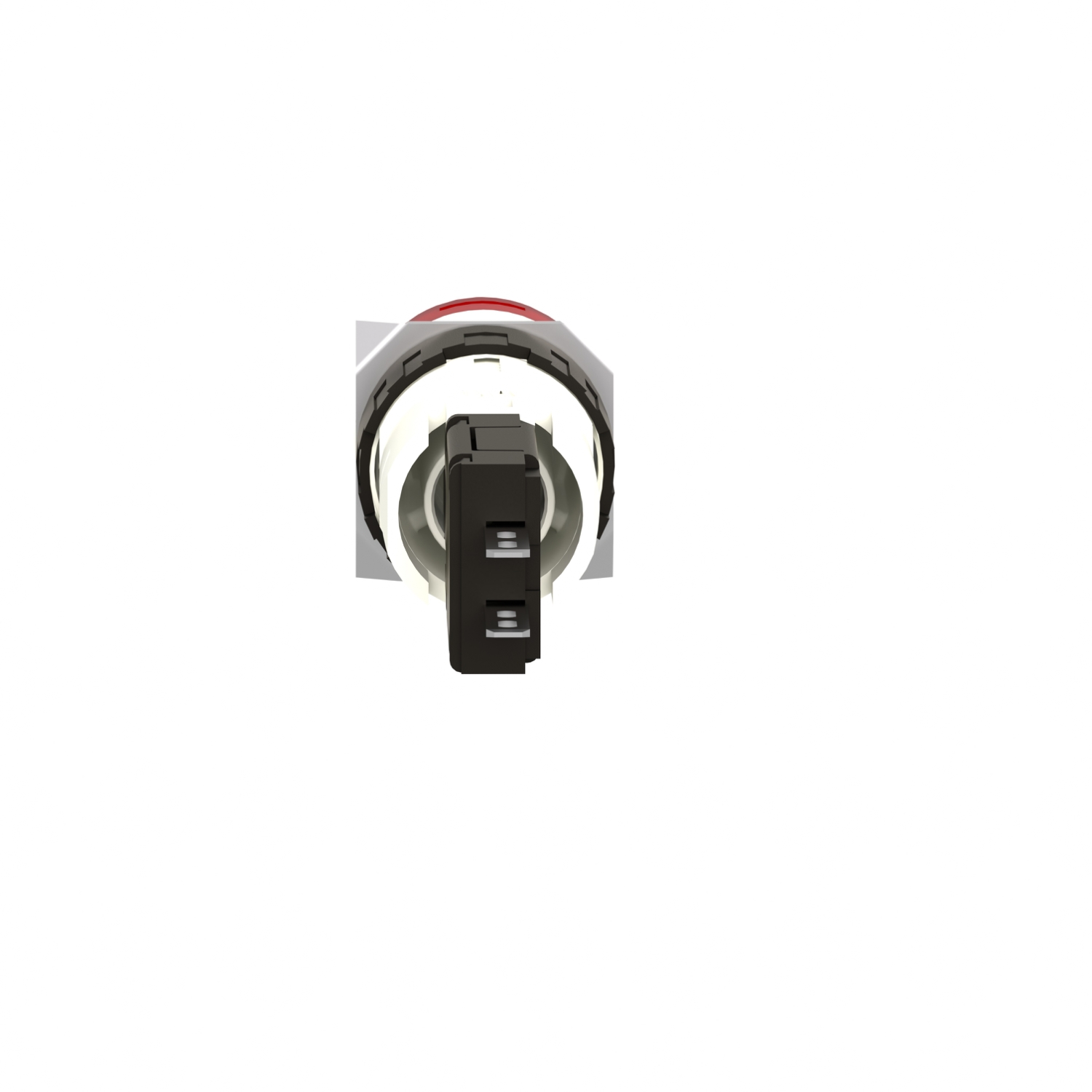

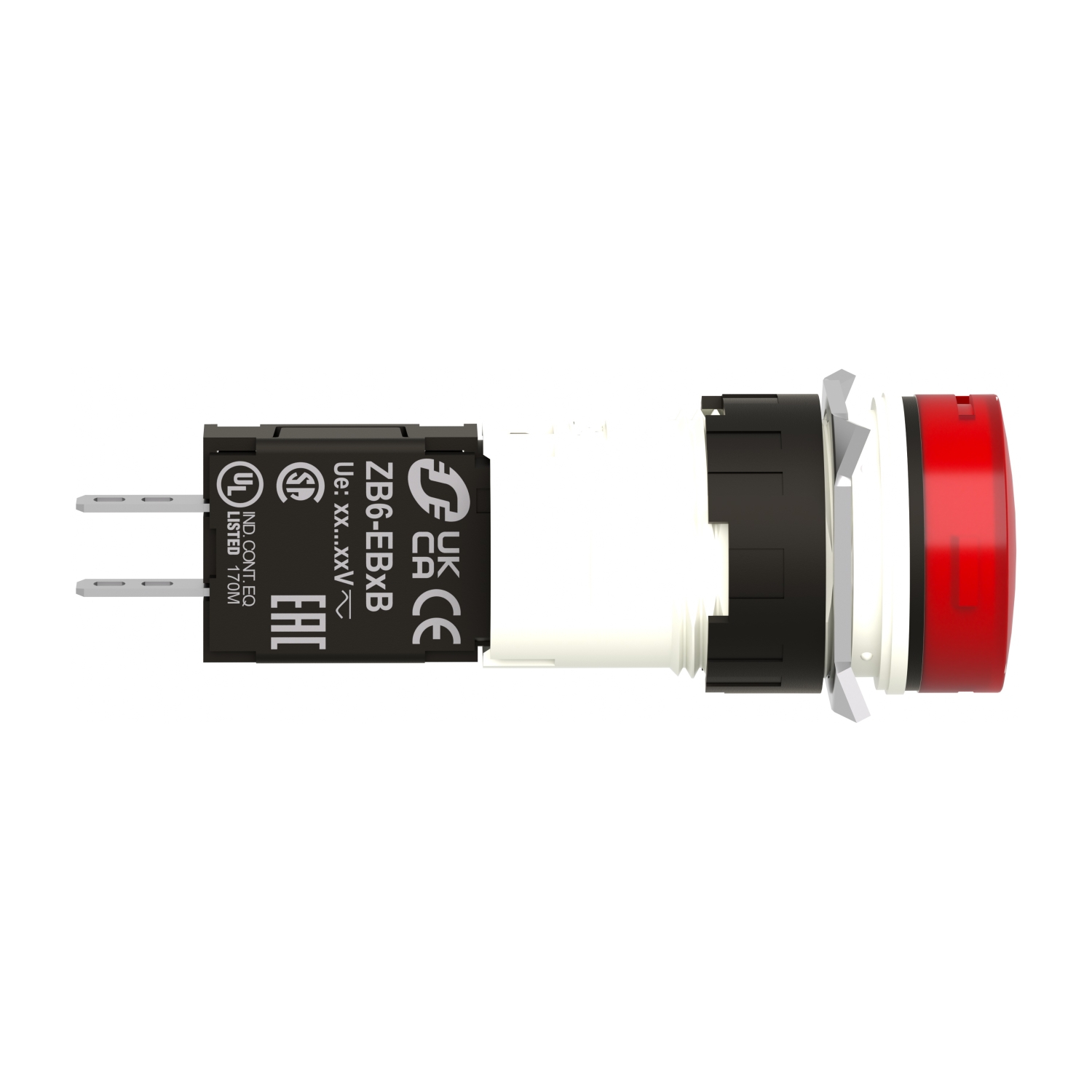

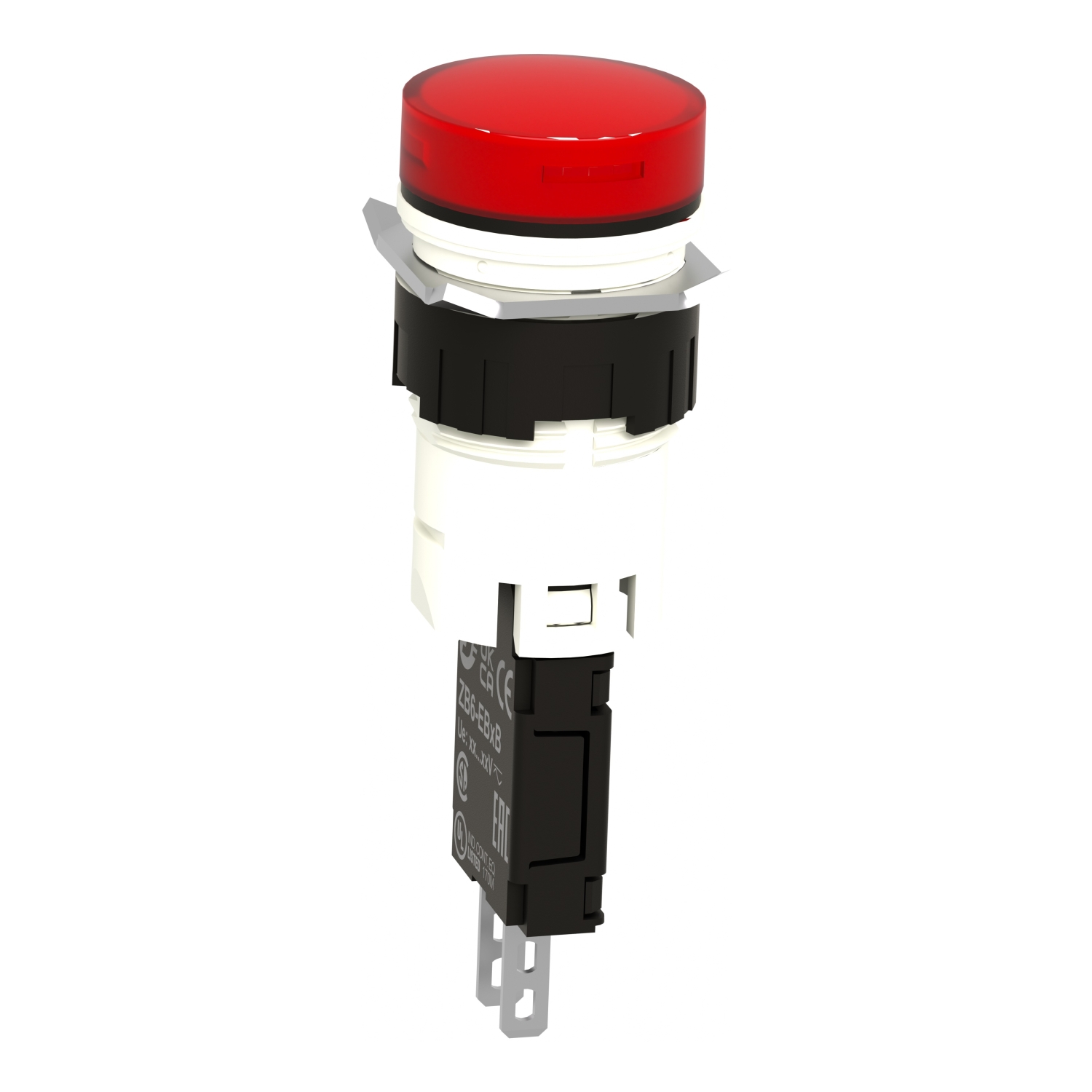

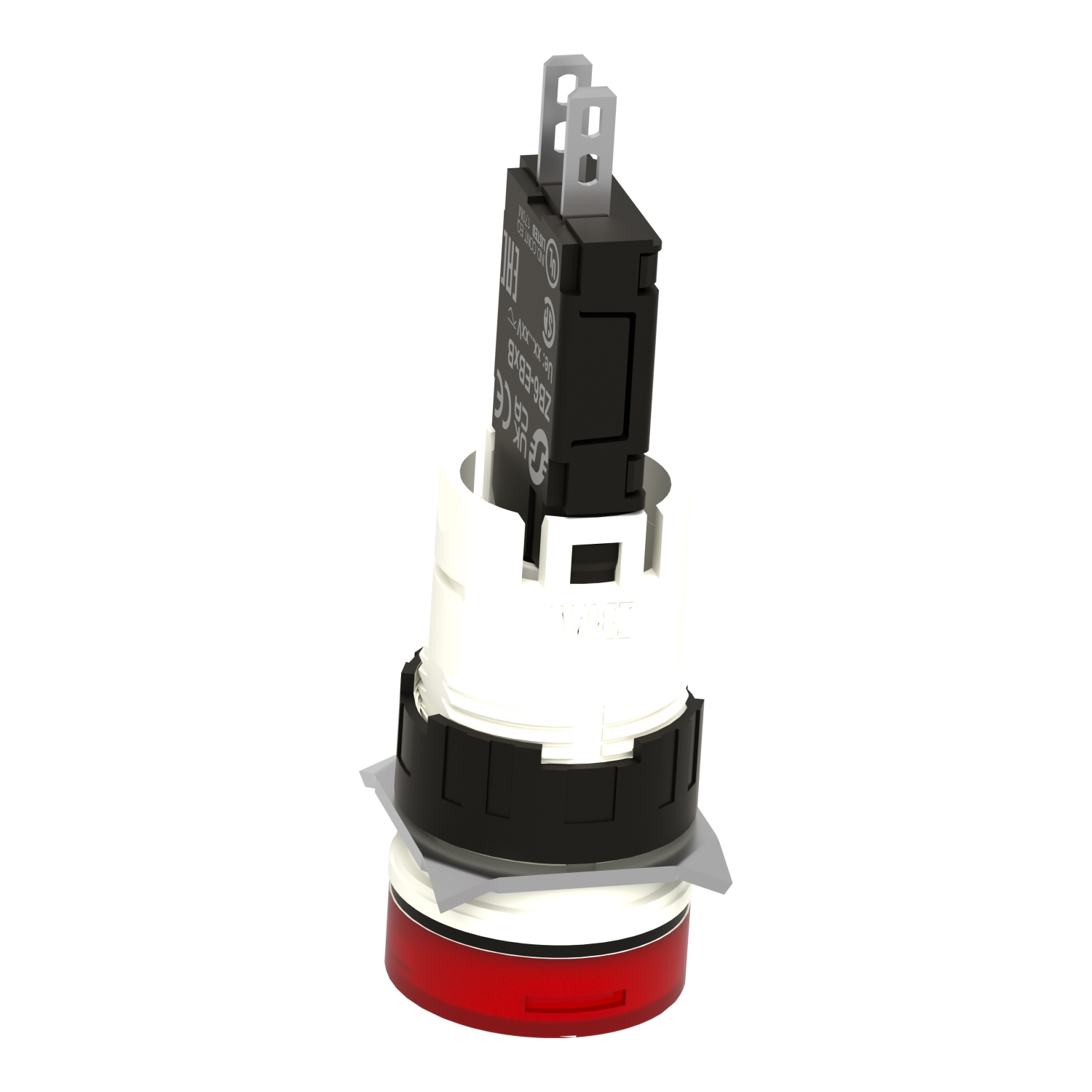

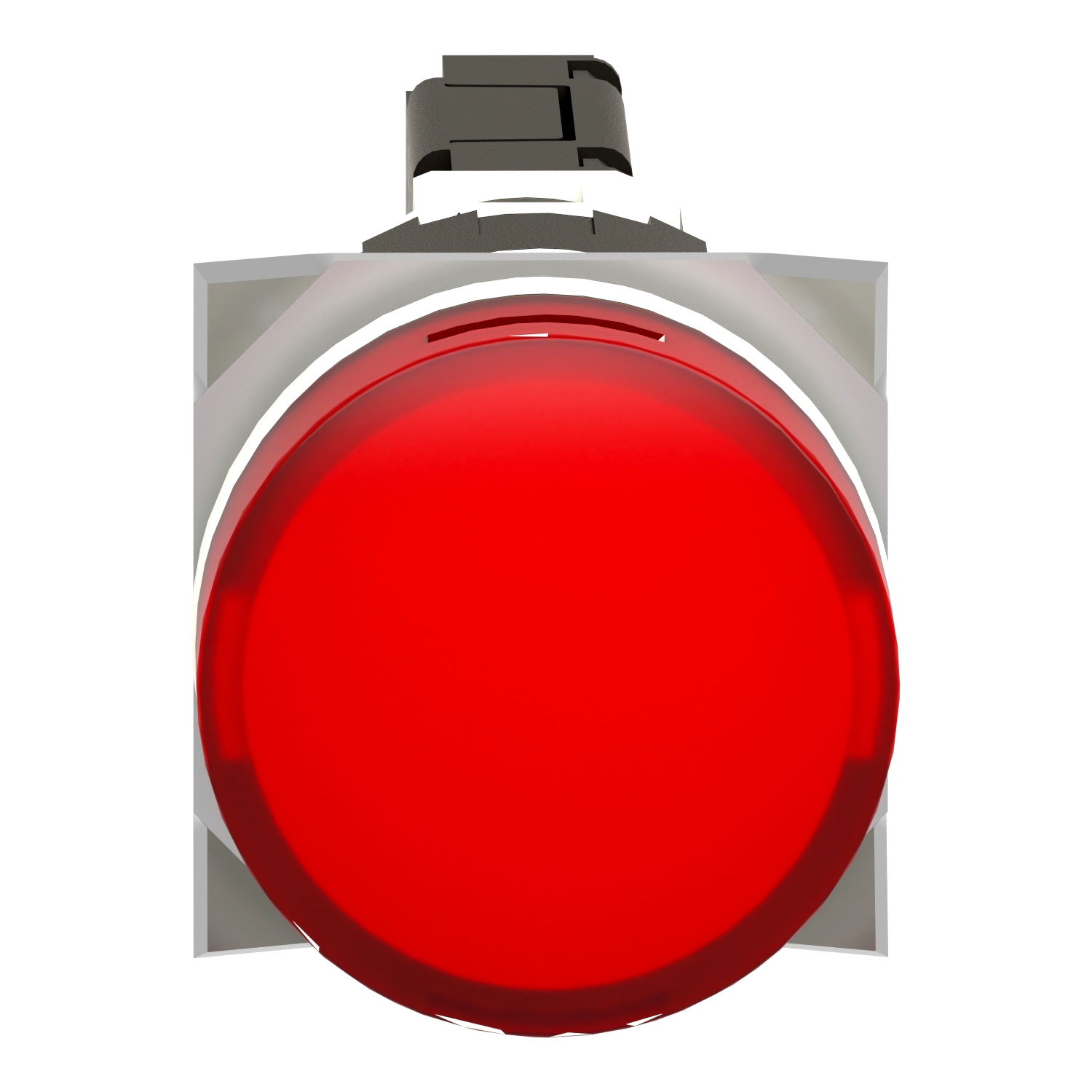

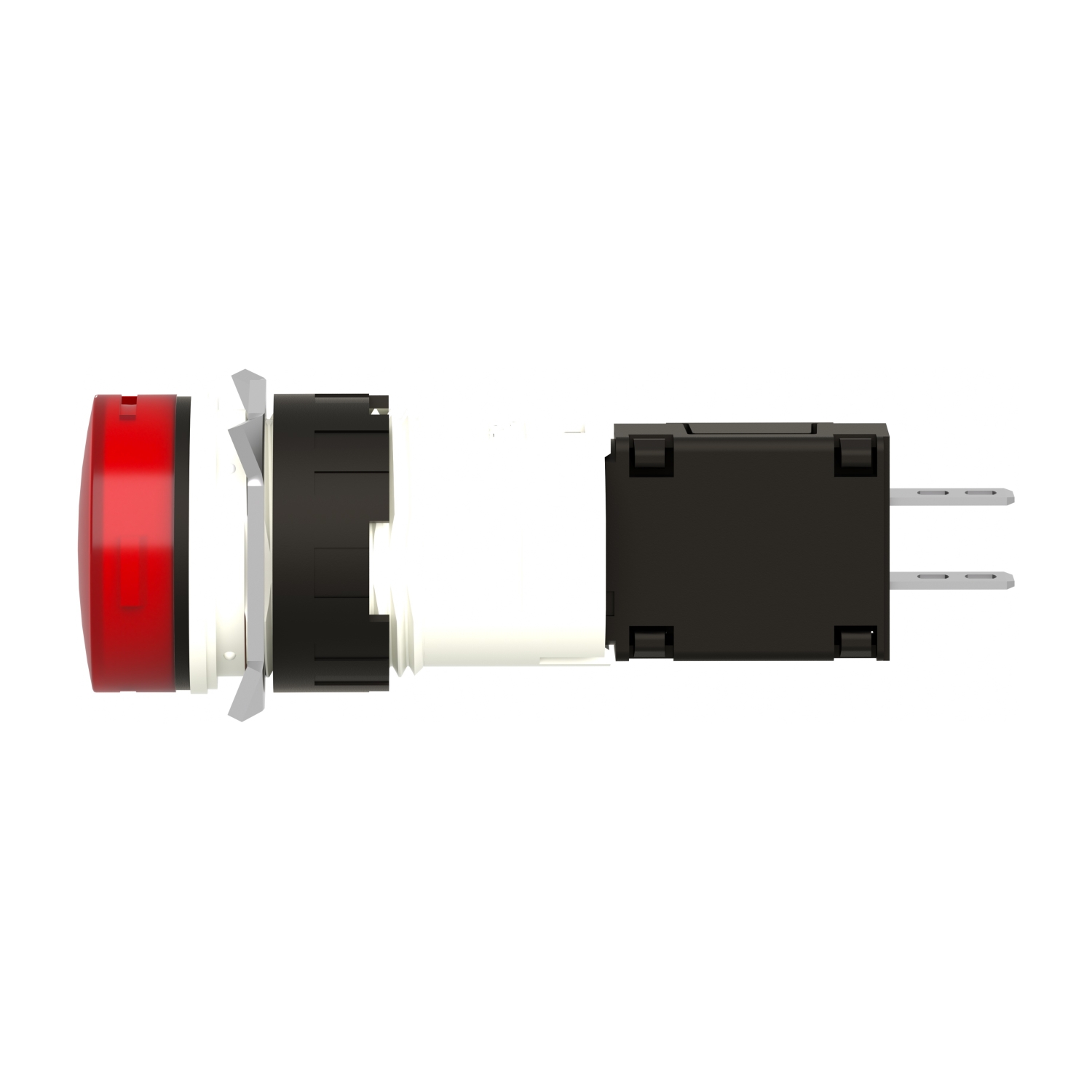

Complete pilot light, Harmony XB6, round red, plastic, 16mm, integral LED 12...24V

Range of Product

Harmony XB6

Product or Component Type

Complete pilot light

Device short name

XB6

Bezel material

Plastic

Mounting diamete

0.6 in (16 mm)

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Red

Light source

LED

Bulb base

Integral LED

Light block supply

Direct

[Us] rated supply voltage

12...24 V AC/DC

Height

0.7 in (18 mm)

Width

0.7 in (18 mm)

Depth

2.2 in (57 mm)

Terminals description ISO n°1

(+ -)PL

Net Weight

0.033 lb(US) (0.015 kg)

Operating position

Any position

Connections - terminals

Faston connectors 2.8 x 0.5 mm

[Ui] rated insulation voltage

250 V 2)IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV IEC 60947-1

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current Consumption

15 mA

Surge withstand

1 kV direct contact IEC 61000-4-5
2 kV in free air IEC 61000-4-5

protective treatment

TC

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Electrical shock protection class

Class II IEC 61140

IP degree of protection

IP65 IEC 60529

NEMA degree of protection

NEMA 13 UL 50
NEMA 4 UL 50
NEMA 4X UL 50
NEMA 13 CSA C22.2 No 94
NEMA 4 CSA C22.2 No 94
NEMA 4X CSA C22.2 No 94

Standards

IEC 60947-5-1
CSA C22.2 No 14
JIS C 852
UL 508
IEC 60947-1
JIS C8201-5-1
IEC 60947-5-5
JIS C8201-1

Product Certifications

GOST
CSA
CCC
UL

Vibration resistance

+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance to fast transients

2 kV IEC 61000-4-4

Resistance to electromagnetic fields

9.1 V/m (10 V/m) IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2

Electromagnetic emission

Class B IEC 55011

Category

US10CS222459

Discount Schedule

0CS2

GTIN

3389110764499

Returnability

Yes

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.8 in (2.0 cm)

Package 1 Width

4.3 in (11.0 cm)

Package 1 Length

6.3 in (16.0 cm)

Package 1 Weight

0.4 oz (11.0 g)

Unit Type of Package 2

S01

Number of Units in Package 2

60

Package 2 Height

5.9 in (15.0 cm)

Package 2 Width

5.9 in (15.0 cm)

Package 2 Length

15.7 in (40.0 cm)

Package 2 Weight

29.3 oz (830.0 g)

Warranty

18 months
