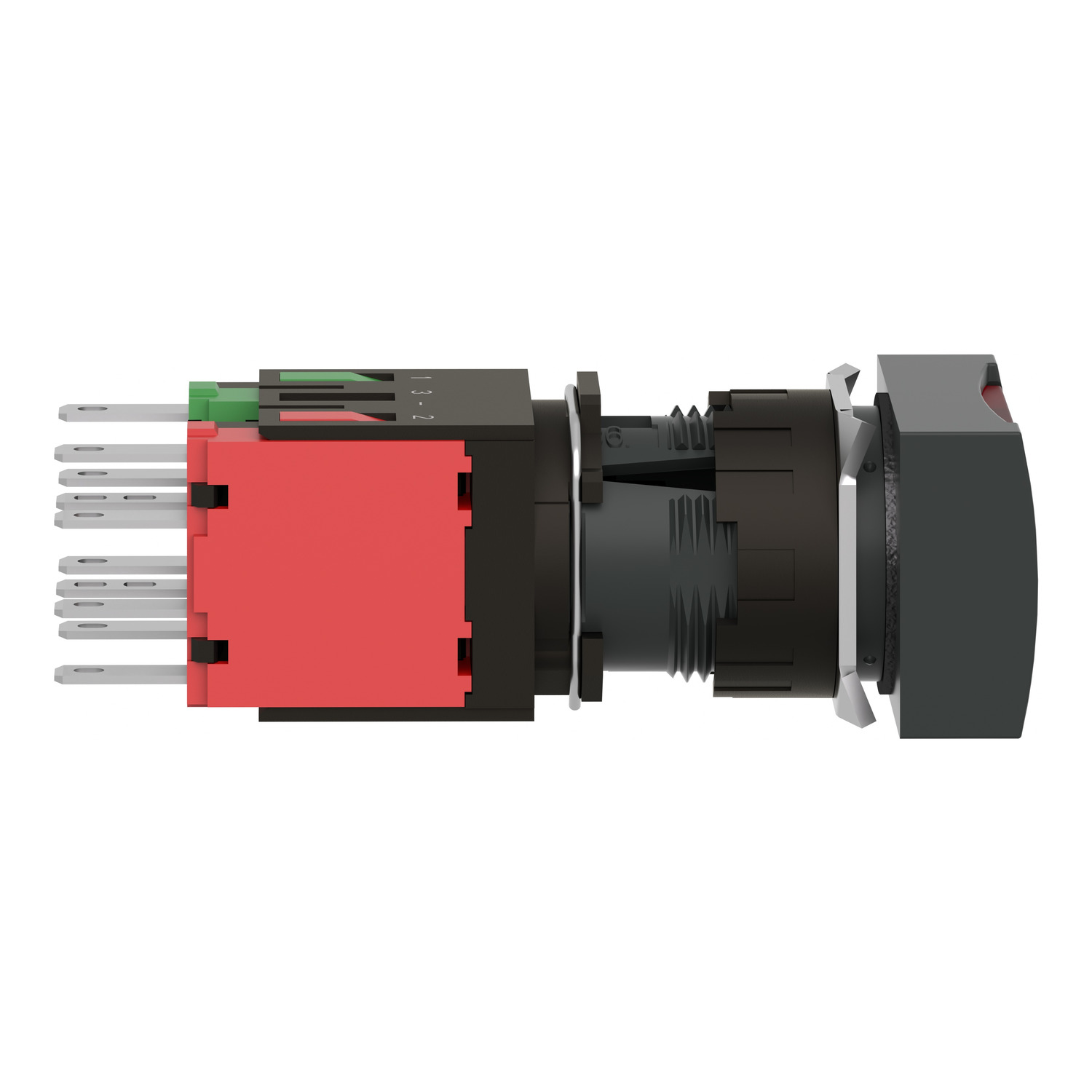

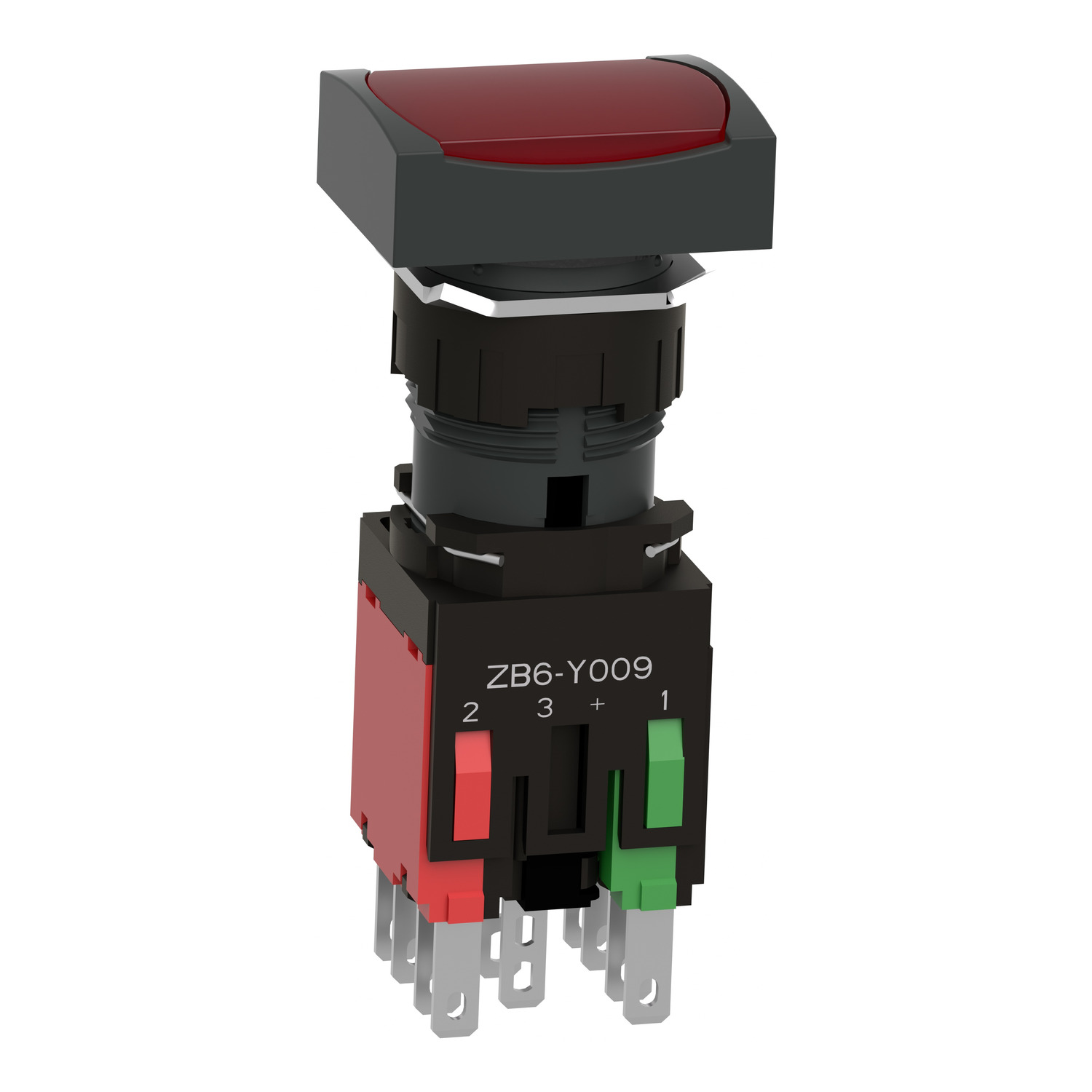

Complete illuminated push button, Harmony XB6, red rectangular flush, 16mm, latching, 1NO + 1NC, 12...24V

Range of Product

Harmony XB6

Product or Component Type

Complete illuminated push-button

Device short name

XB6

Bezel material

Plastic

Mounting diamete

0.6 in (16 mm)

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

latching

Operator profile

Red flush, unmarked

Contacts type and composition

1 NO + 1 NC

Contact operation

Slow-break

Connections - terminals

Faston connectors 2.8 x 0.5 mm

Light source

LED

Bulb base

Integral LED

[Us] rated supply voltage

12...24 V AC/DC

Height

0.7 in (18 mm)

Width

0.9 in (24 mm)

Depth

2.2 in (57 mm)

Terminals description ISO n°1

(13-14)NO
(21-22)NC

Net Weight

0.055 lb(US) (0.025 kg)

Operating position

Any position

Positive opening

With EN/IEC 60947-5-1 appendix K

Operating travel

0.04 in (1 mm) NO changing electrical state)
0.08 in (2 mm) NC changing electrical state)
0.1 in (3.5 mm) total travel)

Operating force

3.5 N NO changing electrical state
4.5 N NC changing electrical state

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse gG

[Ui] rated insulation voltage

250 V 3)EN/IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV EN/IEC 60947-1

[Ie] rated operational current

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1
1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1
0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical reliability

Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current Consumption

15 mA

Surge withstand

1 kV direct contact IEC 61000-4-5
2 kV in free air IEC 61000-4-5

protective treatment

TC

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Electrical shock protection class

Class II IEC 61140

IP degree of protection

IP65 IEC 60529

NEMA degree of protection

NEMA 13 UL 50
NEMA 4 UL 50
NEMA 4X UL 50
NEMA 13 CSA C22.2 No 94
NEMA 4 CSA C22.2 No 94
NEMA 4X CSA C22.2 No 94

Standards

EN/IEC 60947-5-5
JIS C 4520
EN/IEC 60947-5-1
JIS C 852
UL 508
CSA C22.2 No 14
EN/IEC 60947-1

Product Certifications

CCC
CSA
GOST
UL

Vibration resistance

+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance to fast transients

2 kV IEC 61000-4-4

Resistance to electromagnetic fields

9.1 V/m (10 V/m) IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) IEC 61000-4-2
8 kV in free air (in insulating parts) IEC 61000-4-2

Electromagnetic emission

Class B IEC 55011

Category

US10CS222459

Discount Schedule

0CS2

GTIN

3389110764031

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.984 in (2.500 cm)

Package 1 Width

1.378 in (3.500 cm)

Package 1 Length

3.543 in (9.000 cm)

Package 1 Weight

0.635 oz (18.000 g)

Unit Type of Package 2

S01

Number of Units in Package 2

60

Package 2 Height

5.906 in (15.000 cm)

Package 2 Width

5.906 in (15.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

2.687 lb(US) (1.219 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

1920

Package 3 Height

29.528 in (75.000 cm)

Package 3 Width

31.496 in (80.000 cm)

Package 3 Length

23.622 in (60.000 cm)

Package 3 Weight

103.635 lb(US) (47.008 kg)

Warranty

18 months
