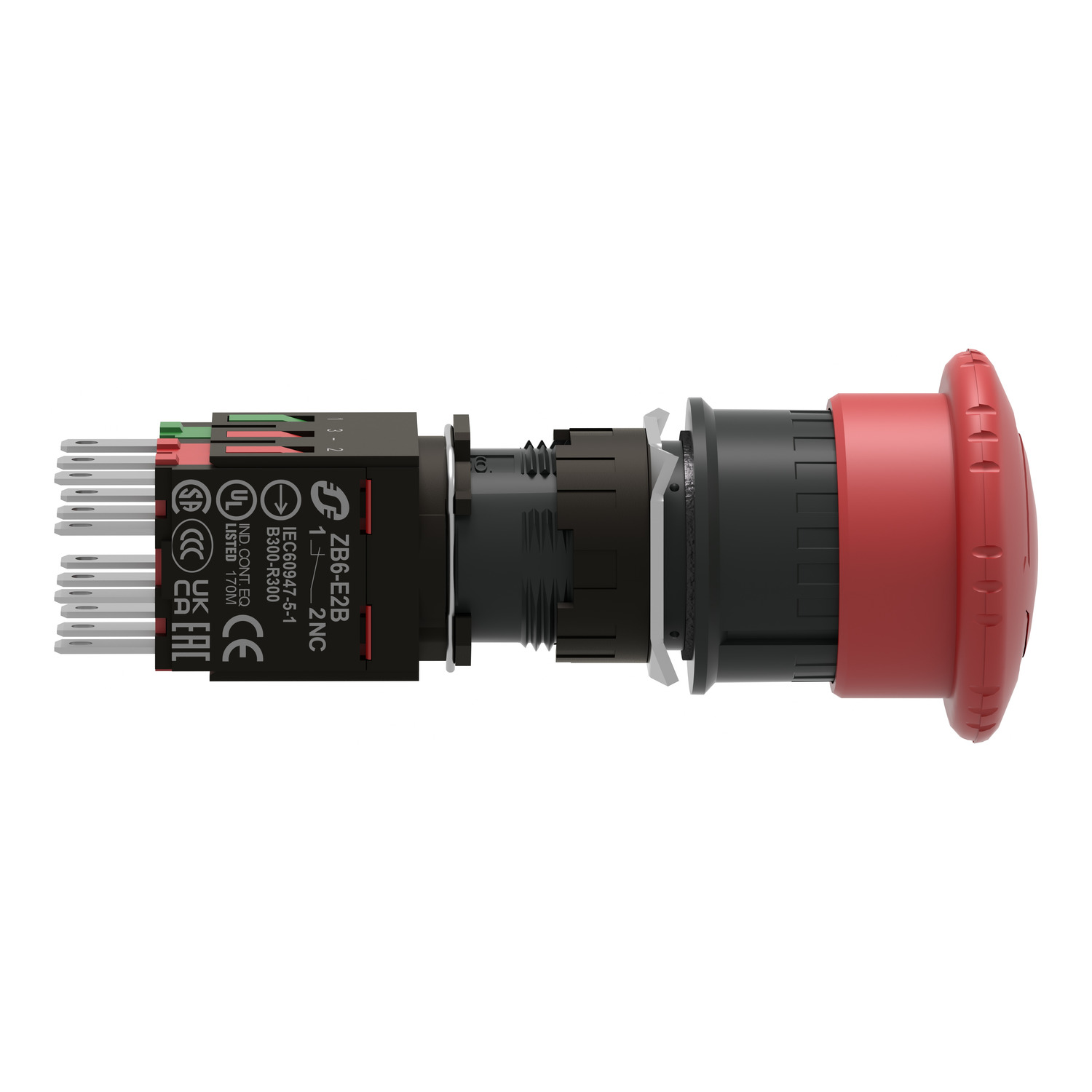

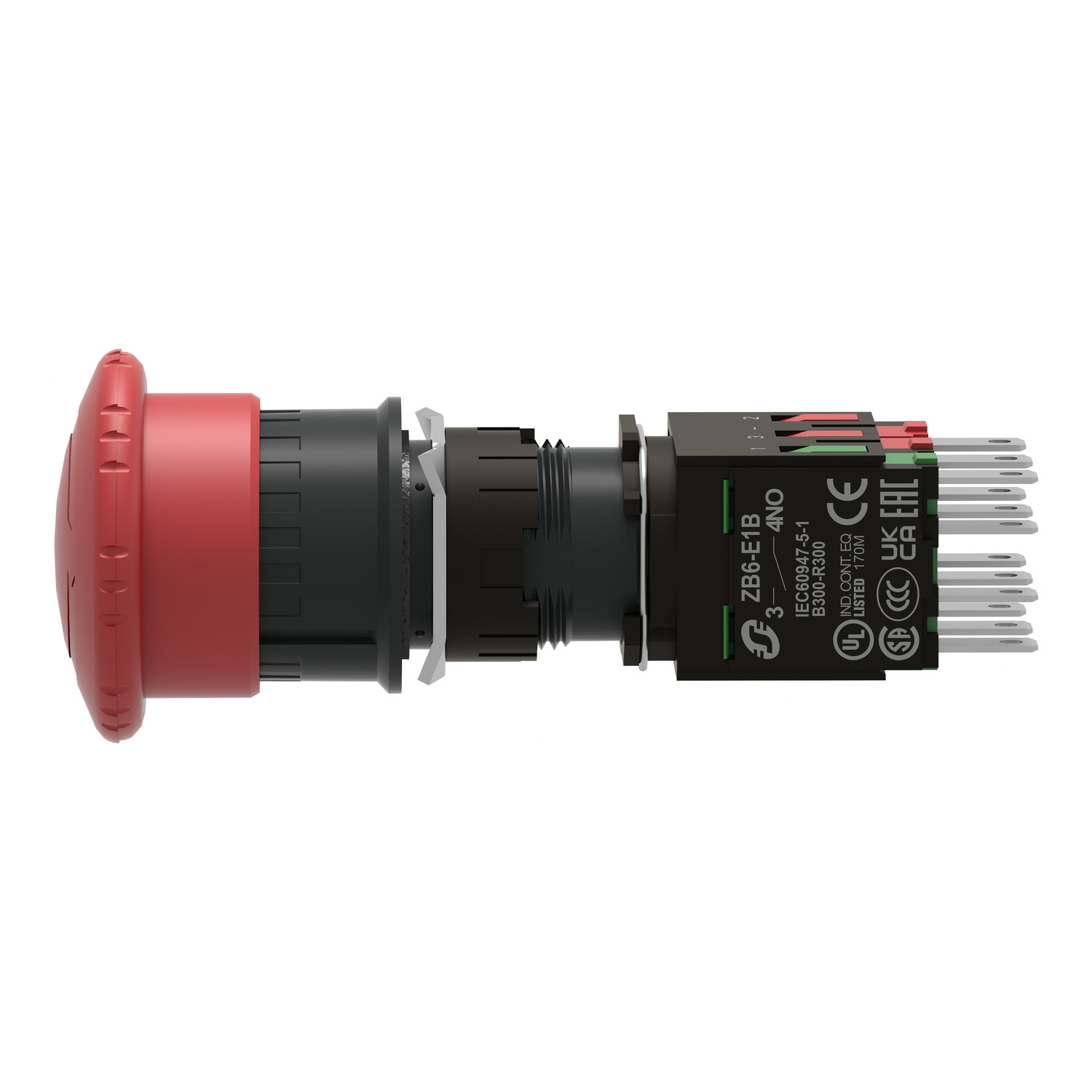

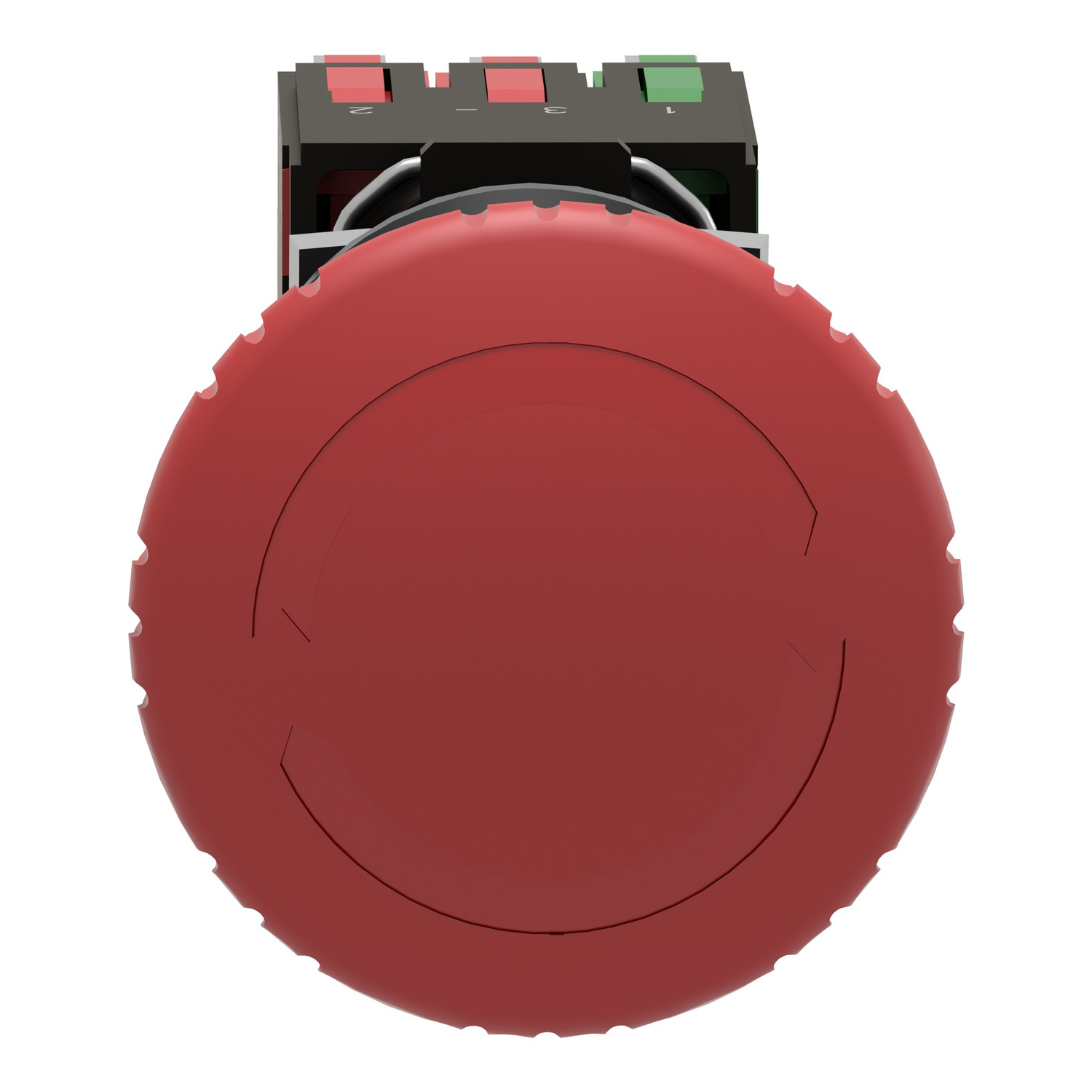

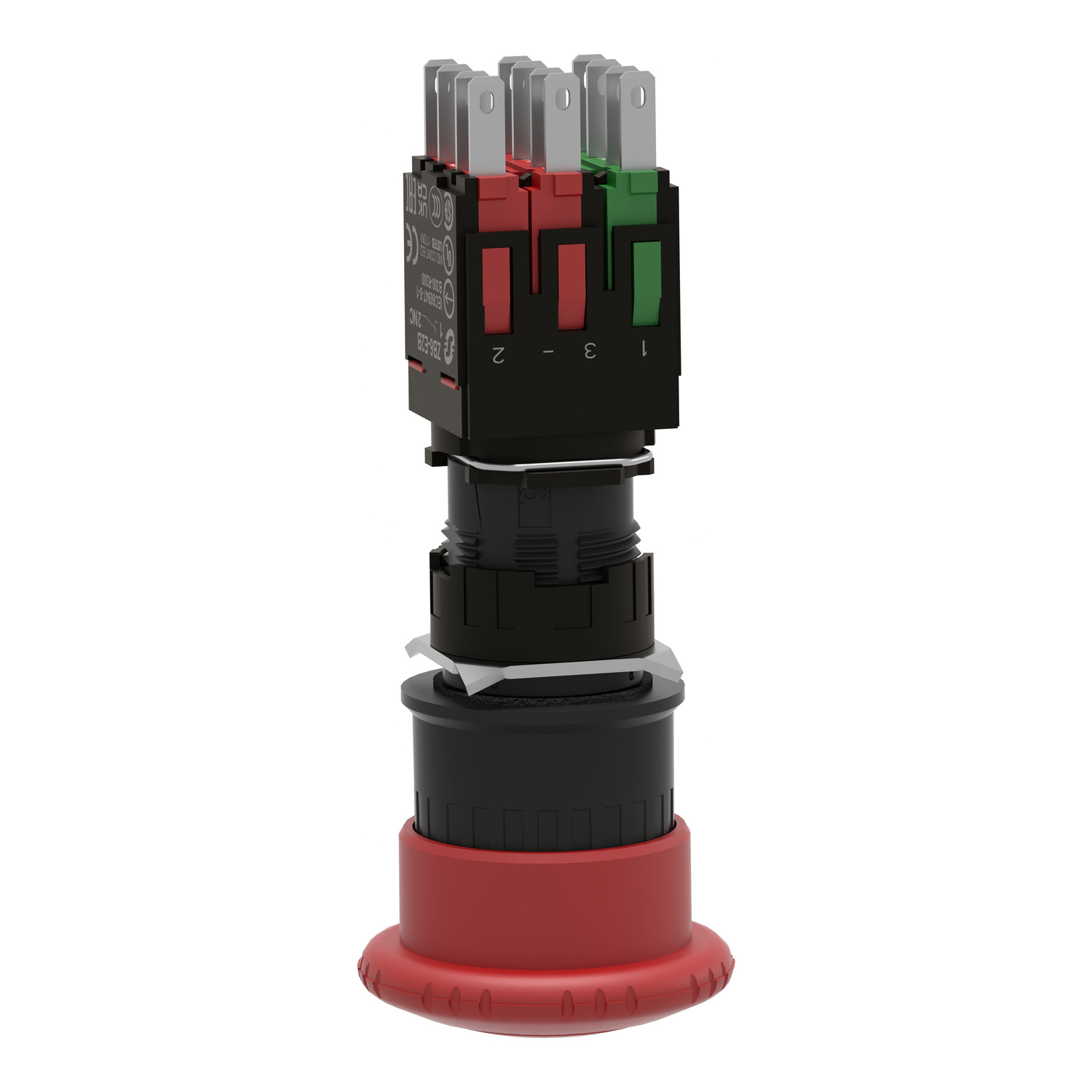

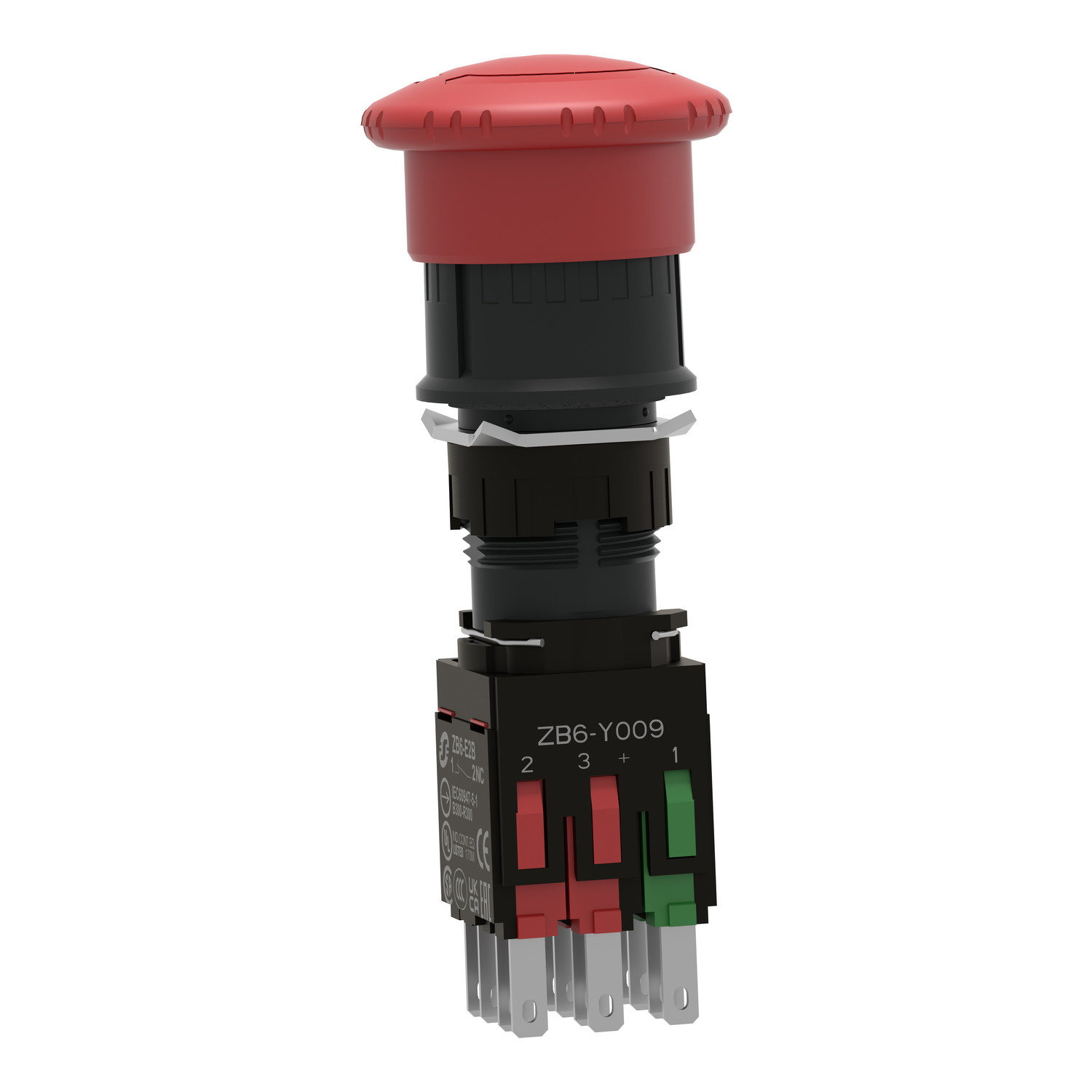

Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching key release, 1NO, key 200

Range of Product

Harmony XB6

Product or Component Type

Complete emergency stop push-button

Device short name

XB6

Bezel material

Plastic

Mounting diamete

0.6 in (16 mm)

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red mushroom Ø 30 mm, unmarked

Contacts type and composition

1 NC

Contact operation

Slow-break

Connections - terminals

Faston connectors 2.8 x 0.5 mm

Height

1.2 in (30 mm)

Width

1.2 in (30 mm)

Depth

3.03 in (77 mm)

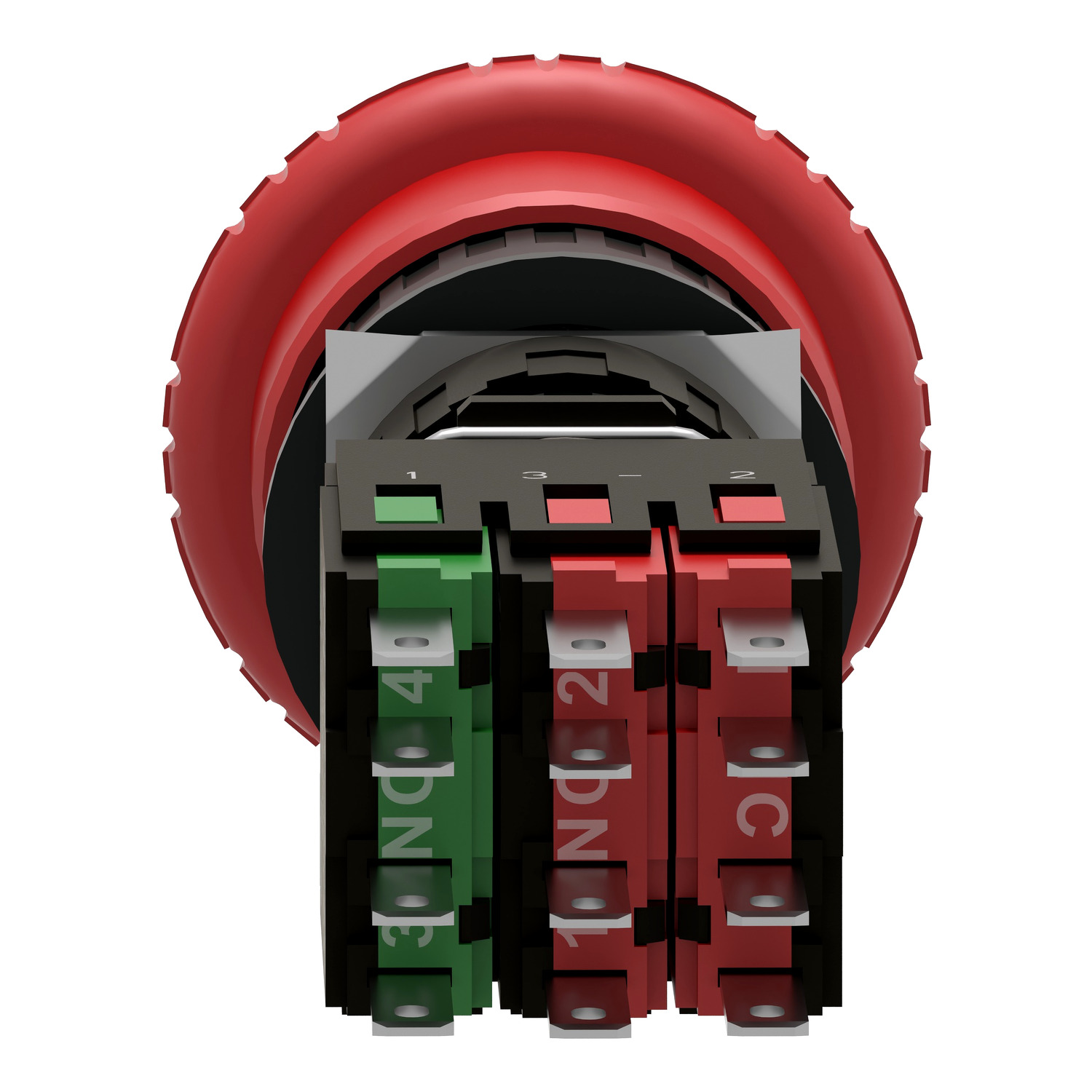

Terminals description ISO n°1

(21-22)NC
(13-14)NO

Net Weight

0.090 lb(US) (0.041 kg)

Operating position

Any position

Type of Keylock

Key 200

Contacts usage

Standard

Positive opening

With IEC 60947-5-1 appendix K

Operating travel

0.04 in (1 mm) NC changing electrical state)
0.08 in (2 mm) NO changing electrical state)
0.1 in (3.5 mm) total travel)

Operating force

3.5 N NO changing electrical state
4.5 N NC changing electrical state

Mechanical durability

100000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse gG

[Ui] rated insulation voltage

250 V 3)IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV IEC 60947-1

[Ie] rated operational current

3 A 120 V, AC-15, B300 IEC 60947-5-1
1.5 A 240 V, AC-15, B300 IEC 60947-5-1
0.1 A 250 V, DC-13, R300 IEC 60947-5-1
0.22 A 125 V, DC-13, R300 IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4

protective treatment

TC

Ambient Air Temperature for Storage

-40…158 °F (-40…70 °C)

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

Electrical shock protection class

Class II IEC 61140

IP degree of protection

IP65 IEC 60529

NEMA degree of protection

NEMA 13 UL 50
NEMA 4 UL 50
NEMA 4X UL 50
NEMA 13 CSA C22.2 No 94
NEMA 4X CSA C22.2 No 94
NEMA 4 CSA C22.2 No 94

Standards

JIS C8201-5-1
JIS C 852
ISO 13850
IEC 60947-5-5
CSA C22.2 No 14
UL 508
IEC 60204-1
IEC 60947-5-1
IEC 60947-1
JIS C8201-1

Product Certifications

CCC
GOST
CSA
UL

Vibration resistance

+/- 3 mm 2…500 Hz)IEC 60068-2-6
5 gn 2…500 Hz)IEC 60068-2-6

Shock resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Category

US10CS222459

Discount Schedule

0CS2

GTIN

3389119018661

Returnability

No

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.4 in (6.2 cm)

Package 1 Width

2.2 in (5.6 cm)

Package 1 Length

1.8 in (4.6 cm)

Package 1 Weight

1.7 oz (48.0 g)

Warranty

18 months
