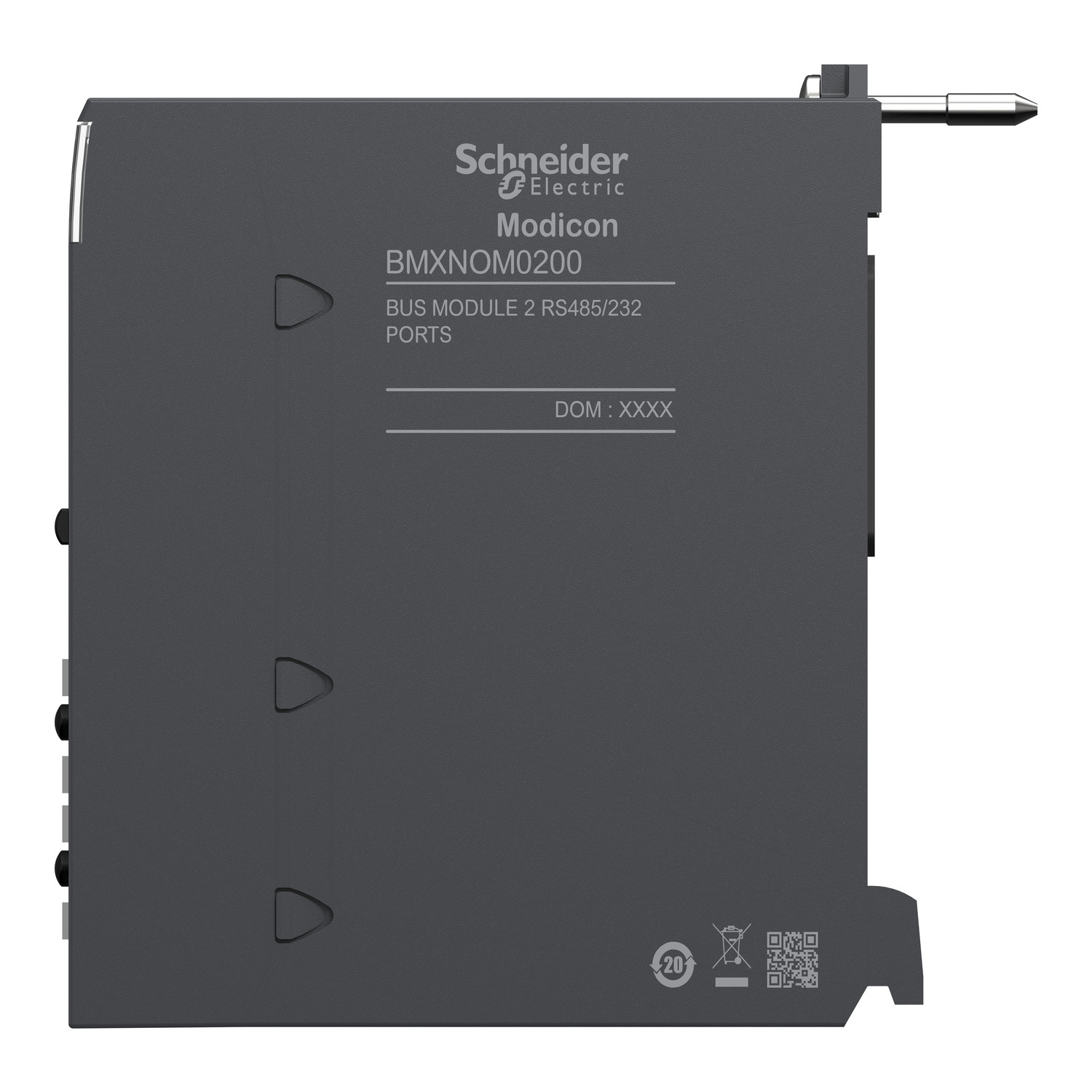

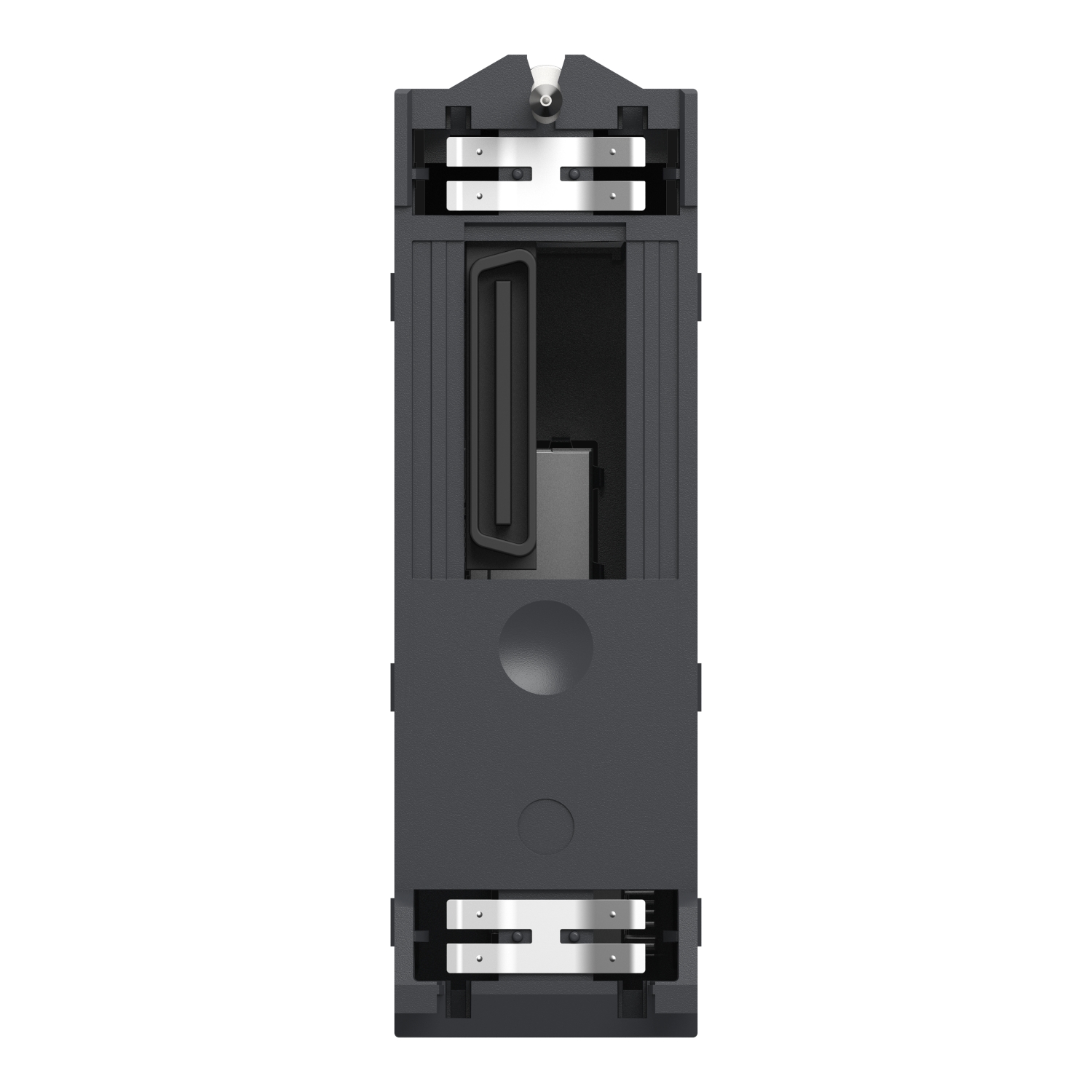

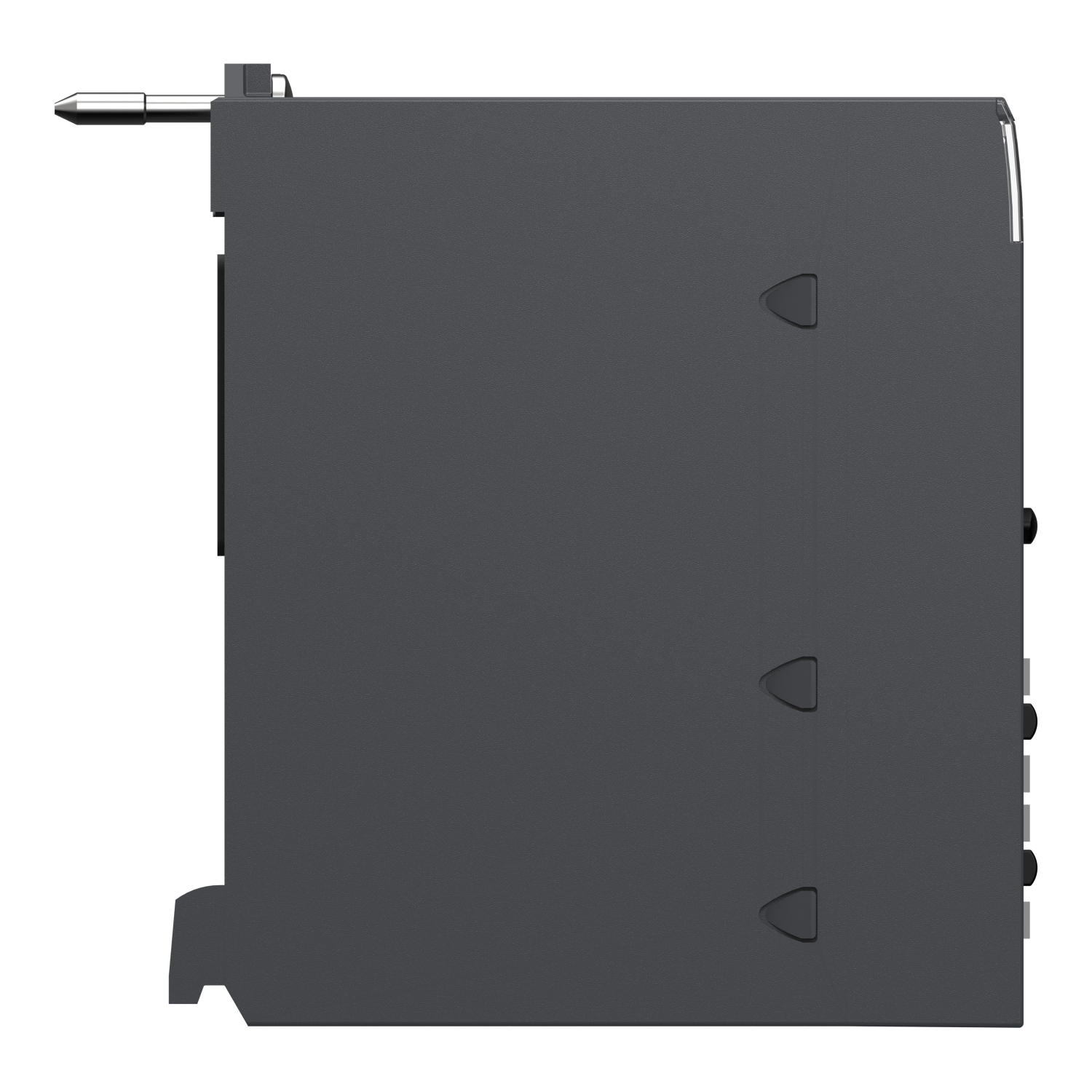

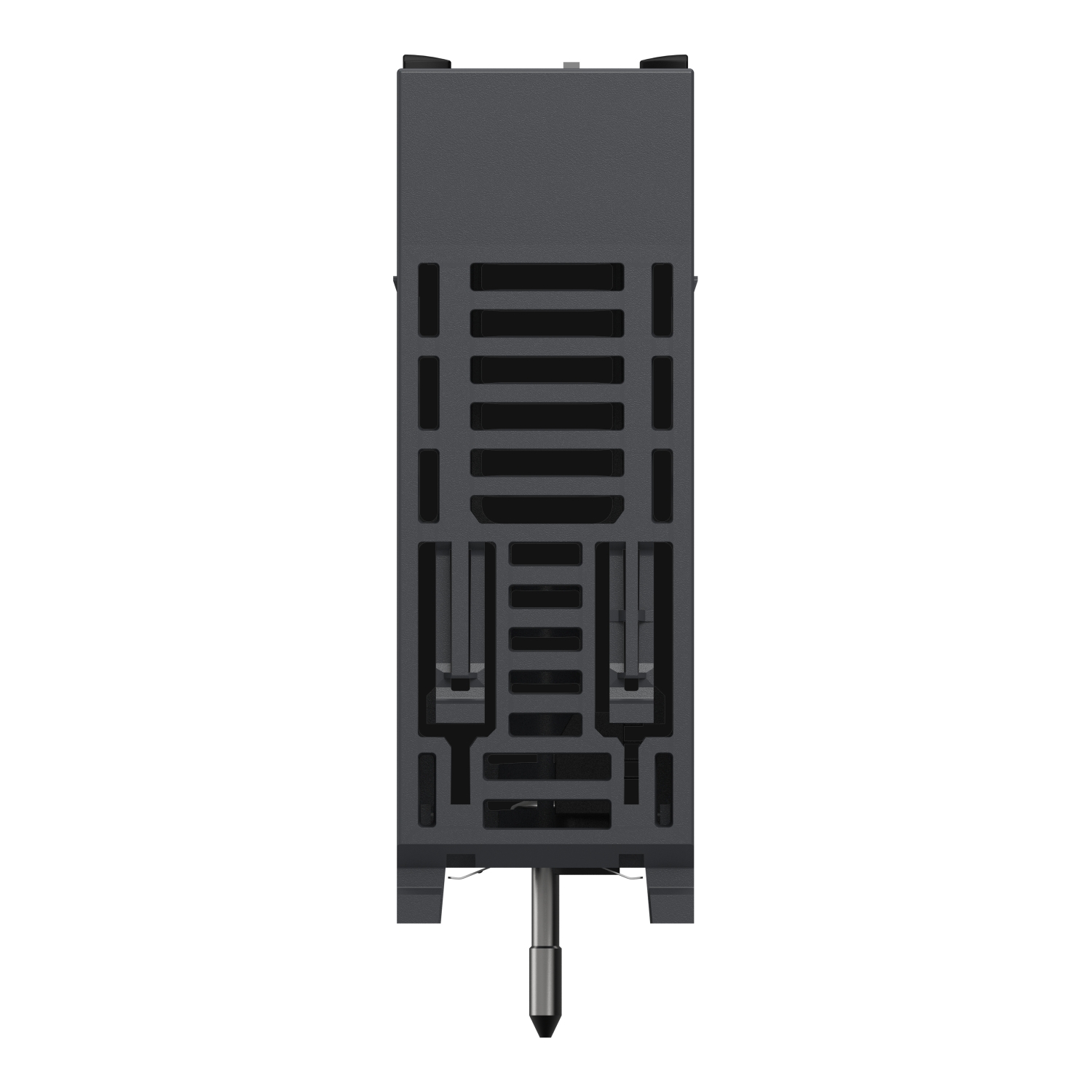

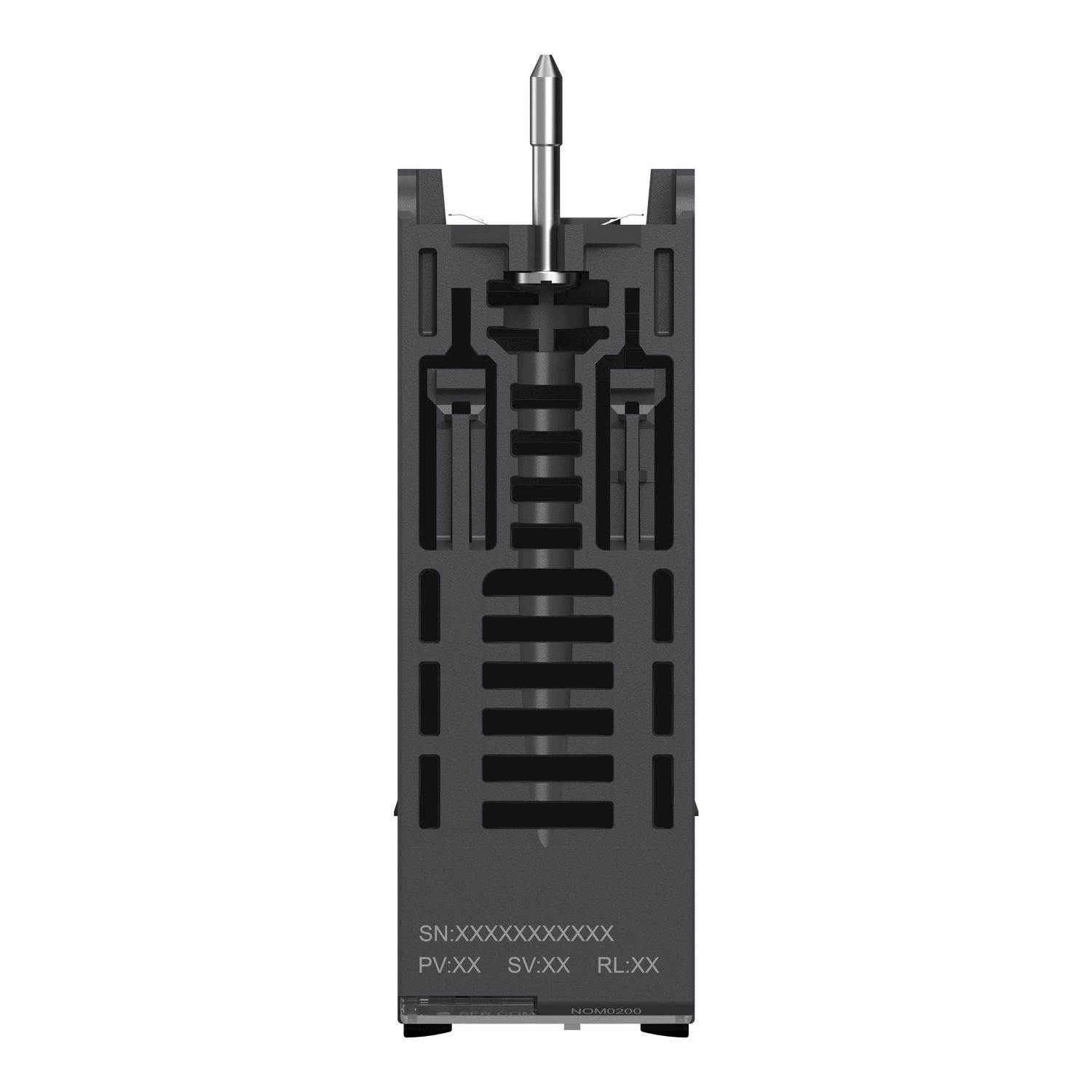

communication module, Modicon X80, Serial link module, 2 RS485 or 232 ports in Modbus and character mode

Range of Product

Modicon X80

Product or Component Type

Serial links module

Concept

Serial link

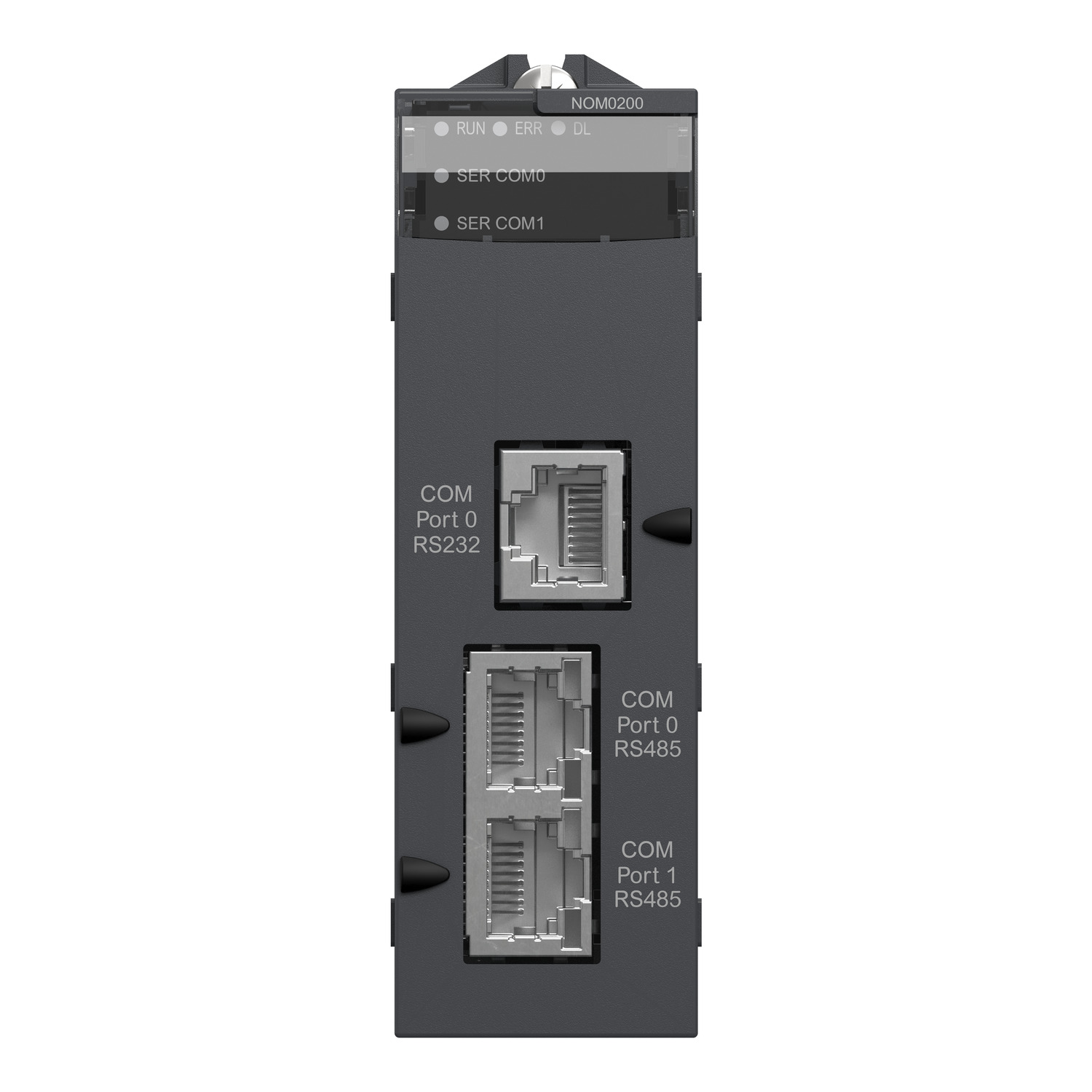

Integrated connection type

RS232 RJ45 115.2 kbit/s 8 wires
RS485 RJ45 57.6 kbit/s 1 twisted pair

protective treatment

TC

Supply

Internal power supply via rack

marking

CE

Local signalling

for module fault (ERR) 1 LED (red)
for module running (RUN) 1 LED (green)
for activity on the serial link (SER COM 0) 1 LED (green)
for activity on the serial link (SER COM 1) 1 LED (green)

Current consumption

80 mA 24 V DC

module format

Standard

Net Weight

0.51 lb(US) (0.23 kg)

Ambient Air Temperature for Operation

32…140 °F (0…60 °C)

Relative Humidity

10…95 % without condensation

IP Degree of Protection

IP20

Directives

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility

Category

US1PC3418160

Discount Schedule

PC34

GTIN

3595864024431

Returnability

Yes

Country of origin

FR

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.087 in (5.300 cm)

Package 1 Width

4.606 in (11.700 cm)

Package 1 Length

4.724 in (12.000 cm)

Package 1 Weight

7.654 oz (217.000 g)

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

5.906 in (15.000 cm)

Package 2 Width

11.811 in (30.000 cm)

Package 2 Length

15.748 in (40.000 cm)

Package 2 Weight

7.937 lb(US) (3.600 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

240

Package 3 Height

29.528 in (75.000 cm)

Package 3 Width

23.622 in (60.000 cm)

Package 3 Length

31.496 in (80.000 cm)

Package 3 Weight

145.373 lb(US) (65.940 kg)

Warranty

18 months
