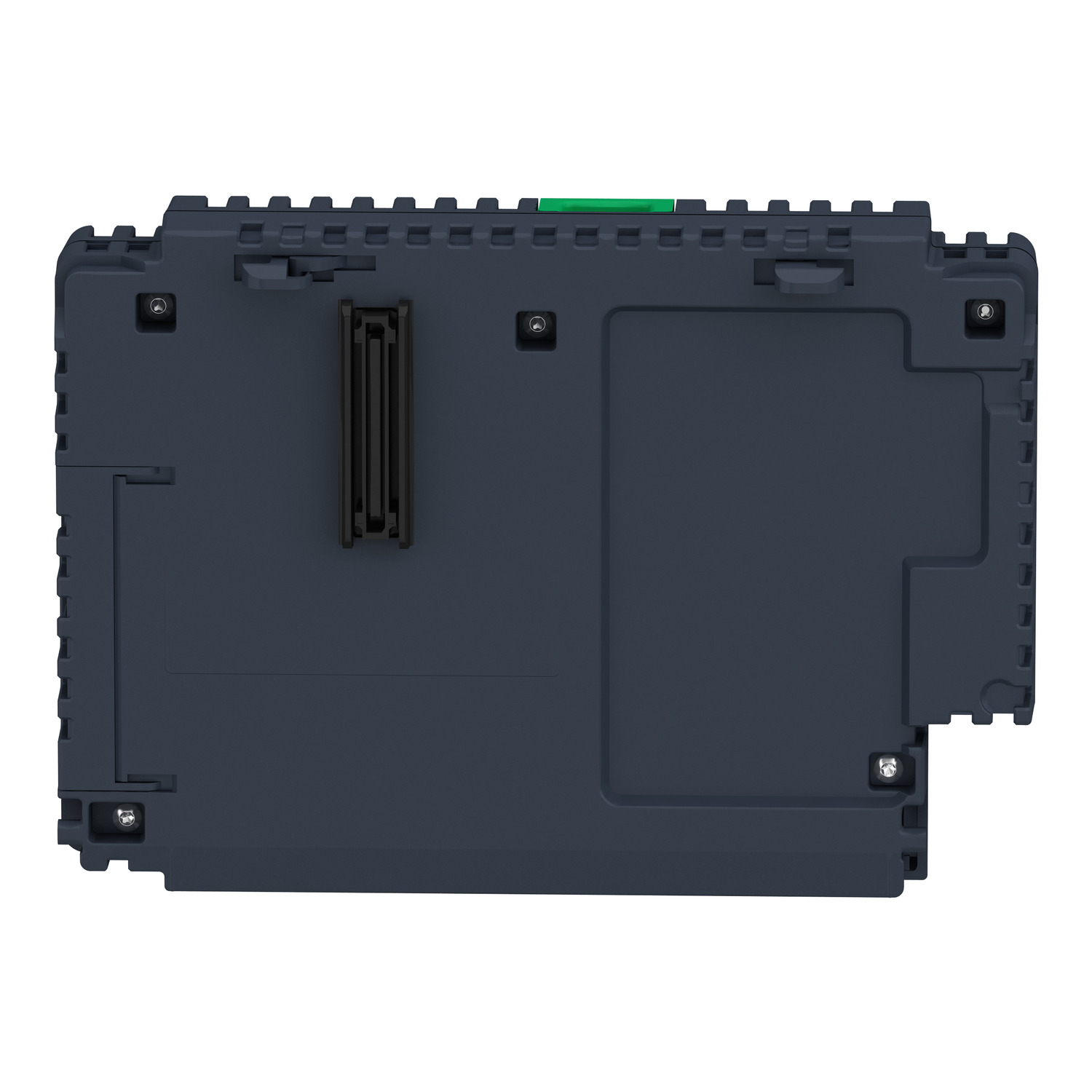

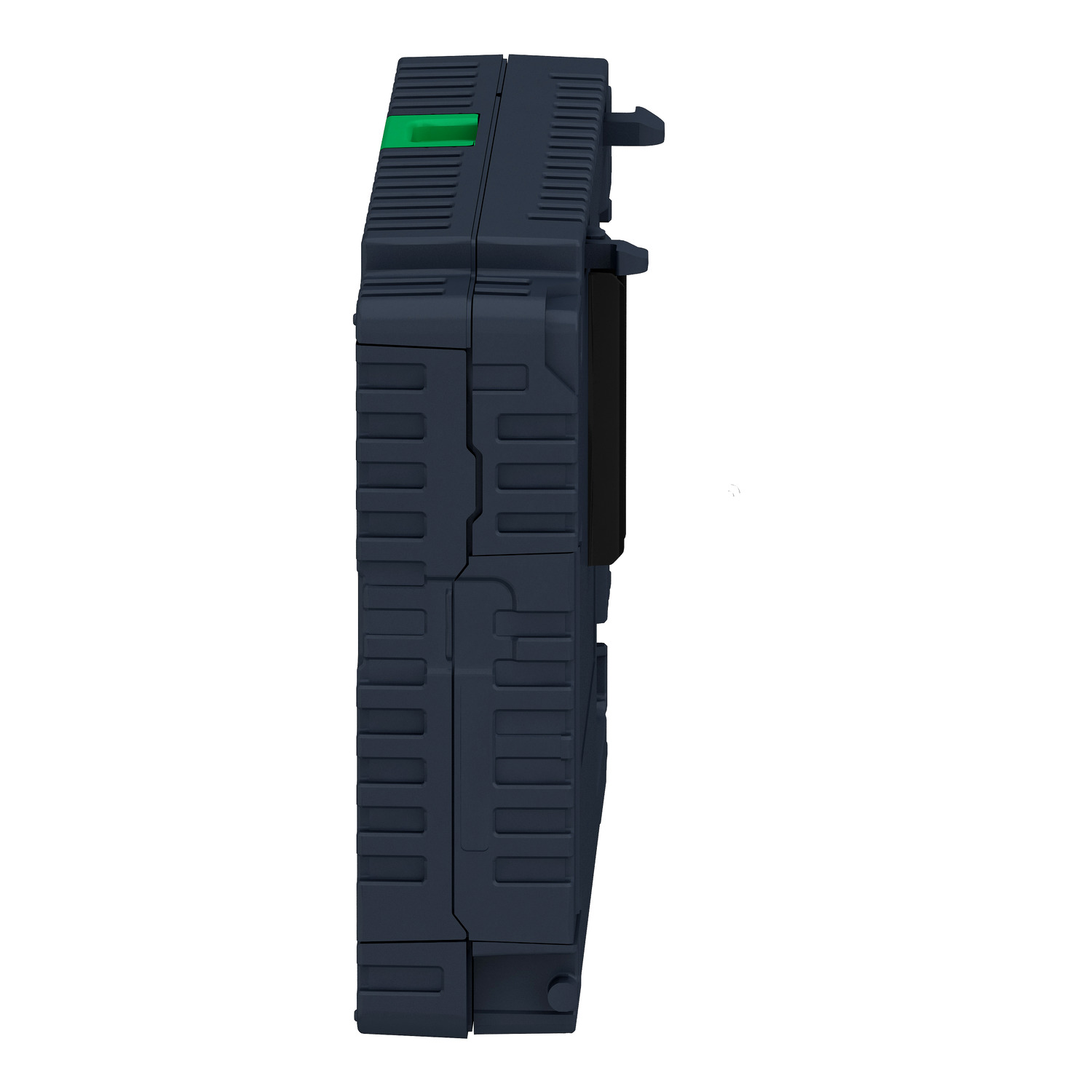

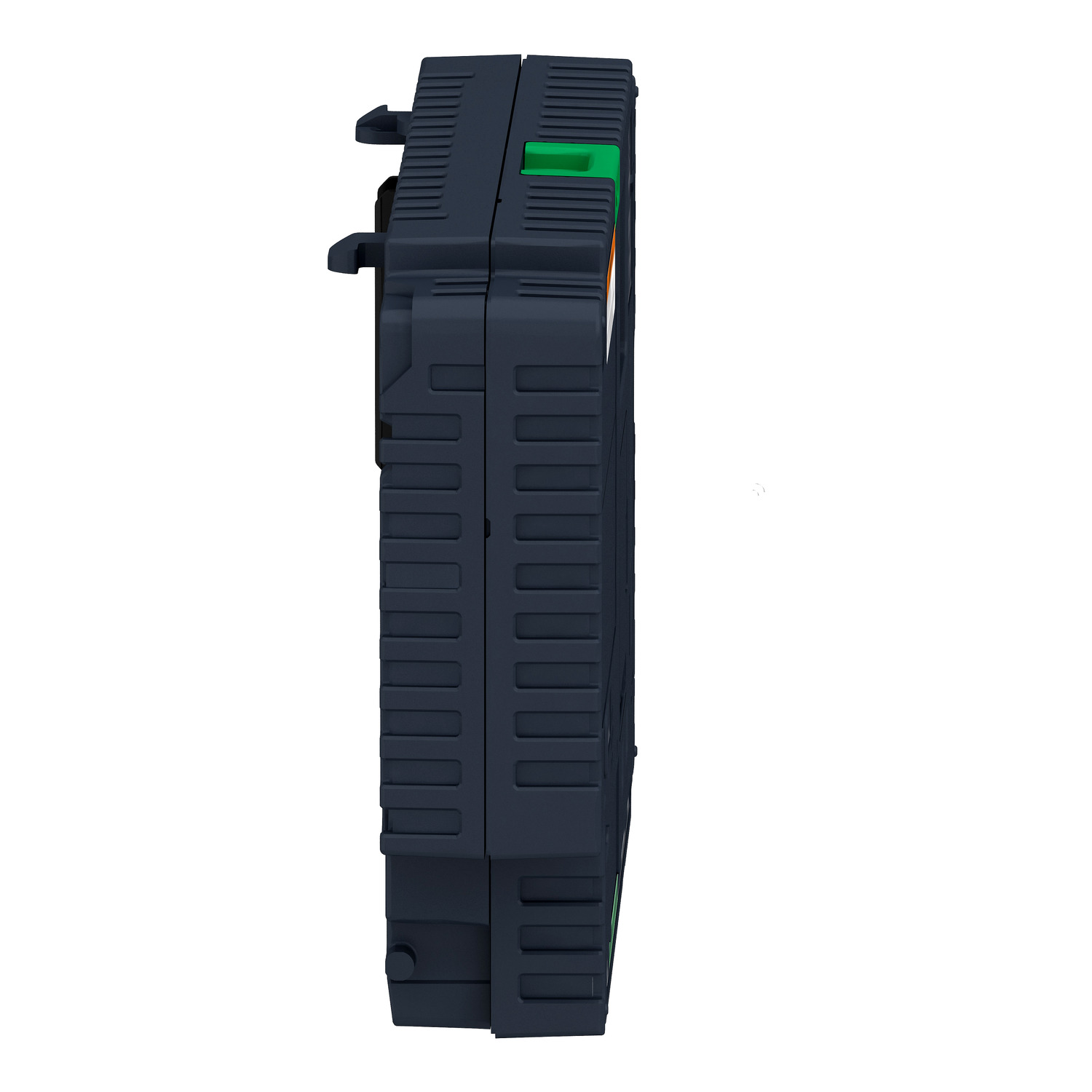

base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, with HMI software installed

Range of Product

Harmony GTU

Product or Component Type

Base unit

Device short name

Open Box

Range Compatibility

Harmony GTU

[Us] rated supply voltage

12...24 V DC power supply

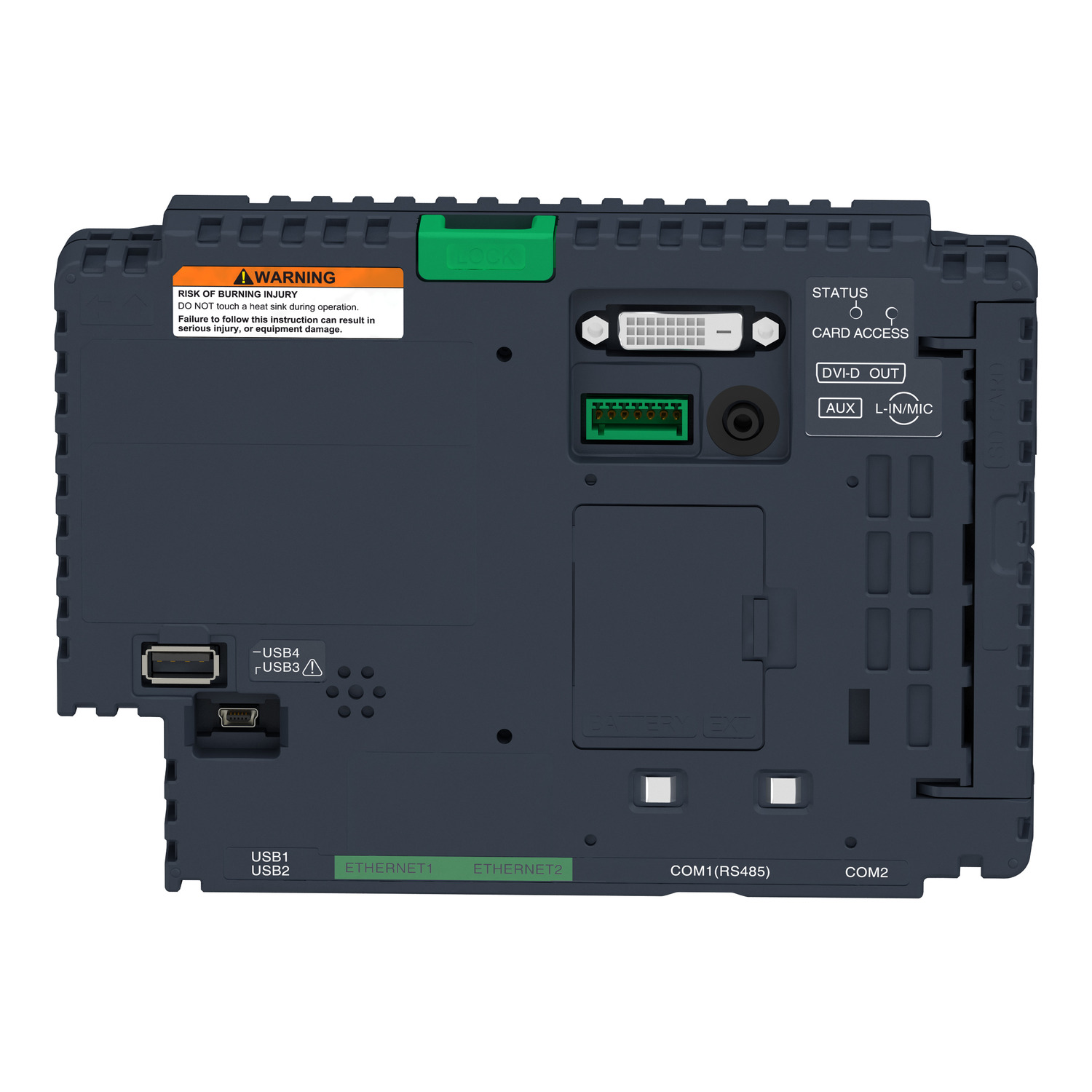

Integrated connection type

Ethernet TCP/IP 2 RJ45
COM1 serial link RJ45 RS485 2400...115200 bps
COM2 serial link SUB-D 9 RS232C/RS422/RS485 2400...115200 bps
Auxiliary port terminal block
USB 2.0 port mini B USB
DVI-D video port DVI-D
Microphone mini-jack
USB 2.0 port 3 USB type A

Communication port protocol

Modbus
Modbus TCP/IP
Uni-Telway

Operating system

Windows 10 IoT Enterprise 32bit

Software package

Vijeo Designer run time
EcoStruxure Operator Terminal Expert run time
Internet Explorer
.NET framework 4.0
Multimedia player

Processor name

Intel X86 1.33 GHz

Data storage equipment

32 GB CFast card

Port Ethernet

10BASE-T/100BASE-TX/1000BASE-T

Memory description

512 KB NVRAM backup memory
4 GB RAM internal

Number of slots

1 slot(s) for SD card
2 slot(s) for Cfast card

Realtime clock

Built-in

Local signalling

, multi-colour LEDstatus

Type of cooling

Natural convection

Width

7.4 in (188 mm)

Height

5.2 in (131 mm)

Depth

1.8 in (45 mm)

Net Weight

2.0 lb(US) (0.9 kg)

Standards

CSA C22.2 No 142
ANSI/ISA 12-12-01
UL 508
Class I division 2 CSA C22.2 No 213
IEC 61132-2

Product certifications

CE
CULus
ATEX
IEC-Ex
RCM
DNV-GL
KC
CUL
EAC
UKCA
UKEX

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient air temperature for storage

-4…140 °F (-20…60 °C)

Pollution degree

2 EN 61131-2 Ed.3

Relative Humidity

10…90 % non-condensing

Operating altitude

2000

Vibration resistance

3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2
9.8 m/s² 9…150 Hz) EN/IEC 61131-2

Shock resistance

147 m/s²EN/IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Category

US10MC222567

Discount Schedule

0MC2

GTIN

3606481058751

Returnability

Yes

Country of origin

ID

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.709 in (14.500 cm)

Package 1 Width

8.346 in (21.200 cm)

Package 1 Length

10.236 in (26.000 cm)

Package 1 Weight

2.454 lb(US) (1.113 kg)

Unit Type of Package 2

S04

Number of Units in Package 2

4

Package 2 Height

11.811 in (30.000 cm)

Package 2 Width

15.748 in (40.000 cm)

Package 2 Length

23.622 in (60.000 cm)

Package 2 Weight

12.286 lb(US) (5.573 kg)
