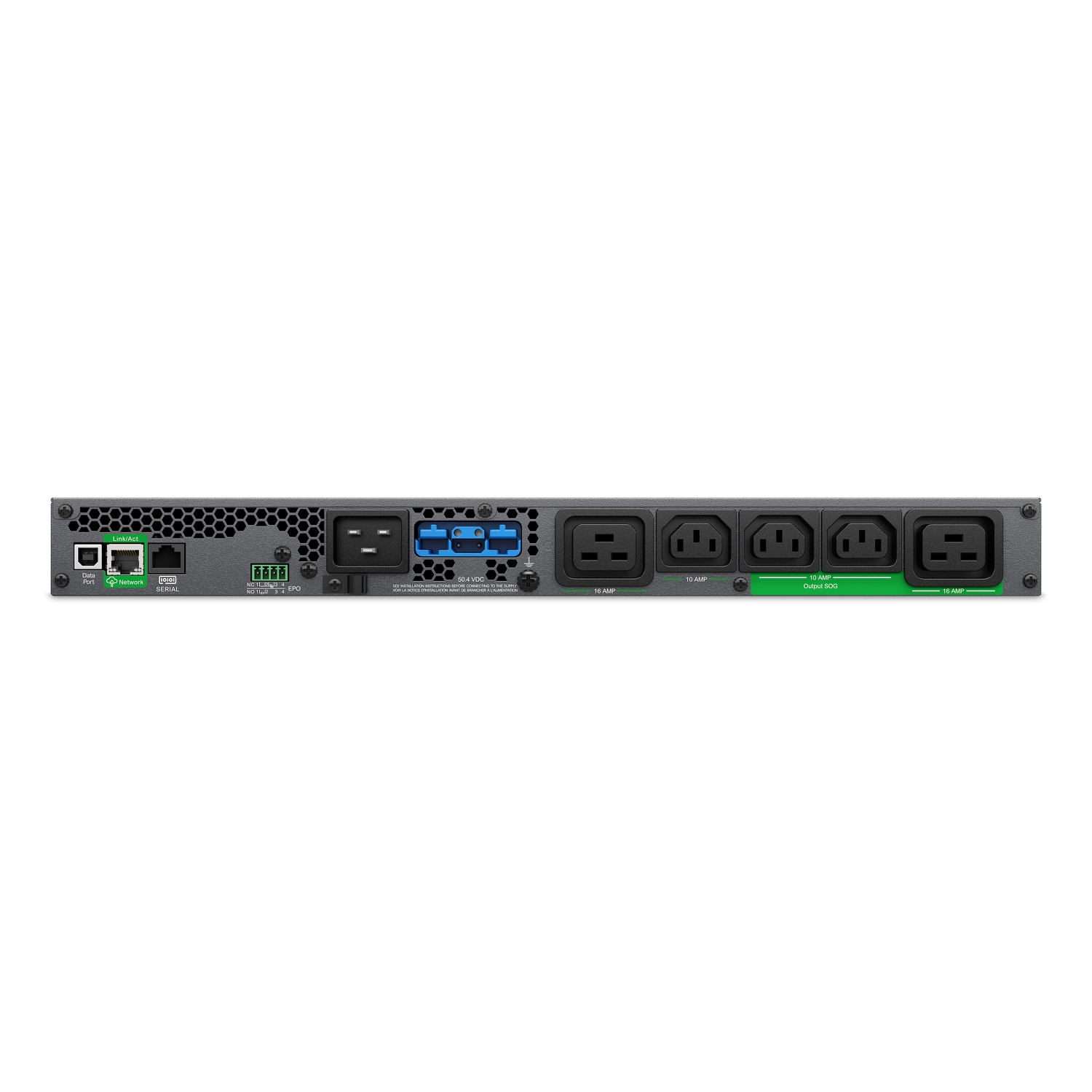

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, SmartConnect, Extended runtime, W/rail kit

Presentation

Ultra high density on-line power protection with scalable runtime supported by Lithium-Ion batteries.

Lead time

Usually in Stock

Main Input Voltage

230 V

Product or Component Type

Uninterruptible power supply (UPS)

Other Input Voltage

230 V

Main Output Voltage

230 V

Other Output Voltage

230 V

Kw Rating

3000 W

Rated power in VA

3000 VA

Input Connection Type

BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P

output connection type

3 IEC 60320 C13
2 IEC 60320 C19

Number of rack unit

1U

Cable length

8 ft (2.4 m)

Number of cables

1

Battery Type

Li-Ion (Lithium Ion)

Provided equipment

RJ45 Cable
USB cable
Safety guide
Rack Mounting brackets
Rack Mounting support rails
Wall Mounting Brackets
Stabilization feet
Screws

Range of Product

Smart-UPS

Software package

SmartConnect software for remote power monitoring feature availability varies by terms of use

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Typical recharge time

1.5 h

RBC Quantity

1

Battery Voltage

50 V

Battery Charge Power (Watts)

448 W

Battery design life

8…10 year(s)

Battery Life

8…10 year(s)

Replacement battery

APCRBC173-LI

Extendable Run Time

1

product web sub-family

High density

Redundant

No

color

Silver grey

Height

1.7 in (43 mm)

Width

17.008 in (432 mm)

Depth

22.05 in (560 mm)

Net Weight

35.05 lb(US) (15.9 kg)

Mounting preference

No preference

Mounting Mode

Rack-mounted with kit
Tower-mounted with kit

Two post mountable

1

USB compatible

Yes

Mounting position

Horizontal
Vertical

Input Frequency

50/60 Hz auto-sensing

Efficiency at full load

160...275 V adjustable (half load)

Max Configurable Power (Watts)

3000 W

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz sync to mains

Crest factor

3 : 1

Topology

On-Line

Wave type

Sine wave

Output Voltage THD

< 2% at 100% linear load and < 5% at 100% non-linear load

Bypass type

Internal Bypass (Automatic and Manual)

Efficiency at full load

98 %

Maximum configurable power in VA

3000 VA

Product Certifications

CE
UKCA
UK PSTI

marking

CE Mark
UKCA

Standards

EN/IEC 62040-1
EN/IEC 61000-4-8
EN/IEC 61000-4-6 level 3
EN/IEC 61000-4-2 level 3
EN/IEC 61000-4-3 level 3

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Relative Humidity

0…95 % non-condensing

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

5…113 °F (-15…45 °C)

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…50000 ft (0…15240 m)

Acoustic level

55 dB

heat dissipation

325 Btu/h

IP degree of protection

IP20

control panel

Touch Screen LCD User Interface

Alarm

Audible and visible alarms : prioritized by severity

Emergency Power Off (EPO)

Yes

Communication port support

SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
RJ45: port monitoring
USB: port monitoring

Surge energy rating

1600 J

GTIN

731304573555

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.9 in (27.8 cm)

Package 1 Width

22.2 in (56.4 cm)

Package 1 Length

30.08 in (76.4 cm)

Package 1 Weight

53.4 lb(US) (24.2 kg)

Warranty

5 years repair or replace
