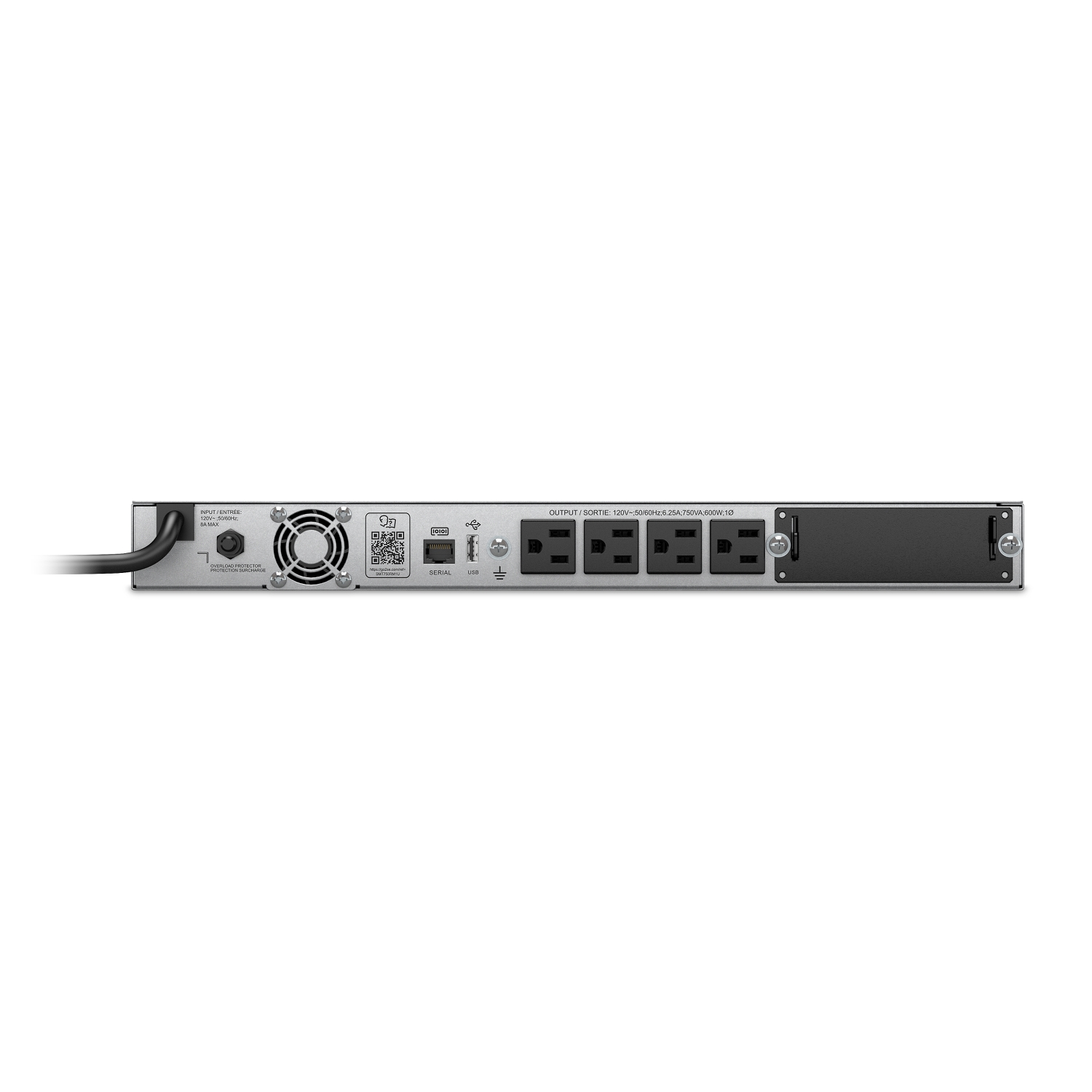

APC Smart-UPS, Line Interactive, 750 VA, LCD, Rackmount 1U, 120V, 4x NEMA 5-15R outlet, USB, AVR, Short Depth

Lead time

Usually in Stock

Main Input Voltage

120 V

Main Output Voltage

120 V

Kw Rating

600 W

Rated power in VA

750 VA

Product or Component Type

Uninterruptible power supply (UPS)

Input Connection Type

NEMA 5-15P

output connection type

4 NEMA 5-15R

Number of rack unit

1U

Cable length

8 ft (2.4 m)

Battery Type

Lead-Acid battery

Provided equipment

User Manual

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Extendable Run Time

0

Included Battery Modules

0

Battery Slots Empty

0

Typical recharge time

5 h

RBC Quantity

1

Battery Life

3…5 year(s)

Battery Charge Power (Watts)

28.8 W rated

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

color

Black

Height

1.7 in (4.4 cm)

Width

17.008 in (43.2 cm)

Depth

19.8 in (50.2 cm)

Net Weight

34.8 lb(US) (15.8 kg)

mounting location

Front

Mounting preference

Lower

Mounting Mode

Rack-mounted

Two post mountable

0

USB compatible

No

Maximum Input Current per Phase

6.25 A

Input Frequency

50/60 Hz +/- 3 Hz auto-sensing

Harmonic distortion

Less than 5%

Maximum configurable power in VA

750 VA

Max Configurable Power (Watts)

600 W

Transfer Time

4ms typical : 8ms maximum

Topology

Line Interactive

Wave type

Sine wave

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz sync to mains

Product Certifications

CSA

Equipment protection policy

Lifetime : $150000

Acoustic level

46 dBA

heat dissipation

88 Btu/h

Operating altitude

0...10000 ft

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Ambient Air Temperature for Storage

5…113 °F (-15…45 °C)

Storage altitude

0…50000 ft (0…15240 m)

Relative Humidity

0…95 %

Storage Relative Humidity

0…95 %

control panel

Multi-function LCD status and control console

Free slots

1

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge energy rating

540 J

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

GTIN

731304452461

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.7 in (4.4 cm)

Package 1 Width

17.3 in (44 cm)

Package 1 Length

19.8 in (50.2 cm)

Package 1 Weight

34.8 lb(US) (15.8 kg)

Warranty

3 years repair or replace (excluding battery) and 2 years for battery
