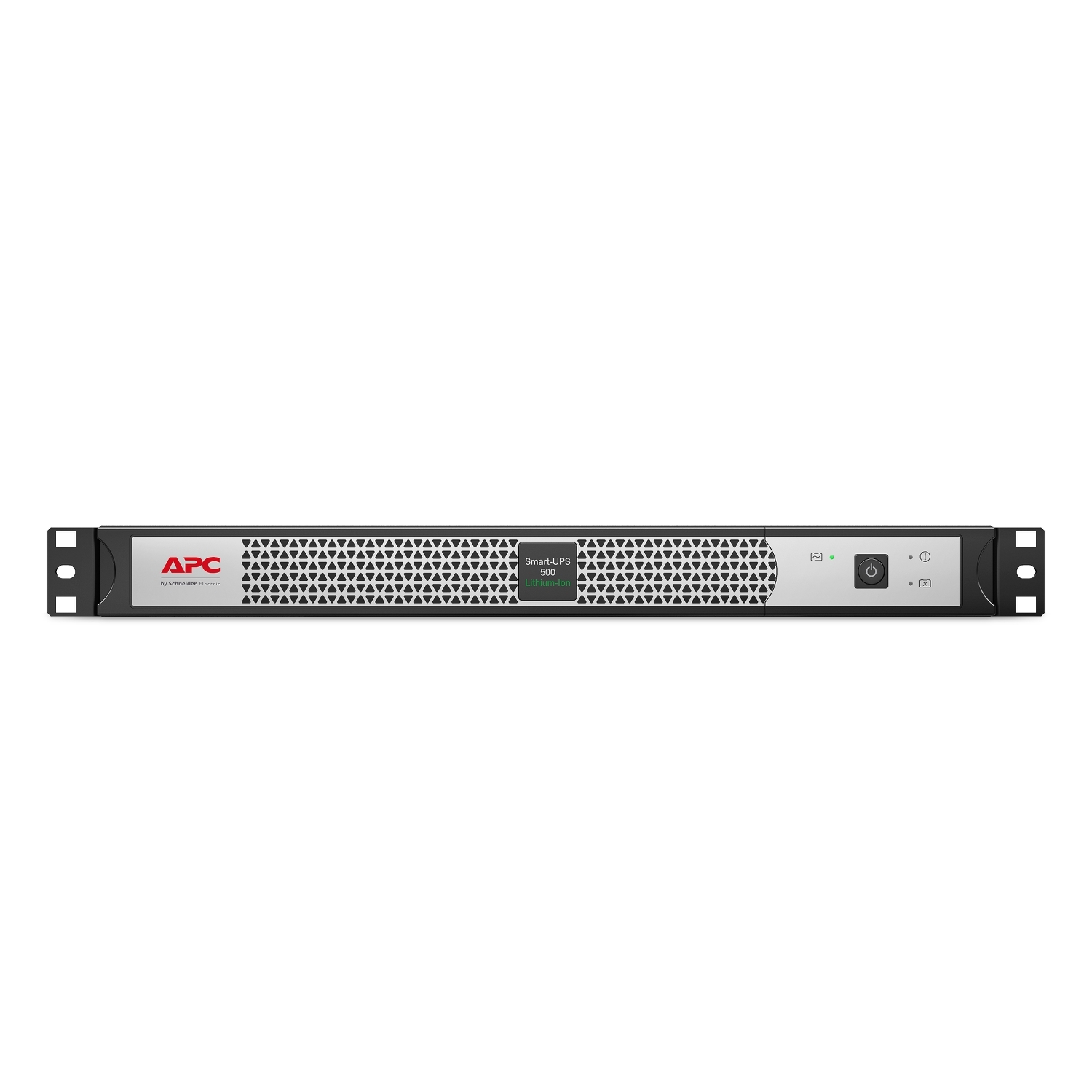

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, Short Depth

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Lead time

Usually in Stock

Main Input Voltage

230 V

Main Output Voltage

230 V

Kw Rating

400 W

Rated power in VA

500 VA

Product or Component Type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 60320 C14

output connection type

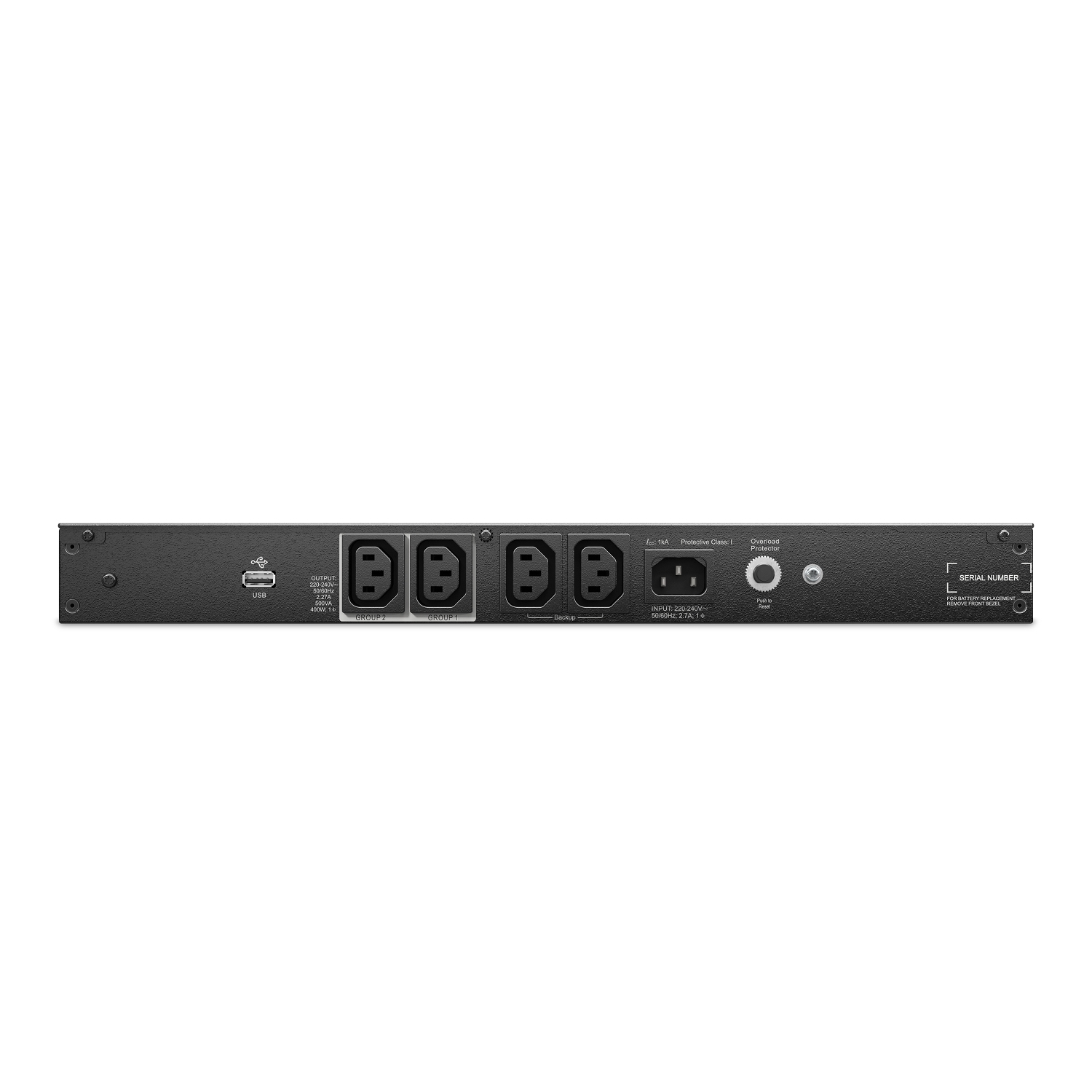

4 IEC 60320 C13

Number of rack unit

1U

Battery Type

Li-Ion (Lithium Ion)

Provided equipment

Installation guide
Rack Mounting support rails
USB cable

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery graph comments

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.

Extendable Run Time

0

Battery design life

8…10 year(s)

Battery Charge Power (Watts)

10 W rated

Redundant

No

color

Black with silver front bezel

Height

1.7 in (4.4 cm)

Width

17.008 in (43.2 cm)

Depth

9.1 in (23.2 cm)

Net Weight

8.95 lb(US) (4.06 kg)

Mounting preference

No preference

Mounting Mode

Rack-mounted

USB compatible

Yes

Input protection type

Circuit breaker

Efficiency at full load

208...253 V

Input Frequency

50/60 Hz +/- 3 Hz auto sensing

Harmonic distortion

Less than 5%

Maximum configurable power in VA

500 VA

Max Configurable Power (Watts)

400 W

Transfer Time

6ms typical : 10ms maximum

Topology

Line Interactive

Wave type

Sine wave

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz sync to mains

Product Certifications

CE
EAC
RCM

Equipment protection policy

Lifetime : $150000

Standards

EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Acoustic level

45 dBA

heat dissipation

41.61 Btu/h

Operating altitude

0...10000 ft

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Ambient Air Temperature for Storage

5…113 °F (-15…45 °C)

Storage altitude

0…25000 ft (0.0000000000…7620.0000000000 m)

IP degree of protection

IP20

Relative Humidity

0…95 % non-condensing

Storage Relative Humidity

0…95 % non-condensing

control panel

LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault

Free slots

0

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge energy rating

510 J

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m

GTIN

731304402572

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.6 in (16.8 cm)

Package 1 Width

13.3 in (33.7 cm)

Package 1 Length

23.2 in (59 cm)

Package 1 Weight

13.2 lb(US) (6 kg)

Warranty

5 year repair or replace
