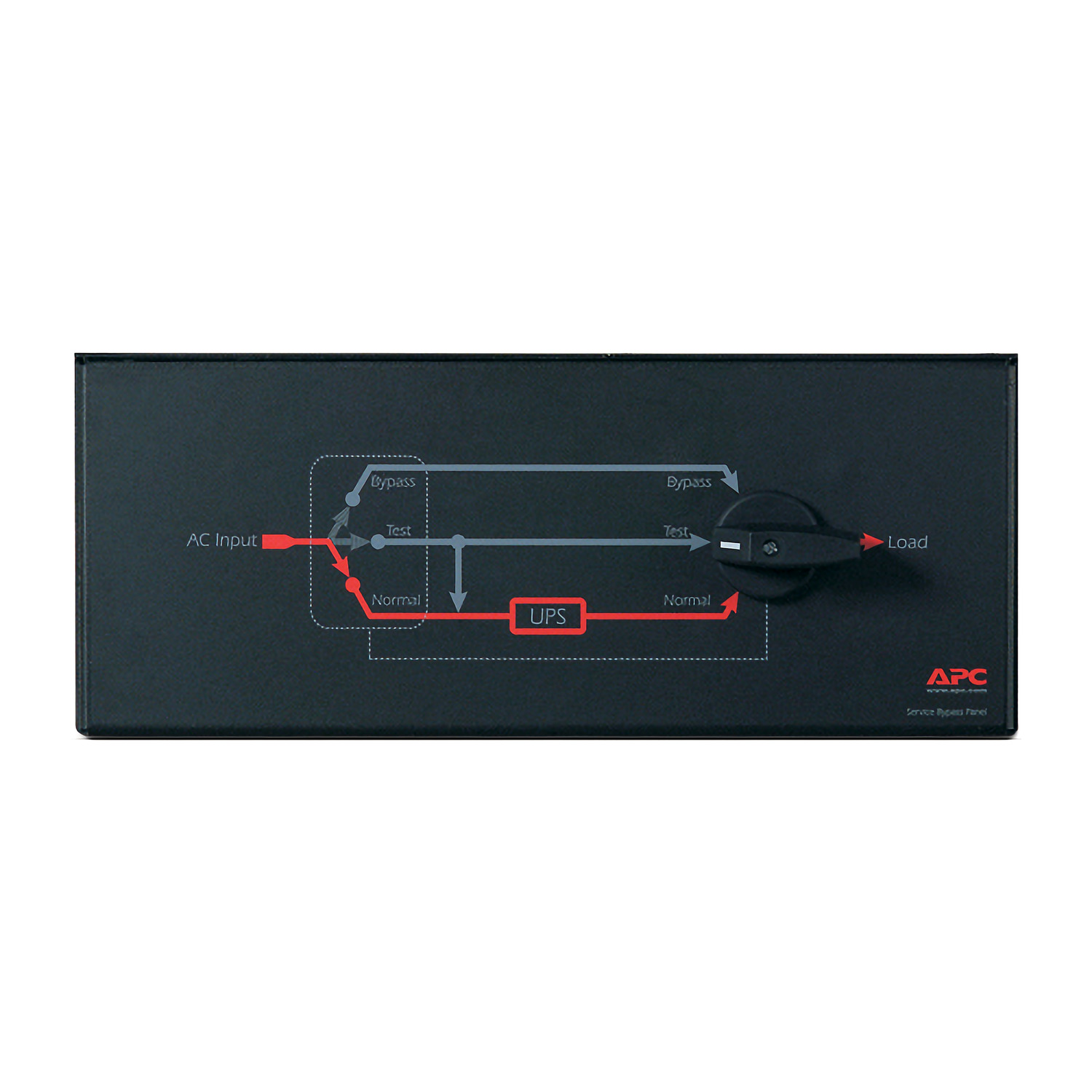

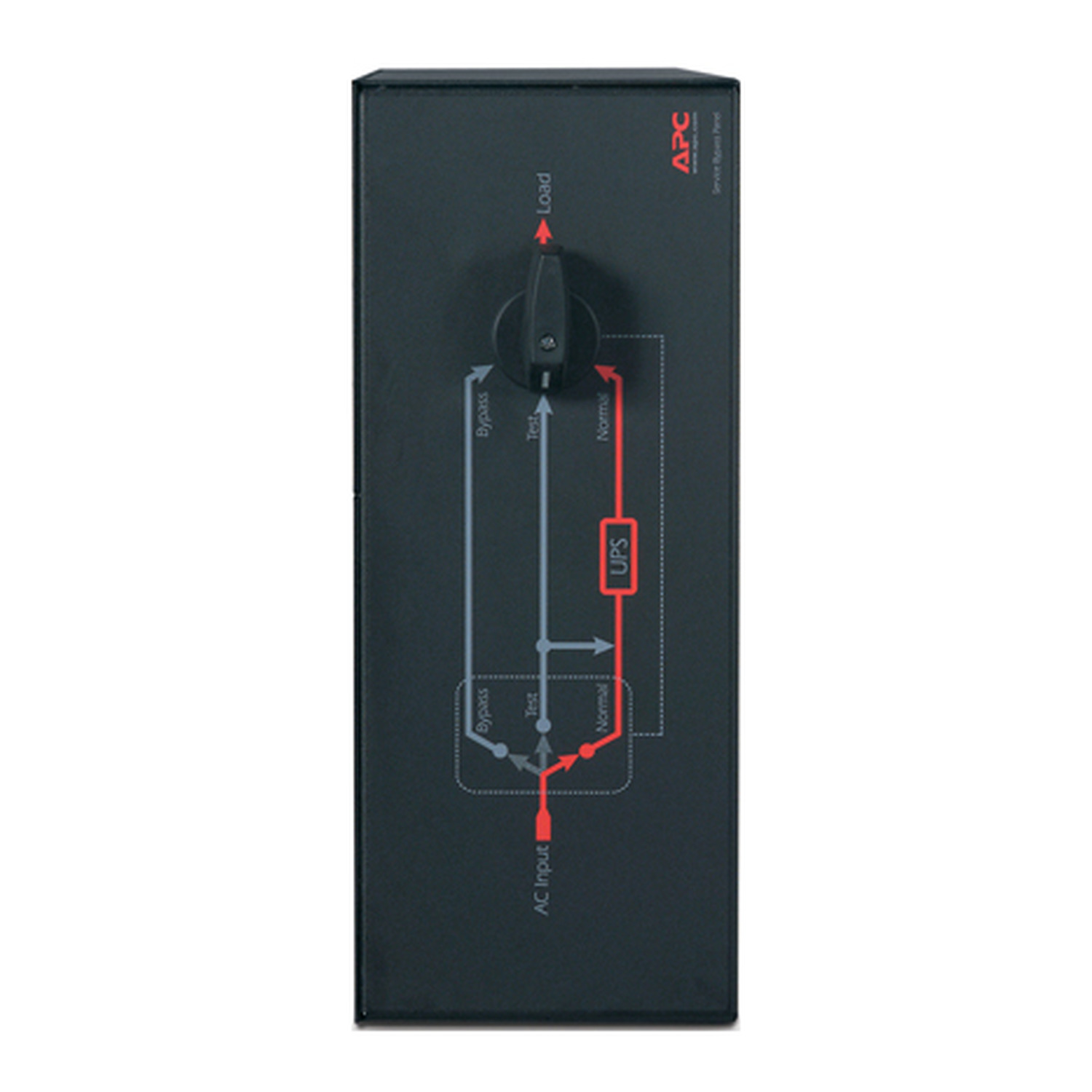

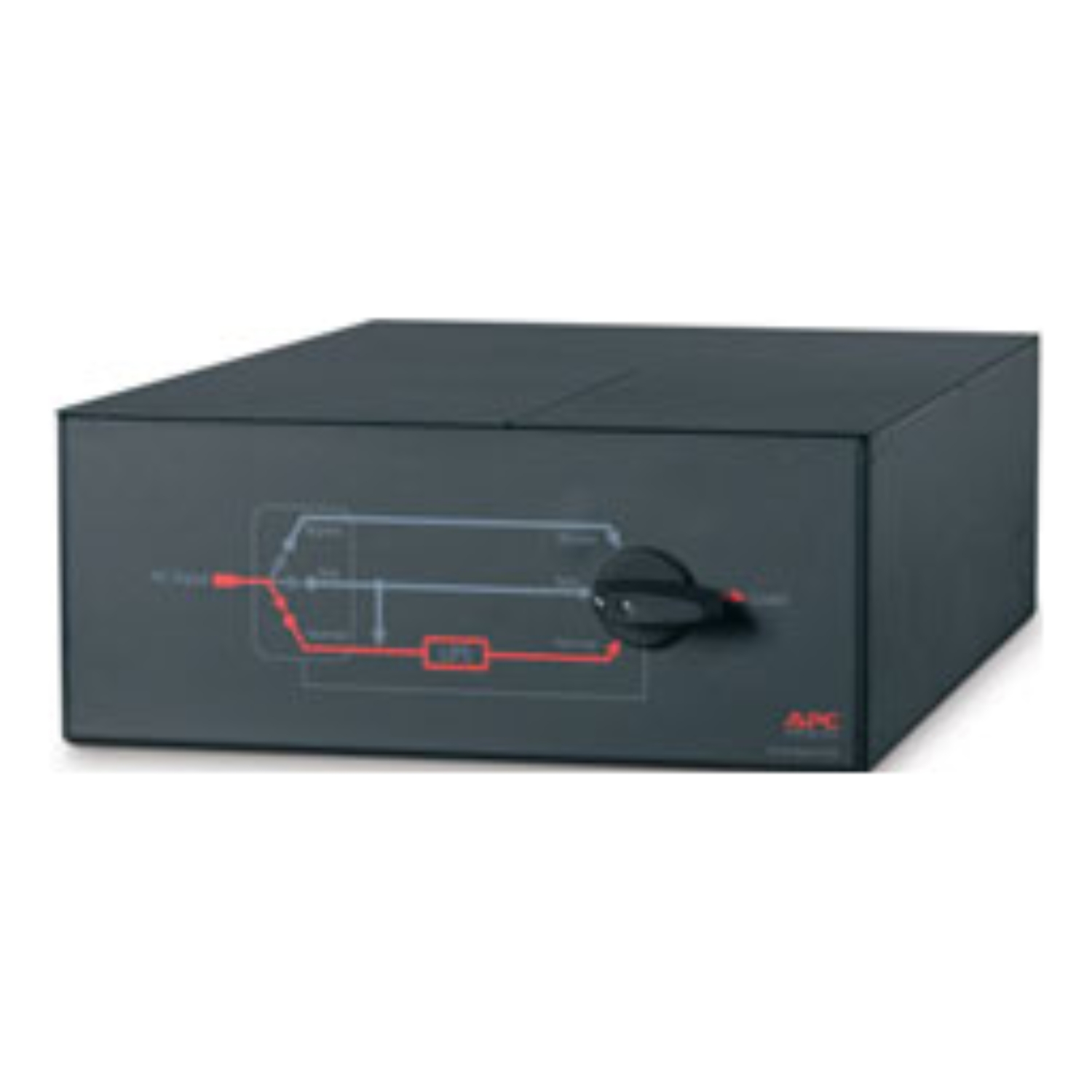

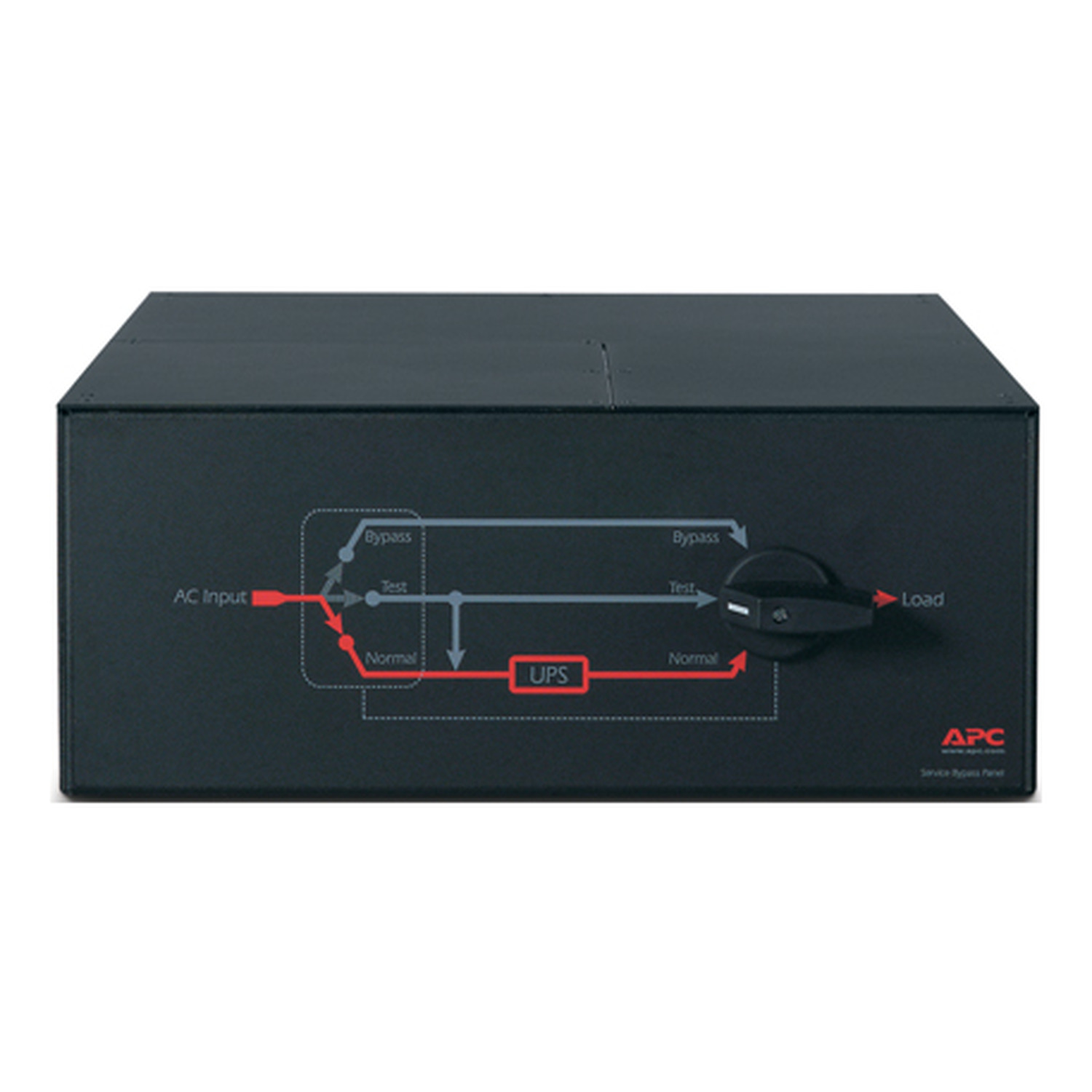

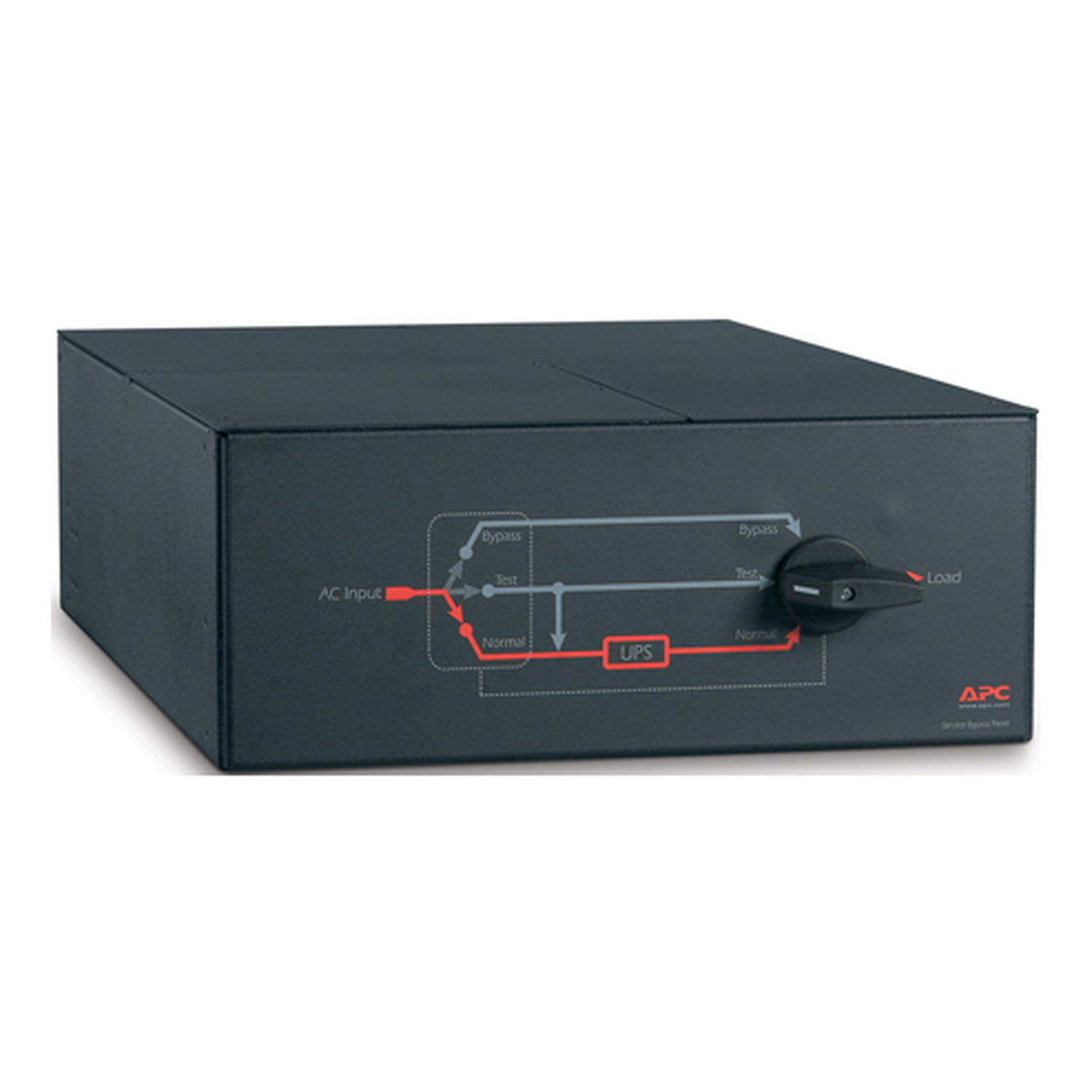

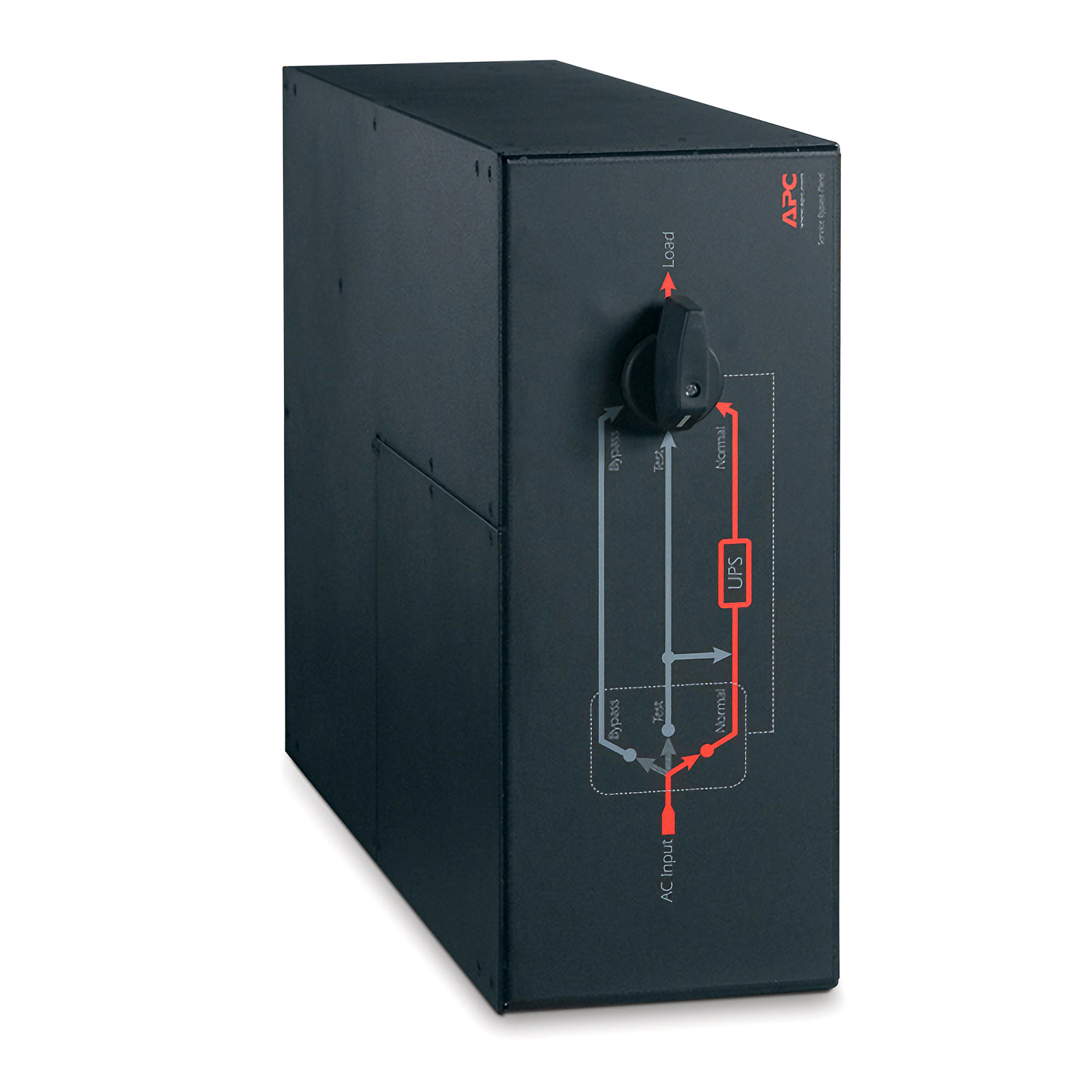

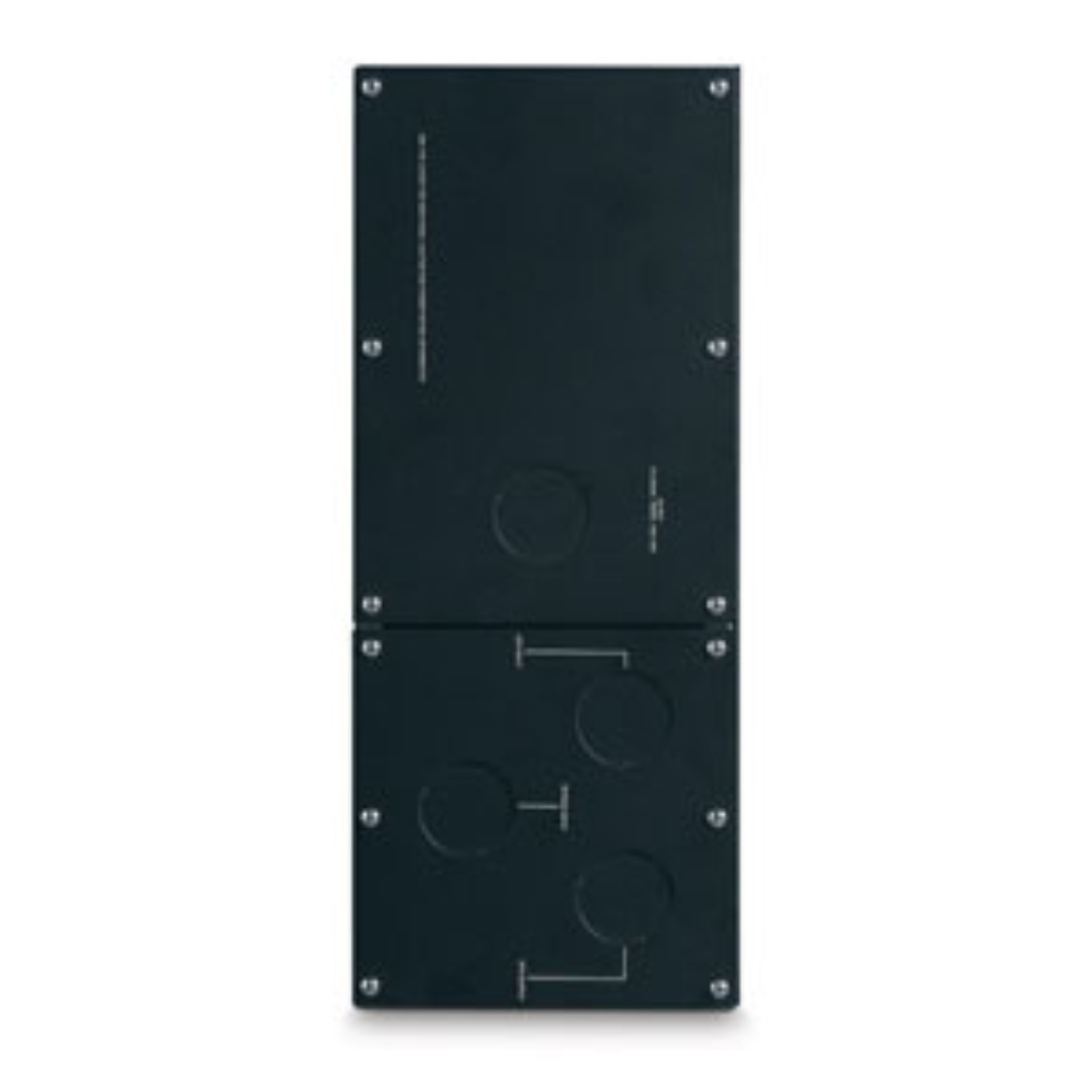

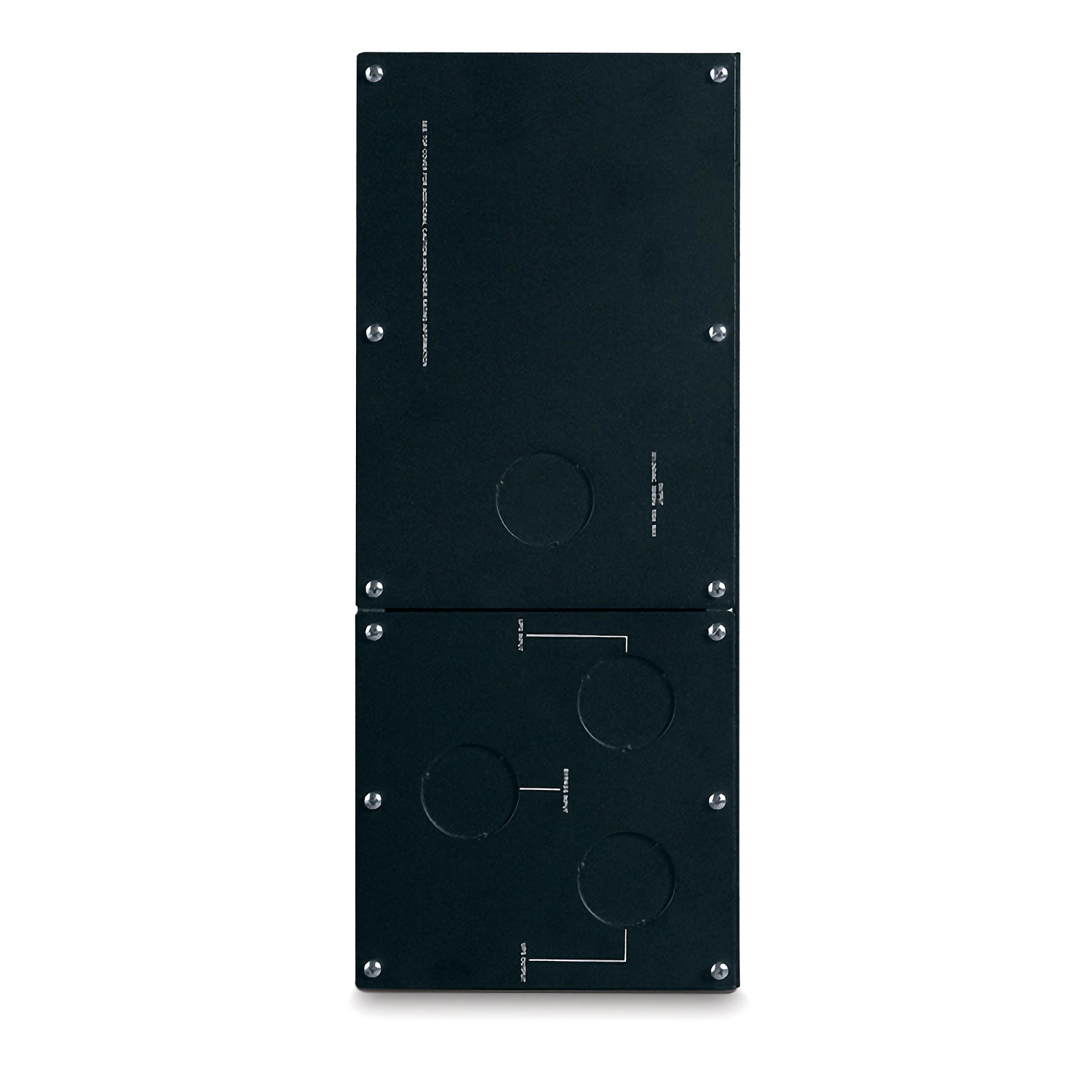

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output

Lead time

Usually in Stock

Main Input Voltage

200 V
208 V
230 V
480 V 3 phase

Product or Component Type

Bypass kit

Main Output Voltage

120 V
200 V
208 V
230 V

Other Output Voltage

220 V
240 V

Output connector type

Hard Wire 3-wire (H N + E) 1
Hard Wire 3-wire (2PH + G) 1
Hard Wire 4-wire (2PH+N+G) 1

Number of rack unit

4U

Number of cables

1

Provided Equipment

Installation guide
Rack Mounting brackets
User Manual

Color

Black

Height

7.008 in (17.8 cm)

Width

17.008 in (43.2 cm)

Depth

26.0 in (66 cm)

Net Weight

47.09 lb(US) (21.36 kg)

mounting location

Front

Mounting preference

Lower

Mounting Mode

Rack-mounted

Input Frequency

50/60 Hz

Number of input connectors

1 Hard Wire 3-wire (H N + E)
1 Hard Wire 3-wire (2PH + G)
1 Hard Wire 4-wire (2PH+N+G)
1 Hard Wire 5-wire (3PH + N + G)

Acceptable Input Voltage

200…240 V

Max line current

100 A

Input current limits

100 A

Load Capacity

20000 VA

Power factor

0…1

Maximum Total Current Draw per Phase

100 A

Protection Type

Circuit breaker

Efficiency

99 %

Product Certifications

CSA
GOST

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient Air Temperature for Operation

-4…122 °F (-20…50 °C)

Relative Humidity

0…95 %

Operating altitude

0...15000 ft

Ambient Air Temperature for Storage

-40…149 °F (-40…65 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304212645

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.008 in (30.5 cm)

Package 1 Width

24.02 in (61 cm)

Package 1 Length

39.02 in (99.1 cm)

Package 1 Weight

68.992 lb(US) (31.294 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

8

Package 2 Height

51.7 in (131.4 cm)

Package 2 Width

39.4 in (100 cm)

Package 2 Length

47.2 in (120 cm)

Package 2 Weight

575.0 lb(US) (260.8 kg)

Warranty

2 years (parts only)
