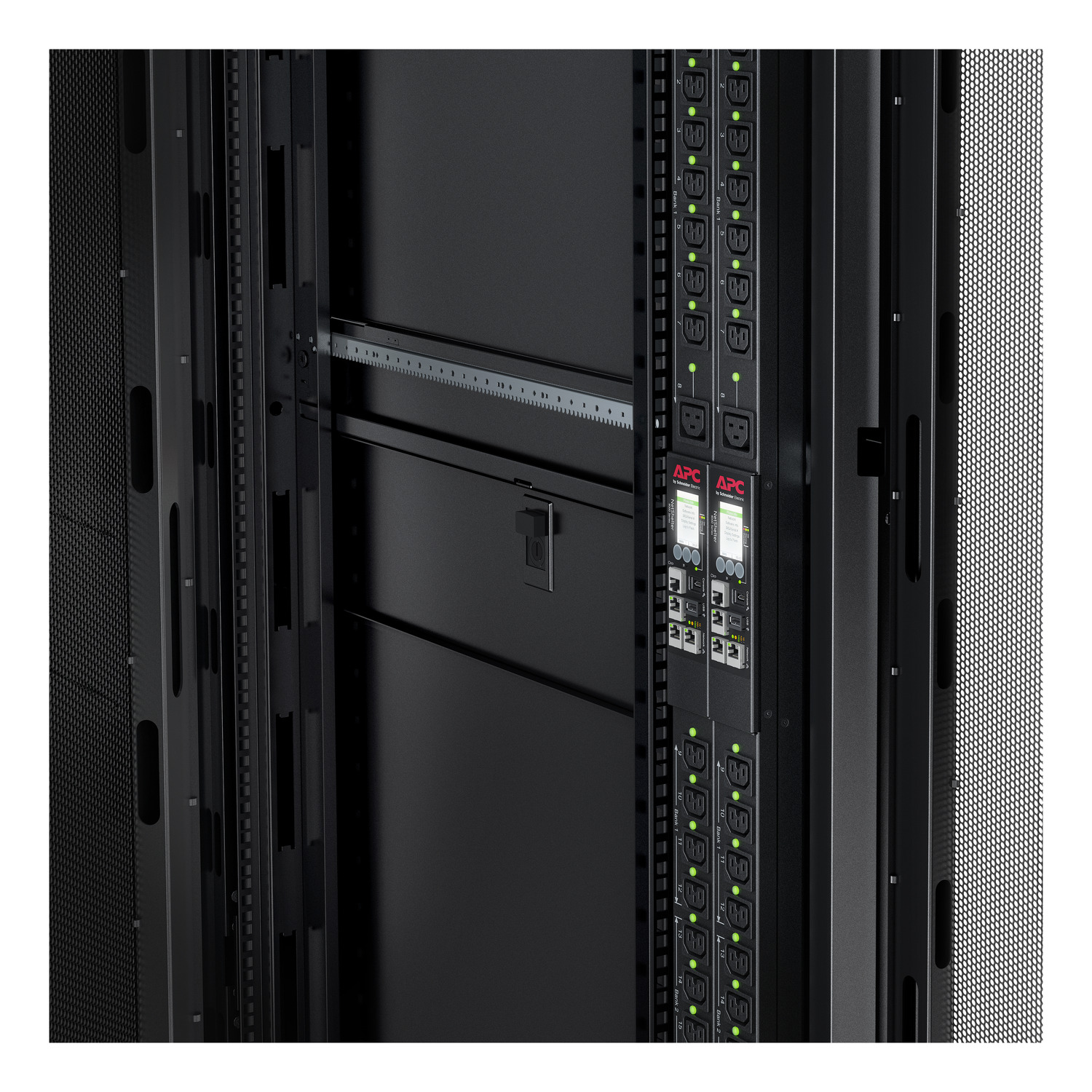

APC Rack PDU, 9000 switched, 0U, 8.6kW, 208V, 21 C13 and C15, 3 C19 and C21 sockets

Lead time

Usually in Stock

Color

Black

Product or Component Type

PDU

PDU Type

Switched

Cord length

6 ft (1.8 m)

Number of cables

1

Provided Equipment

Installation guide
Rack Mounting brackets
Safety guide

Input Voltage

208 V 3 phase

Height

72.008 in (182.9 cm)

Width

2.2 in (5.6 cm)

Output Voltage

208 V

Depth

2.008 in (5.1 cm)

Net Weight

18.03 lb(US) (8.18 kg)

mounting location

Side

Mounting preference

No preference

Input Plug Type

NEMA L21-30P

Mounting Mode

Not rack-mountable

Rack units

0U

USB compatible

No

Mounting position

Vertical

Communication Port Protocol

SNMP
Redfish

Line Rated Current

24 A

Max line current

30 A

Input current limits

30 A

Load Capacity

8600 VA

Input Frequency

50/60 Hz

Outlet type and quantity

21C13/C15
3C19/C21

Communication Network Type

10/100/1000BASE-T

Product Certifications

cULus
FCC part 15 class A

Standards

ICES-003

Ambient Air Temperature for Operation

23…140 °F (-5…60 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304356325

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

80.3 in (204 cm)

Package 1 Width

4.9 in (12.4 cm)

Package 1 Length

6.5 in (16.5 cm)

Package 1 Weight

22.75 lb(US) (10.32 kg)

Warranty

3 years repair or replace
