APC Rack PDU, 2G, metered, 0U, 10.0kW, 208V, 36 C13 and 6 C19 sockets

Presentation

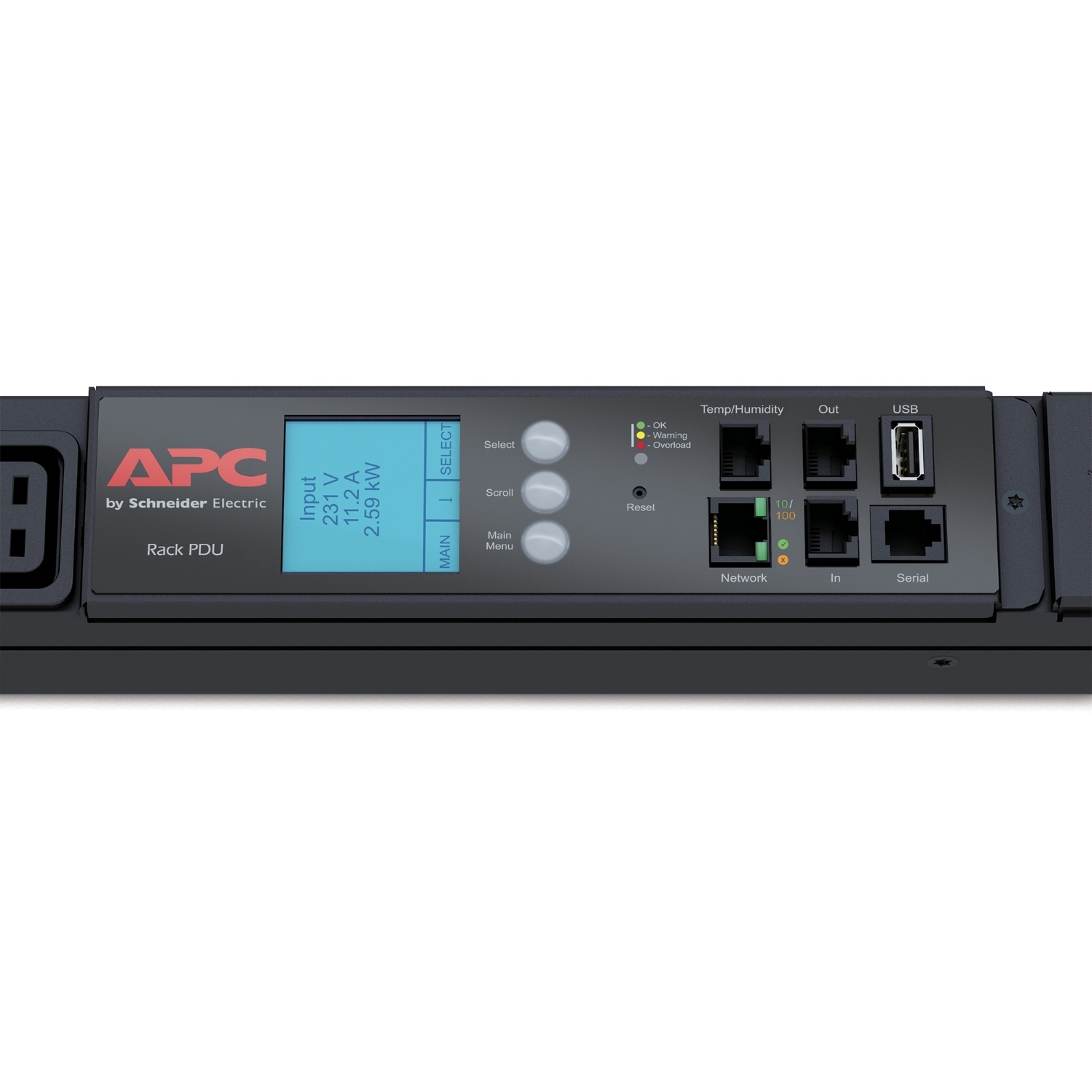

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13, (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.

Lead time

Usually in Stock

Color

Black

Product or Component Type

PDU

PDU Type

Metered

Cord length

6 ft (1.8 m)

Number of cables

1

Provided Equipment

Installation guide
Rack Mounting brackets
Serial configuration cable
Safety guide

Input Voltage

208 V 3 phase

Height

72.008 in (182.9 cm)

Width

2.2 in (5.6 cm)

Output Voltage

208 V

Depth

2.008 in (5.1 cm)

Net Weight

18.78 lb(US) (8.52 kg)

mounting location

Side

Mounting preference

No preference

Mounting Mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

Max line current

35 A

Input current limits

35 A

Load Capacity

10000 VA

Input Frequency

50/60 Hz

Number of input connectors

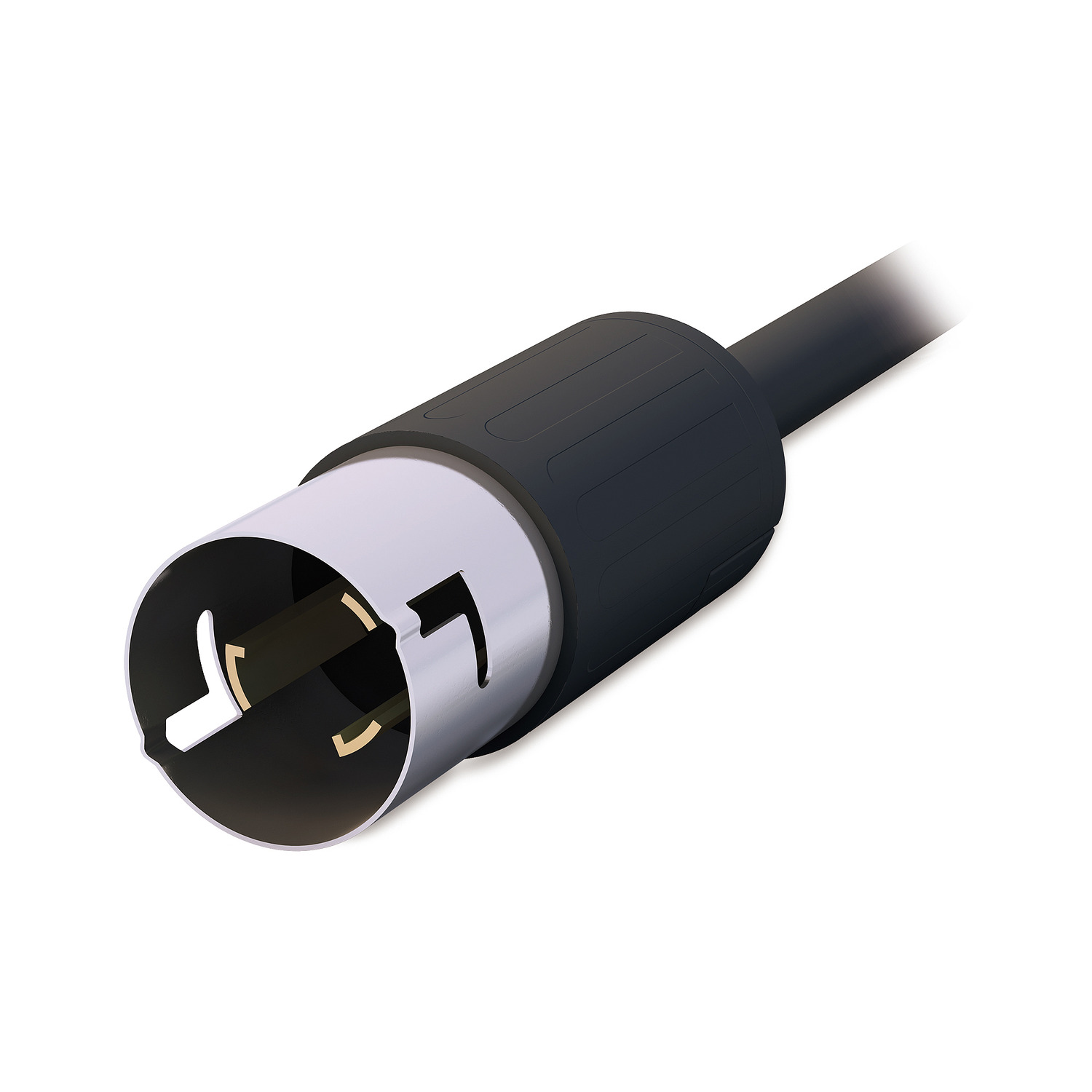

1 CS8365

Outlet type and quantity

36 IEC 60320 C13
6 IEC 60320 C19

Product Certifications

cUL Listed
UL Listed
VCCI Class A

Standards

EN 55022 Class A
EN 55024
EN 61000-3-2
EN 61000-3-3
FCC Part 15 class A
ICES-003

Ambient Air Temperature for Operation

23…140 °F (-5…60 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304289920

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

80.7 in (205 cm)

Package 1 Width

4.4 in (11.2 cm)

Package 1 Length

6.7 in (17 cm)

Package 1 Weight

25.04 lb(US) (11.36 kg)

Warranty

2 years repair or replace
