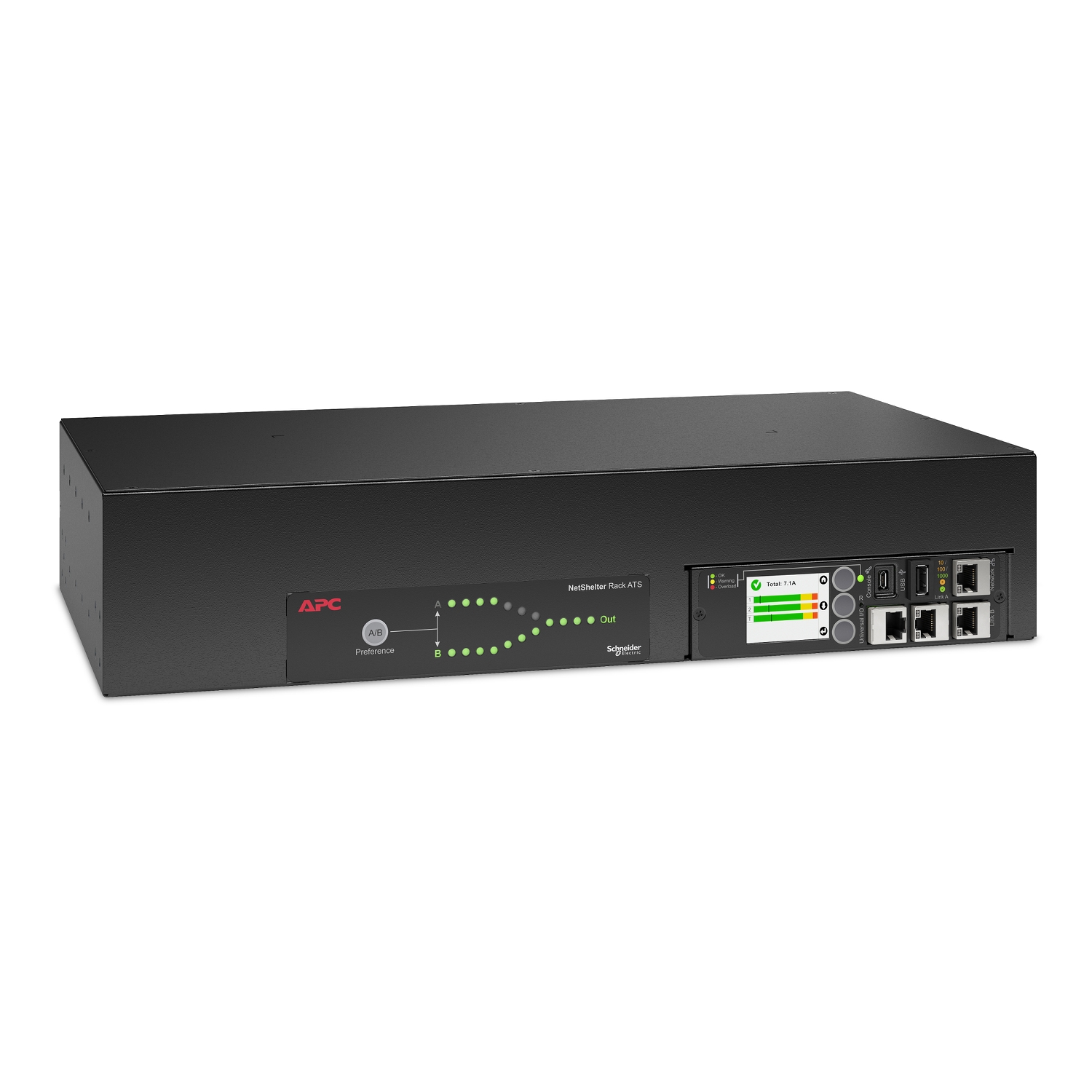

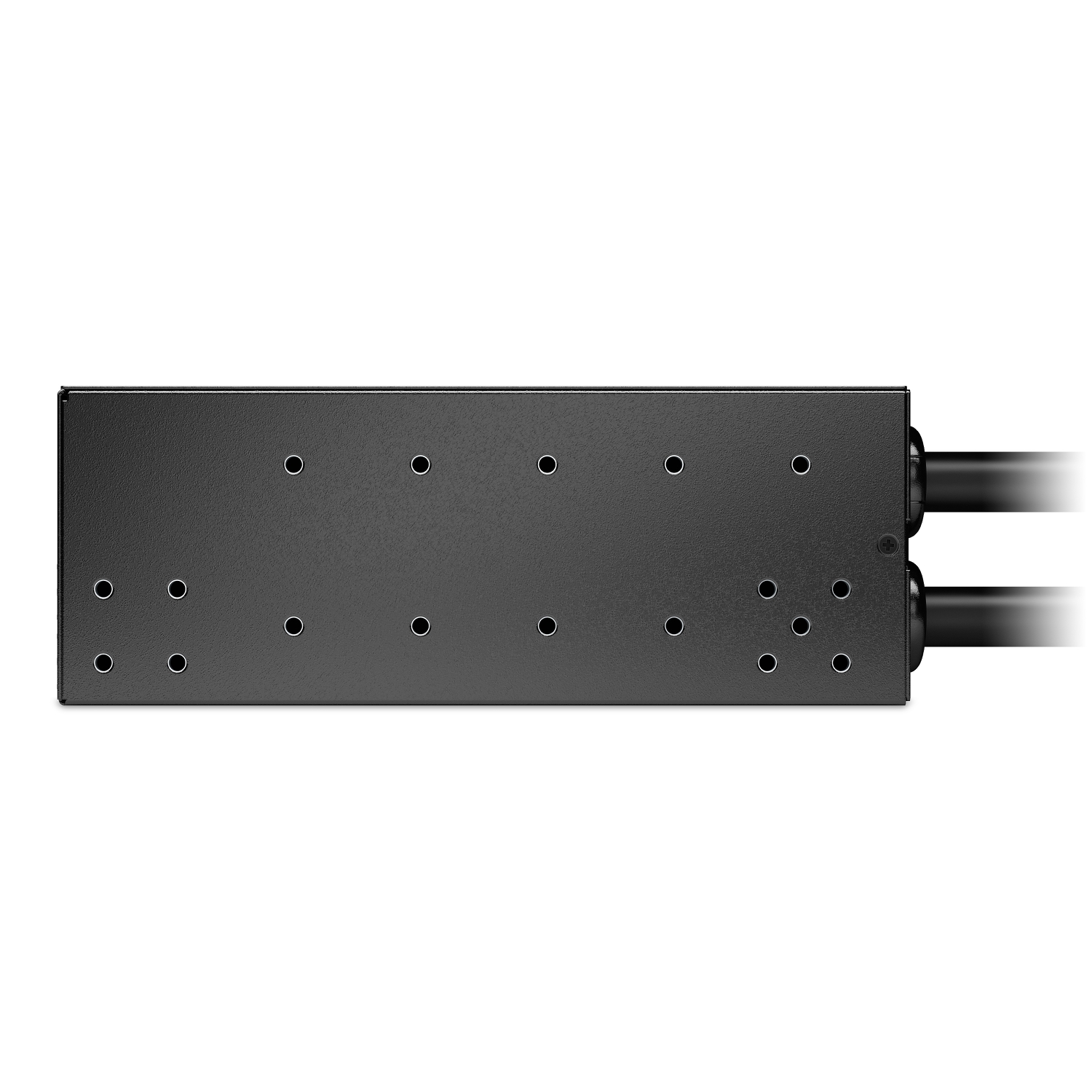

APC Netshelter Rack Automatic Transfer Switch, 2U, 30A, 200/208V, 2 L6-30 IN, 16 C13, 2 C19 OUT, 50/60Hz

Lead time

Usually in Stock

Main Input Voltage

200 V AC 1 phase
208 V

Product or Component Type

Automatic transfer switch

Main Output Voltage

200 V AC 1 phase
208 V

Input Connection Type

NEMA L6-30P 24 A 2P+E

Number of rack unit

2U

Cable length

8 ft (2.4 m)

Number of cables

2

Provided Equipment

Mounting Hardware
Rack Mounting brackets

Color

Black

Height

3.5 in (8.8 cm)

Width

17.008 in (43.2 cm)

Depth

9.3 in (23.6 cm)

Net Weight

14.51 lb(US) (6.58 kg)

mounting location

Front
Rear

Mounting preference

No preference

Mounting Mode

Rack-mounted

Mounting position

Horizontal

Input Frequency

50/60 Hz

Line Rated Current

30 A

Acceptable Input Voltage

180…220 V

Max line current

30 A

Input current limits

30 A

Load Capacity

4992 VA

Maximum Total Current Draw per Phase

30 A

Number of power socket outlets

16 IEC 60320 C13 12 A 2P+E
2 IEC 60320 C19 16 A 2P+E

Protection Type

Circuit breaker

Cord Length

8.005 ft (2.44 m)

Product Certifications

PSE
TÜV-C
TÜV-NURTL

Standards

EN 55022 Class A
FCC Part 15 class A

Ambient Air Temperature for Operation

23…113 °F (-5…45 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304432487

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.3 in (21 cm)

Package 1 Width

23.0 in (58.4 cm)

Package 1 Length

14.02 in (35.6 cm)

Package 1 Weight

20.00 lb(US) (9.07 kg)

Warranty

2 years repair or replace
