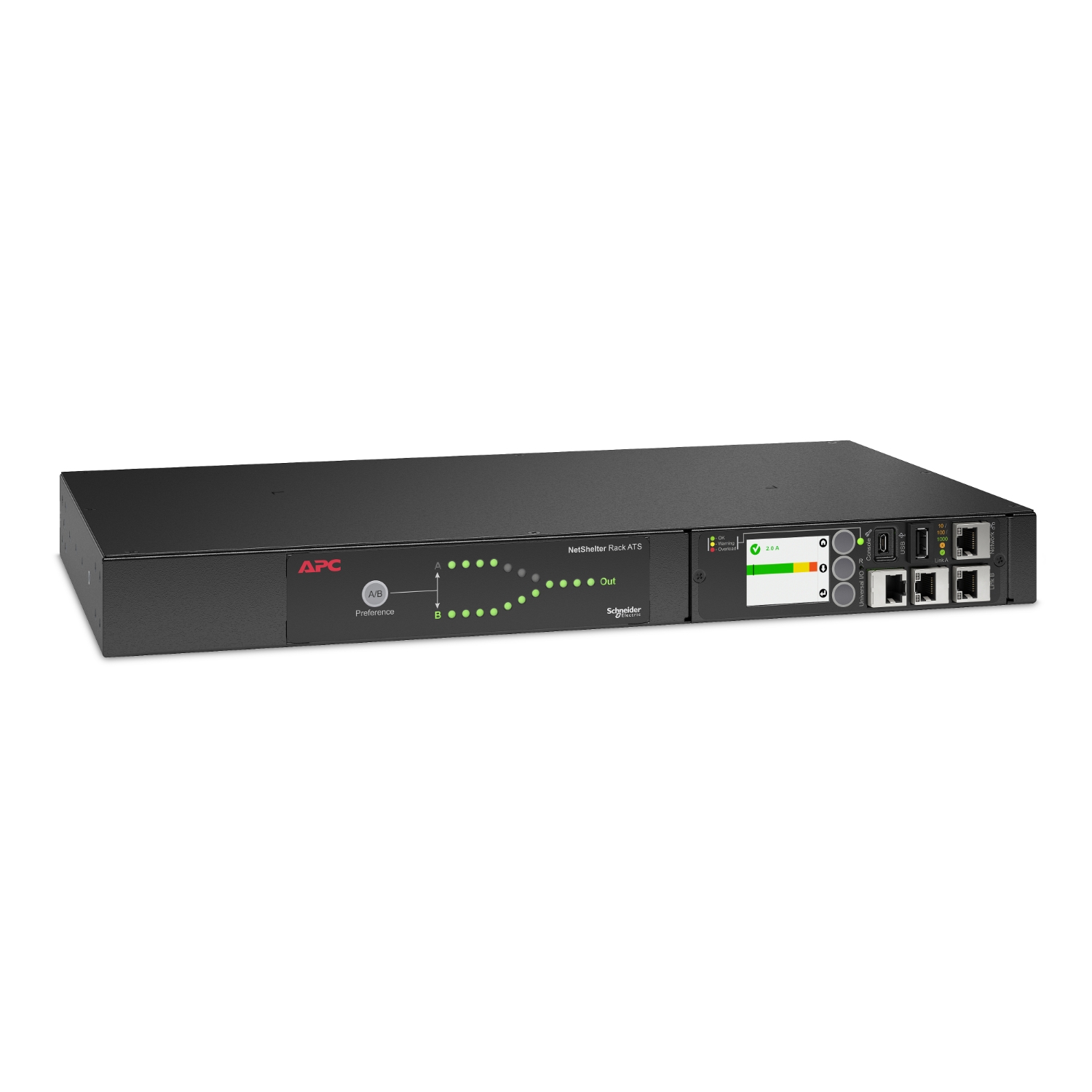

APC Netshelter Rack Automatic Transfer Switch, 1U, 20 A, 208V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz

Lead time

Usually in Stock

Main Input Voltage

208 V AC 1 phase

Product or Component Type

Automatic transfer switch

Main Output Voltage

208 V AC 1 phase
208 V

Input Connection Type

IEC 60320 C20 16 A 2P+E

Number of rack unit

1U

Cable length

8 ft (2.4 m)

Provided Equipment

Mounting Hardware
Rack Mounting brackets

Color

Black

Height

1.7 in (4.4 cm)

Width

17.008 in (43.2 cm)

Depth

9.3 in (23.6 cm)

Net Weight

8.25 lb(US) (3.74 kg)

mounting location

Front
Rear

Mounting preference

No preference

Mounting Mode

Rack-mounted

Mounting position

Horizontal

Input Frequency

50/60 Hz

Line Rated Current

20 A

Acceptable Input Voltage

187…228 V

Max line current

20 A

Input current limits

20 A

Load Capacity

3300 VA

Maximum Total Current Draw per Phase

20 A

Number of power socket outlets

8 IEC 60320 C13 12 A 2P+E
1 IEC 60320 C19 16 A 2P+E

Protection Type

Without circuit breaker

Cord Length

8.005 ft (2.44 m)

Product Certifications

cUL Listed
CE
UL Listed

Standards

EN 55022 Class A
FCC Part 15 class A

Ambient Air Temperature for Operation

23…113 °F (-5…45 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304432500

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 in (11.4 cm)

Package 1 Width

23.6 in (60 cm)

Package 1 Length

14.02 in (35.6 cm)

Package 1 Weight

12.15 lb(US) (5.51 kg)

Warranty

2 years repair or replace
