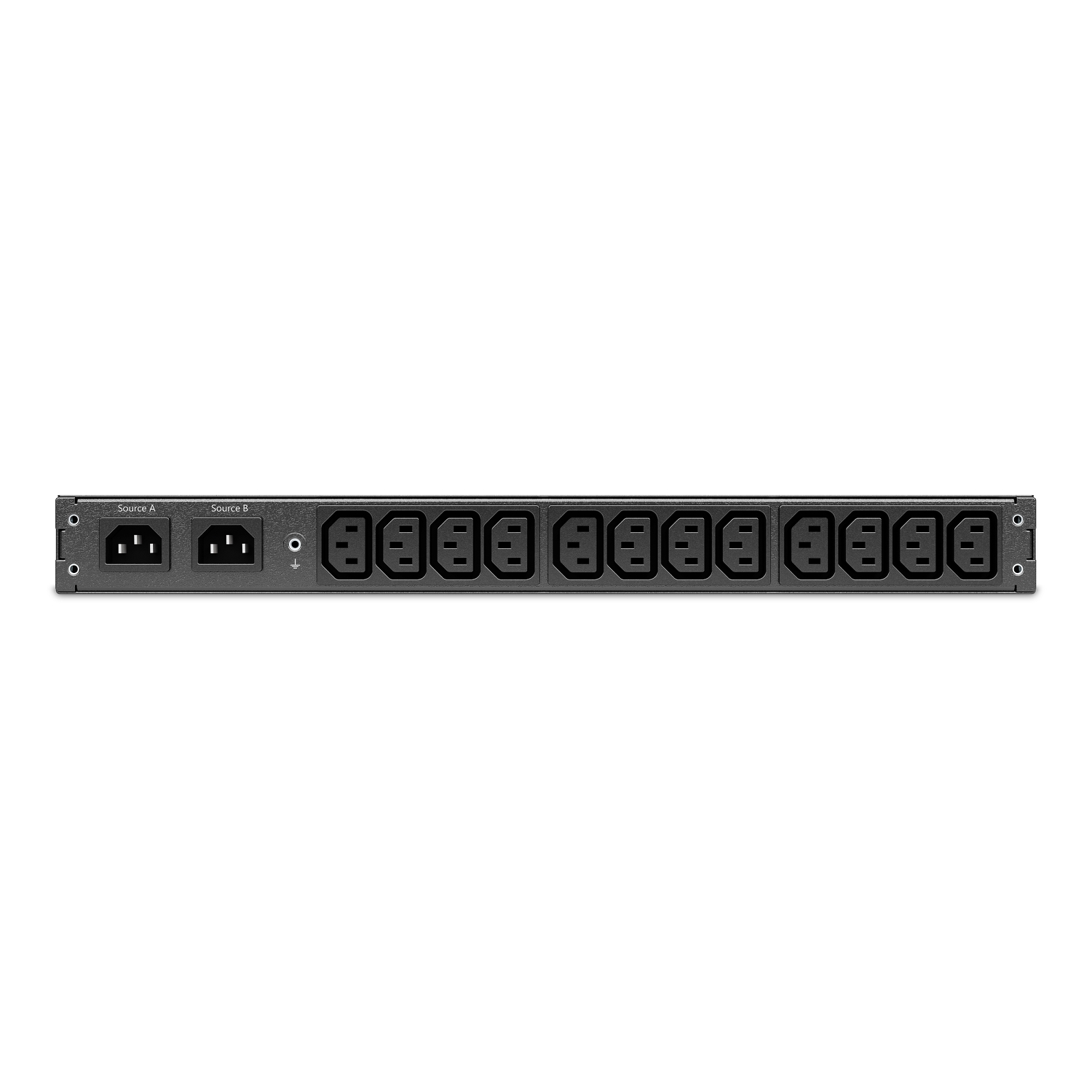

APC Netshelter Rack Automatic Transfer Switch, 1U, 10A, 230V, C14 IN, 12 C13 OUT, 50/60Hz

Lead time

Usually in Stock

Main Input Voltage

230 V AC 1 phase

Product or Component Type

Automatic transfer switch

Main Output Voltage

230 V AC 1 phase

Input Connection Type

IEC 60320 C14 10 A 2P+E

Number of rack unit

1U

Provided Equipment

Mounting Hardware
Rack Mounting brackets

Color

Black

Height

1.7 in (4.4 cm)

Width

17.008 in (43.2 cm)

Depth

9.3 in (23.6 cm)

Net Weight

8.66 lb(US) (3.93 kg)

mounting location

Front

Mounting preference

No preference

Mounting Mode

Rack-mounted

Mounting position

Horizontal

Input Frequency

50/60 Hz

Line Rated Current

10 A

Acceptable Input Voltage

207…253 V

Max line current

10 A

Load Capacity

2000 VA

Number of power socket outlets

12 IEC 60320 C13 10 A 2P+E

Number of power socket outlets

12

Protection Type

Without circuit breaker

Product Certifications

EN 55022 class A
FCC part 15 class A

Standards

EN 55022 Class A
FCC Part 15 class A

Ambient Air Temperature for Operation

23…113 °F (-5…45 °C)

Relative Humidity

5…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-13…149 °F (-25…65 °C)

Storage Relative Humidity

5…95 %

Storage altitude

0…50000 ft (0…15240 m)

GTIN

731304432425

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.331 in (11.000 cm)

Package 1 Width

13.780 in (35.000 cm)

Package 1 Length

23.622 in (60.000 cm)

Package 1 Weight

11.949 lb(US) (5.420 kg)

Unit Type of Package 2

P12

Number of Units in Package 2

40

Package 2 Height

49.606 in (126.000 cm)

Package 2 Width

31.496 in (80.000 cm)

Package 2 Length

47.244 in (120.000 cm)

Package 2 Weight

507.064 lb(US) (230.000 kg)

Warranty

2 years repair or replace
