product line

QO

product type

Bar

Number of connectors

12

wire size

AWG 14...AWG 4 copper
AWG 12...AWG 4 aluminium

Provided equipment

2 screw

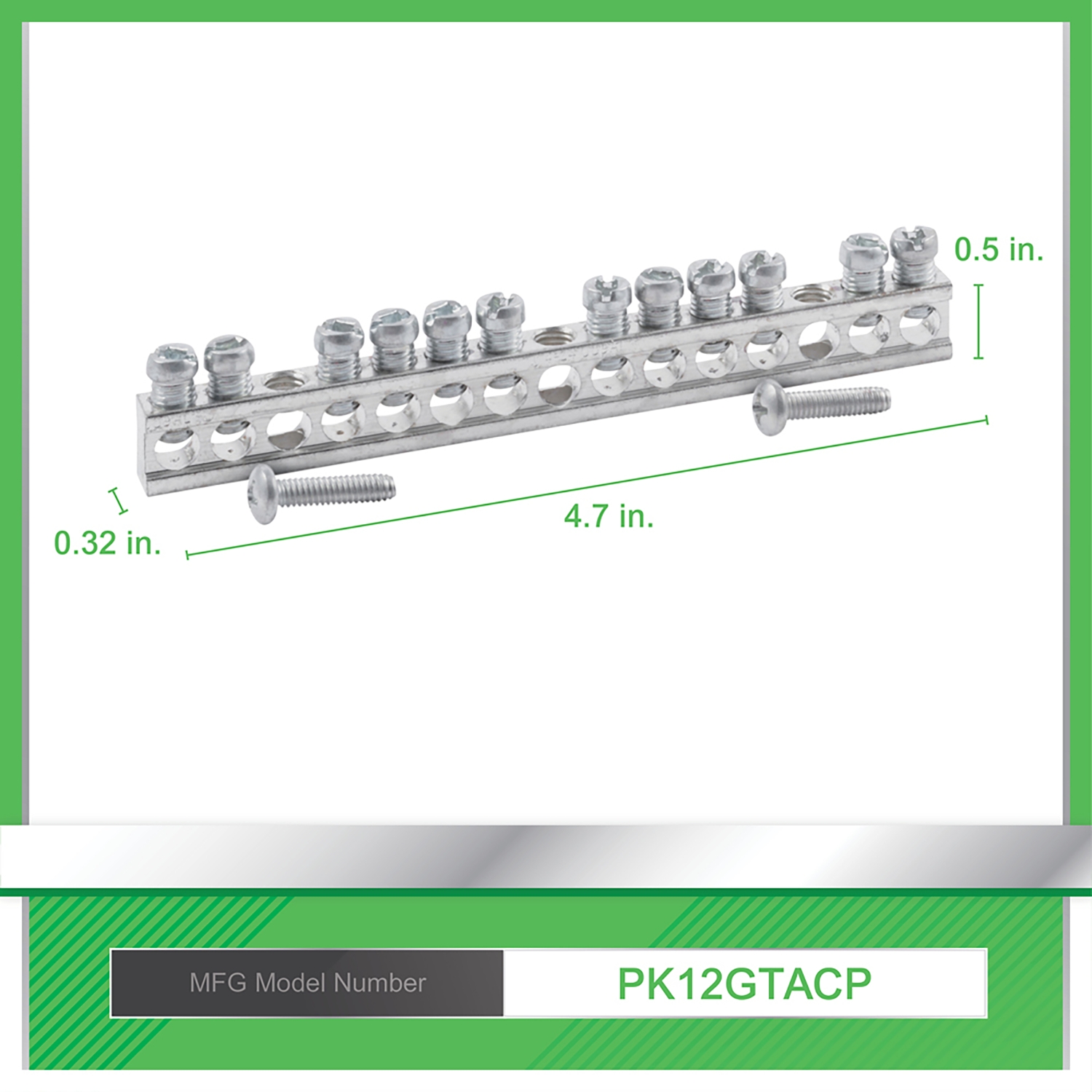

Bar length

4.7 in (119 mm)

Maximum length of segment

3.1 in (80 mm)

Device mounting

Direct mounting back of enclosure

Height

0.437 in (11.100 mm)
0.437 in (11.100 mm)

Depth

0.312 in (7.925 mm)
0.312 in (7.925 mm)

Tightening torque

30 lb.in
Mounting screw 30 lb.in
20 lb.in, AWG 14...AWG 10, copper
20 lb.in, AWG 12...AWG 10, aluminium
35 lb.in, AWG 6...AWG 4
25 lb.in, AWG 8
25 lb.in, AWG 14...AWG 12, copper
25 lb.in, AWG 12...AWG 10, aluminium

Category

US1DE3A00102

Discount Schedule

DE3A

GTIN

785901026402

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.70 in (1.78 cm)

Package 1 Width

1.20 in (3.05 cm)

Package 1 Length

4.80 in (12.19 cm)

Package 1 Weight

2.08 oz (58.97 g)

Warranty

18 months
