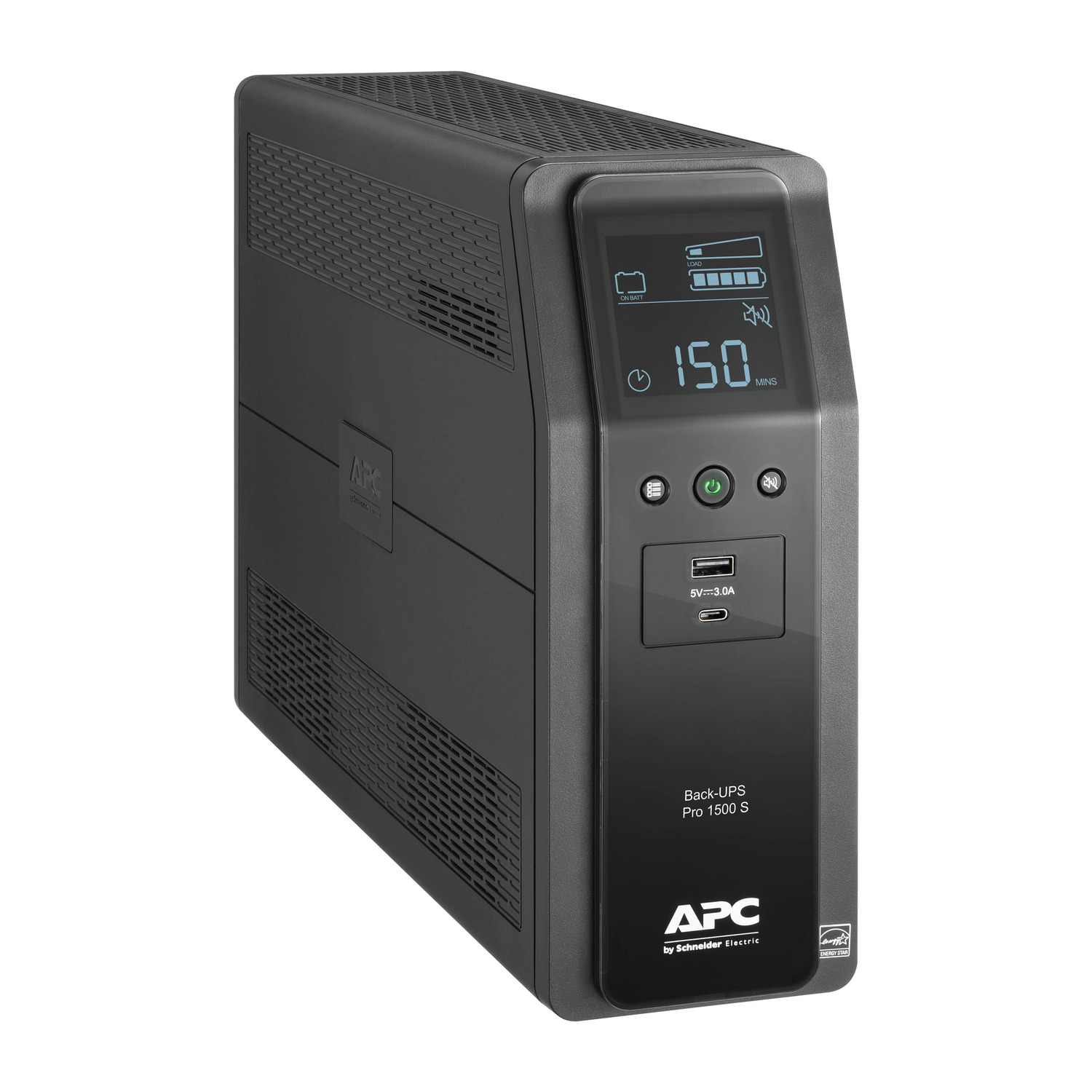

APC Back-UPS Pro, 1500VA/900W, Tower, 120V, 10x NEMA 5-15R outlets, AVR, USB Type A + C ports, LCD, User Replaceable Battery

Lead time

Usually in Stock

Main Input Voltage

120 V

Main Output Voltage

120 V

Kw Rating

900 W

Rated power in VA

1500 VA

Product or Component Type

Uninterruptible power supply (UPS)

Input Connection Type

NEMA

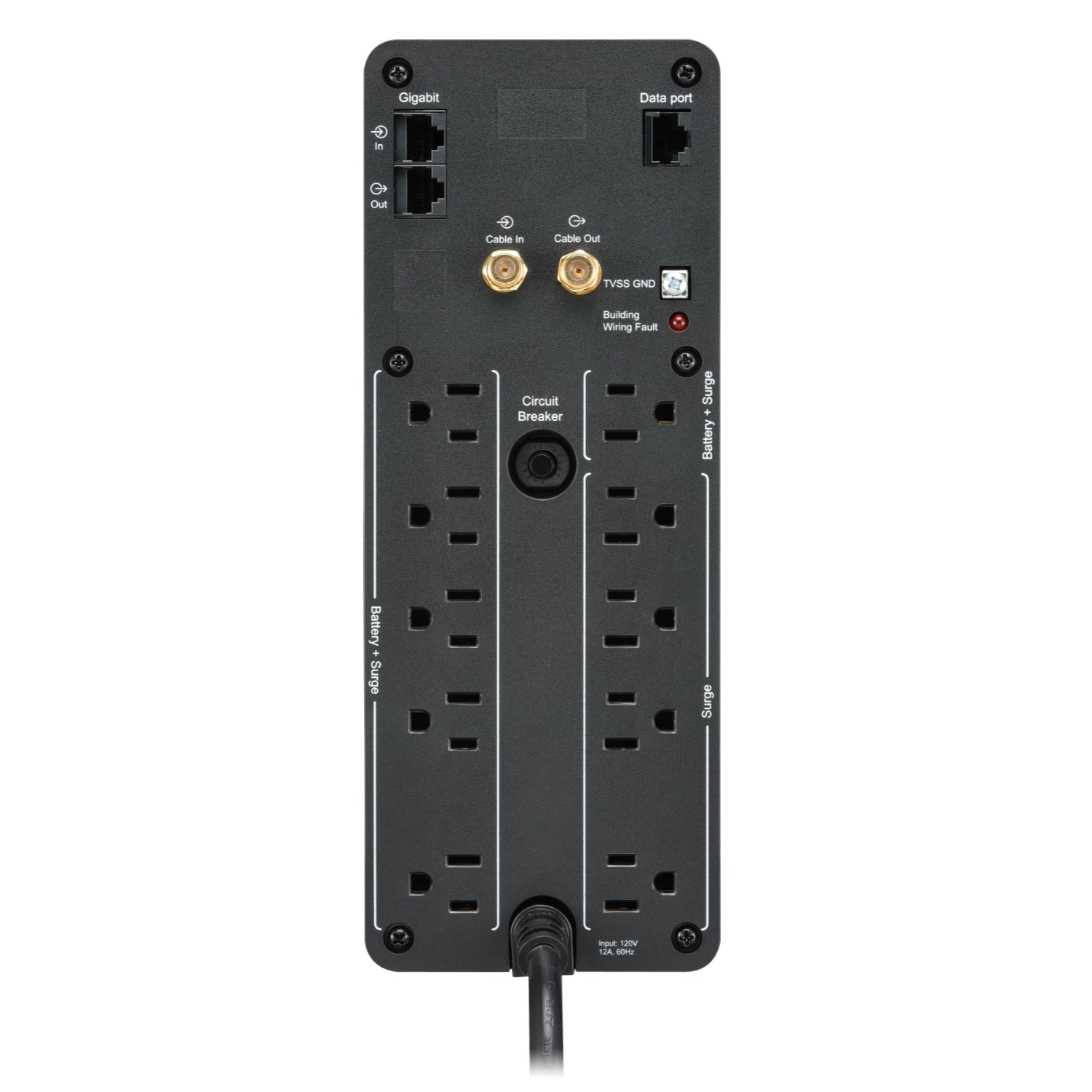

output connection type

6 NEMA 5-15R
4 NEMA 5-15R surge

Cable length

6 ft (1.8 m)

Number of cables

1

Battery Type

Lead-Acid battery

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Included Battery Modules

1

Battery Slots Empty

0

Typical recharge time

16 h

RBC Quantity

1

Battery Charge Power (Watts)

16 W rated

Battery design life

3…5 year(s)

Extendable Run Time

0

Replacement battery

APCRBC163

Provided equipment

Coaxial cable
User Manual
USB cable

product web sub-family

Gaming performance

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

color

Black aluminium

Height

10.2 in (26 cm)

Width

3.9 in (10 cm)

Depth

14.5 in (36.8 cm)

Net Weight

27.6 lb(US) (12.5 kg)

Mounting preference

No preference

Mounting Mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input Frequency

60 Hz +/- 3 Hz

Efficiency at full load

88...147 V

Maximum Input Current per Phase

12 A

Max Configurable Power (Watts)

900 W

Output Frequency (sync to mains)

60 Hz +/- 3 Hz sync to mains

Topology

Line Interactive

Wave type

Sine wave

Maximum configurable power in VA

1500 VA

Transfer Time

8ms typical : 10 ms maximum

Product Certifications

ENERGY STAR V2.0 (USA)
NOM
TUV C-US certified

Equipment protection policy

Lifetime : $500000

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Relative Humidity

0…95 % non-condensing

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

5…104 °F (-15…40 °C)

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0…10000 ft (0…3048 m)

Acoustic level

45 dBA

control panel

Multi-function LCD status and control console

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rating

1080 J

Filtering

Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in

Data line protection

Coaxial cable for CATV/SATV/modem/audio-video

GTIN

731304426103

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

14.12 in (35.87 cm)

Package 1 Width

19.0 in (48.2 cm)

Package 1 Length

8.8 in (22.3 cm)

Package 1 Weight

31.3 lb(US) (14.2 kg)

SCC14

10731304426100

Warranty

3 year repair or replace
