APC Back-UPS 850, Compact Tower, 850VA, 120V, AVR, LCD, 8 NEMA outlets (4 surge)

Lead time

Usually in Stock

Main Input Voltage

120 V

Main Output Voltage

120 V

Kw Rating

510 W

Rated power in VA

850 VA

Product or Component Type

Uninterruptible power supply (UPS)

Input Connection Type

NEMA

output connection type

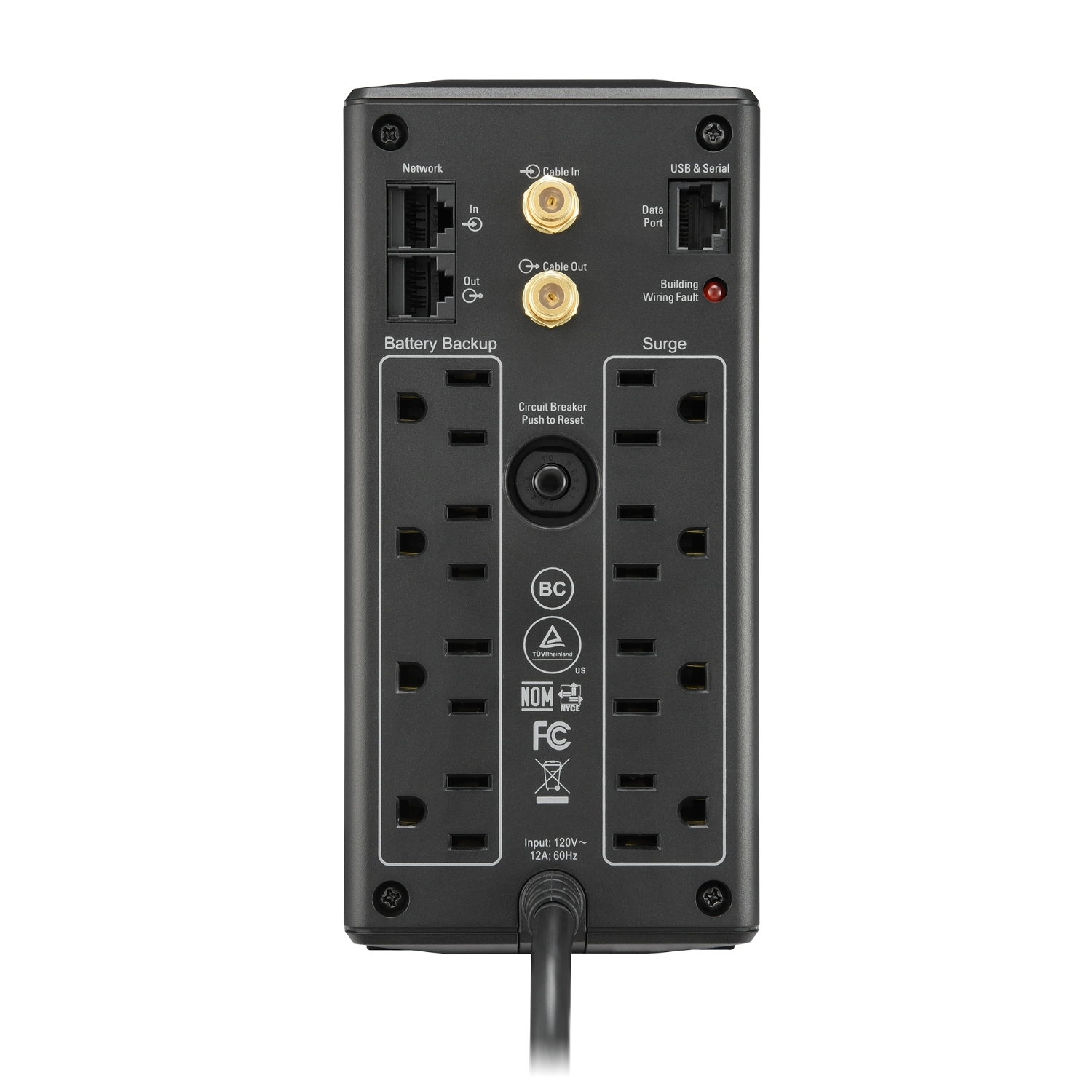

4 NEMA 5-15R
4 NEMA 5-15R surge

Cable length

6 ft (1.8 m)

Number of cables

1

Battery Type

Lead-Acid battery

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Included Battery Modules

0

Battery Slots Empty

0

Typical recharge time

12 h

RBC Quantity

1

Battery Charge Power (Watts)

7 W rated

Battery Life

3…5 year(s)

Replacement battery

RBC17

Extendable Run Time

0

Provided equipment

User Manual
USB cable

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

color

Black

Height

7.5 in (19 cm)

Width

3.6 in (9.1 cm)

Depth

12.2 in (31 cm)

Net Weight

15.0 lb(US) (6.8 kg)

Mounting preference

No preference

Mounting Mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input Frequency

60 Hz +/- 3 Hz

Efficiency at full load

88...139 V

Maximum Input Current per Phase

12 A

Switching current capacity

15 A

Max Configurable Power (Watts)

510 W

Output Frequency (sync to mains)

60 Hz sync to mains

Topology

Line Interactive

Wave type

Stepped approximation to a sinewave

Maximum output current

15 A

Maximum configurable power in VA

850 VA

Transfer Time

8ms typical : 10 ms maximum

Product Certifications

California (CEC) Battery Charger
ENERGY STAR V2.0 (USA)
TUV C-US certified

Equipment protection policy

Lifetime : $250000

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Relative Humidity

0…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

5…113 °F (-15…45 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

Acoustic level

45 dBA

heat dissipation

48.5 Btu/h

control panel

Multi-function LCD status and control console

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rating

1103 J

Filtering

Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in

Data line protection

Coaxial cable for CATV/SATV/modem/audio-video

GTIN

731304331797

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.0 in (25.3 cm)

Package 1 Width

17.4 in (44.2 cm)

Package 1 Length

5.6 in (14.2 cm)

Package 1 Weight

16.8 lb(US) (7.6 kg)

SCC14

10731304331794

Pallet layers

3

Warranty

3 years repair or replace
