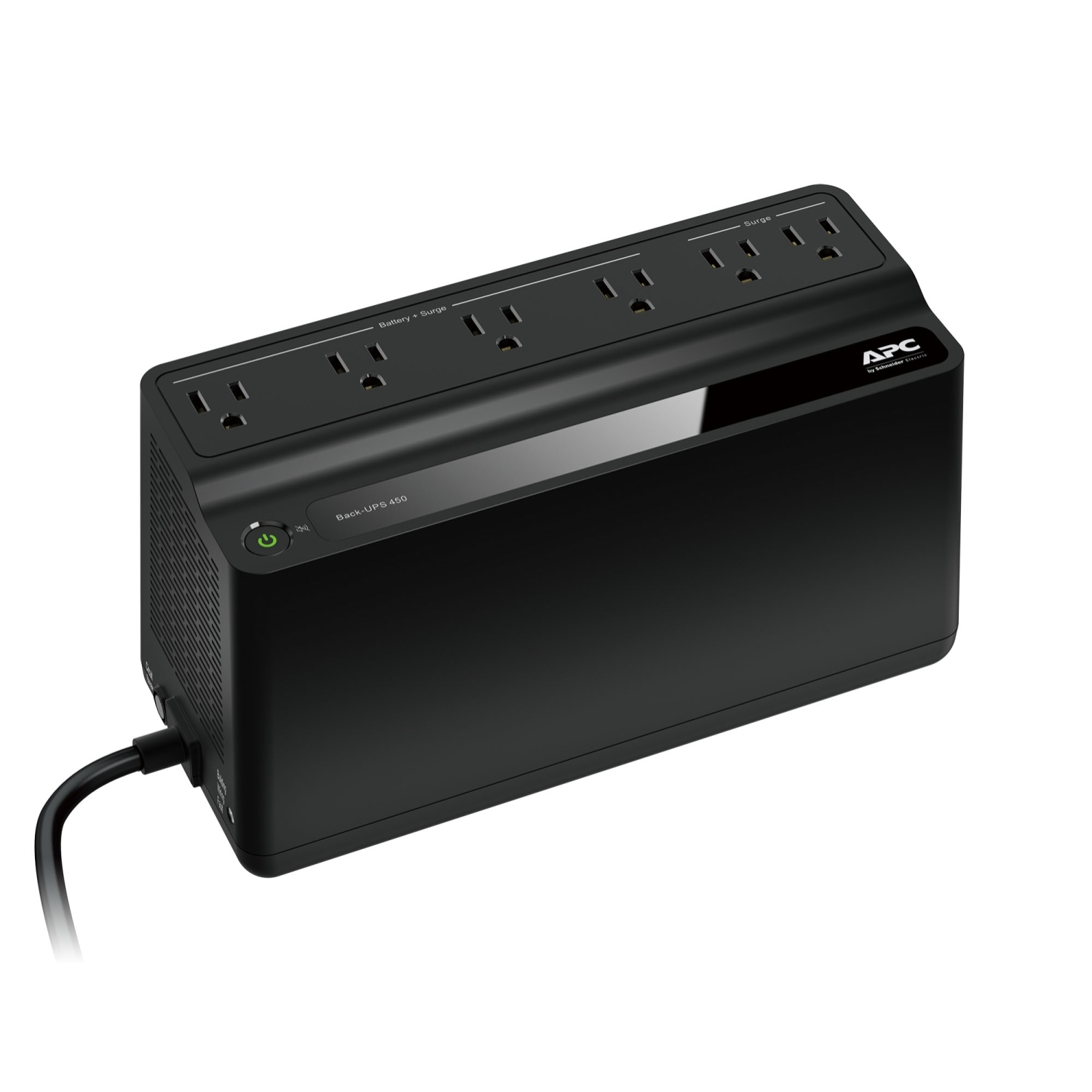

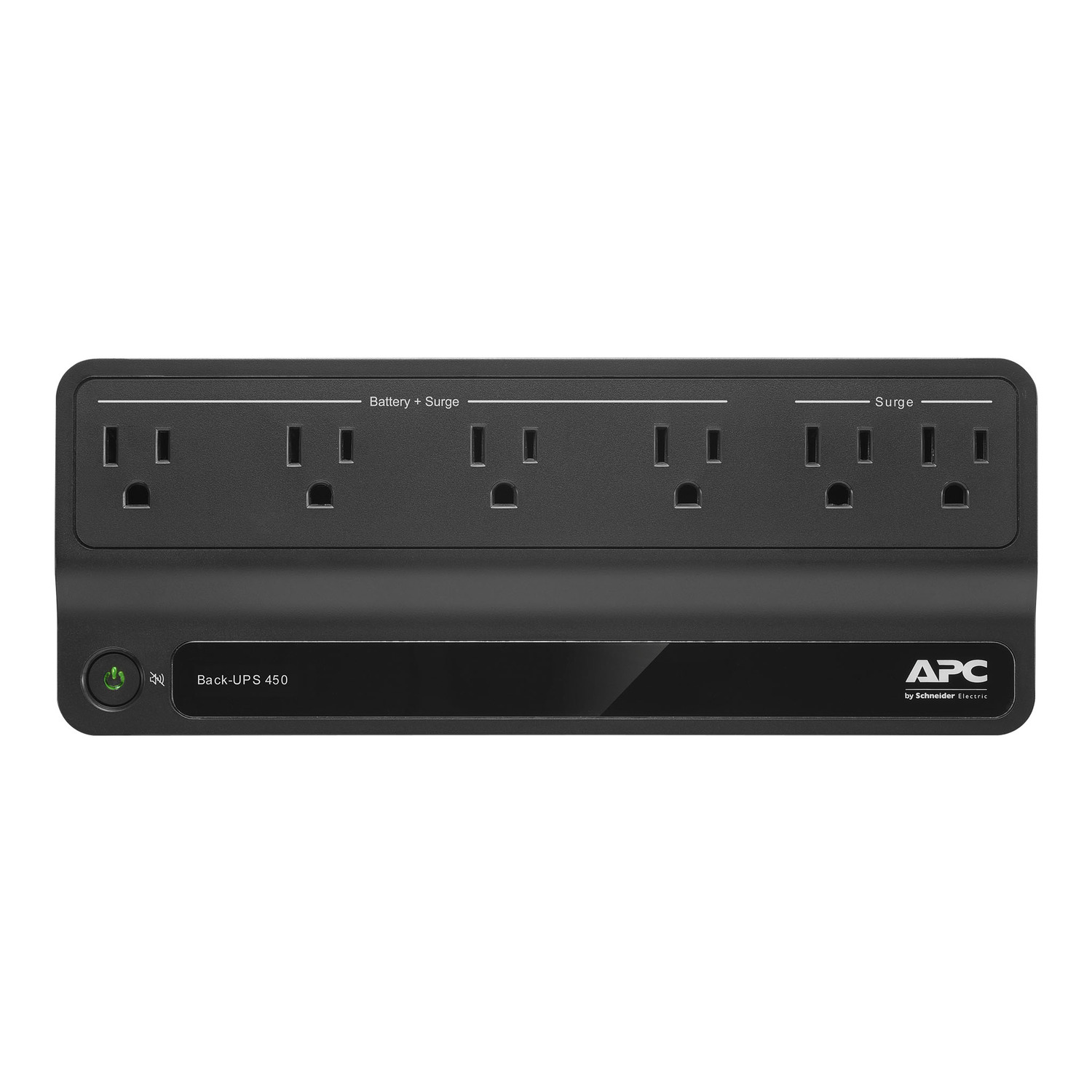

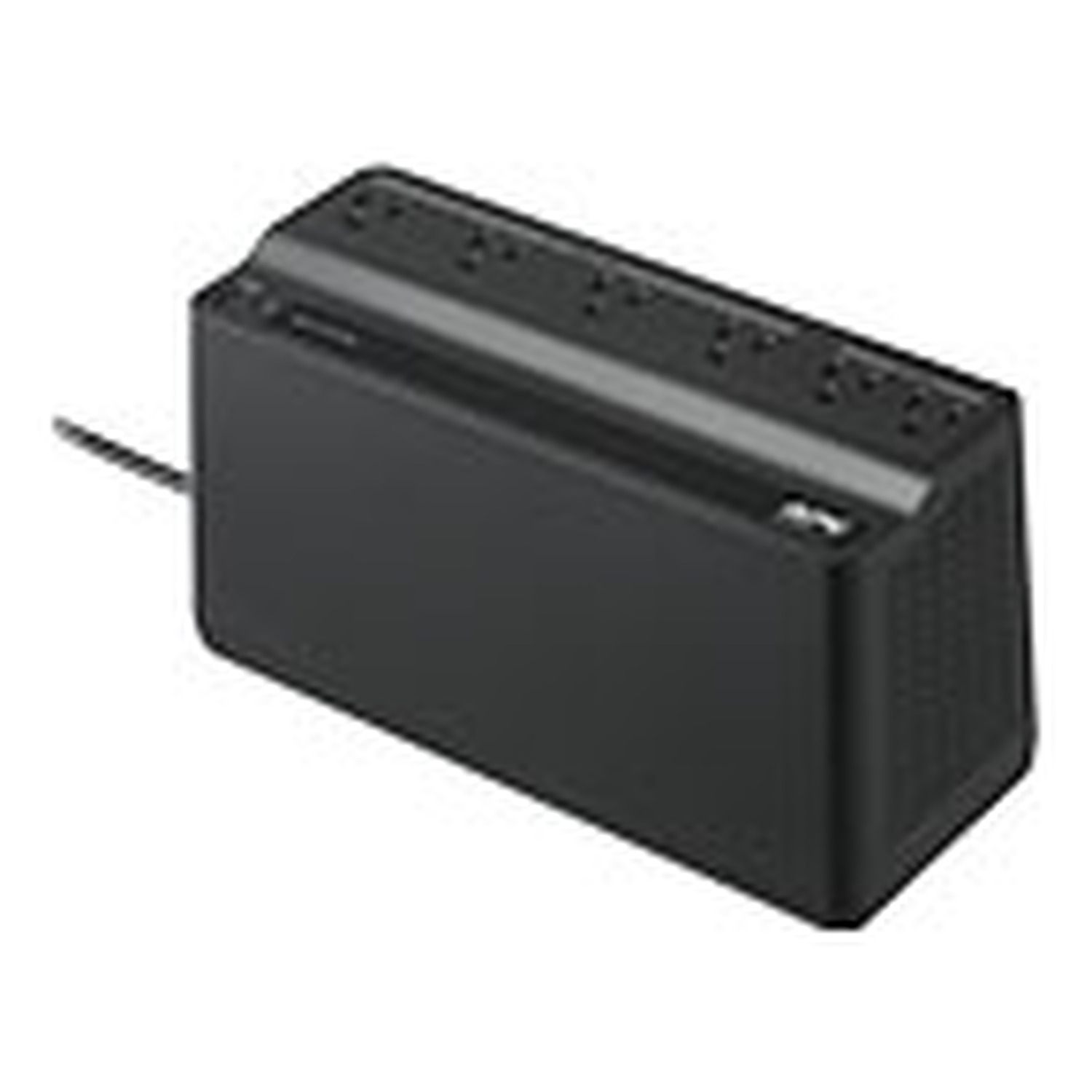

APC Back-UPS 450VA, 120V, 6 NEMA outlets (2 surge), Battery is not user replaceable

Lead time

Usually in Stock

Main Input Voltage

120 V

Main Output Voltage

120 V

Kw Rating

255 W

Rated power in VA

450 VA

Product or Component Type

Uninterruptible power supply (UPS)

Input Connection Type

NEMA 5-15P

output connection type

4 NEMA 5-15R
2 NEMA 5-15R surge

Cable length

5 ft (1.5 m)

Number of cables

1

Battery Type

Lead-Acid battery

Provided equipment

User Manual

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Included Battery Modules

0

Battery Slots Empty

0

Typical recharge time

8 h

Battery Charge Power (Watts)

6 W rated

Battery power in VAH

47 VAh runtime

Battery Life

3…5 year(s)

Battery graph comments

This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.

Extendable Run Time

0

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

color

Black

Height

5.5 in (14 cm)

Width

10.0 in (25.3 cm)

Depth

4.1 in (10.5 cm)

Net Weight

5.7 lb(US) (2.6 kg)

Mounting preference

No preference

Mounting Mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input Frequency

50/60 Hz +/- 3 Hz auto-sensing

Efficiency at full load

88...139 V

Maximum Input Current per Phase

5 A

Switching current capacity

7 A

Max Configurable Power (Watts)

255 W

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz sync to mains

Topology

Standby

Wave type

Square wave

Graph start point

10

Maximum configurable power in VA

450 VA

Transfer Time

6ms typical : 10ms maximum

Product Certifications

California (CEC) Battery Charger
cTUVus

Equipment protection policy

Lifetime : $75000

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Relative Humidity

0…95 %

Operating altitude

0...10000 ft

Ambient Air Temperature for Storage

-4…122 °F (-20…50 °C)

Storage Relative Humidity

0…95 %

Storage altitude

0…50000 ft (0…15240 m)

control panel

LED Status display with On Line : On Battery

Surge energy rating

180 J

GTIN

731304329374

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.7 in (22 cm)

Package 1 Width

5.5 in (14 cm)

Package 1 Length

12.4 in (31.5 cm)

Package 1 Weight

6.6 lb(US) (3 kg)

SCC14

10731304329371

Warranty

3 years repair or replace
