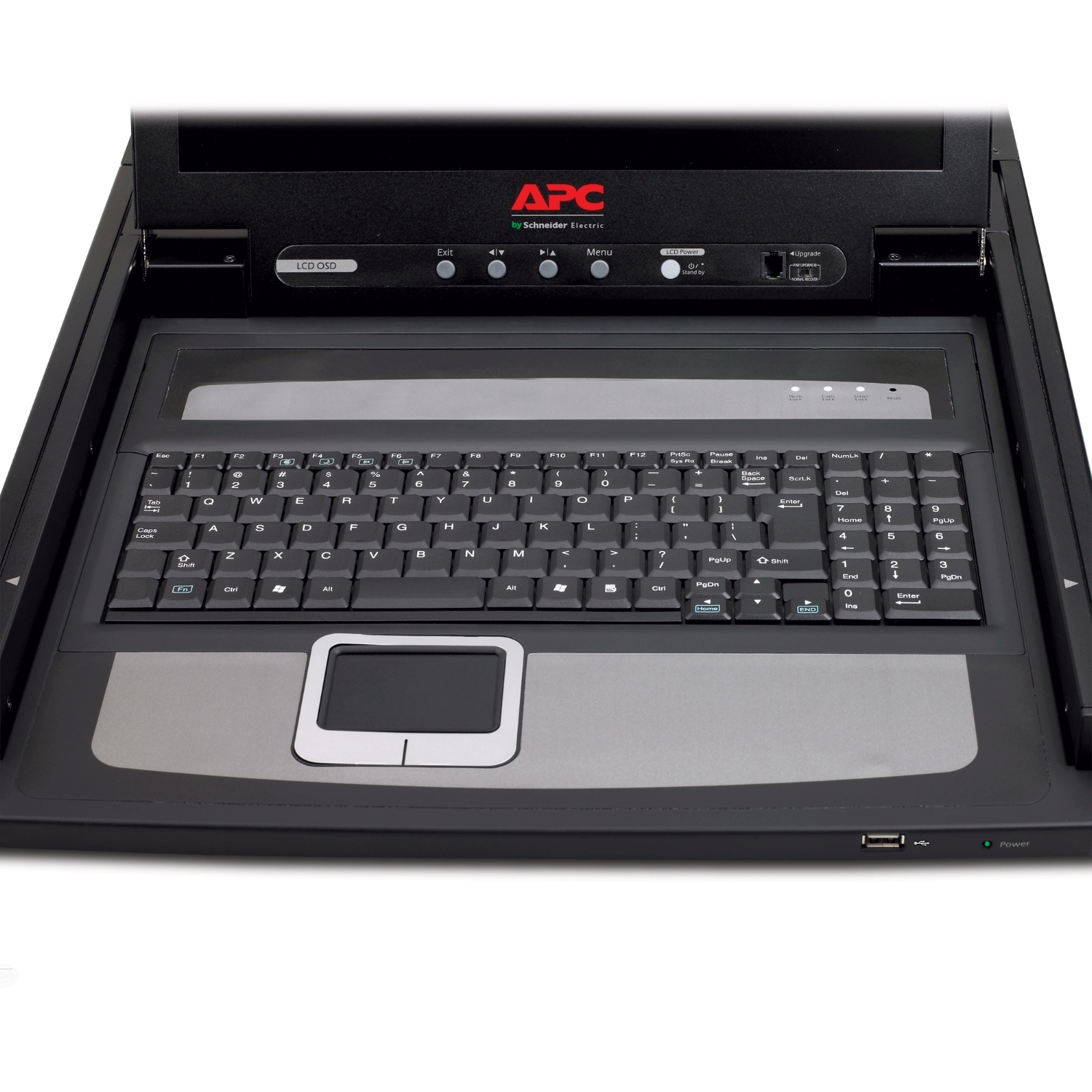

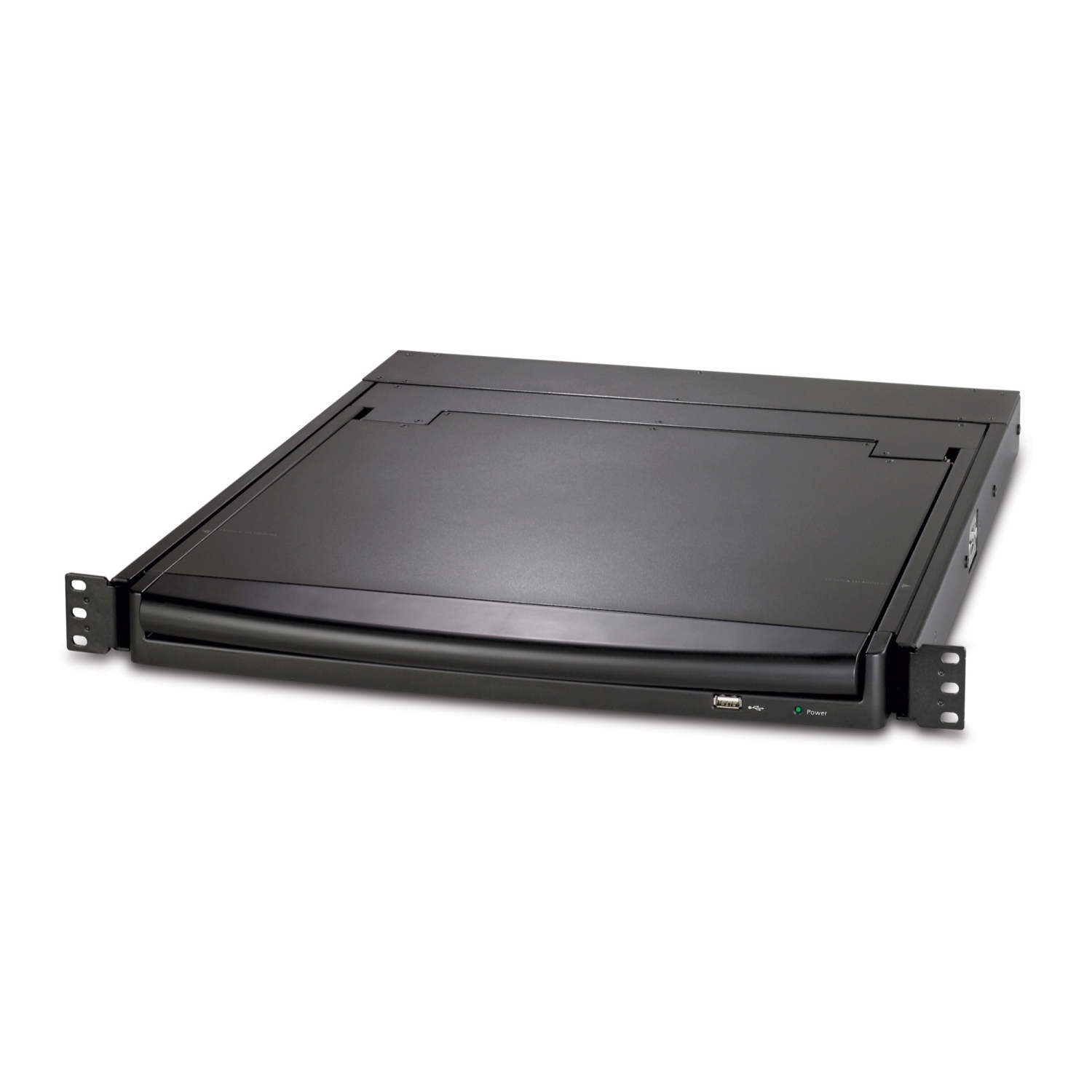

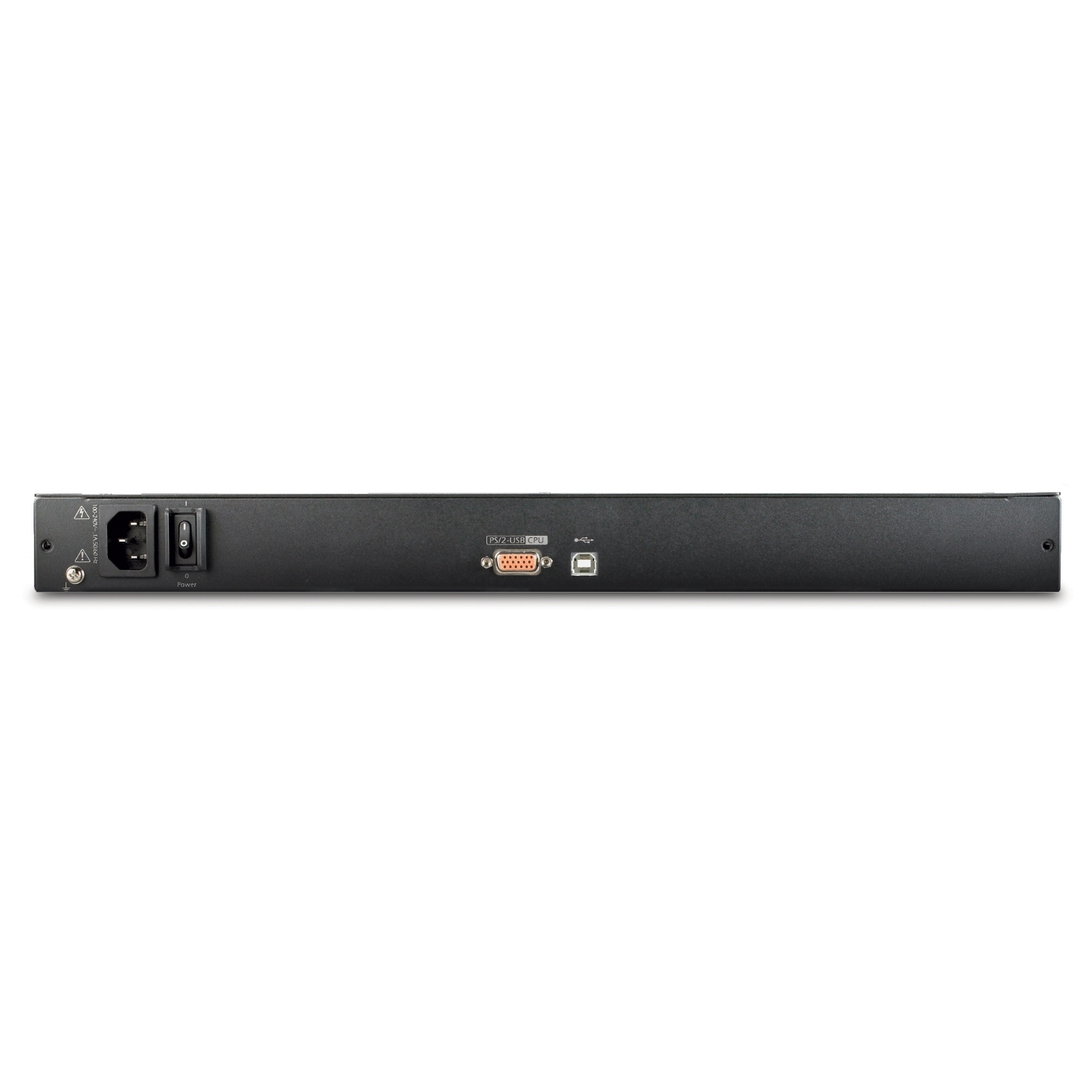

APC 19" Rack LCD Console

Presentation

1U rack-mountable keyboard, mouse, and LCD console with US English keyboard layout.

Lead time

Usually in Stock

Main Input Voltage

100 V
240 V

Number of rack unit

1U

Provided equipment

C13-C14 power cord
Documentation CD
Firmware upgrade cable
Installation guide
NEMA 5-15 power cord
PS2 KVM cable
Rack mounting hardware
Single user rack mount kit
USB cable
USB KVM cable

Color

Black

Height

1.7 in (4.4 cm)

Width

19.0 in (48.2 cm)

Depth

26.2 in (66.5 cm)

Net Weight

38.4 lb(US) (17.4 kg)

mounting location

Front
Rear

Mounting preference

No preference

Mounting Mode

Rack-mounted

Maximum Mounting Depth

41.33 in (104.98 cm)

minimum mounting depth

26.8 in (68 cm)

Input Frequency

50/60 Hz

Product Certifications

C-tick
CE
Industry Canada
KCC
NOM
UL Listed
VCCI Class A
VDE
TAA compliance

Standards

EN 55022 Class A
EN 55024
EN 60950
FCC Part 15 class A
IEC 60950

Ambient Air Temperature for Operation

32…104 °F (0…40 °C)

Display size

19 inch

Trackball Type

PS/2 Touchpad
USB mouse

Display Type

LCD display

LCD Power Consumption

19 W

Pixel size

0.26

GTIN

731304283294

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.0 in (15.2 cm)

Package 1 Width

32.5 in (82.6 cm)

Package 1 Length

26.5 in (67.3 cm)

Package 1 Weight

46.28 lb(US) (20.99 kg)

Warranty

2 years repair or replace
