All in one, Homeline, CSED, ringed socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, no bypass, solar ready

Product or Component Type

All-In-One

Range of Product

Homeline

Meter socket type

Ringed

hub type

A

Line Rated Current

200 A

Short-circuit current

22 kA

Mounting

Surface

Number of spaces

20

Number of circuits

40

Number of Tandem Breakers

20

Electrical connection

Lugs, line side
Lugs, service ground

Wire Size

AWG 4...250 kcmil (aluminium/copper) line side
AWG 14...AWG 2/0 (aluminium/copper) service ground

Tightening torque

Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
Service ground 50 lb.in, AWG 14...AWG 2/0, copper
Service ground 50 lb.in, AWG 12...AWG 2/0, aluminium
Branch lugs 50 lb.in, AWG 14...AWG 2/0, copper
Branch lugs 50 lb.in, AWG 12...AWG 2/0, aluminium
Branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper
Branch lugs 25 lb.in, AWG 8, aluminium/copper
Branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper
Branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper
Cover 10 lb.in

Disconnect Rating

200 A

Branch Breaker Rating

200 A

Service feed location

OH
UG

Bypass type

No bypass

Connections - Terminals

Plug-on neutral

Color

Grey

Product Compatibility

Solar ready

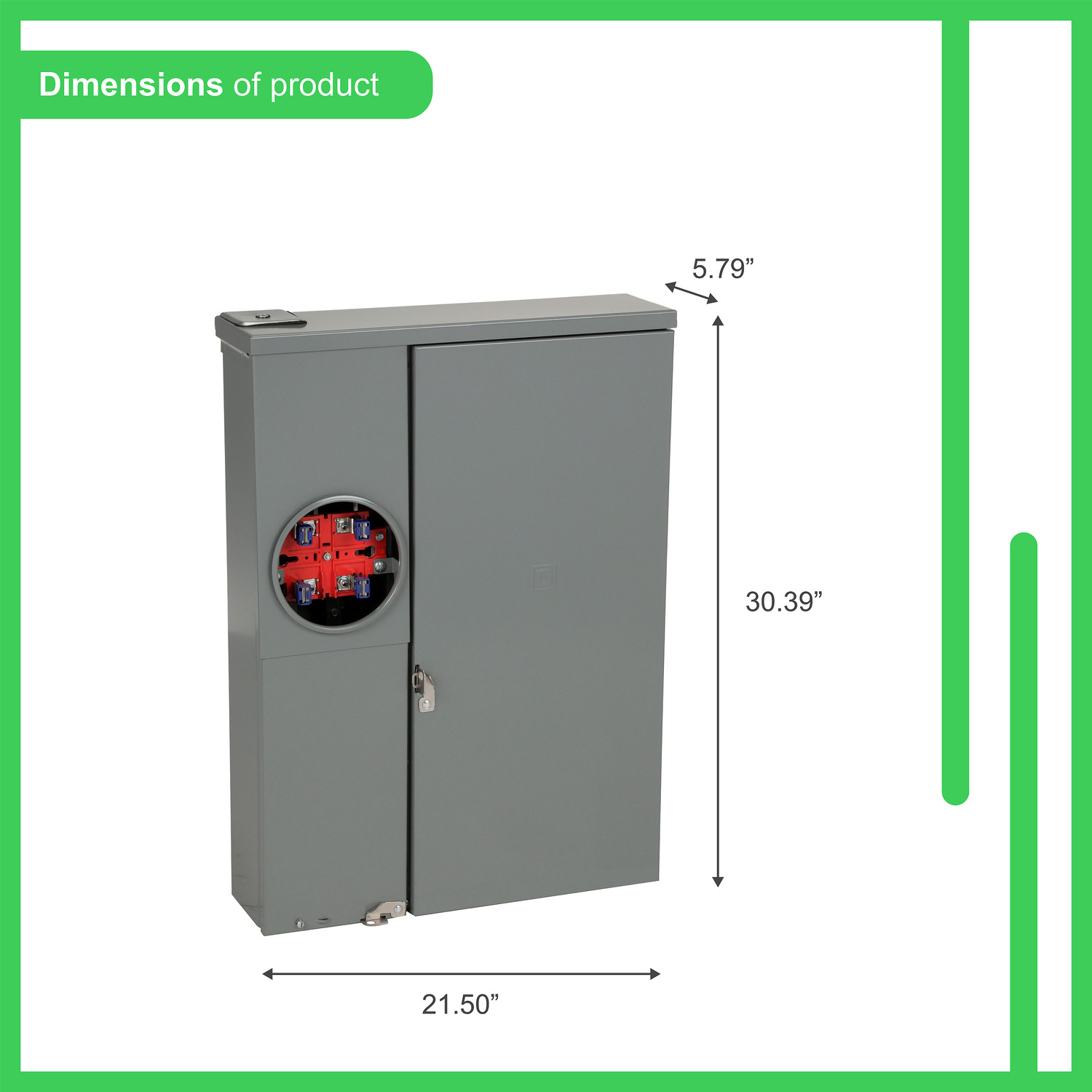

Width

21.50 in (546.10 mm)

Depth

5.79 in (147.07 mm)

Height

30.39 in (771.91 mm)

Bus Rating

225.0 A

NEMA Rating

NEMA 3R

Category

US1DE3A00148

Discount Schedule

DE3A

GTIN

785901342267

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.70 in (19.56 cm)

Package 1 Width

22.30 in (56.64 cm)

Package 1 Length

30.60 in (77.72 cm)

Package 1 Weight

52.699 lb(US) (23.904 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

10

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

42.00 in (106.68 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

563.506 lb(US) (255.602 kg)
