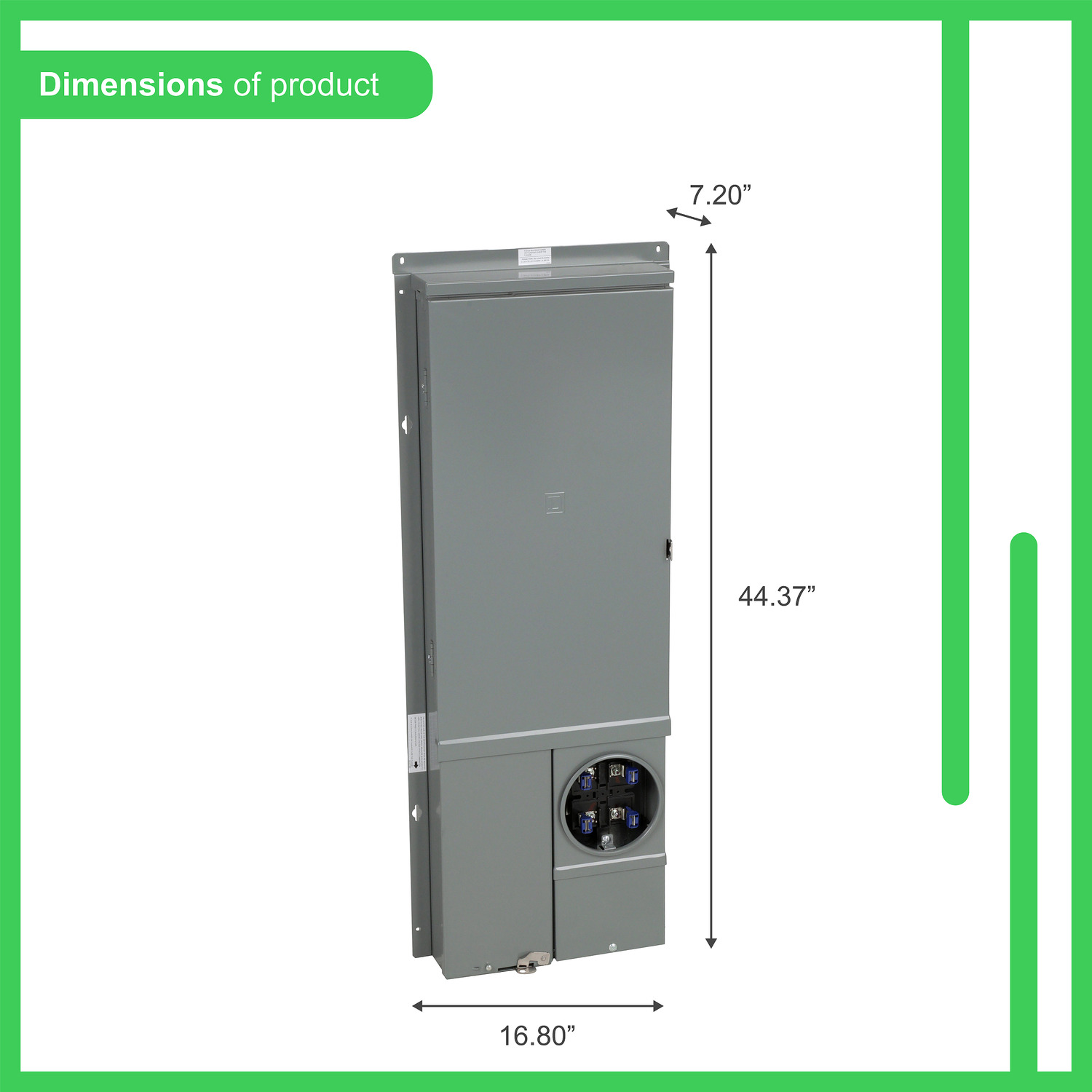

All in one, Homeline, CSED, ringed socket, 200A, semi flush mount, 30 spaces, 42 circuits, 22kA SCCR, no bypass, solar ready

SKU: SC3042M200PF

About Product

The Square D® Homeline® Load Centers and Homeline®Solar Ready PoN CSEDs, SC3042M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2. Suitable for OH service with addition of tunnel kit (SCTKP20).

Main

Product or Component Type

All-In-One

Range of Product

Homeline

Meter socket type

Ringed

hub type

A-L

Complementary

Line Rated Current

200 A

Number of Phases

1 phase

Short-circuit current

22 kA

Mounting

Semi flush (outdoor)

Number of spaces

Number of circuits

Number of Tandem Breakers

Electrical connection

Lugs, line side
Lugs, service ground

Wire Size

AWG 12...AWG 2/0 (aluminium) service ground
AWG 4...250 kcmil (aluminium/copper) line side
AWG 14...AWG 2/0 (copper) service ground

Tightening torque

Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
Service ground 50 lb.in, AWG 14...AWG 2/0, copper
Service ground 50 lb.in, AWG 12...AWG 2/0, aluminium
Branch lugs 50 lb.in, AWG 14...AWG 4, copper
Branch lugs 50 lb.in, AWG 12...AWG 2, aluminium
Branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper
Branch lugs 25 lb.in, AWG 8, aluminium/copper
Branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper
Branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper
Cover 10 lb.in

Disconnect

Service disconnect (factory installed)

Disconnect Rating

200 A

Branch Breaker Rating

200 A

Service feed location

UG
OH outdoor

Bypass type

No bypass

Connections - Terminals

Plug-on neutral
