All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready

Product or Component Type

All-In-One

Range of Product

Homeline

Meter socket type

Ringed

hub type

A-L

Line Rated Current

200 A

Number of Phases

1 phase

Short-circuit current

22 kA

Mounting

Semi flush (outdoor)

Number of spaces

20

Number of circuits

40

Number of Tandem Breakers

20

Electrical connection

Lugs, line side
Lugs, service ground

Wire Size

AWG 8...AWG 2/0 (aluminium/copper) service ground
AWG 4...250 kcmil (aluminium/copper) line side

Tightening torque

Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
Service ground 50 lb.in, AWG 14...AWG 2/0, copper
Service ground 50 lb.in, AWG 12...AWG 2/0, aluminium
Branch lugs 50 lb.in, AWG 14...AWG 4, copper
Branch lugs 50 lb.in, AWG 12...AWG 2, aluminium
Branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper
Branch lugs 25 lb.in, AWG 8, aluminium/copper
Branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper
Branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper
Cover 10 lb.in

Disconnect

Service disconnect (factory installed)

Disconnect Rating

200 A

Branch Breaker Rating

200 A

Service feed location

UG
OH outdoor

Bypass type

No bypass

Product Compatibility

Solar ready

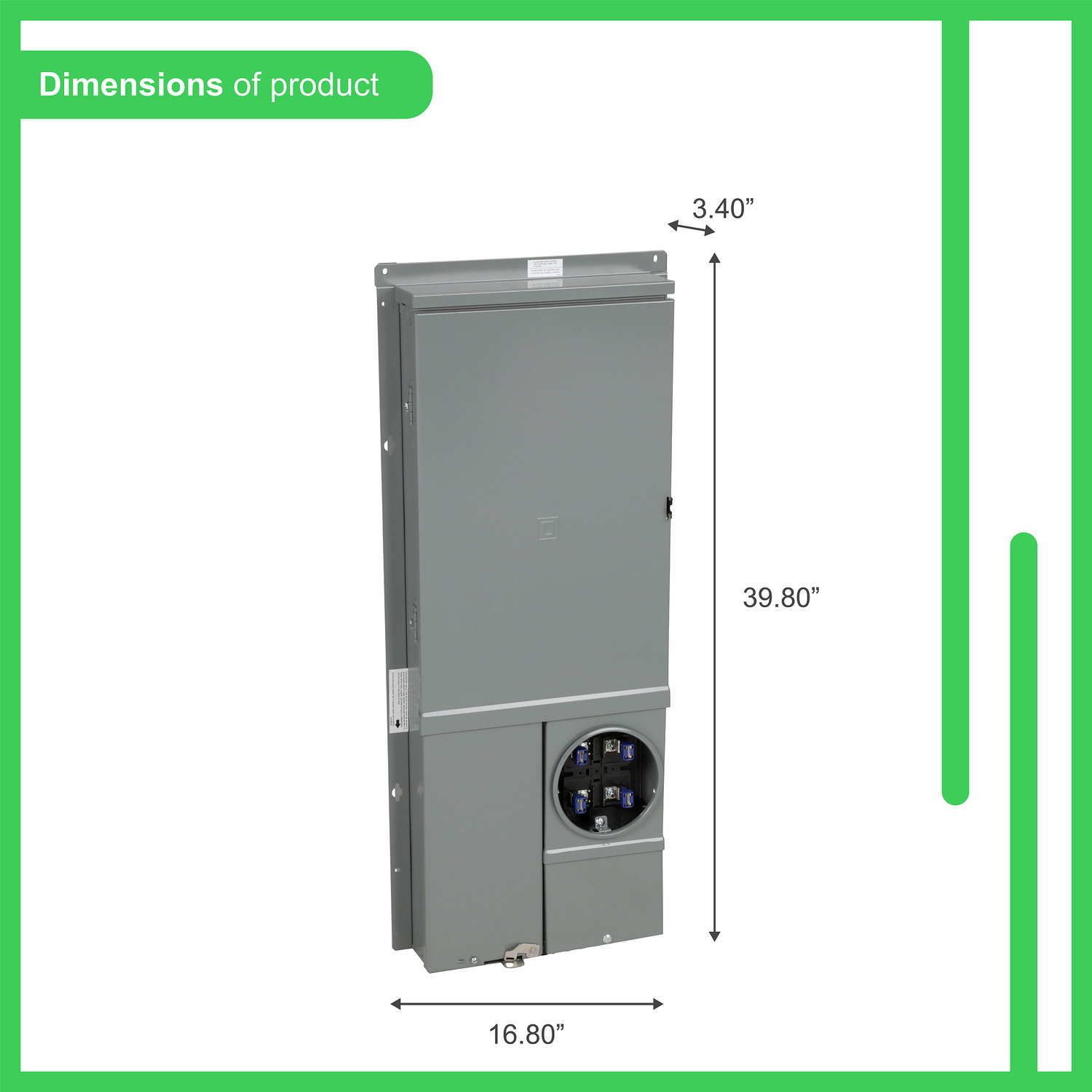

Width

16.80 in (426.72 mm)

Depth

3.40 in (86.36 mm)

Height

39.80 in (1010.92 mm)

Bus Rating

225.0 A

Category

US1DE3A00148

Discount Schedule

DE3A

GTIN

785901122265

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.50 in (19.05 cm)

Package 1 Width

17.6 in (44.7 cm)

Package 1 Length

40.90 in (103.89 cm)

Package 1 Weight

54.800 lb(US) (24.857 kg)

Unit Type of Package 2

PAL

Number of Units in Package 2

10

Package 2 Height

40.0 in (101.6 cm)

Package 2 Width

42.00 in (106.68 cm)

Package 2 Length

48.00 in (121.92 cm)

Package 2 Weight

600.5 lb(US) (272.4 kg)
