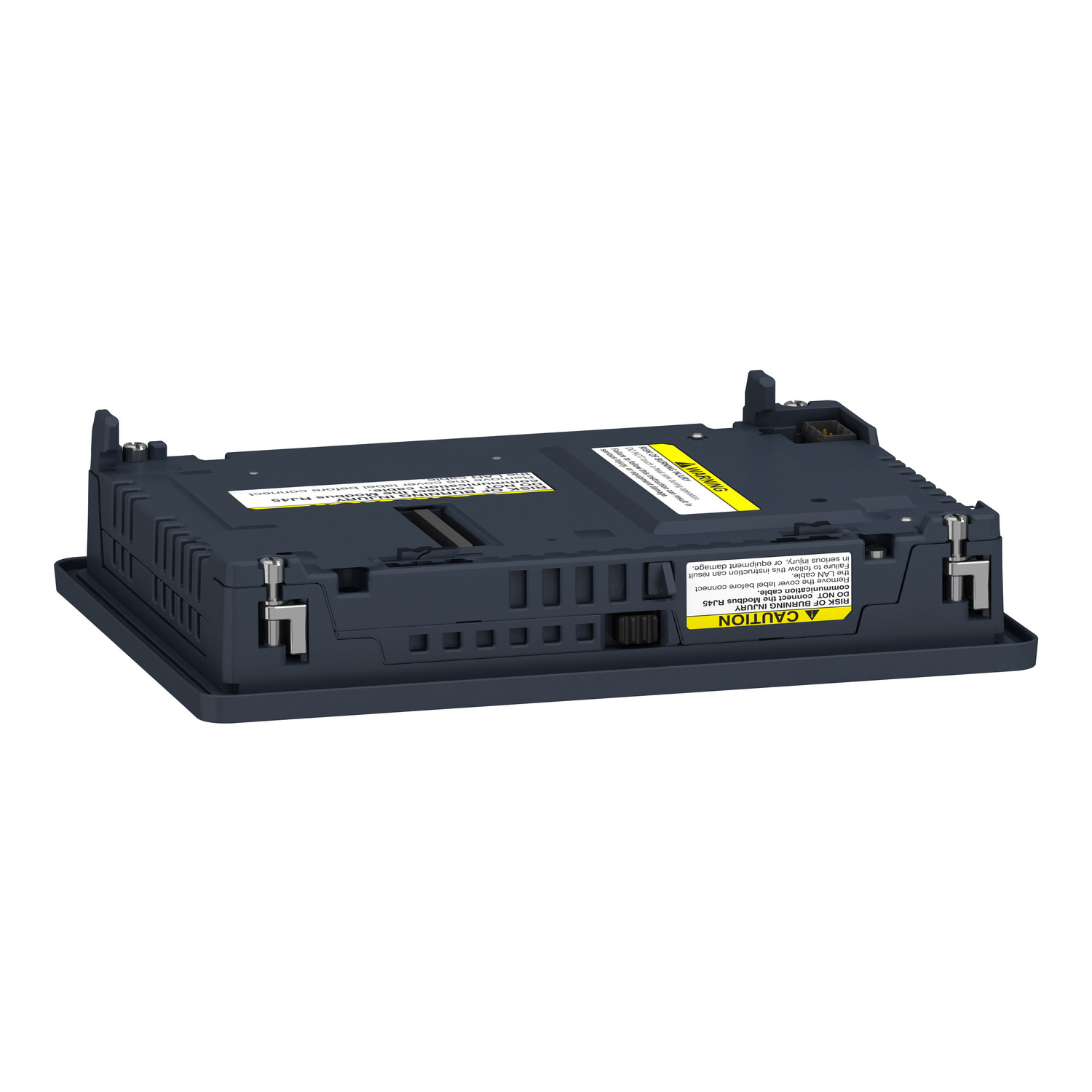

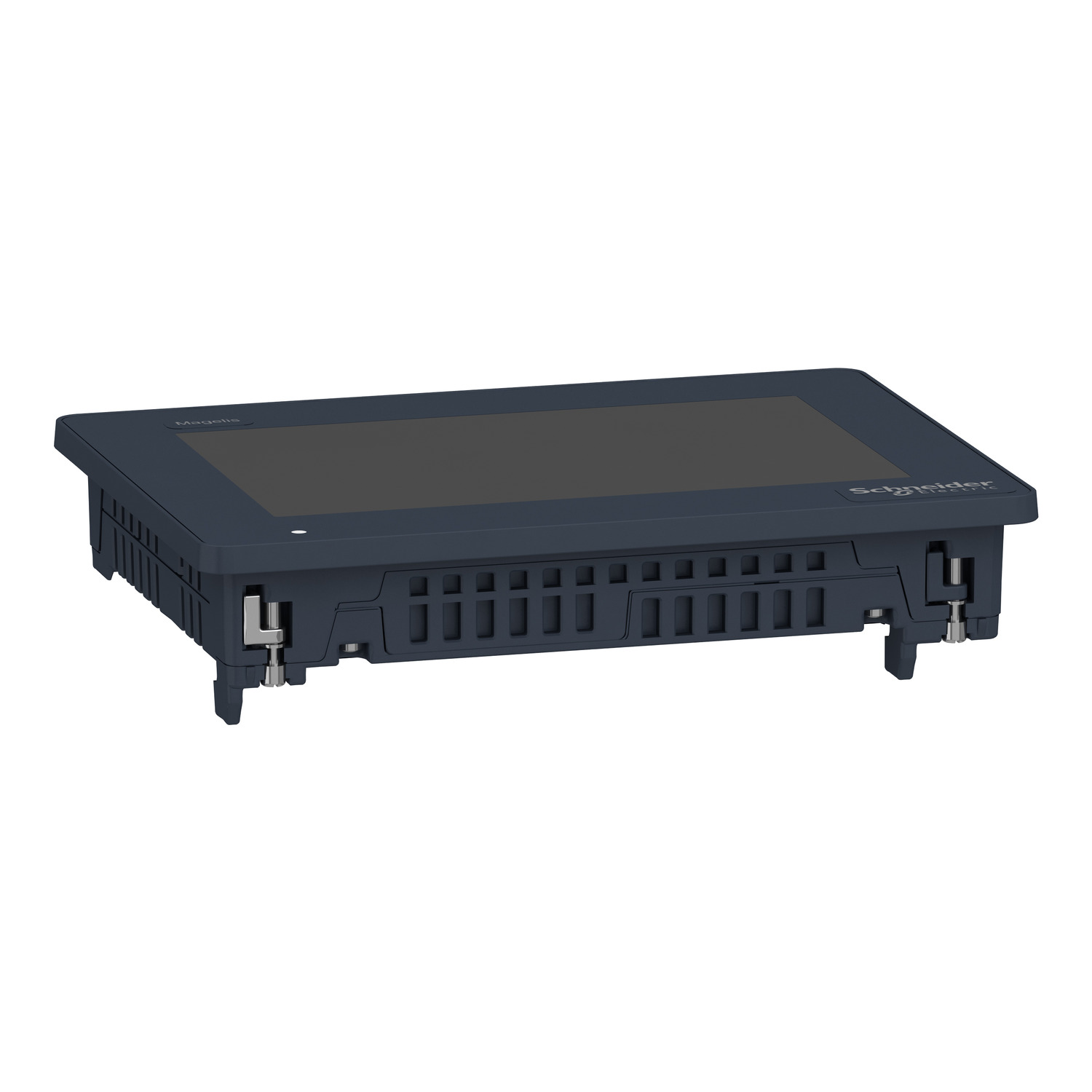

advanced touchscreen panel, Harmony GTU, 7inch wide display, 800 x 480pixels WVGA

Range of Product

Harmony GTU

Product or Component Type

Advanced touchscreen panel

Terminal type

Touchscreen display

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.8…28.8 V

Power Consumption in W

6.5 W

Inrush current

30 A

Touchscreen resolution

1024 x 1024

Pixel resolution

800 x 480

Display size

7 inch

aspect ratio

4:3

Display type

Colour TFT LCD

display resolution

800 x 480 pixels WVGA

Display colour

262144 colors

Backlight lifespan

50000 hours

Touch panel

Single touch analogue resistive

Type of cooling

Natural convection

Type of Installation

Indoor installation

Cut-out dimensions

190 (+ 1/- 0) x 135 (+ 1/- 0) mm

Width

8.02 in (203.6 mm)

Height

5.9 in (148.6 mm)

Depth

1.4 in (36 mm)

Net Weight

2.6 lb(US) (1.2 kg)

IP degree of protection

Front panel IP66
Front panel IP67

NEMA degree of protection

NEMA 4X front panel

Standards

UL 508
ANSI/ISA 12-12-01
Class I division 2 CSA C22.2 No 213
CSA C22.2 No 142
IEC 61132-2

Product certifications

CULus
RCM
CE
KC
UKCA
UKEX

Ambient air temperature for operation

32…140 °F (0…60 °C) IEC 61131-2

Ambient air temperature for storage

-4…140 °F (-20…60 °C)

Relative Humidity

10…90 % non-condensing

Operating altitude

6561.68 ft (2000 m)

Vibration resistance

3.5 mm constant amplitude 5…9 Hz) IEC 61131-2
9.8 m/s² 9…150 Hz) IEC 61131-2

Shock resistance

147 m/s²IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Category

US10MC222567

Discount Schedule

0MC2

GTIN

3606480687280

Returnability

Yes

Country of origin

US

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.3 in (13.5 cm)

Package 1 Width

8.3 in (21 cm)

Package 1 Length

10.4 in (26.5 cm)

Package 1 Weight

3.5 lb(US) (1.6 kg)

Unit Type of Package 2

S03

Number of Units in Package 2

2

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

8.33 lb(US) (3.78 kg)

Unit Type of Package 3

CAR

Number of Units in Package 3

8

Package 3 Height

13.2 in (33.5 cm)

Package 3 Width

17.9 in (45.5 cm)

Package 3 Length

21.7 in (55 cm)

Package 3 Weight

28.687 lb(US) (13.012 kg)

Warranty

18 months
