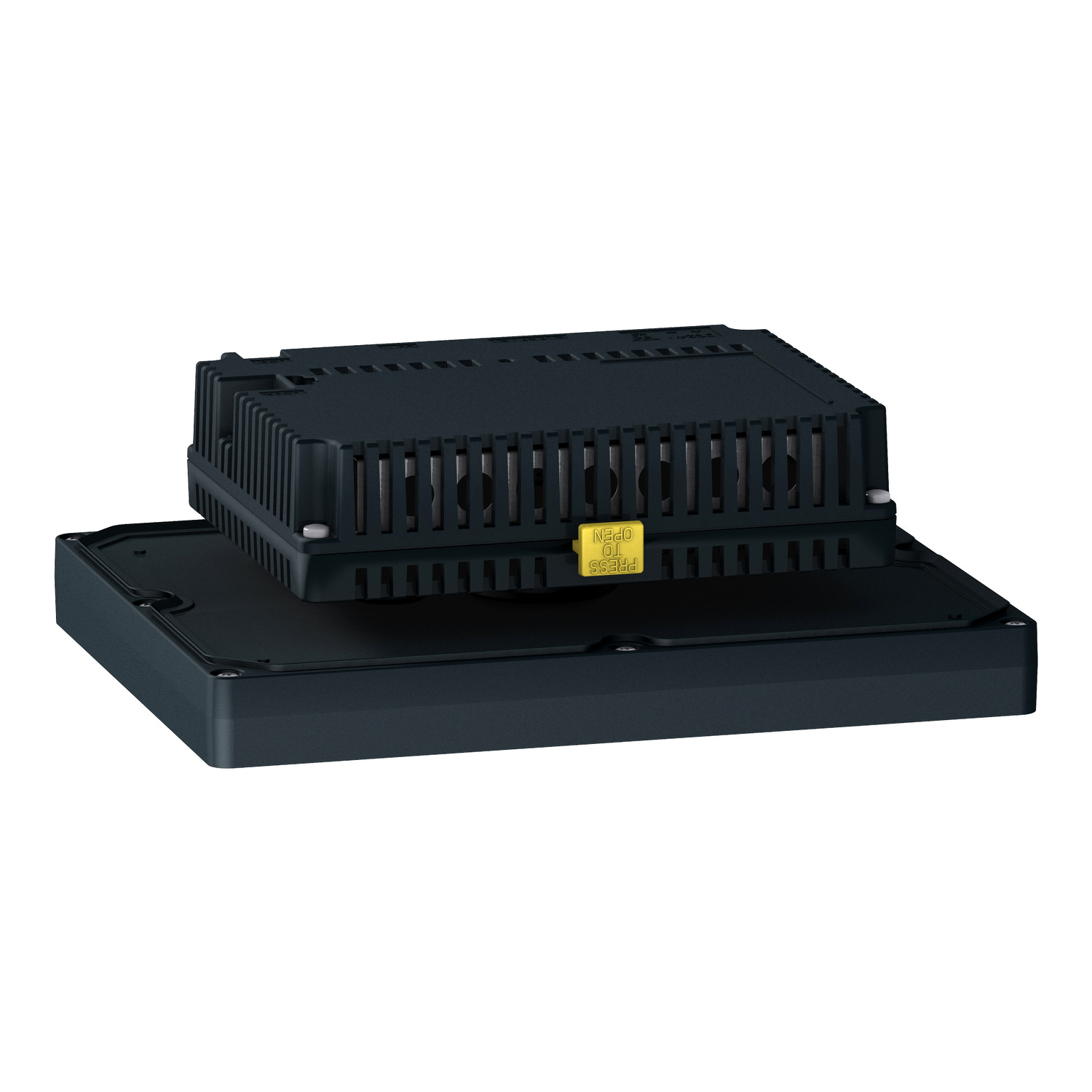

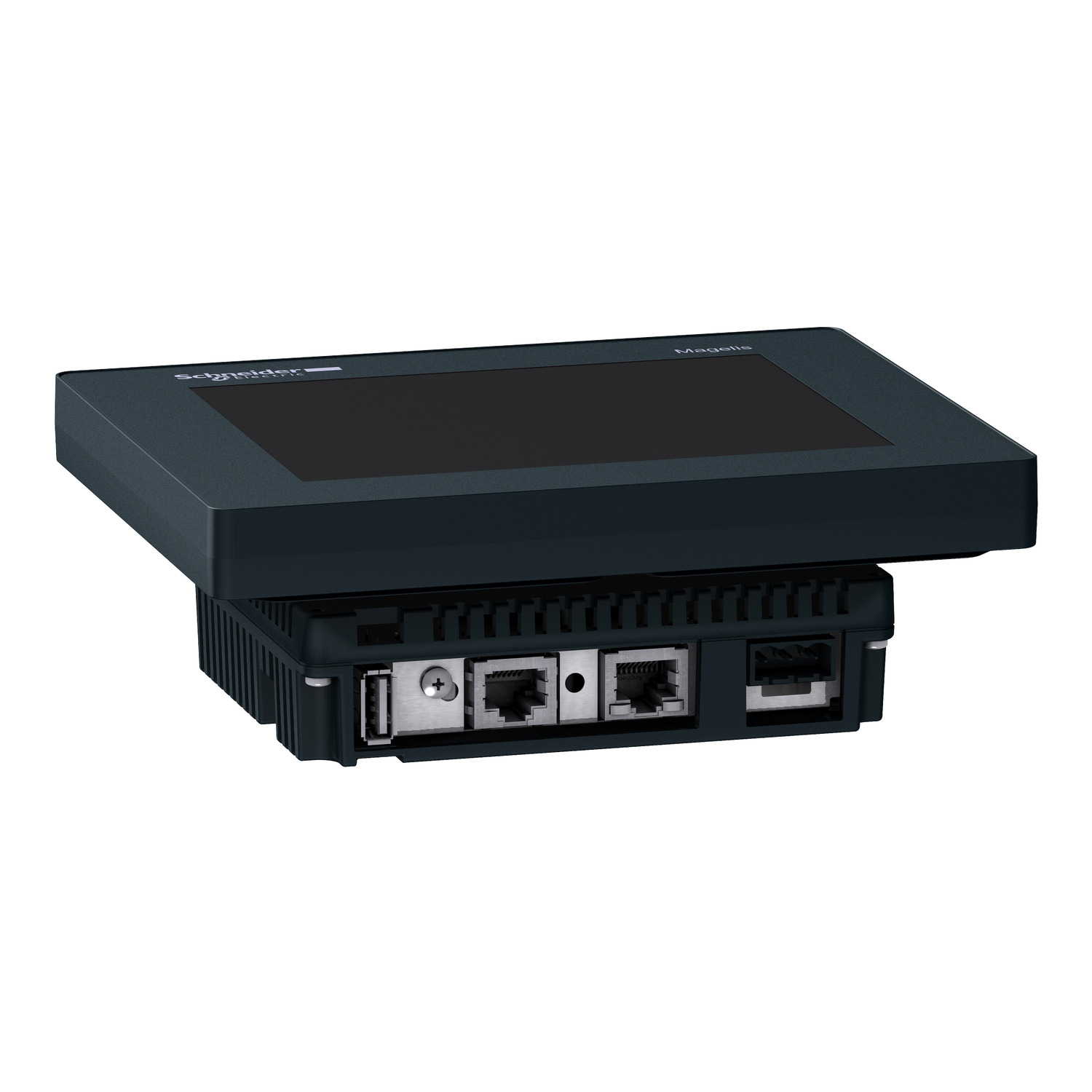

5”7 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out

Range of Product

Harmony SCU

Product or Component Type

Small touch HMI controller

Display size

5.7 inch

Display type

Backlit LED colour TFT LCD

Touch panel

Analogue

device presentation

Complete product

display resolution

320 x 240 pixels QVGA

Backlight lifespan

50000 hours 65000 colours

Brightness

16 levels via touch panel

View angle horiz x vert

60° left
60° right
40° top
60° bottom

character font

Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII
Korean
Taiwanese (traditional Chinese)

Supply

External source

[Us] rated supply voltage

24 V 20.4…28.8 V)DC

Immunity to microbreaks

10 ms

Inrush current

30 A

power consumption in W

24 W

Local signalling

No indicator

Number of pages

Limited by internal memory capacity

Software Designation

SoMachine

operating system

Harmony

Processor name

CPU RISC

Processor frequency

333 MHz

Memory description

Flash NAND, 128 MB
Internal data storage FRAM, 128 kB
Application run DRAM, 128 MB

Integrated connection type

1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s)
1 Ethernet TCP/IP - RJ45
1 USB 2.0 type mini B
1 USB 2.0 type A
CANopen master bus - SUB-D 9

Realtime clock

Built-in

Downloadable protocols

Modbus
Modbus TCP/IP
CANopen

Fixing mode

By 1 nut Ø 22 mm 1...6 mm thick panel

Enclosure Material

PC/PBT and PAA

Shock resistance

147 m/s² 11 ms on DIN rail)IEC 60068-2-27
294 m/s² 6 ms on panel mounting)IEC 60068-2-27

Vibration resistance

+/- 3.5 mm 5…9 Hz) IEC 60068-2-6
1 gn 9…150 Hz) IEC 60068-2-6

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4
Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5
Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5
Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5
Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6
Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011
Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011

Discrete input number

2 fast input (normal mode) IEC 61131-2 Type 1
6 digital input IEC 61131-2 Type 1

Discrete input voltage

24 V DC sink or source (positive/negative)

Number of common point

1 fast input (HSC mode)
1 digital input

Discrete input current

7.83 mA fast input
5 mA digital

Input impedance

4.7 kOhm
2.81 kOhm

Sensor power supply

15…28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA
15…28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA

Configurable filtering time

0 ms no filter none)
0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2))
3...12 ms integrator none/run/stop)

Maximum input frequency

100 kHz fast input (encoder mode) A/B
100 kHz fast input single phase
100 kHz fast input pulse/direction

Maximum cable distance between devices

Shielded cable <32.8 ft (10 m) fast input
Shielded cable <328.08 ft (100 m) digital input
Unshielded cable <164.04 ft (50 m) digital input

Connection pitch

0.1 in (3.5 mm)

Overvoltage protection

With

Isolation between channels and internal logic

500 V DC

Isolation between channels

None

Discrete output number

2 fast output (normal mode) source
6 digital output source

Discrete output voltage

24 V DC 19.2...28.8 V)transistor
24 V DC 5...30 V)relay
220 V AC 100...250 V)relay

Input/output number

2 fast input FI0...FI1
2 fast output FQ0...FQ1
6 digital input DI0...DI5
6 digital output DQ0...DQ5

Discrete output current

2 A 4 A)5 ms opening contact digital output
2 A 4 A)2 ms closing contact digital output
300 mA2 ms fast output (normal mode)
50 mA2 ms fast output (PWM or PTO mode)

Insulation resistance

> 10 MOhm between the I/O and internal logic
> 10 MOhm between power supply and earth

Maximum output frequency

100 kHz fast output (PTO mode)
1 kHz fast output (PWM mode)

Absolute accuracy error

+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)
1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)
+/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode)
+/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode)
+/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)

Analogue input number

2 analog input
2 RTDs

Analogue input range

0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %)
-10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm

Analogue input type

RTD - 200...600 °C 16 bitsPt 100/Pt 1000
RTD - 50...200 °C 16 bitsNi 100/Ni 1000
RTD - 200...760 °C 16 bits thermocouple J)
RTD - 240...1370 °C 16 bits thermocouple K)
RTD 0...1600 °C 16 bits thermocouple R)
RTD 200...1800 °C 16 bits thermocouple B)
RTD 0...1600 °C 16 bits thermocouple S)
RTD - 200...400 °C 16 bits thermocouple T)
RTD - 200...900 °C 16 bits thermocouple E)
RTD - 200...1300 °C 16 bits thermocouple N)

Analogue output number

2 resistive load 12 bits + sign

Analogue output range

0...20 mA/4...20 mA > 300 Ohm)open-circuit
-10...10 V/0...10 V > 2 kOhm)short-circuit

Height

5.09 in (129.4 mm)

Width

6.4 in (163 mm)

Depth

3.0008 in (76.22 mm)

Net Weight

1.770 lb(US) (0.803 kg)

Standards

FCC Class A
EN 61131-2
UL 508
IEC 61000-6-2
CSA C22.2 No 213 Class I Division 2
ANSI/ISA 12-12-01

Product Certifications

cULus 508
cULus CSA 22-2 No 142
GOST
cUL 1604 Class 1 Division 2
C-tick
KCC
UKCA
UKEX

marking

CE

Ambient Air Temperature for Operation

32…122 °F (0…50 °C)

Ambient Air Temperature for Storage

-4…140 °F (-20…60 °C)

Relative humidity

5…85 % without condensation

Operating altitude

<= 6561.68 ft (2000 m)

Storage altitude

0…32808.4 ft (0…10000 m)

Maximum pressure

800...1114 hPa

IP degree of protection

IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel)

NEMA degree of protection

NEMA 4X front panel

Pollution degree

2 IEC 60664

Environmental characteristic

Corrosive gas free

Category

US10MC222568

Discount Schedule

0MC2

GTIN

3595864175584

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.4 in (18.8 cm)

Package 1 Width

4.3 in (11 cm)

Package 1 Length

8.1 in (20.7 cm)

Package 1 Weight

3.007 lb(US) (1.364 kg)

Unit Type of Package 2

S03

Number of Units in Package 2

4

Package 2 Height

11.8 in (30 cm)

Package 2 Width

11.8 in (30 cm)

Package 2 Length

15.7 in (40 cm)

Package 2 Weight

13.148 lb(US) (5.964 kg)

Unit Type of Package 3

P12

Number of Units in Package 3

64

Package 3 Height

29.5 in (75 cm)

Package 3 Width

31.5 in (80 cm)

Package 3 Length

47.2 in (120 cm)

Package 3 Weight

299.335 lb(US) (135.776 kg)
